Siirry sivupalkkiinSiirry alaosaanDeutz-Fahr 5650-5695

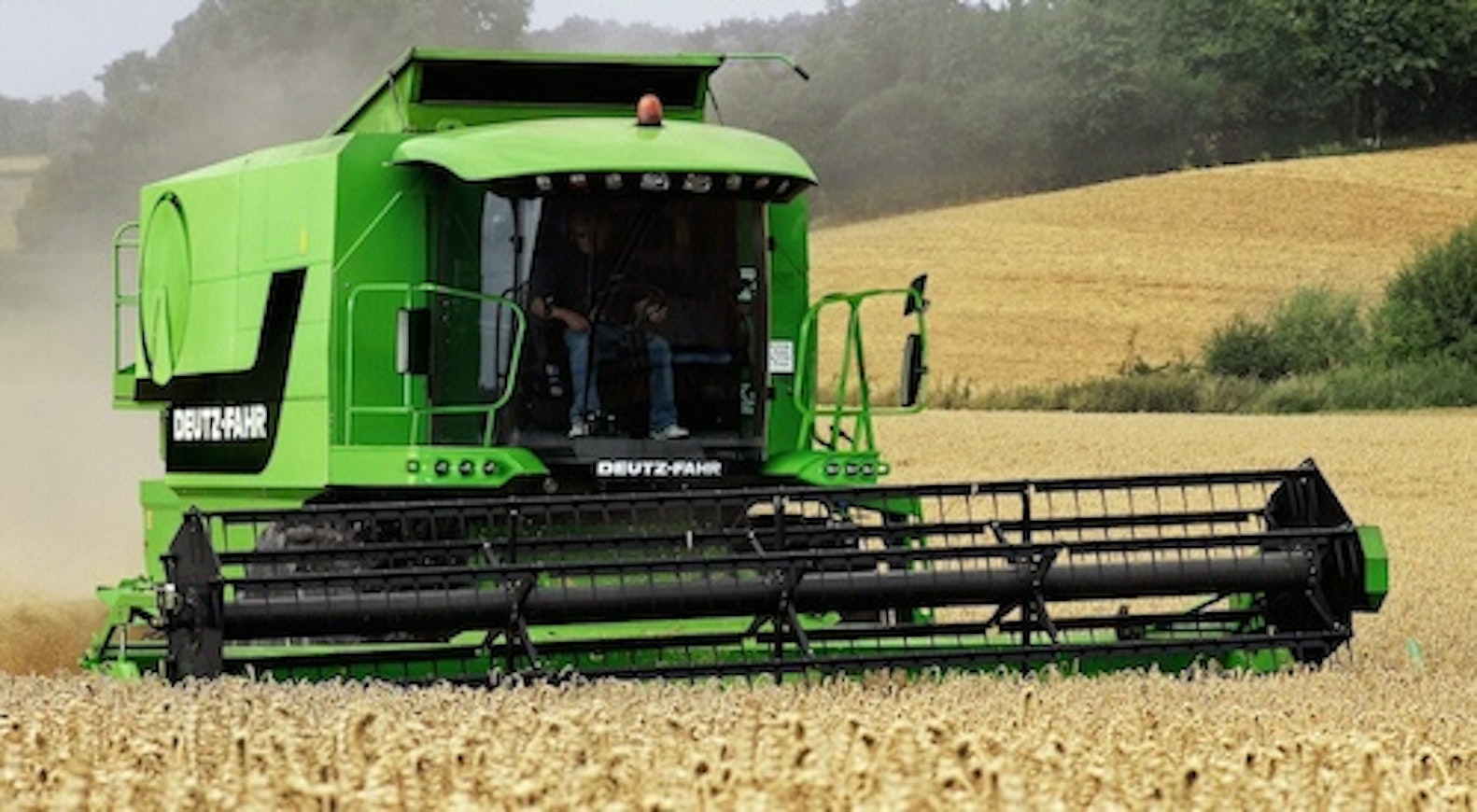

The production of the 5600 series combine harvesters was transferred to the Đuro Đaković factory in Croatia, which is partially owned by Deutz-Fahr, and 5-apron models were added to the lower end of the range. Combine production was on a small scale, and just over 100 Deutz-Fahr combines were produced annually.
The 5600 series now featured optional Balance technology, which automatically managed the 20-degree side tilt of the cutting platform and the 6-degree longitudinal tilt of the machinery. The HTS models were equipped with a straw walker.

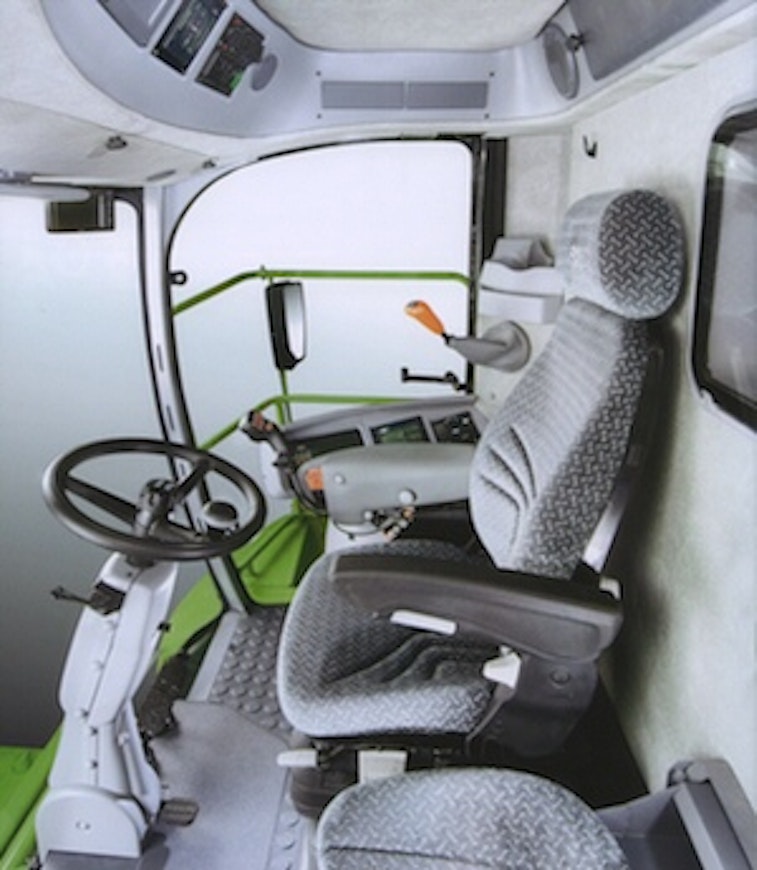

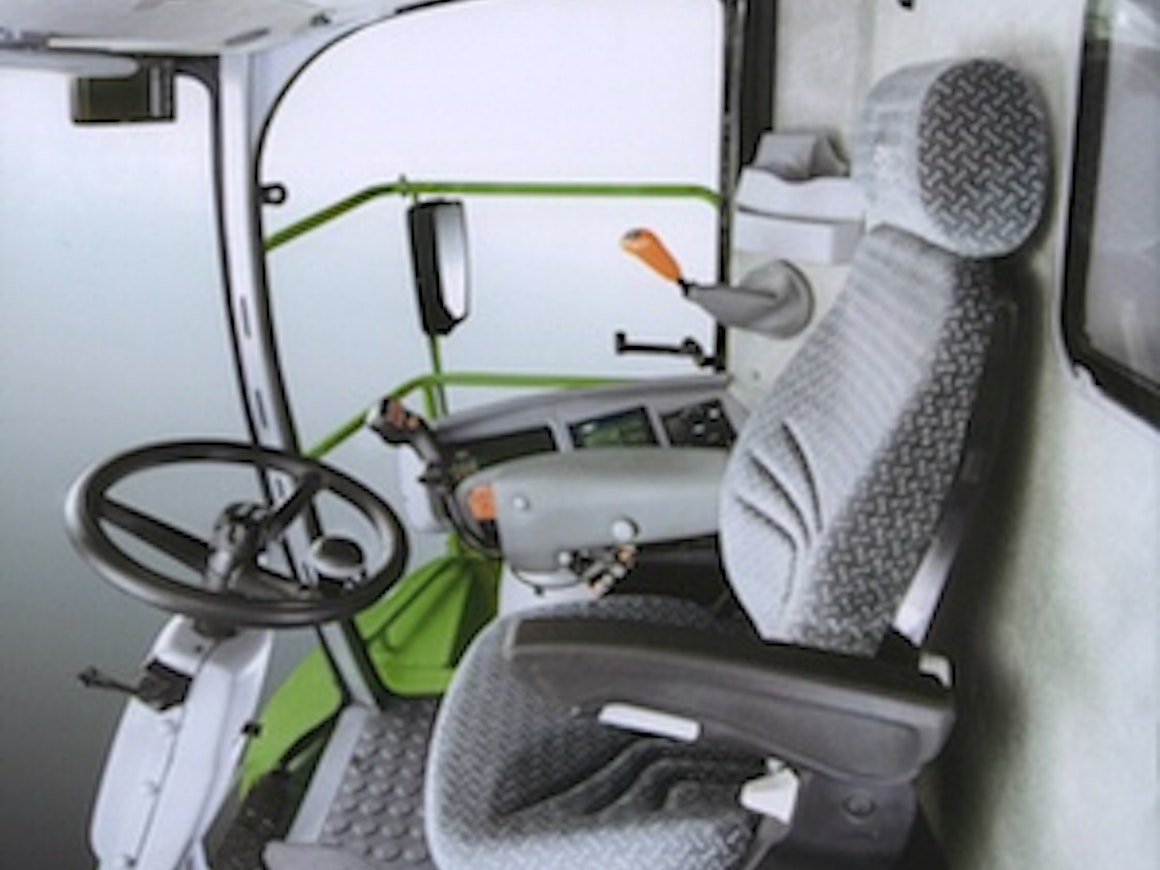

Four-valve technology engines with common-rail injection were introduced in 2007-2008. For 2009, the updated Commander Cab IV cockpit and the CCM onboard computer were introduced, replacing separate displays. Compared to competing brands, its small black-and-white displays, as well as the adjustment system, were quite basic.
This is an automated translation. Please report any issues in the translation.
| Model | Deutz-Fahr 5650 H | Deutz-Fahr 5660 HTS | Deutz-Fahr 5680 H | Deutz-Fahr 5690 HTS | Deutz-Fahr 5650 H | Deutz-Fahr 5660 H | Deutz-Fahr 5660 HTS | Deutz-Fahr 5665 HTS | Deutz-Fahr 5690 H | Deutz-Fahr 5690 HTS | Deutz-Fahr 5695 HTS |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Imported to Finland | No | No | No | No | No | No | No | No | No | No | No |
| Years | 2005-2007 | 2005-2007 | 2005-2007 | 2005-2007 | 2007-2008 | 2007-2009 | 2007-2009 | 2007-2009 | 2007-2009 | 2007-2009 | 2007-2009 |
| Engine | Deutz | Deutz | Deutz | Deutz | Deutz | Deutz | Deutz | Deutz | Deutz | Deutz | Deutz |
| Engine type | BF6M1013 | BF6M1013 | BF6M1013 | BF6M1013 | BF6M1013 | BF6M1013/ TCD 2012 | BF6M1013/ TCD 2012 | TCD 2013 L06 4V | TCD 2013 L06 4V | TCD 2013 L06 4V | TCD 2013 L06 4V |
| Displacement | 7146 cm³ | 7146 cm³ | 7146 cm³ | 7146 cm³ | 7146 cm³ | 6057 cm³ | 6057 cm³ | 7146 cm³ | 7146 cm³ | 7146 cm³ | 7146 cm³ |
| Cyl/turbo | 6 T | 6 TI | 6 TI | 6 TI | 6 TI | 6 TI | 6 TI | 6 TI | 6 TI | 6 TI | 6 TI |
| Power | 230 hp DIN | 260 hp DIN | 286 hp DIN | 313 hp DIN | 222 hp DIN | 250 hp DIN | 250 hp DIN | 310 hp DIN | 310 hp DIN | 310 hp DIN | 366 hp DIN |
| Fuel tank | 555 l | 555 l | 555 l | 555 l | 555 l | 555 l | 555 l | 555 l | 555 l | 555 l | 555 l |
| Transmission | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Gears | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Speed min-max. | 0-30 km/h | 0-30 km/h | 0-30 km/h | 0-30 km/h | 0-30 km/h | 0-30 km/h | 0-30 km/h | 0-30 km/h | 0-30 km/h | 0-30 km/h | 0-30 km/h |
| Cutting width | 480 cm | 480 cm | 540 cm | 540 cm | 480 cm | 480 cm | 480 cm | 480 cm | 540 cm | 540 cm | 540 cm |
| Cutting width, alternative | 420-630 cm | 420-630 cm | 630-720 cm | 630-720 cm | 420-630 cm | 420-630 cm | 420-630 cm | 540-720 cm | 630-720 cm | 630-720 cm | 630-720 cm |
| Threshing cyl. diameter | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm |
| Threshing cyl. width | 127 cm | 127 cm | 152 cm | 152 cm | 127 cm | 127 cm | 127 cm | 127 cm | 152 cm | 152 cm | 152 cm |
| Number of straw walkers | 5 | 5 | 6 | 6 | 5 | 5 | 5 | 5 | 6 | 6 | 6 |
| Area of walkers | 635 dm² | 560 dm² | 760 dm² | 670 dm² | 635 dm² | 635 dm² | 560 dm² | 560 dm² | 760 dm² | 670 dm² | 670 dm² |
| Lenght of walkers | 480 cm | 420 cm | 480 cm | 420 cm | 480 cm | 480 cm | 420 cm | 420 cm | 480 cm | 420 cm | 420 cm |
| Straw shieve | 232 dm² | 232 dm² | 278 dm² | 278 dm² | 232 dm² | 232 dm² | 232 dm² | 232 dm² | 278 dm² | 278 dm² | 278 dm² |
| Bottom shieve | 196 dm² | 196 dm² | 235 dm² | 235 dm² | 196 dm² | 196 dm² | 196 dm² | 196 dm² | 235 dm² | 235 dm² | 235 dm² |
| Total screening area | 528 | 528 | 632 | 632 | 528 | 528 | 528 | 528 | 632 | 632 | 632 |
| Overall lenght | 1089 cm | 1089 cm | 1089 cm | 1089 cm | 1089 cm | 1089 cm | 1089 cm | 1089 cm | 1089 cm | 1089 cm | 1089 cm |
| Overall width | 512 cm | 512 cm | 573 cm | 573 cm | 512 cm | 512 cm | 512 cm | 512 cm | 573 cm | 573 cm | 573 cm |
| Width without header | 329 cm | 329 cm | 329 cm | 329 cm | 329 cm | 329 cm | 329 cm | 329 cm | 329 cm | 329 cm | 329 cm |
| Height with cabin | 399 cm | 399 cm | 399 cm | 399 cm | 399 cm | 399 cm | 399 cm | 399 cm | 399 cm | 399 cm | 399 cm |
| Weight with cabin | 11740 kg | 11740 kg | 12240 kg | 12240 kg | 11740 kg | 11740 kg | 11740 kg | 11740 kg | 12240 kg | 12240 kg | 12240 kg |
| Weight without header | 10570 kg | 10570 kg | 11070 kg | 11070 kg | 10570 kg | 10570 kg | 10570 kg | 10570 kg | 11070 kg | 11070 kg | 11070 kg |
| Grain tank | 75 hl | 75 hl | 85 hl | 85 hl | 75 hl | 75 hl | 75 hl | 75 hl | 85 hl | 85 hl | 85 hl |
| Unl. height | 431 cm | 431 cm | 431 cm | 431 cm | 431 cm | 431 cm | 431 cm | 431 cm | 431 cm | 431 cm | 431 cm |
| Tyres front (Finland) | 650/75R32 | 650/75R32 | 650/75R32 | 650/75R32 | 650/75R32 | 650/75R32 | 650/75R32 | 650/75R32 | 650/75R32 | 650/75R32 | 650/75R32 |
| Tyres front, alternative | 800/65R32 | 800/65R32 | 800/65R32 | 800/65R32 | 800/65R32 | 800/65R32 | 800/65R32 | 800/65R32 | 800/65R32 | 800/65R32 | 800/65R32 |
| Tyres rear (Finland) | 405/70R20 | 405/70R20 | 405/70R20 | 405/70R20 | 405/70R20 | 405/70R20 | 405/70R20 | 405/70R20 | 405/70R20 | 405/70R20 | 405/70R20 |
| Tyres rear, alternative | 500/60-22.5 | 500/60-22.5 | 500/60-22.5 | 500/60-22.5 | 500/60-22.5 | 500/60-22.5 | 500/60-22.5 | 500/60-22.5 | 500/60-22.5 | 500/60-22.5 | 500/60-22.5 |
| Reel forward/backw. adjustment | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Reel speed adjustment | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Threshing cyl. speed adjustment | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Bottom sieve | adj. | adj. | adj. | adj. | adj. | adj. | adj. | adj. | adj. | adj. | adj. |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Reverser | x | x | x | x | x | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x | x | x | x | x | x |
| Heating | x | x | x | x | x | x | x | x | x | x | x |
| Grain loss indicator | x | x | x | x | x | x | x | x | x | x | x |
| Floating cutting platform | x | x | x | x | x | x | x | x | x | x | x |
| Type of cutting platform floating | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper |
| 2. cyl. diameter | - | 59 cm | - | 59 cm | - | - | 59 cm | 59 cm | - | 59 cm | 59 cm |
