At the 2003 Agritechnica, Sampot painted in Deutz-Fahr colors were introduced. The Deutz-Fahr combine factory had been shut down, and the lineup included only the large 5600 series, which was manufactured in Denmark. The collaboration with Sampo sought to complement the lower end of the lineup. The 5500 series corresponded to the 3000 series Sampot. The main difference was the larger grain tanks of the Deutz-Fahrs.

The 5500 series was short-lived, as D-F introduced smaller models within their own 5600 series.

This is an automated translation. Please report any issues in the translation.

Deutz-Fahr 5545 H

malli

hinta (sis. alv)

Imported to Finland

Years

Engine

Engine type

moottorin merkki ja malli

turbo

teho

iskutilavuus

sylinterien lukumäärä

moottorin sijainti

polttoainesäiliön tilavuus

ajovoimansiirron tyyppi

nopeusalueiden lukumäärä

neliveto

työleveys

leikkuuleveys

leikkuupöydän korkeuden säätö

syöttöruuvin harjan etäisyys terän sormien kärjestä

terän korkeus, minimi

terän korkeus, maksimi

leikkuupöydän korkeuden osoitin

säätö korkeussuunnassa

säätö pituussuunnassa

nopeuden säätö

puintikelojen lukumäärä

varstojen lukumäärä

kelojen leveys

kelojen nopeus, maksimi

kelojen nopeuden säätötapa

varstasiltojen lukumäärä

siltojen pituudet (varstojen ulkoreunasta mitaten)

puintivälin säätö

puintivälin toteaminen ja mittaus

kohlimien lukumäärä

kohlimien leveys

kohlimien pituus

kohlimien pinta-ala

ruumenpinta-ala

siemenpinta-ala

eturaideväli

akseliväli

pituus kuljetusasennossa ilman pöytää

korkeus (ylimp. kiint. pisteeseen)

leveys, työasennossa

leveys, kuljetusasennossa

maavara koneen alla (minimi)

viljasäiliön tilavuus

viljasäiliön tilavuus lisälaidoin

paino työkunnossa (polttoainesäiliöt täynnä)

jarrut

laonnostimien lukumäärä

ruumenseulan tyyppi

työvalojen lukumäärä

työvalojen tyyppi

teho, kw/suurimman tehon kierrosluku, r/min

suurimman tehon kierrosluku

iskutilavuus, cm3/sylinterien lukumäärä, kpl

nopeus, km/h

työleveys (jakol. kärjestä mitattuna), cm/leikkuuleveys, cm

terän alin...ylin taso (korkeus maasta), cm

laonnostokelan säätöalue, r/min

puintikela 1 halkaisija

puintikela 2 halkaisija

puintikela 3 halkaisija

puintikelojen halkaisijat, cm

puintikelojen nopeuden säätö

varstojen 1 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen 2 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen 3 tehollinen pinta-ala (kaareva pituus x kelan leveys)

varstojen teholliset pinta-alat (kaareva pit. x kelan lev.), dm2

kohlintilan leveys x kohlinten pituus, cm

renkaat edessä

renkaat takana

Displacement

esipuhdistaja

Cyl/turbo

läpimitta (piikk.kärk.)

Power

Alternative hp

Fuel tank

Transmission

Gears

Speed min-max.

Cutting width

Cutting width, alternative

myynti

takaraideväli, cm

Reel diameter

Header length

Threshing cyl. diameter

2. cyl. diameter

Threshing cyl. width

Number of straw walkers

Area of walkers

Lenght of walkers

Straw shieve

päästöluokka

Deutz-Fahr 5565 H

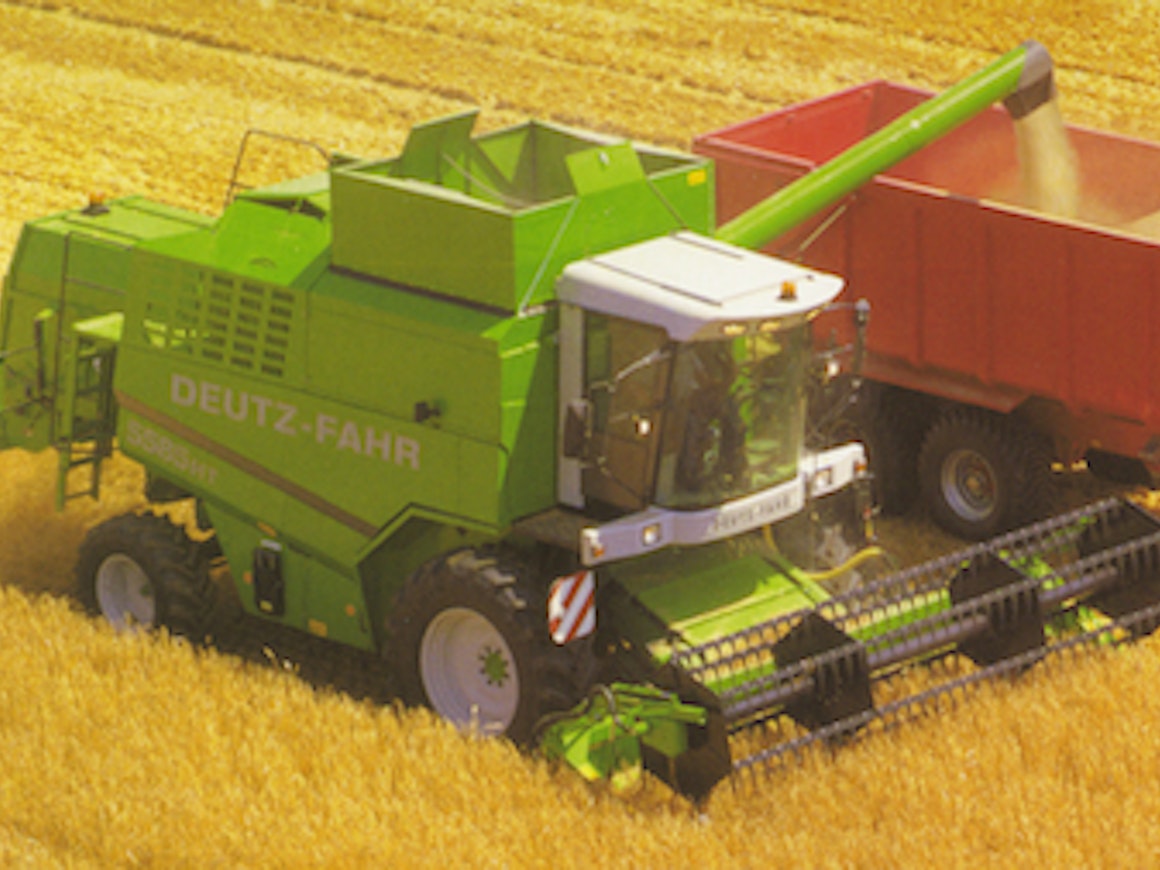

Deutz-Fahr 5585 HT

Deutz-Fahr 5545-5585

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Deutz-Fahr 5545 H	Deutz-Fahr 5565 H	Deutz-Fahr 5585 HT
Imported to Finland	No	No	No
Years	2003-06	2003-06	2003-06
Engine	SisuDiesel	SisuDiesel	SisuDiesel
Engine type	66ET	66ETA	74ETA
Displacement	6600 cm³	6600 cm³	7400 cm³
Cyl/turbo	6 T	6 TI	6 TI
Power	175 hp DIN	200 hp DIN	250 hp DIN
Alternative hp	200 hp	220 hp	220 hp
Fuel tank	350 l	350 l	450 l
Transmission	hydr.	hydr.	hydr.
Gears	3	3	3
Speed min-max.	0-25 km/h	0-25 km/h	0-25 km/h
Cutting width	450 cm	510 cm	510 cm
Cutting width, alternative	420-510 cm	420-570 cm	420-570 cm
Reel diameter	105 cm	105 cm	105 cm
Header length	51 cm	51 cm	51 cm
Threshing cyl. diameter	50 cm	50 cm	50 cm
Threshing cyl. width	133 cm	133 cm	133 cm
Number of straw walkers	6	6	6
Area of walkers	580 dm²	630 dm²	630 dm²
Lenght of walkers	375 cm	417 cm	417 cm
Straw shieve	250 dm²	250 dm²	250 dm²
Bottom shieve	160 dm²	160 dm²	160 dm²
Total screening area	410	410	410
Overall lenght	900 cm	900 cm	940 cm
Overall width	480 cm	540 cm	540 cm
Width without header	340 cm	340 cm	340 cm
Height with cabin	395 cm	395 cm	395 cm
Weight with cabin	11230 kg	11700 kg	12600 kg
Grain tank	65 hl	65 hl	81 hl
Unl. height	400 cm	400 cm	400 cm
Tyres front (Finland)	650/65R38	650/65R38	650/65R38
Tyres front, alternative	800/65R32	800/65R32	800/65R32
Tyres rear (Finland)	380/70R24	380/70R24	380/70R24
Tyres rear, alternative	480/65R24	480/65R24	480/65R24
Reel forward/backw. adjustment	elec.	hydr.	hydr.
Reel speed adjustment	elec.	hydr.	hydr.
Threshing cyl. speed adjustment	hydr.	hydr.	hydr.
Bottom sieve	adj.	adj.	adj.
Brakes	mech. shoe	mech. shoe	mech. shoe
Reverser	x	x	x
Air conditioning	x	x	x
Heating	x	x	x
Cutting platform lateral tilt	x	x	x
Type of cutting platform floating	gas damper	gas damper	gas damper
Autom. control of cutting height	-	x	x
2. cyl. diameter	-	-	40 cm
