Siirry sivupalkkiinSiirry alaosaanValtra T132-T202 Versu/Direct






Here is the translation of the text to English:

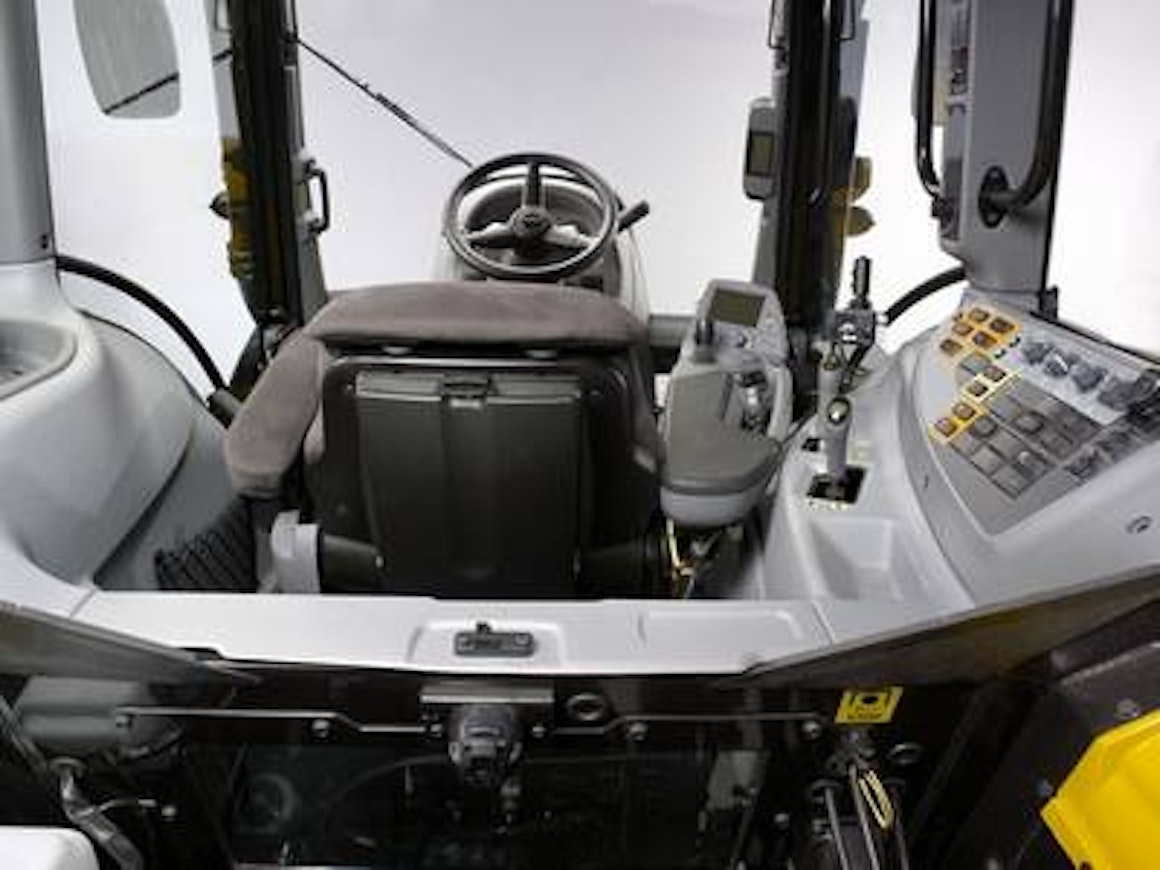

The Versu and Direct models, introduced in the fall of 2008 and entering production in the spring of 2009, had the number two as the last digit in their model numbers. The model numbering was somewhat confusing compared to other T-series models, as the figure was 10 steps higher than that of the equally powerful basic model. In terms of appearance, there were a few additional embossed lines compared to the basic models. The Versu and Direct models came standard with 115 l/min load-sensing hydraulics, with an optional new 160 l/min pump (standard on the T202). The lifting capacity was 8,100–8,500 kg. The cab was otherwise similar to the Advance models, but the buttons on the side panel were grouped differently. The range shift was electro-hydraulic.
The Versu transmission had 6 ranges, each with 5 quick shifts. The Direct model had four ranges (0–8 km/h, 0–15 km/h, 0–26 km/h, and 0–40 or 50 km/h). This allowed the hydraulic unit to operate at each driving range (0–100%), with smaller ranges providing better throttle response. Each range had two speeds with fully mechanical drive. For starting off, the overrunning clutch carrier of the planetary gearset is hydraulically braked: the slower the carrier rotates, the more mechanical the drive. Thanks to a separate direction changer, efficiency was the same forwards and backwards. Additionally, a power take-off was available. The Direct model’s accelerator pedal changed functions depending on the driving mode (speed, throttle/speed, throttle pedal). Additionally, the speed control had cruise control memory settings. The Direct model also featured a special function as standard to maintain speed by increasing engine RPM if the hydraulics required a lot of power. The hydraulic and transmission oils were separate.
This is an automated translation. Please report any issues in the translation.
| Model | Valtra T132 Versu | Valtra T152 Versu | Valtra T162e Versu | Valtra T172 Versu | Valtra T182 Versu | Valtra T202 Versu | Valtra T132 Direct | Valtra T152 Direct | Valtra T162 Direct | Valtra T172 Direct | Valtra T182 Direct | Valtra T202 Direct |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer name | Valtra | Valtra | Valtra | Valtra | Valtra | Valtra | Valtra | Valtra | Valtra | Valtra | Valtra | Valtra |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 2009-11 | 2009-11 | 2009-11 | 2009-11 | 2009-11 | 2009-12 | 2009-11 | 2009-11 | 2009-11 | 2009-11 | 2009-11 | 2009-12 |
| Engine model | 66CTA | 66CTA | 66CTA | 66CTA | 74CTA | 74CTA | 66CTA | 66CTA | 66CTA | 66CTA | 74CTA | 74CTA |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI |
| Displacement | 6598 cm³ | 6598 cm³ | 6598 cm³ | 6598 cm³ | 7368 cm³ | 7368 cm³ | 6598 cm³ | 6598 cm³ | 6598 cm³ | 6598 cm³ | 7368 cm³ | 7368 cm³ |
| Bore x stroke | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×134 mm | 108×134 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×134 mm | 108×134 mm |
| Rated power | - | - | - | - | - | - | - | - | - | - | - | - |
| Max power | - | - | - | - | - | - | - | - | - | - | - | - |
| Torque | - | - | - | - | - | - | - | - | - | - | - | - |
| Gears | 30+30 | 30+30 | 30+30 | 30+30 | 30+30 | 30+30 | 4+4 | 4+4 | 4+4 | 4+4 | 4+4 | 4+4 |
| Synchronized gears | 30+30 | 30+30 | 30+30 | 30+30 | 30+30 | 30+30 | 4+4 | 4+4 | 4+4 | 4+4 | 4+4 | 4+4 |
| Powershift gears | 5-step | 5-step | 5-step | 5-step | 5-step | 5-step | stepless | stepless | stepless | stepless | stepless | stepless |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 0,6-40/50 | 0,6-40/50 | 0,6-40 | 0,6-40/50 | 0,6-40/50 | 0,6-40/50 | 0,6-40/50 | 0,6-40/50 | 0,6-40/50 | 0,6-40/50 | 0,6-40/50 | 0,6-40/50 |
| Max. speed | 43 (50) km/h | 43 (50) km/h | 40 km/h | 43 (50) km/h | 43 (50) km/h | 43 (50) km/h | 43 (50) km/h | 43 (50) km/h | 43 (50) km/h | 43 (50) km/h | 43 (50) km/h | 43 (50) km/h |
| Hydr. flow l/min | 115 (160) l/min | 115 (160) l/min | 115 (160) l/min | 115 (160) l/min | 115 (160) l/min | 160 l/min | 115 (160) l/min | 115 (160) l/min | 115 (160) l/min | 115 (160) l/min | 115 (160) l/min | 160 l/min |
| Hydraulic pressure | 205 bar | 205 bar | 205 bar | 205 bar | 205 bar | 205 bar | 205 bar | 205 bar | 205 bar | 205 bar | 205 bar | 205 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 8100 kg | 8100 kg | 8100 kg | 8100 kg | 8500 kg | 8500 kg | 8100 kg | 8100 kg | 8100 kg | 8100 kg | 8500 kg | 8500 kg |
| PTO speeds | 540/1000 | 540/1000 | 750/1000 | 540/1000 | 750/1000 | 750/1000 | 540/1000 | 540/1000 | 750/1000 | 540/1000 | 750/1000 | 750/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 11.2 | 11.2 | 11.2 | 11.2 | 11.2 | 11.2 | 11.2 | 11.2 | 11.2 | 11.2 | 11.2 | 11.2 |
| Front tyres 4WD | 16.9R28 | 16.9R28 | 460/85R30 | 460/85R30 | 460/85R30 | 460/85R30 | 16.9R28 | 16.9R28 | 460/85R30 | 460/85R30 | 460/85R30 | 460/85R30 |
| Rear tyres 4WD | 20.8R38 | 20.8R38 | 20.8R42 | 20.8R42 | 20.8R42 | 20.8R42 | 20.8R38 | 20.8R38 | 20.8R42 | 20.8R42 | 20.8R42 | 20.8R42 |
| Weight 4WD | 5860 kg | 5860 kg | 6090 kg | 6090 kg | 6090 kg | 6090 kg | 5860 kg | 5860 kg | 6090 kg | 6090 kg | 6090 kg | 6090 kg |
| Height with cab | 299 cm | 299 cm | 305 cm | 305 cm | 305 cm | 305 cm | 299 cm | 299 cm | 305 cm | 305 cm | 305 cm | 305 cm |
| Length (2WD/4WD) | 513 cm | 513 cm | 513 cm | 515 cm | 515 cm | 515 cm | 515 cm | 515 cm | 515 cm | 515 cm | 515 cm | 515 cm |
| Wheelbase (2WD/4WD) | 275 cm | 275 cm | 275 cm | 275 cm | 275 cm | 275 cm | 275 cm | 275 cm | 275 cm | 275 cm | 275 cm | 275 cm |
| Fuel tank | 285 l | 285 l | 285 l | 285 l | 285 l | 285 l | 285 l | 285 l | 285 l | 285 l | 285 l | 285 l |
| Cab noise level | 68 dB | 68 dB | 68 dB | 68 dB | 68 dB | 68 dB | 68 dB | 68 dB | 68 dB | 68 dB | 68 dB | 68 dB |
| Solid cab | x | x | x | x | x | x | x | x | x | x | x | x |
| Diff. lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock |
| Autom. differential locks | x | x | x | x | x | x | x | x | x | x | x | x |
| Air suspension seat | x | x | x | x | x | x | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x | x | x | x | x | x | x |
