Siirry sivupalkkiinSiirry alaosaanValtra N92-N141

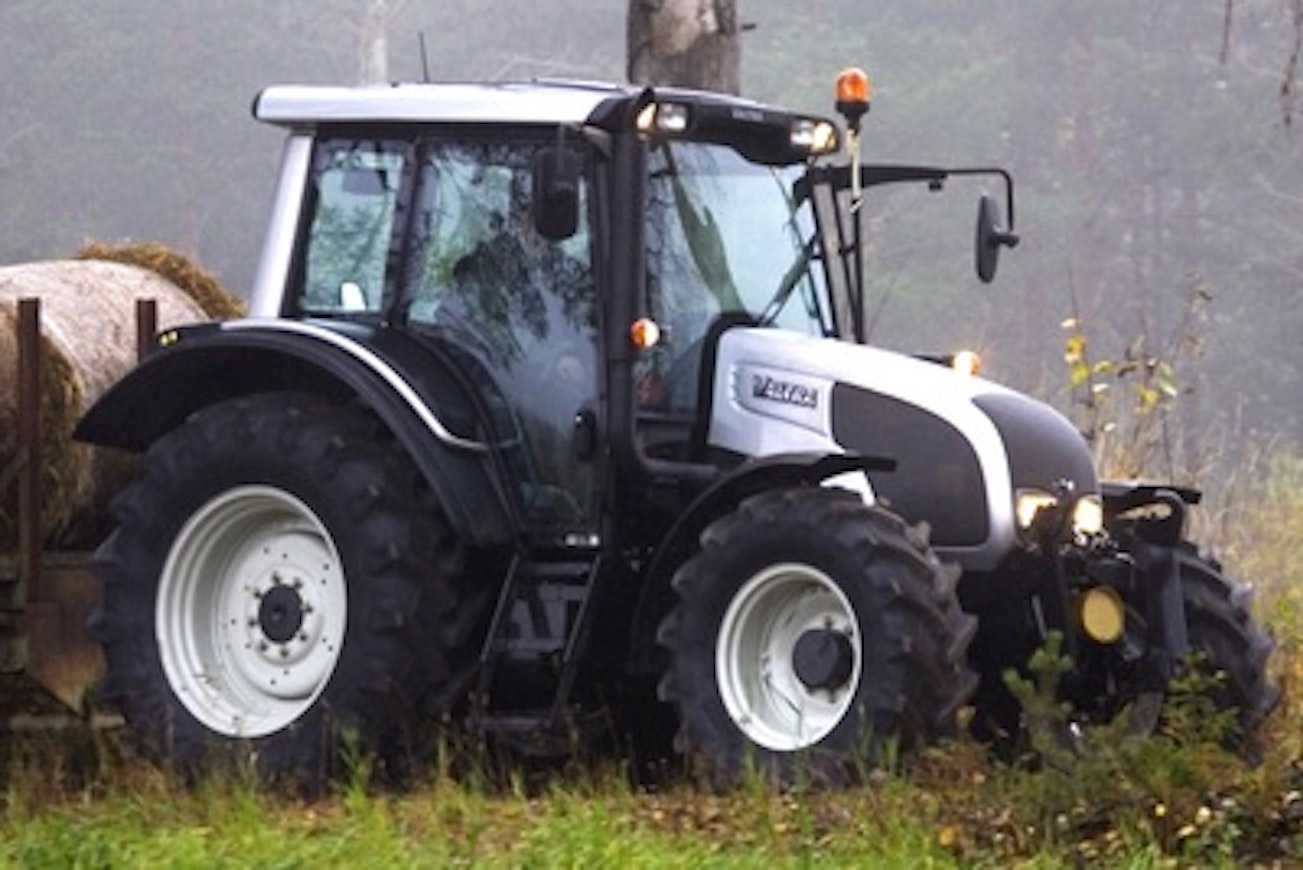

The N-series received a good reception among buyers. In the autumn of 2007, it was time for updates. The most significant of these was the introduction of two new smaller models. The N92 replaced the N91, and the N82 was positioned below it. The smaller models combined the transmission and cabin of the N-series with the front end of the A-series. The engines of the N82 and N92 were still equipped with mechanical injection pumps, whereas the other models had electronically controlled common rail engines. The N82 and N92 were always equipped as HiTech models in terms of features. The load capacity of the front axle, originating from the A-series, was 3,100 kg, while in other models it was 4,000 kg. The weight was only 200 kg less than in the larger models. Due to smaller lifting cylinders, the lifting capacity was 4,000 kg. In some countries, a lifting capacity of 5,800 kg was also offered for the smaller models instead of the 7,700 kg standard in Finland.
From the N101 upwards, the model range was standardized so that the external dimensions of all models now matched those of the largest models. The turning circle was stated as 9.4 meters instead of the previous 8.9 meters. Cab suspension was now also available for the HiTech models.
This is an automated translation. Please report any issues in the translation.
| Model | Valtra N82 | Valtra N92 | Valtra N101 | Valtra N111e | Valtra N121 | Valtra N141 |
|---|---|---|---|---|---|---|
| Manufacturer name | Valtra | Valtra | Valtra | Valtra | Valtra | Valtra |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 2007-12 | 2007-12 | 2007-11 | 2007-11 | 2007-11 | 2007-11 |
| Engine model | 44DTA | 44DTA | 44CTA | 44CWA | 44CWA | 49CWA |
| Cyl/Turbo/Intercooler | 4TI | 4TI | 4TI | 4TI | 4TI | 4TI |
| Displacement | 4399 cm³ | 4399 cm³ | 4399 cm³ | 4399 cm³ | 4399 cm³ | 4912 cm³ |
| Bore x stroke | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×134 mm |
| Rated power | - | - | - | - | - | - |
| Torque | - | - | - | - | - | - |
| Gears | 36+36 | 36+36 | 36+36 | 36+36 | 36+36 | 36+36 |
| Synchronized gears | 36+36 | 36+36 | 36+36 | 36+36 | 36+36 | 36+36 |
| Powershift gears | 3-step | 3-step | 3-step | 3-step | 3-step | 3-step |
| Reverser | hydr. | hydr. | hydr. (C: mech.) | hydr. | hydr. | hydr. |
| Speeds in km/h | 0,6-37,5 | 0,6-37,5 | 0,5-36,1 | 0,6-39,4 | 0,6-38,4/48,1 | 0,6-38,4/48,1 |
| Max. speed | 40 km/h | 40 km/h | 38 km/h | 40 km/h | 40 (50) km/h | 40 (50) km/h |
| Hydr. flow l/min | 73 l/min | 73 l/min | 73 l/min | 76, Adv. 115 l/min | 73, Adv. 115 l/min | 73, Adv. 115 l/min |
| Hydraulic pressure | 196 bar | 196 bar | 196 bar | 196, Adv. 205 bar | 196, Adv. 205 bar | 196, Adv. 205 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 4000 kg | 4000 kg | 7700 kg | 7700 kg | 7700 kg | 7700 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 750/1000 | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 9 | 9 | 9.4 | 9.4 | 9.4 | 9.4 |
| Front tyres 4WD | 14.9R24 | 14.9R24 | 14.9R24 | 14.9R28 | 14.9R28 | 14.9R28 |
| Rear tyres 4WD | 18.4R34 | 18.4R34 | 18.4R34 | 18.4R38 | 18.4R38 | 18.4R38 |
| Weight 4WD | 4650 kg | 4650 kg | 4850 kg | 4950 kg | 4950 kg | 4950 kg |
| Height with cab | 276 cm | 276 cm | 283 cm | 288 Adv. 295 cm | 288 Adv. 295 cm | 288 Adv. 295 cm |
| Length (2WD/4WD) | 432 cm | 432 cm | 450 cm | 453 cm | 453 cm | 453 cm |
| Wheelbase (2WD/4WD) | 254 cm | 254 cm | 257 cm | 257 cm | 257 cm | 257 cm |
| Fuel tank | 220 l | 220 l | 220 l | 220 l | 220 l | 220 l |
| Cab noise level | 73 dB | 73 dB | 71.5 dB | 71,5 Adv. 70,7 dB | 71,5 Adv. 71 dB | 71,5 Adv. 71 dB |
| Solid cab | x | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock | disc lock |
| Autom. differential locks | x | x | x | x | x | x |
| Max power | - | - | - | - | - | - |
| Air suspension seat | - | - | - | - | Adv. | x |
| Air conditioning | - | - | - | - | - | x |
