Siirry sivupalkkiinSiirry alaosaanValmet 500-1100






Here is the translation of the provided text:

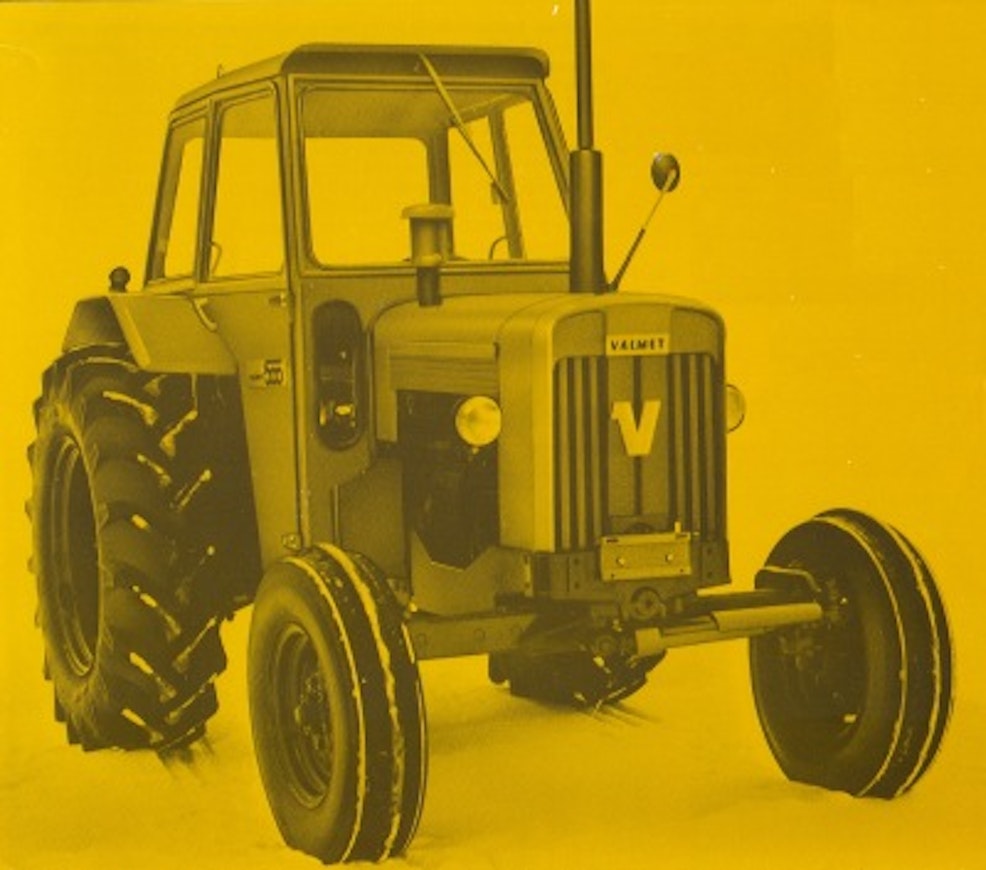

The first model of Valmet's hundred series was the 900, introduced in 1967. It had a 4.18-liter engine with a power output of 89 horsepower (SAE) / 79 horsepower (DIN). The following year, a 3.98-liter 700 model (75 hp SAE) was introduced alongside it, but its engine was soon also enlarged to 4.18 liters (71 hp DIN). In the spring of 1969, a turbocharged 1100 model (115 hp SAE / 105 hp DIN) was added to the top of the lineup, which was one of the first tractors on the market to be equipped with a turbocharger.
The 700-1100 models were advanced tractors in many respects. The cab was factory-installed, cushioned with rubber mounts, and equipped with a heating system. However, the cab was quite narrow, and visibility was poor. The steering was hydrostatic. The transmission was fully synchronized, and the gear levers were placed on the side. The powertrain was equipped with a dual clutch, which had a diameter of 270 mm in the early models of the 700 and 310 mm in the others. The transmission in the 1100 was more robust than in the other models. The hydraulics were also very efficient for their time. The pump capacity was 46-49 liters. Draft control worked via the draft arms. Four-wheel-drive models equipped with an Ewald Speth front axle were also available for the 900 and 1100, which were primarily aimed at contract work.
The updated version of the 565, the 500, was also fitted into the hundred series. An optional cab manufactured by Junkkari was available for it. Compared to its predecessor, updates included, among other things, a yellow color, disc brakes, a handbrake, a 2 hp more powerful engine, a 15% larger gear ratio in the final drive, and wider fenders, on which a safety cab could be mounted.
This is an automated translation. Please report any issues in the translation.
| Model | Valmet 500 | Valmet 700 | Valmet 700 Mk 2 | Valmet 900 | Valmet 1100 |
|---|---|---|---|---|---|
| Manufacturer name | Valmet | Valmet | Valmet | Valmet | Valmet |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes |
| Years | 1968-71 | 1968-69 | 1969-73 | 1967-73 | 1969-74 |
| Engine model | 310 B | 4105 | 411 A 7 | 411 B | 411 AS |
| Cyl/Turbo/Intercooler | 3 | 4 | 4 | 4 | 4T |
| Displacement | 2685 cm³ | 3980 cm³ | 4180 cm³ | 4180 cm³ | 4180 cm³ |
| Bore x stroke | 100×114 mm | 108×108 mm | 108×114 mm | 108×114 mm | 108×114 mm |
| Rated power | 49/2300 hp DIN/rpm | 75s/2000 hp DIN/rpm | 71/2100 hp DIN/rpm | 79/2300 hp DIN/rpm | 105/2300 hp DIN/rpm |
| Torque | - | - | - | - | - |
| Gears | 6+2 | 8+2 | 8+2 | 8+2 | 8+2 |
| Synchronized gears | 4 | 8 | 8 | 8 | 8 |
| Speeds in km/h | 3,6-29,0 | 3,2-31,3 | 3,0-29,2 | 3,0-29,3 | 3,1-30,4 |
| Hydr. flow l/min | 26 l/min | 49 l/min | 47 l/min | 46 l/min | 46 l/min |
| Hydraulic pressure | 145 bar | 175 bar | 175 bar | 175 bar | 175 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 1450 kg | 2000 kg | 2000 kg | 2500 kg | 2500 kg |
| PTO speeds | 540 | 540 | 540 | 540/1000/ajo | 540/1000/ajo |
| Brakes | dry disc | dry disc | dry disc | dry disc | dry disc |
| Steering | mech. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 5.8 | 7.2 | 7.2 | 7.6 | 7.6 |
| Front tyres 2WD | 7,50-16 | 7,50-16 | 7,50-16 | 7,50-18 | 10,00-16 |
| Rear tyres 2WD | 14,9-28 | 16,9-30 | 16,9-30 | 16,9-34 | 16,9-34 |
| Weight 2WD | 2200 kg | 2800 kg | 3080 kg | 3620 kg | 3770 kg |
| Height with cab | 226 cm | 228 cm | 228 cm | 240 cm | 240 cm |
| Length (2WD/4WD) | 321 cm | 363 cm | 363 cm | 380 cm | 387 cm |
| Wheelbase (2WD/4WD) | 191 cm | 221 cm | 221 cm | 231/238 cm | 231/238 cm |
| Fuel tank | 40 l | 70 l | 70 l | 100/95 l | 96 l |
| Cab noise level | 100N dB | 95 dB | 95 dB | 95 dB | 99 dB |
| Creeper gear | opt. | opt. | opt. | opt. | opt. |
| Max. speed | - | - | 33.2 km/h | - | - |
| Turning circle m 4WD | - | - | - | 11 | 11 |
| Front tyres 4WD | - | - | - | 12.00-24 | 12.00-24 |
| Rear tyres 4WD | - | - | - | 16.9-34 | 16.9-34 |
| Weight 4WD | - | - | - | 4270 kg | 4420 kg |
