Siirry sivupalkkiinSiirry alaosaanValmet 1502

Manufacturer
Models
Valmet 1502, Valmet 1502
Years
1975-80
Info

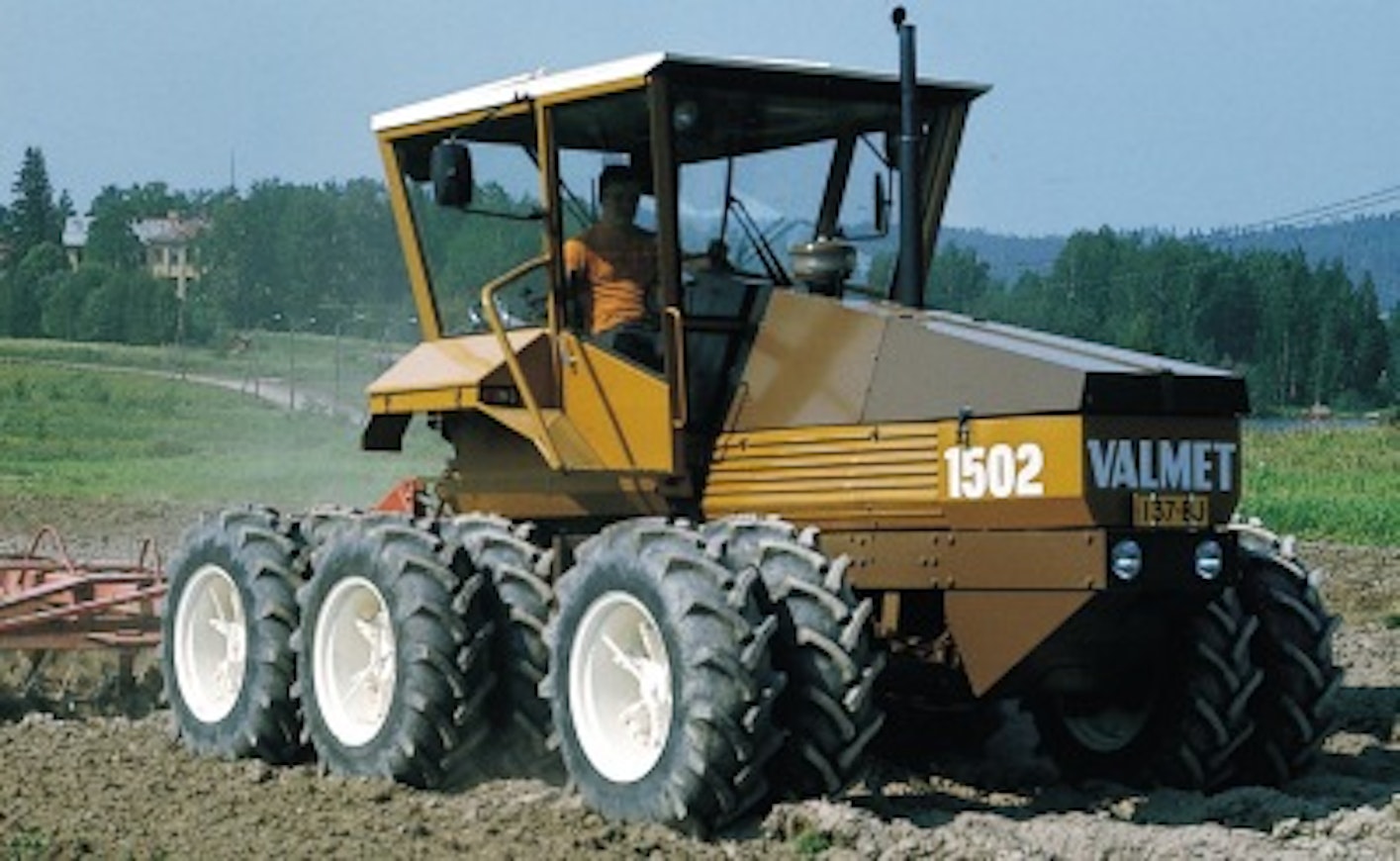

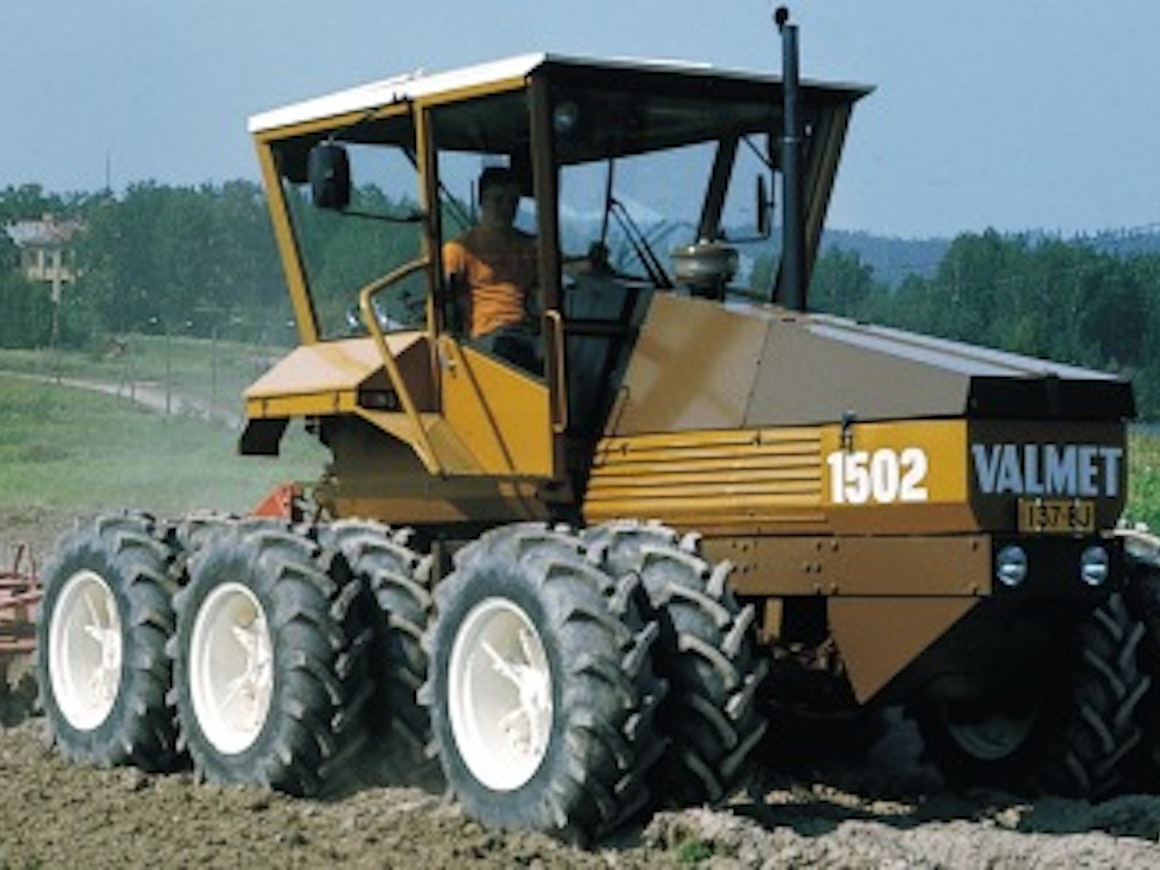

At the top of the Valmet model range, a peculiar crawler-equipped 1502 was introduced in 1975. It partially utilized components used in forestry machines. The engine was a new 6.6-liter six-cylinder, with a power output of 136 hp. The ergonomically advanced cab was very large and widened upwards. The problems of the 1502 included a gigantic turning radius, a weight exceeding 7,000 kg, hydraulics that were modest in power relative to the tractor's size category, and a gearbox that was weak in durability. In 1979, a driven front axle was added to the 1502. Both Carraro and NAF axles were used. Sales of the 1502 remained very limited.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | Valmet 1502 | Valmet 1502 |
|---|---|---|
| Manufacturer name | Valmet | Valmet |
| Imported to Finland | Yes | Yes |
| Years | 1975-79 | 1979-80 |
| Engine model | 611 CS | 611 CS |
| Cyl/Turbo/Intercooler | 6T | 6T |
| Displacement | 6600 cm³ | 6600 cm³ |
| Bore x stroke | 108×120 mm | 108×120 mm |
| Rated power | 136/2300 hp DIN/rpm | 136/2300 hp DIN/rpm |
| Torque | - | - |
| Gears | 16+4 | 16+4 |
| Synchronized gears | 16+4 | 16+4 |
| Powershift gears | mech. | mech. |
| Speeds in km/h | 2,5-33,8 | 2,5-33,8 |
| Hydr. flow l/min | 26 l/min | 27 l/min |
| Hydraulic pressure | 230 bar | 230 bar |
| Lift controls | mech. | mech. |
| Lift capacity | 3500 kg | 3500 kg |
| PTO speeds | 540/1000/ajo | 540/1000/ajo |
| Brakes | dry disc | dry disc |
| Steering | hydrost. | hydrost. |
| Front tyres 2WD | 18-22,5 | - |
| Rear tyres 2WD | 18-22,5 | - |
| Weight 2WD | 7470 kg | - |
| Height with cab | 299 cm | 290 cm |
| Length (2WD/4WD) | 533 cm | 530 cm |
| Wheelbase (2WD/4WD) | 252+126 cm | 252+126 cm |
| Fuel tank | 180 l | 180 l |
| Cab noise level | 84 dB | 84 dB |
| Solid cab | x | x |
| Creeper gear | opt. | opt. |
| Turning circle m 4WD | - | 14.6 |
| Front tyres 4WD | - | 13.6-24 |
| Rear tyres 4WD | - | 13.6-24 |
| Weight 4WD | - | 6900 kg |
