Valmet 15-20

53Valmet20
Manufacturer
Models
Valmet Valmet, Valmet 20
Years
1952-63
Info

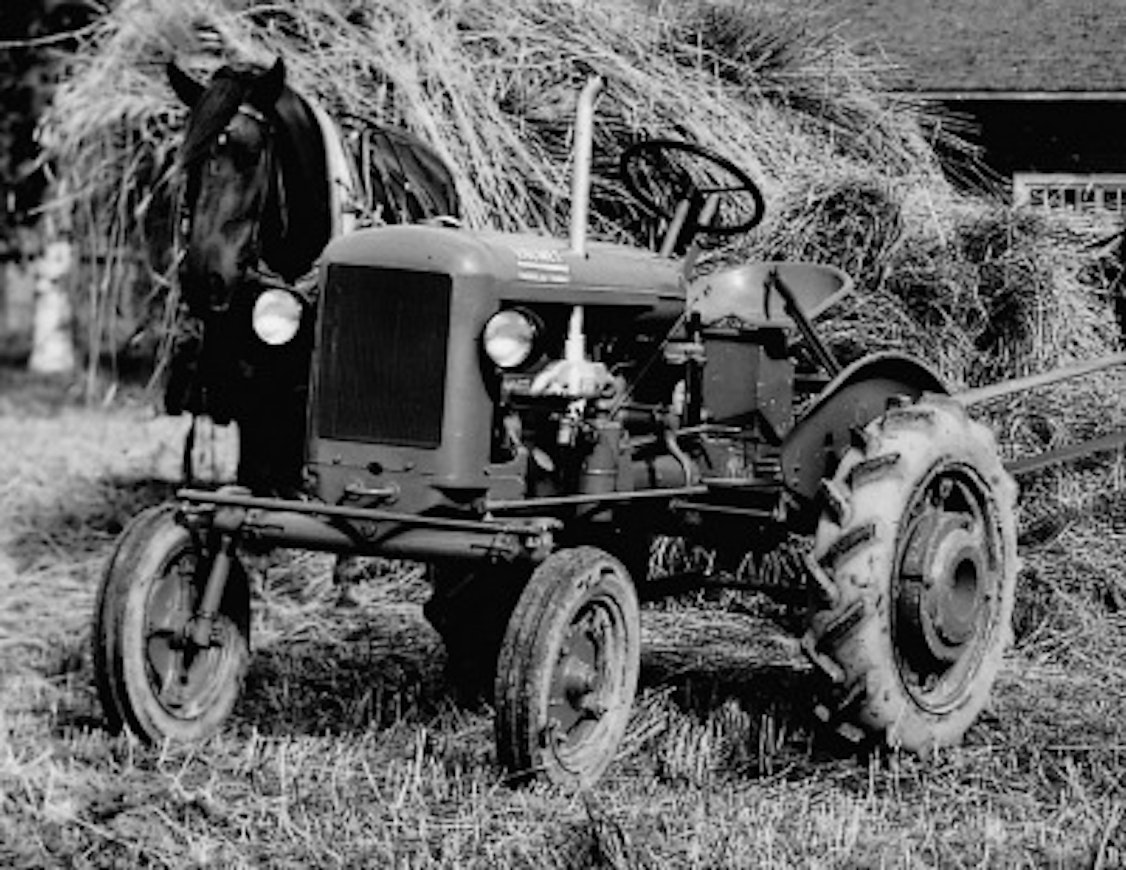

The project to develop a tractor, started by Valmet in the late 1940s, was completed in 1952, when the first series of 75 Valmets was produced. The four-stroke carburetor engine used petrol as fuel. The 1.4-liter engine had a power output of 15 hp. There were three gears forward and one backward. The lifting device operated mechanically with a long lever. Valmet tractors were sold by three central cooperatives: Hankkija, Kesko, and OTK. Suitable implements for the small tractor were developed together with domestic work machine manufacturers. Officially, the tractor was simply called Valmet, but later the model designation Valmet 15 was used.

In 1955, an improved version, the Valmet 20, was introduced, which featured a hydraulic lifting device as an optional accessory. Engine power was increased to 22 hp for the petrol version and 19.5 hp for the petrolene version. The front axle was replaced with an angular, beam-structured one. In total, about 9,800 of the small Valmets were produced.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelValmet ValmetValmet 20
Options
Manufacturer nameValmetValmet
Imported to FinlandYesYes
Years1952-551955-63
First year sold19521955
Last year sold19551963
Engine model4035B/P4035B/P
Cyl/Turbo/Intercooler44
Displacement1414 cm³1414 cm³
Bore x stroke75×80 mm75×80 mm
Rated power hp/rpm DIN15 SAE/200019,5-22 SAE/2400
Rated speed20002400
Gears3+13+1
Speeds in km/h4,8-15,35,6-18,0
Hydr. flow l/min-8 l/min
Lift controls--/mech.
Lift capacity--/350 kg
PTO speedshihnapyörä 1325hihnapyörä 1174
Brakesvannej.vannej.
Steeringmech.mech.
Turning circle m 2WD4,4 jarrulla4,4 jarrulla
Front tyres 2WD4,00-154,00-15
Rear tyres 2WD8-248-24
Weight 2WD(780) kg(900) kg
Height with cab(160) cm(157) cm
Length (2WD/4WD)-255 cm
Wheelbase (2WD/4WD)171 cm176 cm
Fuel tank26+3 l26+3/30 l
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information. There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed. Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
