UTB Universal 300-640

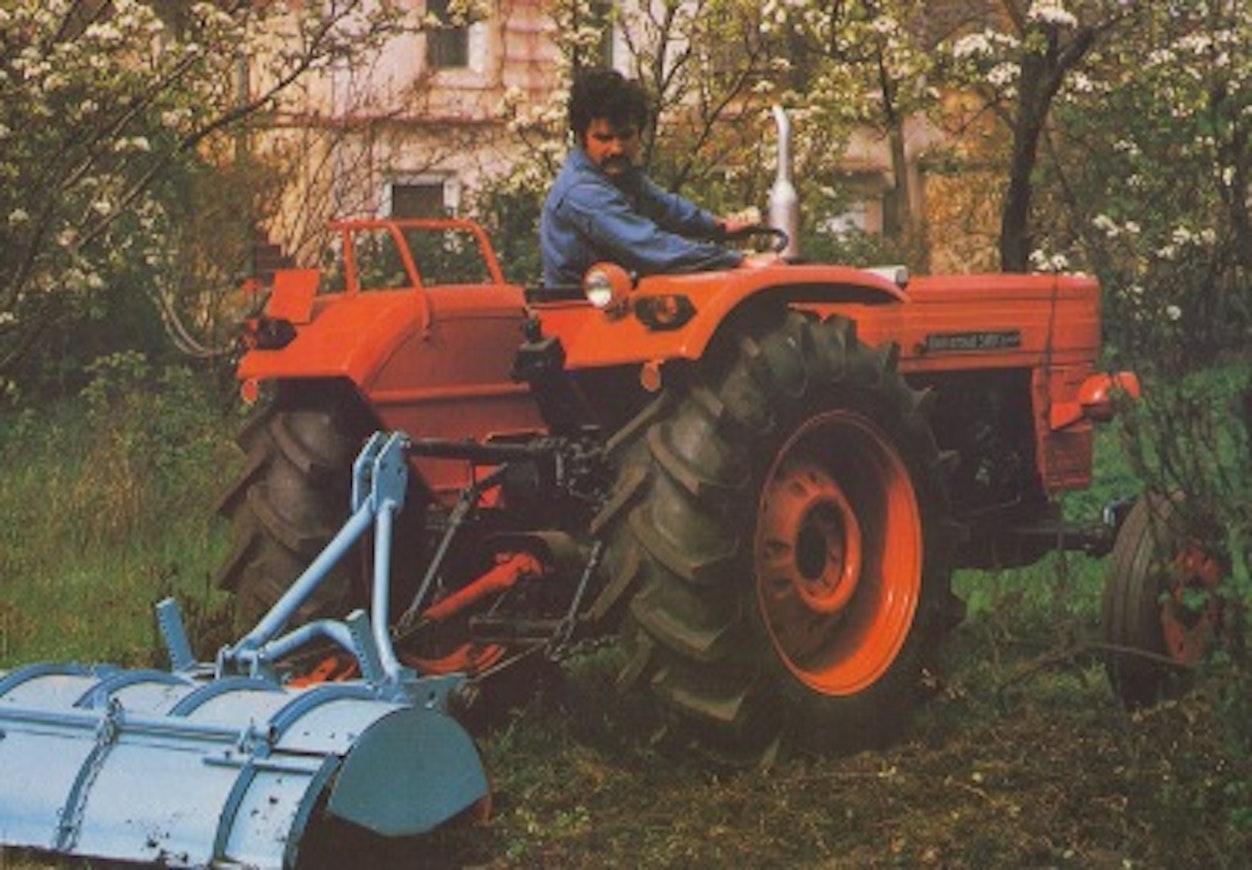

78Universal500

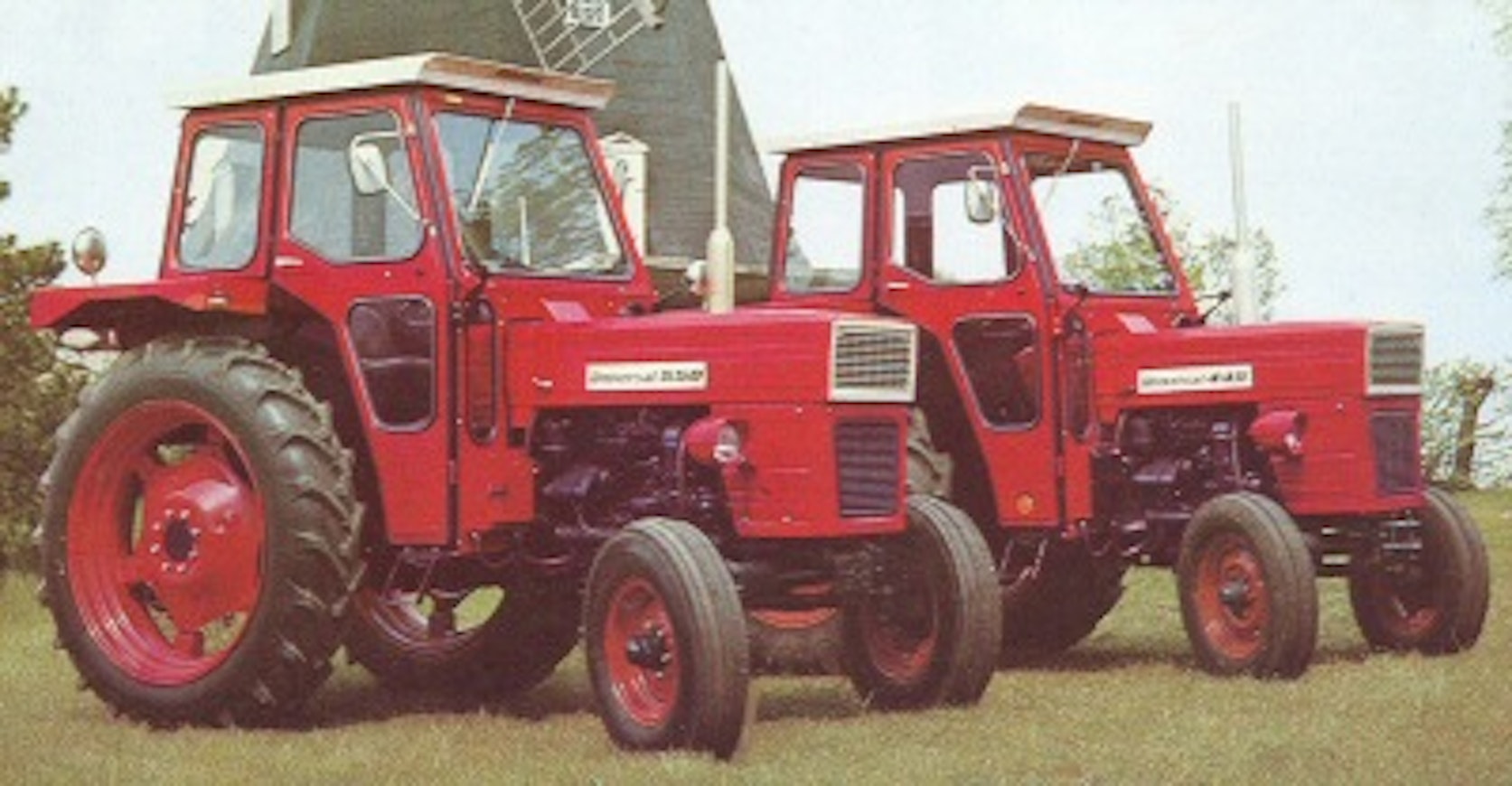

75Universal440-530
78Universal445HCP
78Universal500
75Universal440-530
78Universal445HCP
Manufacturer
Models
UTB Universal 300, UTB Universal 350, UTB Universal 445, UTB Universal 445, UTB Universal 445 HCP, UTB Universal 500, UTB Universal 550, UTB Universal 600, UTB Universal 640
Years
1974-91
Info

In the mid-1960s, UTB signed a licensing agreement to manufacture Fiat tractors, which got underway in 1970. Initially, a large portion of the parts were imported from Italy, but gradually the tractors became entirely Romanian. At that time, the tractors were visually identical to the Fiats.

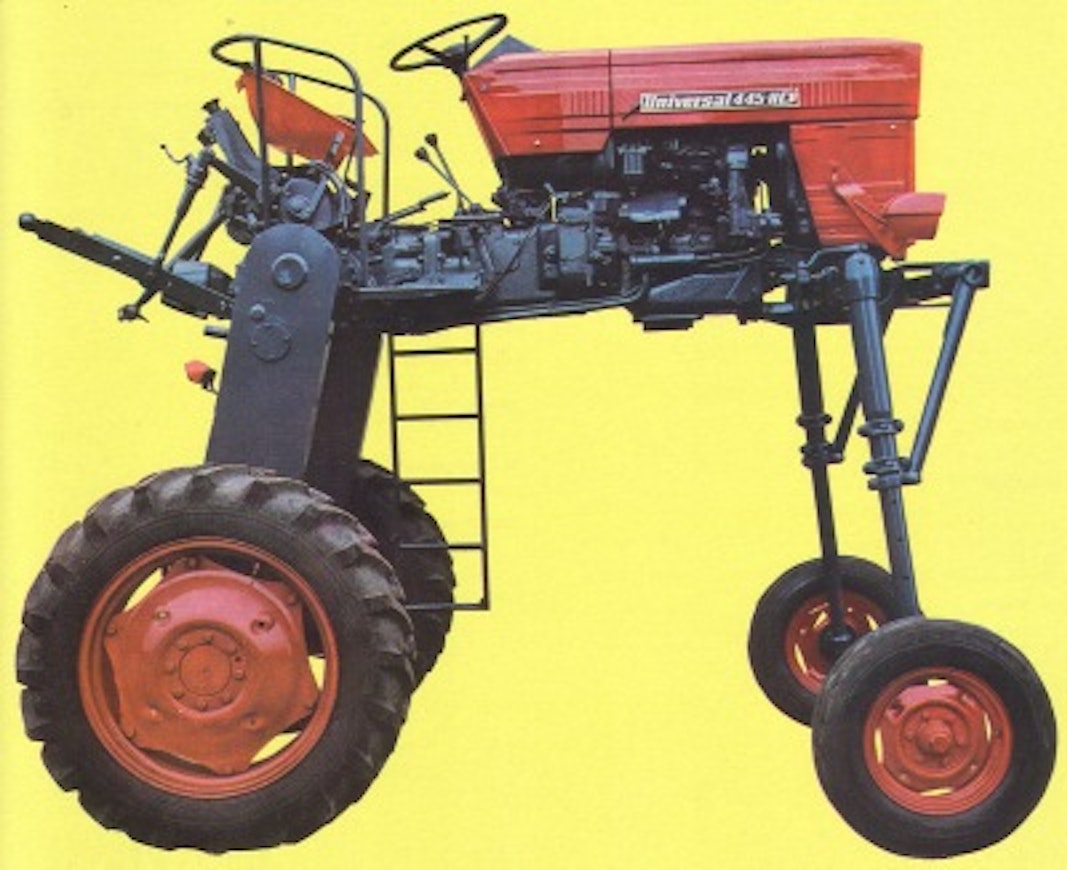

In 1974, a new model series 445/500/550 was introduced, featuring partially synchronized transmissions. Depending on the version, there were 6+2, 8+2, 9+3, or 12+3 gears, with the latter two including a relatively fast crawling gear range. The 550 model had a dual clutch. Like the Fiats, four-wheel-drive DT models were offered. Alongside these were corresponding crawler tractor models and the 445 HCP, which had adjustable ground clearance ranging from 127 to 161 cm. In some countries, the model 400 was marketed as a power-restricted version of the 445. The 600, in turn, was a parallel model to the 640.

In many countries, the cab used was the British Duncan. However, Sweden soon switched to a domestic cab, with a reported noise level of 81.5 dB. At the end of the 1970s, a more powerful 640 model was introduced, whose four-wheel-drive version featured hydrostatic steering. In 1981, the series was supplemented by a 3-cylinder 530 (50 hp).

The technical specifications correspond to the models sold in Sweden and Germany. More powerful parallel models were also sold under the same model numbers: 445/45 hp, 500/54 hp, and 550/55 hp.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelUTB Universal 300UTB Universal 350UTB Universal 445UTB Universal 445UTB Universal 445 HCPUTB Universal 500UTB Universal 550UTB Universal 600UTB Universal 640
Manufacturer nameUTB UniversalUTB UniversalUTB UniversalUTB UniversalUTB UniversalUTB UniversalUTB UniversalUTB UniversalUTB Universal
Imported to FinlandNoNoNoNoNoNoNoNoNo
Years1979-91?-?1974-81?-?1974-1974-811974-811974-??-81
Engine modelD-111D-124D-115D-115D-115D-115.008D-121D-121D-121.050
Cyl/Turbo/Intercooler233333444
Displacement1560 cm³2340 cm³2340 cm³2340 cm³2340 cm³2340 cm³3119 cm³3119 cm³3595 cm³
Bore x stroke95×110 mm95×110 mm95×110 mm95×110 mm95×110 mm95×110 mm95×110 mm95×110 mm102×110 mm
Rated power26/2400 hp DIN/rpm35/2200 hp DIN/rpm42,5/2400 hp DIN/rpm45/2400 hp DIN/rpm42,5/2400 hp DIN/rpm46/2600 hp DIN/rpm51,5/2400 hp DIN/rpm54/2400 hp DIN/rpm62/2400 hp DIN/rpm
Torque---------
Gears6+2/9+36+2/9+36+2/9+312+36+2/9+38+2/12+38+2/12+312+312+3
Synchronized gears4/64/64/664/64/64/666
Speeds in km/h2,2-22,62,0-20,80,9-27,40,7-21,51,7-17,8/ 0,6-17,82,2-22,3/ 0,7-22,32,5-25,6/ 0,9-29,60,8-25,4/ 0,9-29,60,8-25,0
Hydr. flow l/min21.8 l/min21.8 l/min22/31 l/min37 l/min22 l/min22 l/min22/31 l/min22/31 l/min22/31 l/min
Lift controlsmech.mech.mech.mech.mech.mech.mech.mech.mech.
Lift capacity1200 kg1200 kg1200/1400 kg1700 kg1200 kg1200/1400 kg1400/1550 kg1550 kg1550 kg
PTO speeds540/ajo540/ajo540/ajo540/ajo540/ajo540/ajo540/ajo540/ajo540/ajo
Brakesdrum brakesdrum brakesdrum brakesdrum brakesdrum brakesdrum brakesdrum brakesdrum brakesdrum brakes
Steeringmech.mech.powerpowerpowermech./powerpowerpowerpower/hydr.
Turning circle m 2WD6.12-6.36-7.46.36777
Front tyres 2WD5,00-156,00-166,00-166,00-166,00-166,00-167,50-167,50-167,50-16
Rear tyres 2WD11,2-2812,4-2814,9-2814,9-2811,2-2812,4-2812,4-3613,6-3616,9-30
Weight 2WD(1570) kg-2100 kg(1850) kg(2300) kg(1840) kg2240 kg2400 kg2250 kg
Height with cab(149) cm(152) cm235/249 cm(149/152) cm(264) cm(149) cm240/249 cm249 cm250 cm
Length (2WD/4WD)281 cm312 cm314 cm314/312 cm333 cm314 cm346 cm343/341 cm350 cm
Wheelbase (2WD/4WD)181 cm185 cm196 cm196/185 cm204 cm196 cm206 cm210/199 cm210 cm
Fuel tank54 l54 l54 l54 l54 l54 l54 l54 l54 l
Solid cabxxxopt.--xxx
Hydraulic pressure-150 bar147 bar147 bar147 bar147 bar147/172 bar147/172 bar147/172 bar
Turning circle m 4WD-7,52 jarrulla8,28 jarrulla---8,28 jarrulla8,28 jarrulla8,28 jarrulla
Front tyres 4WD-7.50F-208.00-207.50-20--8.00-208.3-249.5-24
Rear tyres 4WD-12.4-2812.4-3614.9-28--12.4-3613.6-3616.9-30
Weight 4WD-(2070) kg2300 kg(2150) kg-(2120) kg2500 kg2600 kg2660 kg
Cab noise level--?/81,5 dB---?/81,5 dB--
Creeper gear--opt.opt.opt.opt.xxx
