Ursus

In the 90…100 horsepower class, Ursus had offered the H-series of Turkish origin. In 2015, newly developed models were introduced, which were slightly cheaper and more lightly equipped than the H-series. The engine was a 3.4-liter Perkins, compliant with Euro IIIB standards. The powertrain in this series also came from Hattat, and the front axle from Carraro. There were 12+12 gears. The mechanical direction reverser was positioned beneath the steering wheel. The power lift was standard, as were the electrically hydraulically operated four-wheel drive, differential lock, and four-wheel drive engagement. The lifting capacity was 4,400 kg. Four hydraulic blocks were standard. Air conditioning was an optional extra. In Poland, Ursus offered a warranty of 4 years or 4,000 hours.

At the end of 2016, the 110-horsepower C-3110 equipped with a 4.4-liter Perkins engine was introduced. It had a 24+24 gearbox. The cab roof was made lower at the request of the domestic market by rearranging the ventilation components. The series also included the C-3120 HL equipped with a 3.6-liter Deutz engine, but possibly its production remained limited to prototypes.

At the end of 2016, the 110-horsepower C-3110 equipped with a 4.4-liter Perkins engine was introduced. It had a 24+24 gearbox. The cab roof was lowered at the request of the domestic market by rearranging the ventilation components. The C-3105 introduced in 2017 corresponded in some respects to models of the smaller series, such as the C-380 K. The series also included the C-3120 equipped with a 3.6-liter Deutz engine and later the slightly more powerful C-3130. These had stage IV emission level engines and a ZF 16+16 gearbox.

This is an automated translation. Please report any issues in the translation.

Tractors

Ursus C-392 – C-3120

In the 75…90 horsepower class, Ursus used both Perkins' 4.4-liter engine and the less common 3.4-liter engine found in other brands. The transmission was Carraro's 12+12 without a creeper gear or alternatively 24+12 with a creeper gear and a hydraulic shuttle. The version with a creeper gear also featured hydraulic engagement for four-wheel drive, differential lock, and PTO. The cab was four-post and equipped with a glass roof hatch. Starting from 2017, the rims were black, following Zetor's example.

This is an automated translation. Please report any issues in the translation.

Ursus C-380 – C-395

The first 150-horsepower model, the 15014, from the new Ursus factory entered production in the autumn of 2013. It was equipped with a 6-cylinder Sisu engine and a ZF 40+40 transmission. The front axle was manufactured by Carraro. The lifting device was electrically operated and had a lifting capacity of 7200 kg. There were four hydraulic blocks as standard, with a flow rate of 90 l/min. The 250 cm wheelbase was short for its class. The cab was quite basic for a tractor in this category.

A year later, the model designation was changed to U-4150 and the engine was replaced with a 4-cylinder Deutz.

In 2016, it was decided that the correct model designation for this tractor would be C-3150. The engine was now a 6-cylinder Deutz and the appearance was updated.

In 2018, Ursus introduced its own Vigus transmission, featuring 32+32 gears and a four-speed power shift. The hydraulic output was increased to 100 liters per minute. However, in the final phase, only the ZF transmission was available, paired with a Stage IV-compliant 6-cylinder Deutz engine boosted to 163 horsepower.

This is an automated translation. Please report any issues in the translation.

Ursus 15014/U-4150/C-3150

In the renewed Ursus models, the color was still yellow, but the grille, striping, and the yellow cab roof distinguished the appearance from earlier models. Production of the new models began already in 1981, but they only reached Finland in 1983.

The updated models had a greater hydraulic output than before, and the 6-cylinder versions had higher lifting capacity thanks to two auxiliary cylinders. The engines were a new, more economical generation, with updates including nozzles, the injection pump regulator, and the crank mechanism. The rear axle and drive axles were reinforced. The turning circle of the Romanian front axle was slightly reduced. As an optional extra, Transporter transmissions were still available, which increased the road speed to 38 km/h. The model range was short-lived in Finland, as the Finn-Ursus models were introduced at the beginning of 1985. The range also included a more powerful 1604 with a 12+6 transmission, which was not imported to Finland.

This is an automated translation. Please report any issues in the translation.

Ursus 902-1214

The small 2-cylinder models C-330 (1967-93) and C-335 (1966-) were Ursus's own developments. The last part of the model number indicates the power in SAE horsepower. The technology was extremely simple, and compared to previous models, the changes were mainly limited to a renewed appearance and a stronger front axle. The 1986 C-330M had an even longer wheelbase.

The tractor in the picture is from a German brochure from the early 1970s. The most common color was orange-red. Green ones were also produced in the 1970s.

This is an automated translation. Please report any issues in the translation.

Ursus C-330 – C-335

The 2-cylinder Ursus C-325 was introduced as a prototype in 1957, and production began in 1959. The engine was a water-cooled 1.8-liter direct injection diesel with a power output of 25 hp. It had 6+2 gears, all controlled by a single lever. The tractor was equipped with, among other things, an oil pressure and temperature gauge, foot throttle, steering brakes, work light, sprung and cushioned seat, differential lock, and weight transfer system.

In 1963, updates were made and the power was increased to 28 horsepower. The C-328 was produced until 1967, when it was replaced by the C-330.

This is an automated translation. Please report any issues in the translation.

Ursus C-325 – C-328

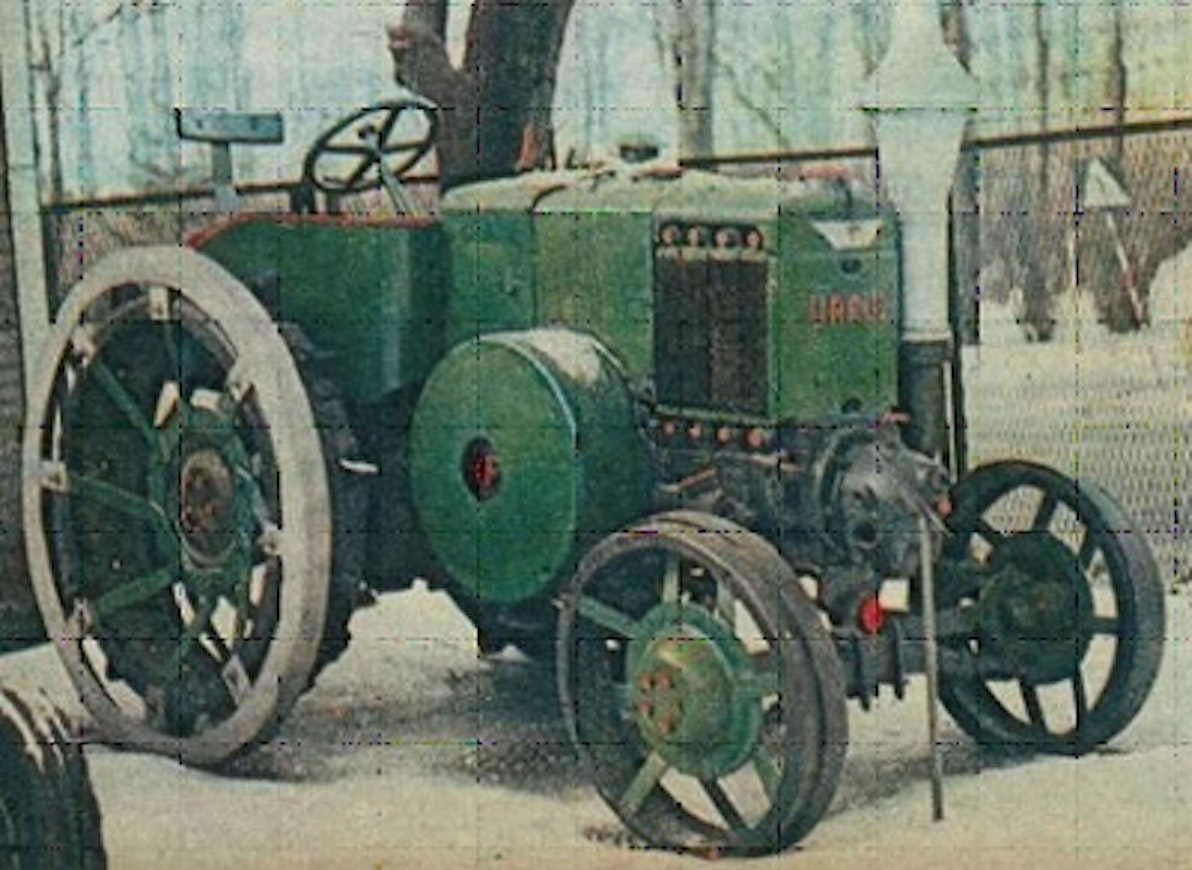

The Ursus C-45 was a copy of the 1940s Lanz Bulldog. The single-cylinder hot-bulb engine could run on almost any oil product as fuel. The starting operation lasted about 20 minutes. The engine parts are interchangeable with those of the Lanz. A special feature of the tractor was its spring-suspended front axle. The maximum driving speed was initially 6.2 km/h. In the C-451 introduced in 1954, which was equipped with rubber tires, the speed was already 16.7 km/h. The newer model also came standard with a mechanical lift, steering brakes, an electrical system, and gasoline starting.

The importer of Ursus in Finland was Oy Atkinson Ab, but sales remained limited to individual units.

This is an automated translation. Please report any issues in the translation.

Ursus C-45 – C-451

More from this manufacturer

The Ursus C-45 was a copy of the 1940s Lanz Bulldog. The single-cylinder hot-bulb engine could run on almost any oil product as fuel. The starting operation lasted about 20 minutes. The engine parts are interchangeable with those of the Lanz. A special feature of the tractor was its spring-suspended front axle. The maximum driving speed was initially 6.2 km/h. In the C-451 introduced in 1954, which was equipped with rubber tires, the speed was already 16.7 km/h. The newer model also came standard with a mechanical lift, steering brakes, an electrical system, and gasoline starting.
The importer of Ursus in Finland was Oy Atkinson Ab, but sales remained limited to individual units.
This is an automated translation. Please report any issues in the translation.

Ursus C-45

Malli

Hinta (sis. alv)

Series specifier

Manufacturer name

Model specifier

Imported to Finland

Years

First year sold

Last year sold

Engine model

Cyl/Turbo/Intercooler

Displacement

Bore x stroke

Power

Power speed

Rated power hp/rpm DIN

Rated power

Rated speed

Max power hp/rpm DIN

Max power

Max speed

Rated power hp/rpm ISO

Max power hp/rpm ISO

Max power hp/rpm

Rated power hp/rpm ECE

Max power	hp/rpm ECE

Rated power hp/rpm SAE

Rated power hp/rpm PTO

Rated power hp/rpm engine pulley

Rated power hp/rpm

Torque Nm/rpm

Torque Nm/rpm ECE

Torque Nm/rpm ISO

Torque Nm/rpm SAE

Torque Nm/rpm DIN

Gears

Creeper speeds

Synchronized gears

Powershift gears

Reverser

Speeds in km/h

Max. speed

Hydr. flow l/min

Hydraulic pressure

Lift controls

Lift capacity

PTO speeds

Brakes

Steering

Turning circle m 2WD

Turning circle m 4WD

Front tyres 2WD

Front tyres 4WD

Rear tyres 2WD

Rear tyres 4WD

Weight 2WD

Weight 4WD

Height with cab

Length (2WD/4WD)

Wheelbase (2WD/4WD)

Fuel tank

Cab noise level

Solid cab

Diff. lock

Autom. differential locks

Air suspension seat

Air conditioning

Trip computer

Creeper gear

Sylinterien lukumäärä

Iskutilavuus

Iskusuhde

Suurin vääntömomentti, Nm

Suurin vääntömomentti, r/min

Vääntömomentin nousu

Polttonesteen kulutus suurimman tehon pisteessä

Kytkimen tyyppi

Ajovoimanotto

Nopeus eteenpäin moottorin nimellisnopeudella, pienin

Nopeus eteenpäin moottorin nimellisnopeudella, suurin

Jarrut

Hydrauliikan suurin paine

Hydrauliikan suurin tuotto

Nostolaitehydrauliikan hallinta

Ulkopuolinen hydrauliikka, venttiililohkoja

1-toimisia

2-toimisia

Nostovoima (kN=100 kg)

Hydrauliikan tyyppi

Kääntöympyrän halkaisija ilman ohjausjarrua

Eturenkaat

Takarenkaat

Kokonaismassa säiliöt täynnä vakiovarustein

Etuakselipaino

Taka-akselipaino

Suurin korkeus (ohjaamon ylimpään kohtaan)

Ursus C-451

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Lukijan kuvat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Subscribe

Paywall

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Ursus C-45	Ursus C-451
Options
Manufacturer name	Ursus	Ursus
Imported to Finland	No	Yes
Years	1947-54	1954-59
First year sold	1947	1954
Last year sold	1954	1959
Engine model	LB45	LB45
Cyl/Turbo/Intercooler	1	1
Displacement	10300 cm³	10300 cm³
Bore x stroke	225×260 mm	225×260 mm
Rated power hp/rpm DIN	45 SAE/630	45 SAE/630
Rated speed	630	630
Gears	3+1	6+2
Speeds in km/h	3,5-6,2	3,5-16,7
Lift controls	-	mech. hitch
PTO speeds	540	540
Brakes	drum brakes	drum brakes
Steering	mech.	mech.
Turning circle m 2WD	6.4	6.4
Front tyres 2WD	(7.00-20)	7.00-20
Rear tyres 2WD	(12.75-28)	12.75-28
Weight 2WD	(3840) kg	(4050) kg
Height with cab	(226/252) cm	(226/252) cm
Length (2WD/4WD)	343 cm	352 cm
Wheelbase (2WD/4WD)	204 cm	203 cm
Fuel tank	100 l	100 l
