Ursus 902-1214

Manufacturer
Models
Ursus 902/904, Ursus 902/904 (Suomi), Ursus 902/904 Turbo, Ursus 1002/1004, Ursus 1212/1214, Ursus 1212/1214 (Suomi), Ursus 1214 Turbo
Years
1981-85
Info

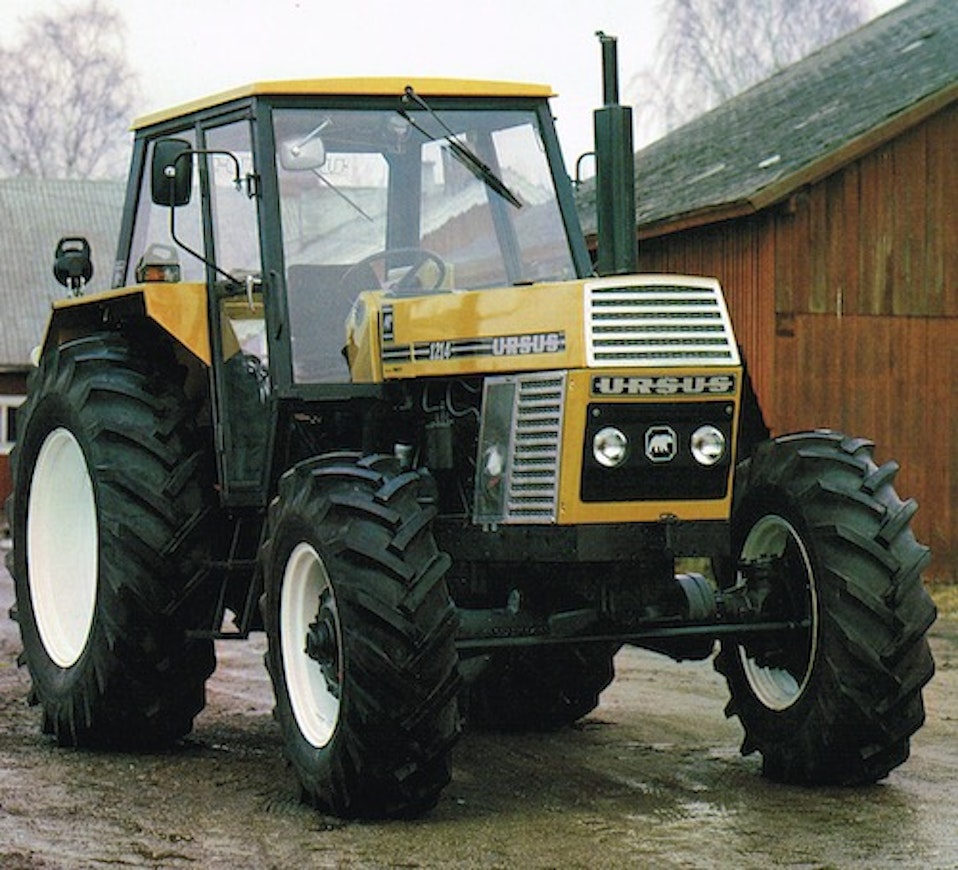

In the renewed Ursus models, the color was still yellow, but the grille, striping, and the yellow cab roof distinguished the appearance from earlier models. Production of the new models began already in 1981, but they only reached Finland in 1983.

The updated models had a greater hydraulic output than before, and the 6-cylinder versions had higher lifting capacity thanks to two auxiliary cylinders. The engines were a new, more economical generation, with updates including nozzles, the injection pump regulator, and the crank mechanism. The rear axle and drive axles were reinforced. The turning circle of the Romanian front axle was slightly reduced. As an optional extra, Transporter transmissions were still available, which increased the road speed to 38 km/h. The model range was short-lived in Finland, as the Finn-Ursus models were introduced at the beginning of 1985. The range also included a more powerful 1604 with a 12+6 transmission, which was not imported to Finland.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelUrsus 902/904Ursus 902/904 (Suomi)Ursus 902/904 TurboUrsus 1002/1004Ursus 1212/1214Ursus 1212/1214 (Suomi)Ursus 1214 Turbo
Options
Manufacturer nameUrsusUrsusUrsusUrsusUrsusUrsusUrsus
Imported to FinlandNoYesYesNoNoYesYes
Years1981-841983-851983-851981-841981-841983-851983-85
First year sold1981198319831981198119831983
Last year sold1984198519851984198419851985
Engine modelZ 8401Z 8401Z 8401Z 8002Z 8701Z 8701Z 8701
Cyl/Turbo/Intercooler444T4T666T
Displacement4562 cm³4562 cm³4562 cm³4562 cm³6824 cm³6824 cm³6824 cm³
Bore x stroke110×120 mm110×120 mm110×120 mm110×120 mm110×120 mm110×120 mm110×120 mm
Rated power hp/rpm DIN75/220082/2200100/2200100/2200112/2200120/2200146/2200
Rated power7582100100112120146
Rated speed2200220022002200220022002200
Torque Nm/rpm DIN272/1450268/1450320/1650288/1130410/1450410/1500530/1650
Gears16+816+816+816+816+816+816+8
Powershift gearshydr.hydr.hydr.hydr.hydr.hydr.hydr.
Speeds in km/h1,9-25,51,9-25,51,9-25,51,9-25,51,9-25,51,9-25,51,9-25,5
Max. speed 28.4 km/h28.4 km/h28.4 km/h28.4 km/h28.4 km/h28.4 km/h28.4 km/h
Hydr. flow l/min36 l/min41 l/min41 l/min36 l/min36 l/min41 l/min41 l/min
Hydraulic pressure160 bar167 bar167 bar160 bar160 bar167 bar167 bar
Lift controlsmech.mech.mech.mech.mech.mech.mech.
Lift capacity3000 kg3050 kg3050 kg3000 kg3000 (4000) kg4000 kg4000 kg
PTO speeds540/1000540/1000540/1000540/1000540/1000540/1000540/1000
Brakesdry discdry discdry discdry discdry discdry discdry disc
Steeringpowerpowerpowerpowerpowerpowerpower
Turning circle m 2WD7.87.87.87.88.78.7-
Turning circle m 4WD10.510.510.510.511.911.911.9
Front tyres 2WD7,50-2011,5-1511,5-157,50-207,50-2011,5-15-
Front tyres 4WD12.4-2412.4-2412.4-2412.4-2412.4-2414.9-2414.9-24
Rear tyres 2WD18,4-3418,4-3418,4-3418,4-3418,4-3418,4-34-
Rear tyres 4WD18.4-3418.4-3418.4-3418.4-3418.4-3418.4-3418.4-34
Weight 2WD3200 kg3960 kg4070 kg3500 kg3700 kg4420 kg-
Weight 4WD3650 kg4150 kg4400 kg4020 kg4020 kg4800 kg4820 kg
Height with cab263 cm255 cm255 cm263 cm263 cm255 cm255 cm
Length (2WD/4WD)395 cm395 cm395 cm395 cm436 cm445 cm445 cm
Wheelbase (2WD/4WD)239 cm239 cm239 cm239 cm270 cm270 cm270 cm
Fuel tank90 l90 l90 l125 l130 l130 l130 l
Cab noise level-83 dB83.5 dB--79 dB78 dB
Solid cabxxxxxxx
Diff. locknonononononono
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information. There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed. Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
