Ursus 15014/U-4150/C-3150

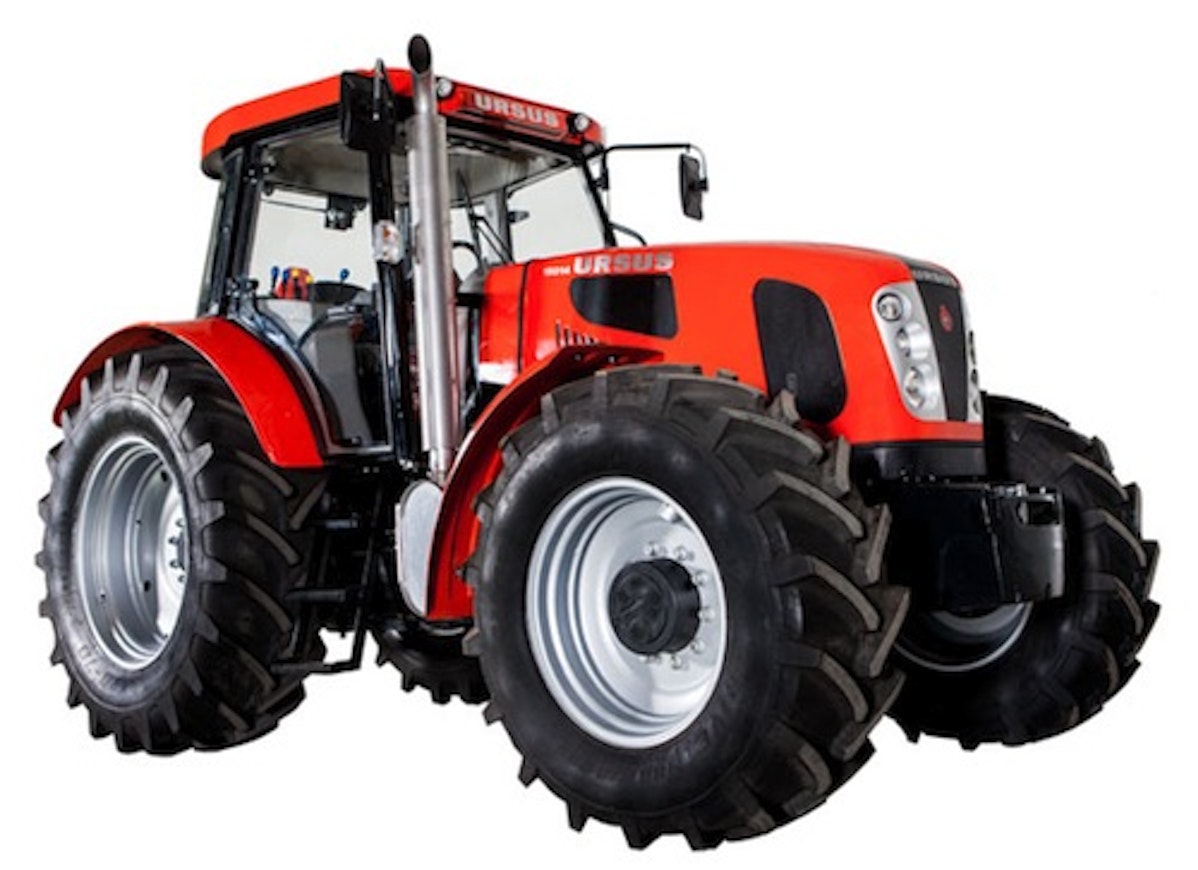

The first 150-horsepower model, the 15014, from the new Ursus factory entered production in the autumn of 2013. It was equipped with a 6-cylinder Sisu engine and a ZF 40+40 transmission. The front axle was manufactured by Carraro. The lifting device was electrically operated and had a lifting capacity of 7200 kg. There were four hydraulic blocks as standard, with a flow rate of 90 l/min. The 250 cm wheelbase was short for its class. The cab was quite basic for a tractor in this category.
A year later, the model designation was changed to U-4150 and the engine was replaced with a 4-cylinder Deutz.

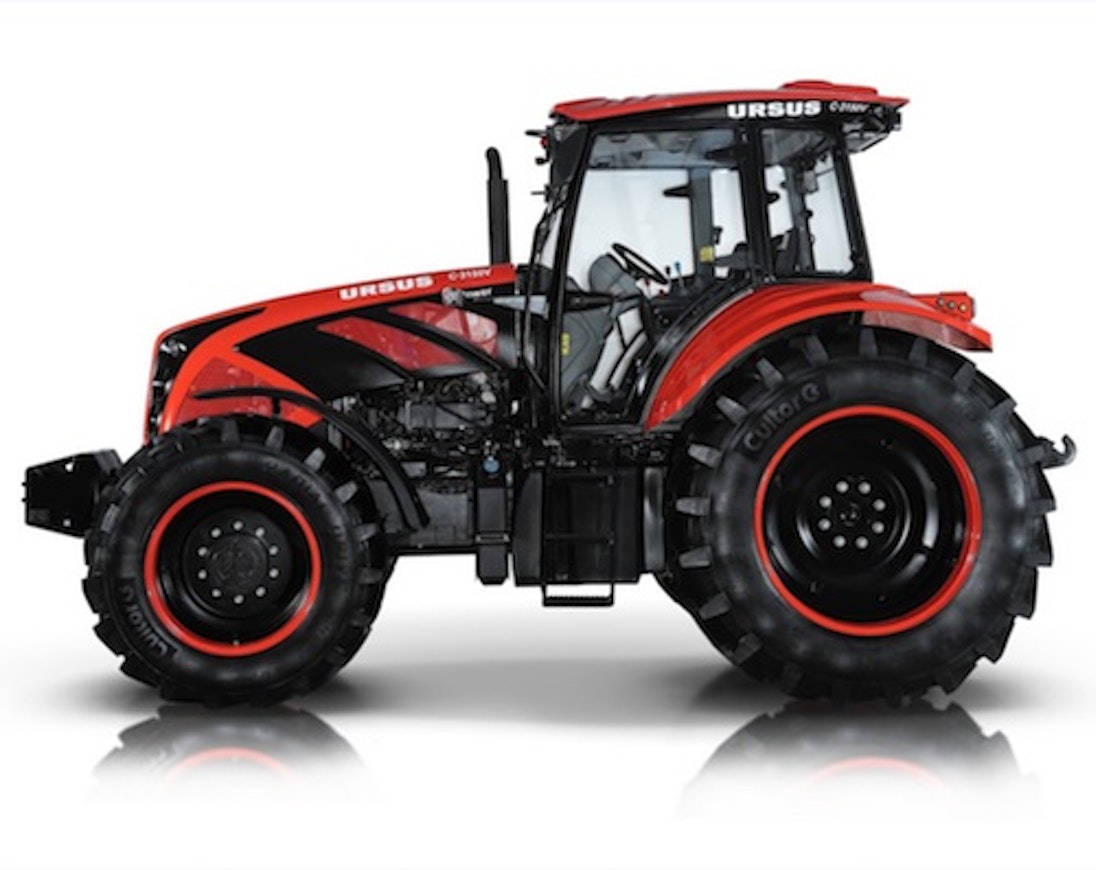

In 2016, it was decided that the correct model designation for this tractor would be C-3150. The engine was now a 6-cylinder Deutz and the appearance was updated.
In 2018, Ursus introduced its own Vigus transmission, featuring 32+32 gears and a four-speed power shift. The hydraulic output was increased to 100 liters per minute. However, in the final phase, only the ZF transmission was available, paired with a Stage IV-compliant 6-cylinder Deutz engine boosted to 163 horsepower.
This is an automated translation. Please report any issues in the translation.
| Model | Ursus 15014 | Ursus U-4150 | Ursus C-3150 Power | Ursus C-3150 Power | Ursus C-3150 V Power |
|---|---|---|---|---|---|
| Options | |||||
| Manufacturer name | Ursus | Ursus | Ursus | Ursus | Ursus |
| Imported to Finland | No | No | No | No | No |
| Years | 2013-14 | 2014-16 | 2016-20 | 2020-21 | 2018-20 |
| First year sold | 2013 | 2014 | 2016 | 2020 | 2018 |
| Last year sold | 2014 | 2016 | 2020 | 2021 | 2020 |
| Engine model | Sisu 66AWI | Deutz TCD 4.1 L4 | Deutz TCD 6.1 L6 | Deutz TCD 6.1 L6 | Deutz TCD 4.1 L4 |
| Cyl/Turbo/Intercooler | 6TI | 4TI | 6TI | 6TI | 4TI |
| Displacement | 6600 cm³ | 4038 cm³ | 6057 cm³ | 6057 cm³ | 4038 cm³ |
| Bore x stroke | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm |
| Rated power hp/rpm DIN | 148/2200 | 149/2100 | 150/2100 | 163/2100 | 150/2100 |
| Rated power | 148 | 149 | 150 | 163 | 150 |
| Rated speed | 2200 | 2100 | 2100 | 2100 | 2100 |
| Torque Nm/rpm DIN | 580/1600 | 663/1500 | 661/1500 | 661/1400 | 661/1500 |
| Gears | 40+40 | 40+40 | 40+40 | 40+40 | 32+32 |
| Synchronized gears | 40+40 | 40+40 | 40+40 | 40+40 | 32+32 |
| Powershift gears | hydr. | hydr. | hydr. | hydr. | 4-step |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. |
| Max. speed | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 (50) km/h |
| Hydr. flow l/min | 90 l/min | 90 l/min | 90 l/min | 90 l/min | 100 l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 7200 kg | 7200 kg | 7200 kg | 7200 kg | 7000 kg |
| PTO speeds | 540/750/1000/1400 | 540/750/1000/1400 | 540/750/1000/1400 | 540/750/1000/1400 | 540/750/1000/1400 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Front tyres 4WD | 480/70R28 | 480/70R28 | 480/70R28 | 480/70R28 | 480/70R28 |
| Rear tyres 4WD | 580/70R38 | 580/70R38 | 580/70R38 | 580/70R38 | 580/70R38 |
| Weight 4WD | 6900 kg | 6900 kg | 6900 kg | 7000 kg | 6900 kg |
| Height with cab | 290 cm | 290 cm | 300 cm | 300 cm | 300 cm |
| Length (2WD/4WD) | 472 cm | 472 cm | 472 cm | 472 cm | 472 cm |
| Wheelbase (2WD/4WD) | 250 cm | 250 cm | 250 cm | 250 cm | 250 cm |
| Fuel tank | 280 l | 280 l | 250 l | 250 l | 250 l |
| Solid cab | x | x | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Air conditioning | x | x | x | x | x |
| Creeper gear | x | x | x | x | x |
