Ursus 932-1654

00Ursus934

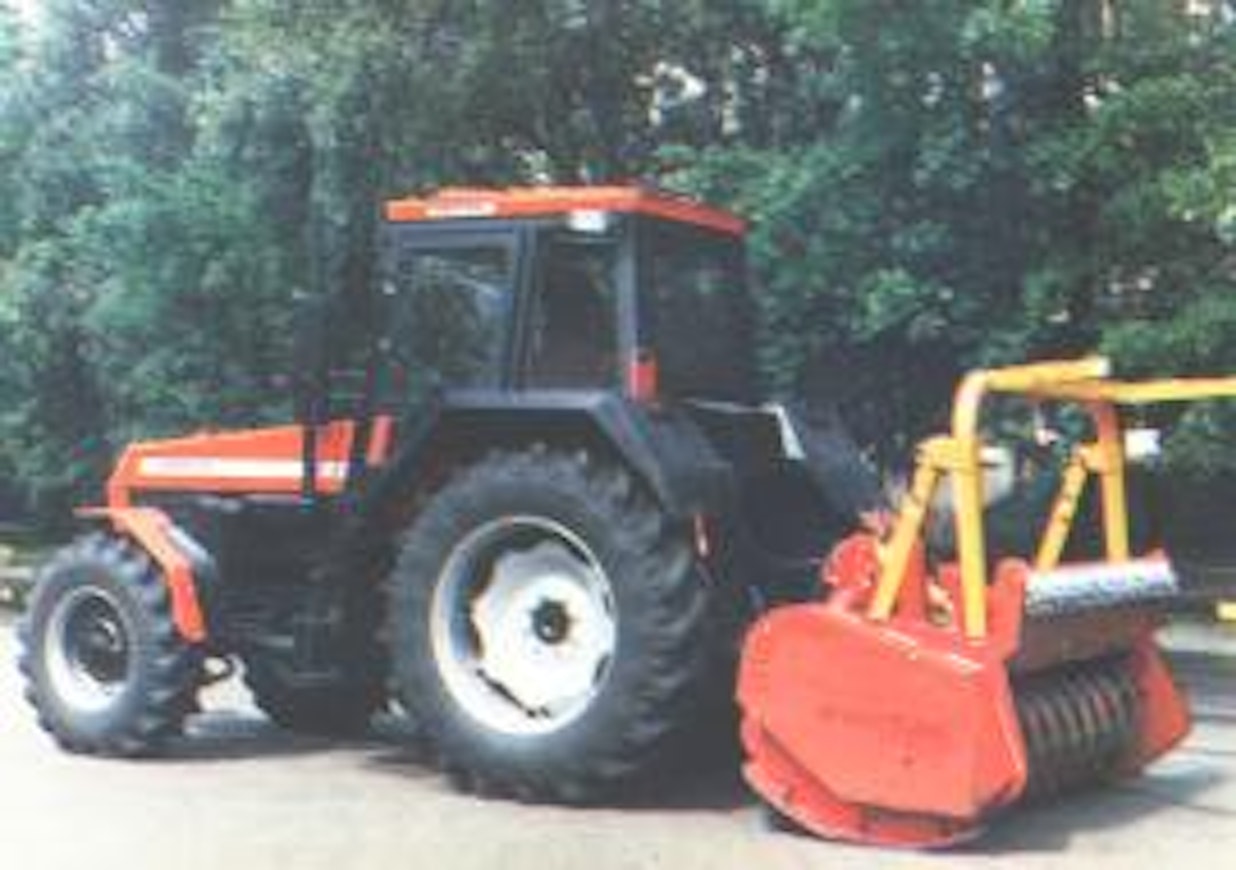

00Ursus1634
06Ursus1634
00Ursus934
00Ursus1634
06Ursus1634
Manufacturer
Models
Ursus 932/934, Ursus 932T/934T, Ursus 1132/1134, Ursus 1232/1234, Ursus 1234T, Ursus 1434, Ursus 1634, Ursus 1654
Years
1991-98
Info

In 1990, Ursus introduced the 30-series alongside the previous models. It featured a new, narrower but taller cab with a flat front wall. The dashboard and many controls were updated. The clutch operated hydraulically, and the transmission was partially synchronized.

The model range remained almost the same. As a turbocharged counterpart to the 1034, the 1134 was introduced in the series of fours. The six-cylinder lineup was complemented by the 1434, which had a heavier-duty transmission from the 1634. In Finland, turbos were installed on the 932/934 and 1234 models, so these turbocharged new models did not come to us. At this stage, Witraktor was the importer of Ursus.

In 1998, the largest models also received a 16+8 transmission. In the 2000s models, the noise level was stated to be 80 dB. A new model was the 1044, equipped with a 92.5-horsepower Perkins 3.86-liter engine. In the mid-2000s, the design was modernized and the cab was also renewed. Alongside the 1134 came the 1154, which met emission requirements, and alongside the 1634, the 1654 equipped with Martin's 7.3-liter engine.

The latest variants in this model series were the 1954 and the 1674 Forte. The 1674 Forte, produced in 2009-2010, had a 158.5-horsepower 6.6-liter Perkins engine that met Stage IIIA emission standards. The fuel tank was increased to 355 liters. The 1954, produced in 2008-2009, had a 6.8-liter Z8602.13 engine and the old 12+6 transmission.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelUrsus 932/934Ursus 932T/934TUrsus 1132/1134Ursus 1232/1234Ursus 1234TUrsus 1434Ursus 1634Ursus 1654
Options
Manufacturer nameUrsusUrsusUrsusUrsusUrsusUrsusUrsusUrsus
Imported to FinlandYesYesNoYesYesNoYesNo
Years1991-20031991-981991-20091991-20091991-20011991-20091991-20092006-09
First year sold19911991199119911991199119912006
Last year sold20031998200920092001200920092009
Engine modelZ 8401.12Z 8401.12Z 8002.12Z 8701.12Z 8701.12Z 8701.13Z 8602.12Z 8604.035M
Cyl/Turbo/Intercooler44T4T66T6T6T6T
Displacement4562 cm³4562 cm³4562 cm³6824 cm³6824 cm³6824 cm³6824 cm³7299 cm³
Bore x stroke110×120 mm110×120 mm110×120 mm110×120 mm110×120 mm110×120 mm110×120 mm110×128 mm
Rated power hp/rpm DIN80/2200100/220096/2200119/2200146/2200136/2200155/2200160/2200
Rated power8010096119146136155160
Rated speed22002200220022002200220022002200
Torque Nm/rpm DIN278/1600320/1650333/1650413/1600521/1600-567/1600667/?
Gears16+816+816+816+816+812+612+6/16+816+8
Synchronized gears121212121288/1212
Powershift gearshydr.hydr.hydr.hydr.hydr.hydr.hydr.hydr.
Speeds in km/h2,2-382,2-382,2-29,42,2-382,2-382,9-25,52,2-27,2/ 2,1-31,32,2-32,7
Max. speed 29,4/38 km/h29,4/38 km/h29,4/38 km/h29,4/38 km/h29,4/38 km/h29,4/38 km/h28 km/h-
Hydr. flow l/min41 l/min41 l/min41 l/min41 l/min41 l/min41 l/min41/55 l/min55 (90) l/min
Hydraulic pressure160 bar160 bar160 bar160 bar160 bar160 bar160 bar-
Lift controlsmech.mech.mech.mech.mech.mech.mech.mech.
Lift capacity4125 kg4125 kg4125 (5500) kg4125 (5500) kg4125 (5500) kg4125 (5500) kg5500 (6700) kg6700 kg
PTO speeds540/1000540/1000540/1000540/1000540/1000540/1000540/1000540/1000
Brakesdry discdry discdry discdry discdry discdry discdry discdry disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 2WD8.48.48.4-----
Turning circle m 4WD10.210.210.212.412.412.412.412.4
Front tyres 2WD11,5-1511,5-157,50-207,50-207,50-20---
Front tyres 4WD12.4-2412.4-2412.4-2414.9R2414.9R2414.9R2414.9R2414.9R28
Rear tyres 2WD18,4-3418,4-3418,4-3418,4-3418,4-34---
Rear tyres 4WD18.4-3418.4-3418.4-3418.4R3418.4R3418.4R3818.4R3820.8R38
Weight 2WD4100 kg4100 kg4070 kg4570 kg4570 kg---
Weight 4WD4550 kg4550 kg4400 kg5100 kg5100 kg5100 kg5190 kg5920 kg
Height with cab293/297 cm293/297 cm293/297 cm297 cm297 cm297 cm302 cm307 cm
Length (2WD/4WD)415/418 cm415/418 cm415/418 cm469/473 cm469/473 cm470 cm498 cm502 cm
Wheelbase (2WD/4WD)239/240 cm239/240 cm239/240 cm271 cm271 cm271 cm271 cm271 cm
Fuel tank90 (130) l90 l130 l120 (160) l120 (160) l160 l160/170 l355 l
Cab noise level84 dB84 dB84/80 dB84/80 dB84 dB84/80 dB84/80 dB-
Solid cabxxxxxxxx
Diff. lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lock
Creeper gearopt.opt.opt.opt.opt.opt.opt.opt.
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information. There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed. Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
