Siirry sivupalkkiinSiirry alaosaanSame Iron 100-125 / Lamborghini R6.100-R6.125 / Hürlimann XM 100-125
Manufacturer
Models
Same Iron 100, Lamborghini R6.100, Same Iron 110, Lamborghini R6.110, Same Iron 115, Lamborghini R6.115, Same Iron 125, Lamborghini R6.125, Same Iron 100 Hi-Line, Lamborghini R6.100 Hi-Line, Same Iron 110 Hi-Line, Lamborghini R6.110 Hi-Line, Same Iron 115 Hi-Line, Lamborghini R6.115 Hi-Line, Same Iron 115 Hi-Line, Lamborghini R6.115 Hi-Line, Same Iron 125 Hi-Line, Lamborghini R6.125 Hi-Line
Years
2008-13
Info
At the end of 2007, just like the Deutz-Fahr Agrotron K, the corresponding Same, Lamborghini, and Hürlimann models also received Tier III compliant engines. The engine of the 110 was now 4-cylinder. The 115 and 125 engines were equipped with common rail injection. The engines now had an extra power feature. Hydraulic output was increased to 61 liters in the base model. Unlike the Deutz-Fahr models, the adjustable displacement pump of the Hi-Line models still produced 83 liters per minute. Air conditioning was now a standard feature.
Outside of Western Europe, the production of Iron continued even after the introduction of the Fortis series.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | Same Iron 100 | Lamborghini R6.100 | Same Iron 110 | Lamborghini R6.110 | Same Iron 115 | Lamborghini R6.115 | Same Iron 125 | Lamborghini R6.125 | Same Iron 100 Hi-Line | Lamborghini R6.100 Hi-Line | Same Iron 110 Hi-Line | Lamborghini R6.110 Hi-Line | Same Iron 115 Hi-Line | Lamborghini R6.115 Hi-Line | Same Iron 115 Hi-Line | Lamborghini R6.115 Hi-Line | Same Iron 125 Hi-Line | Lamborghini R6.125 Hi-Line |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 2008-13 | 2008-13 | 2008-13 | 2008-13 | 2008-13 | 2008-13 | 2008-13 | 2008-13 | 2008-13 | 2008-13 | 2008-13 | 2008-13 | 2008-09 | 2008-09 | 2009-13 | 2009-13 | 2008-13 | 2008-13 |
| Engine model | TCD2012L04 | TCD2012L04 | TCD2012L04 | TCD2012L04 | TCD2012L06 | TCD2012L06 | TCD2012L04 | TCD2012L04 | TCD2012L04 | TCD2012L04 | TCD2012L04 | TCD2012L04 | TCD2012L06 | TCD2012L06 | TCD2012L06 | TCD2012L06 | TCD2012L04 | TCD2012L04 |
| Cyl/Turbo/Intercooler | 4TI | 4TI | 4TI | 4TI | 6TI | 6TI | 4TI | 4TI | 4TI | 4TI | 4TI | 4TI | 6TI | 6TI | 6TI | 6TI | 4TI | 4TI |
| Displacement | 4038 cm³ | 4038 cm³ | 4038 cm³ | 4038 cm³ | 6057 cm³ | 6057 cm³ | 4038 cm³ | 4038 cm³ | 4038 cm³ | 4038 cm³ | 4038 cm³ | 4038 cm³ | 6057 cm³ | 6057 cm³ | 6057 cm³ | 6057 cm³ | 4038 cm³ | 4038 cm³ |
| Bore x stroke | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm |
| Rated power | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Max power | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Torque | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Gears | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 |
| Synchronized gears | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 | 24+8 |
| Powershift gears | 3-step | 3-step | 3-step | 3-step | 3-step | 3-step | 3-step | 3-step | 3-step | 3-step | 3-step | 3-step | 3-step | 3-step | 3-step | 3-step | 3-step | 3-step |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 1,7-42,3/50,7 | 1,7-42,3/50,7 | 1,7-42,3/50,7 | 1,7-42,3/50,7 | 1,7-42,3/50,7 | 1,7-42,3/50,7 | 1,7-42,3/50,7 | 1,7-42,3/50,7 | 1,7-42,3/50,7 | 1,7-42,3/50,7 | 1,7-42,3/50,7 | 1,7-42,3/50,7 | 1,7-42,3/50,7 | 1,7-42,3/50,7 | 1,7-42,3/50,7 | 1,7-42,3/50,7 | 1,7-42,3/50,7 | 1,7-42,3/50,7 |
| Max. speed | 42 (50) km/h | 42 (50) km/h | 42 (50) km/h | 42 (50) km/h | 42 (50) km/h | 42 (50) km/h | 42 (50) km/h | 42 (50) km/h | 42 (50) km/h | 42 (50) km/h | 42 (50) km/h | 42 (50) km/h | 42 (50) km/h | 42 (50) km/h | 42 (50) km/h | 42 (50) km/h | 42 (50) km/h | 42 (50) km/h |
| Hydr. flow l/min | 61 (75) l/min | 61 (75) l/min | 61 (75) l/min | 61 (75) l/min | 61 (75) l/min | 61 (75) l/min | 61 (75) l/min | 61 (75) l/min | 83 l/min | 83 l/min | 83 l/min | 83 l/min | 83 l/min | 83 l/min | 83 l/min | 83 l/min | 83 l/min | 83 l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 6220 kg | 6220 kg | 6220 kg | 6220 kg | 6220 kg | 6220 kg | 6220 kg | 6220 kg | 6220 kg | 6220 kg | 6220 kg | 6220 kg | 6220 kg | 6220 kg | 6220 kg | 6220 kg | 6220 kg | 6220 kg |
| PTO speeds | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 | 540/750/ 1000/1400 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 10.9 | 10.9 | 10.9 | 10.9 | 11.7 | 11.7 | 10.9 | 10.9 | 10.9 | 10.9 | 10.9 | 10.9 | 11.7 | 11.7 | 11.7 | 11.7 | 10.9 | 10.9 |
| Front tyres 4WD | 420/70R24 | 420/70R24 | 420/70R24 | 420/70R24 | 380/70R28 | 380/70R28 | 380/70R28 | 380/70R28 | 380/70R28 | 380/70R28 | 380/70R28 | 380/70R28 | 380/70R28 | 380/70R28 | 380/70R28 | 380/70R28 | 380/70R28 | 380/70R28 |
| Rear tyres 4WD | 480/70R34 | 480/70R34 | 480/70R34 | 480/70R34 | 480/70R38 | 480/70R38 | 480/70R38 | 480/70R38 | 480/70R38 | 480/70R38 | 480/70R38 | 480/70R38 | 480/70R38 | 480/70R38 | 480/70R38 | 480/70R38 | 480/70R38 | 480/70R38 |
| Weight 4WD | 4440 kg | 4440 kg | 4440 kg | 4440 kg | 4850 kg | 4850 kg | 4440 kg | 4440 kg | 4440 kg | 4440 kg | 4440 kg | 4440 kg | 4850 kg | 4850 kg | 4850 kg | 4850 kg | 4440 kg | 4440 kg |
| Height with cab | 269 cm | 269 cm | 269 cm | 269 cm | 277 cm | 277 cm | 274 cm | 274 cm | 269 cm | 269 cm | 269 cm | 269 cm | 277 cm | 277 cm | 277 cm | 277 cm | 274 cm | 274 cm |
| Length (2WD/4WD) | 414 cm | 414 cm | 414 cm | 414 cm | 437 cm | 437 cm | 414 cm | 414 cm | 414 cm | 414 cm | 414 cm | 414 cm | 437 cm | 437 cm | 437 cm | 437 cm | 414 cm | 414 cm |
| Wheelbase (2WD/4WD) | 242 cm | 242 cm | 242 cm | 242 cm | 265 cm | 265 cm | 242 cm | 242 cm | 242 cm | 242 cm | 242 cm | 242 cm | 265 cm | 265 cm | 265 cm | 265 cm | 242 cm | 242 cm |
| Fuel tank | 180 l | 180 l | 180 l | 180 l | 180 l | 180 l | 180 l | 180 l | 180 l | 180 l | 180 l | 180 l | 180 l | 180 l | 180 l | 180 l | 180 l | 180 l |
| Cab noise level | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB | 72 dB |
| Solid cab | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock |

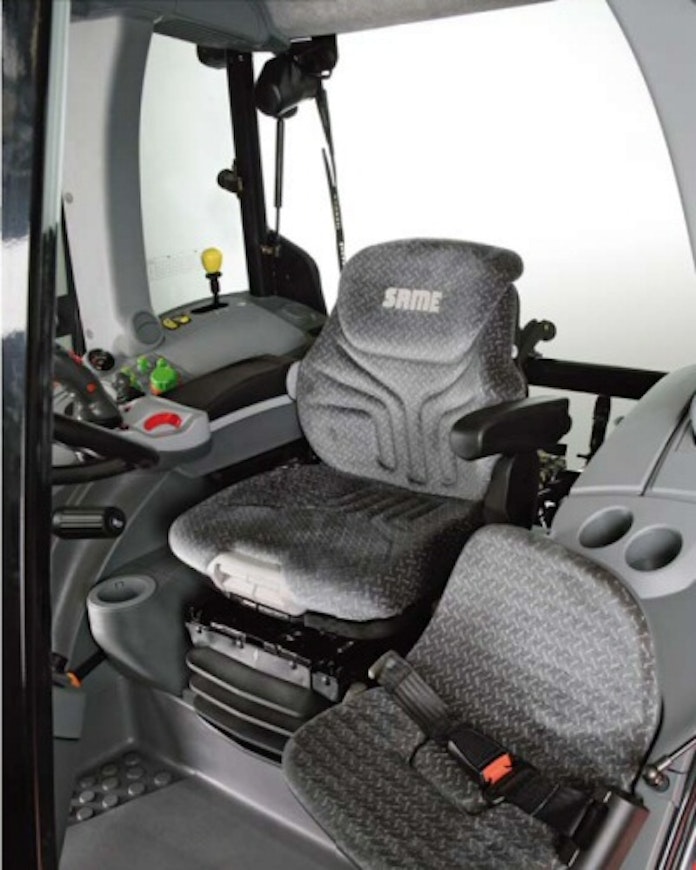

| Air suspension seat | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x |
| Creeper gear | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. |
