Same Explorer3 85-110 / Lamborghini R3.85-R3.110 Evo / Hürlimann XB Max 85-110












At the beginning of 2007, the Explorer3 and its sibling models received Deutz-style designs and 4.0-liter water-cooled Deutz engines. Initially, there were two models: with ISO power outputs of 82 and 96 horsepower. In spring 2009, a 109-horsepower model was also introduced, and the lower-power models received electronically controlled fuel injection for their engines. Torque figures were slightly weaker compared to the previous Same engines. Engine oil was changed every 500 hours, and it was possible to use 100% biodiesel. The transmission in the base model (Classic) had 20+20 gears with creep gears. The more expensive version (GS) featured a 2-speed quick shift instead of the previous three speeds, resulting in 40+40 gears. The GS model's electronic reverser included a push-button switch. Later, after the old Classic models were discontinued, a 15+15 gear version without creep gears and with a 2-speed PTO instead of four speeds was also offered. The electric lift was no longer available.

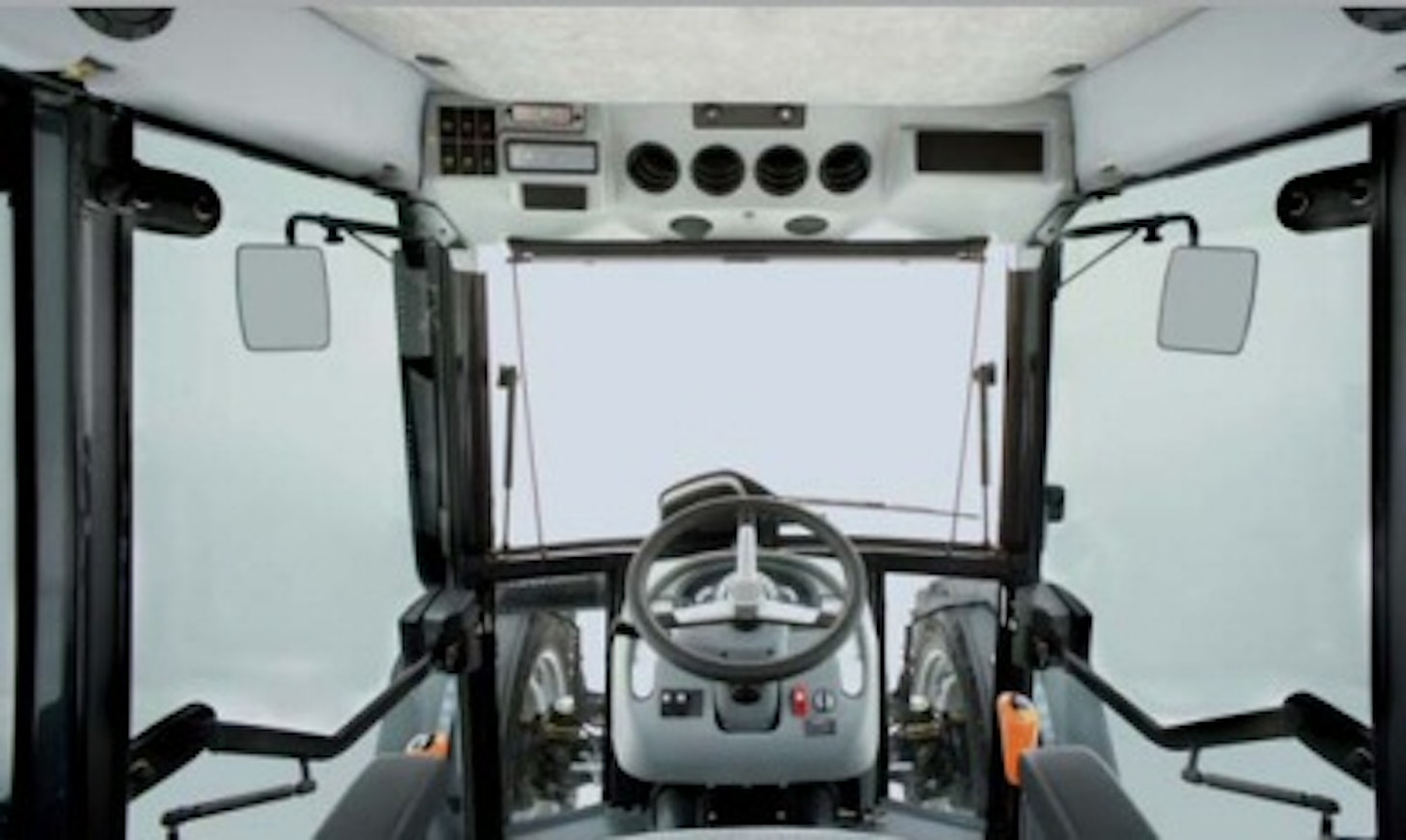

The external dimensions were slightly smaller than before, and the turning radius was reduced from over 9 meters to 7 meters. The differences between the three brands were limited to the design and color of the engine hood and the color of the steering wheel spokes. There was no difference at all between Lamborghini and Hürlimann. From 2009 onwards, the cab doors extended along the entire side, meaning there were only four pillars. The cab roof was lower than before unless air conditioning was chosen as an option. The lineup also included cab-less T models as well as cheaper T Classic/T Target models equipped with a 4000 cm³ Same engine.
In autumn 2012, the standard range also switched to Same’s own 1000-series engines. Two models remained: 90 and 105.
This is an automated translation. Please report any issues in the translation.
| Model | Same Explorer3 85 | Lamborghini R3.85 Evo | Same Explorer3 100 | Lamborghini R3.100 Evo | Same Explorer3 85 | Lamborghini R3.85 Evo | Same Explorer3 100 | Lamborghini R3.100 Evo | Same Explorer3 110 | Lamborghini R3.110 Evo | Same Explorer3 90 | Lamborghini R3.90 | Same Explorer3 105 | Lamborghini R3.105 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Imported to Finland | No | No | No | No | No | No | No | No | No | No | No | No | No | No |
| Years | 2007-09 | 2007-09 | 2007-09 | 2007-09 | 2009-12 | 2009-12 | 2009-12 | 2009-12 | 2009-12 | 2009-12 | 2012-14 | 2012-14 | 2012-14 | 2012-14 |
| Engine model | BF4M2012C | BF4M2012C | BF4M2012C | BF4M2012C | TD2012L04 | TD2012L04 | TCD2012L04 | TCD2012L04 | TCD2012L04 | TCD2012L04 | 1000.4 WTI | 1000.4 WTI | 1000.4 WTI | 1000.4 WTI |
| Cyl/Turbo/Intercooler | 4T | 4T | 4T | 4T | 4T | 4T | 4TI | 4TI | 4TI | 4TI | 4TI | 4TI | 4TI | 4TI |
| Displacement | 4038 cm³ | 4038 cm³ | 4038 cm³ | 4038 cm³ | 4038 cm³ | 4038 cm³ | 4038 cm³ | 4038 cm³ | 4038 cm³ | 4038 cm³ | 4000 cm³ | 4000 cm³ | 4000 cm³ | 4000 cm³ |
| Bore x stroke | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm | 105×115,5 mm | 105×115,5 mm | 105×115,5 mm | 105×115,5 mm |
| Rated power | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Torque | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Gears | 20+20/40+40 | 20+20/40+40 | 20+20/40+40 | 20+20/40+40 | 15+15/30+30 20+20/40+40 | 15+15/30+30 20+20/40+40 | 15+15/30+30 20+20/40+40 | 15+15/30+30 20+20/40+40 | 15+15/30+30 20+20/40+40 | 15+15/30+30 20+20/40+40 | 15+15/30+30 20+20/40+40 | 15+15/30+30 20+20/40+40 | 15+15/30+30 20+20/40+40 | 15+15/30+30 20+20/40+40 |
| Synchronized gears | 20+20/40+40 | 20+20/40+40 | 20+20/40+40 | 20+20/40+40 | 15+15/30+30 20+20/40+40 | 15+15/30+30 20+20/40+40 | 15+15/30+30 20+20/40+40 | 15+15/30+30 20+20/40+40 | 15+15/30+30 20+20/40+40 | 15+15/30+30 20+20/40+40 | 15+15/30+30 20+20/40+40 | 15+15/30+30 20+20/40+40 | 15+15/30+30 20+20/40+40 | 15+15/30+30 20+20/40+40 |
| Powershift gears | -/hydr. | -/hydr. | -/hydr. | -/hydr. | -/hydr. | -/hydr. | -/hydr. | -/hydr. | -/hydr. | -/hydr. | -/hydr. | -/hydr. | -/hydr. | -/hydr. |
| Reverser | mech. (hydr.) | mech. (hydr.) | mech. (hydr.) | mech. (hydr.) | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | hydr. | hydr. | hydr. | hydr. |

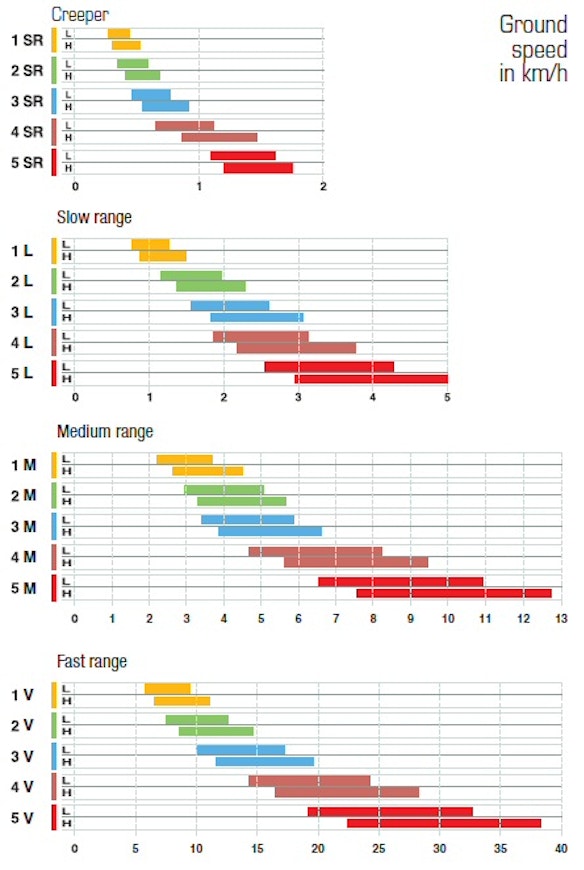

| Speeds in km/h | 0,5-38,2/ 0,44-38,2 | 0,5-38,2/ 0,44-38,2 | 0,5-38,2/ 0,34-38,2 | 0,5-38,2/ 0,34-38,2 | 0,52-38,2/ 0,44-38,2 | 0,52-38,2/ 0,44-38,2 | 0,52-38,2/ 0,44-38,2 | 0,52-38,2/ 0,44-38,2 | 0,52-38,2/ 0,44-38,2 | 0,52-38,2/ 0,44-38,2 | 0,52-38,2/ 0,44-38,2 | 0,52-38,2/ 0,44-38,2 | 0,52-38,2/ 0,44-38,2 | 0,52-38,2/ 0,44-38,2 |
| Max. speed | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 (50) km/h | 40 (50) km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h |
| Hydr. flow l/min | 54 l/min | 54 l/min | 54 l/min | 54 l/min | 54 l/min | 54 l/min | 54 l/min | 54 l/min | 54 l/min | 54 l/min | 54 l/min | 54 l/min | 54 l/min | 54 l/min |
| Hydraulic pressure | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. (elec.) | mech. (elec.) |
| Lift capacity | 4800 (6200) kg | 4800 (6200) kg | 4800 (6200) kg | 4800 (6200) kg | 4300 kg | 4300 kg | 5100 kg | 5100 kg | 5300 kg | 5300 kg | 4300 kg | 4300 kg | 5300 (6200) kg | 5300 (6200) kg |
| PTO speeds | 540/750/ 1000/1250 | 540/750/ 1000/1250 | 540/750/ 1000/1250 | 540/750/ 1000/1250 | 540/750 (540/750/ 1000/1250) | 540/750 (540/750/ 1000/1250) | 540/750 (540/750/ 1000/1250) | 540/750 (540/750/ 1000/1250) | 540/750 (540/750/ 1000/1250) | 540/750 (540/750/ 1000/1250) | 540/750 (540/750/ 1000/1250) | 540/750 (540/750/ 1000/1250) | 540/750 (540/750/ 1000/1250) | 540/750 (540/750/ 1000/1250) |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 6.1 | 6.1 | 6.1 | 6.1 | 6.1 | 6.1 | 6.1 | 6.1 | - | - | 6.1 | 6.1 | - | - |
| Turning circle m 4WD | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
| Front tyres 4WD | 12.4R24 | 12.4R24 | 14.9R24 | 14.9R24 | 12.4R24 | 12.4R24 | 14.9R24 | 14.9R24 | 14.9R24 | 14.9R24 | 320/85R24 | 320/85R24 | 380/85R24 | 380/85R24 |
| Rear tyres 2WD | 16.9R30 | 16.9R30 | 16.9R34 | 16.9R34 | 16.9R30 | 16.9R30 | 16.9R34 | 16.9R34 | - | - | 420/85R34 | 420/85R34 | 480/85R34 | 480/85R34 |
| Rear tyres 4WD | 16.9R30 | 16.9R30 | 16.9R34 | 16.9R34 | 16.9R30 | 16.9R30 | 16.9R34 | 16.9R34 | 18.4R34 | 18.4R34 | 420/85R34 | 420/85R34 | 480/85R34 | 480/85R34 |
| Weight 2WD | 3140 kg | 3140 kg | 3400 kg | 3400 kg | 3240 kg | 3240 kg | 3400 kg | 3400 kg | - | - | 3257 kg | 3257 kg | 3637 kg | 3637 kg |
| Weight 4WD | 3490 kg | 3490 kg | 3800 kg | 3800 kg | 3700 kg | 3700 kg | 4050 kg | 4050 kg | 4100 kg | 4100 kg | 3567 kg | 3567 kg | 4067 kg | 4067 kg |
| Height with cab | 271 cm | 271 cm | 279 cm | 279 cm | 255 cm | 255 cm | 258 cm | 258 cm | 258 cm | 258 cm | 274 cm | 274 cm | 279 cm | 279 cm |
| Length (2WD/4WD) | 400 cm | 400 cm | 408 cm | 408 cm | 400 cm | 400 cm | 408 cm | 408 cm | 412 cm | 412 cm | 408 cm | 408 cm | 420 cm | 420 cm |
| Wheelbase (2WD/4WD) | 222/231 cm | 222/231 cm | 225/234 cm | 225/234 cm | 222/231 cm | 222/231 cm | 225/234 cm | 225/234 cm | 234 cm | 234 cm | 235/237 cm | 235/237 cm | 240/238 cm | 240/238 cm |
| Fuel tank | 160 l | 160 l | 160 l | 160 l | 160 l | 160 l | 160 l | 160 l | 160 l | 160 l | 160 l | 160 l | 160 l | 160 l |
| Cab noise level | 75 dB | 75 dB | 75 dB | 75 dB | 75 dB | 75 dB | 75 dB | 75 dB | 75 dB | 75 dB | 75 dB | 75 dB | 75 dB | 75 dB |
| Solid cab | x | x | x | x | x | x | x | x | x | x | x | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Creeper gear | x | x | x | x | -/x | -/x | -/x | -/x | -/x | -/x | -/x | -/x | -/x | -/x |
