Siirry sivupalkkiinSiirry alaosaanSame Explorer II Top

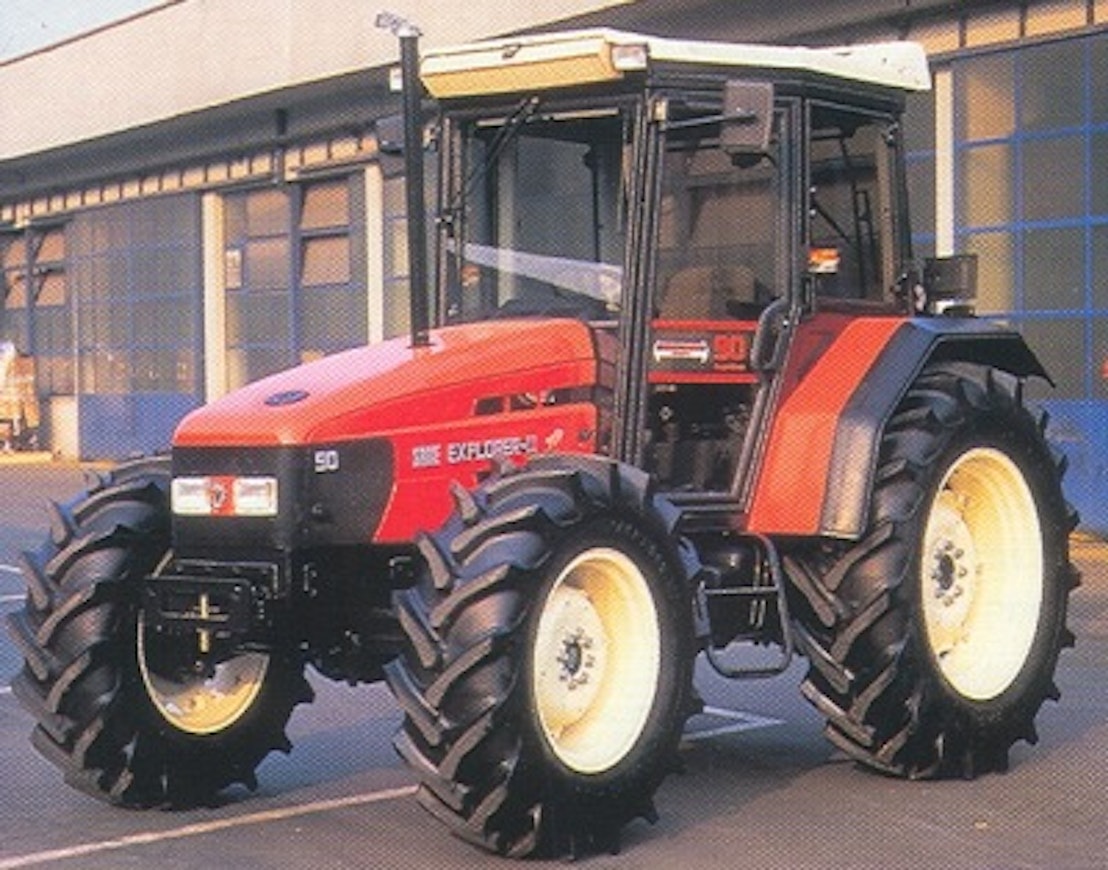

In spring 1998 the Same Explorer Top series was introduced. The engine hood was reshaped with rounder lines, but the cab remained unchanged. The technology was almost the same as before. There were no changes in the performance figures of the 70–90 hp, 4.0 liter air-cooled engines. The basic transmission was now a 24+12 with a mechanical creeper gear. In many countries, including Finland, however, the standard transmission was still the earlier 20+20 or Syncro Power 40+40, both of which included creeper gears as standard.

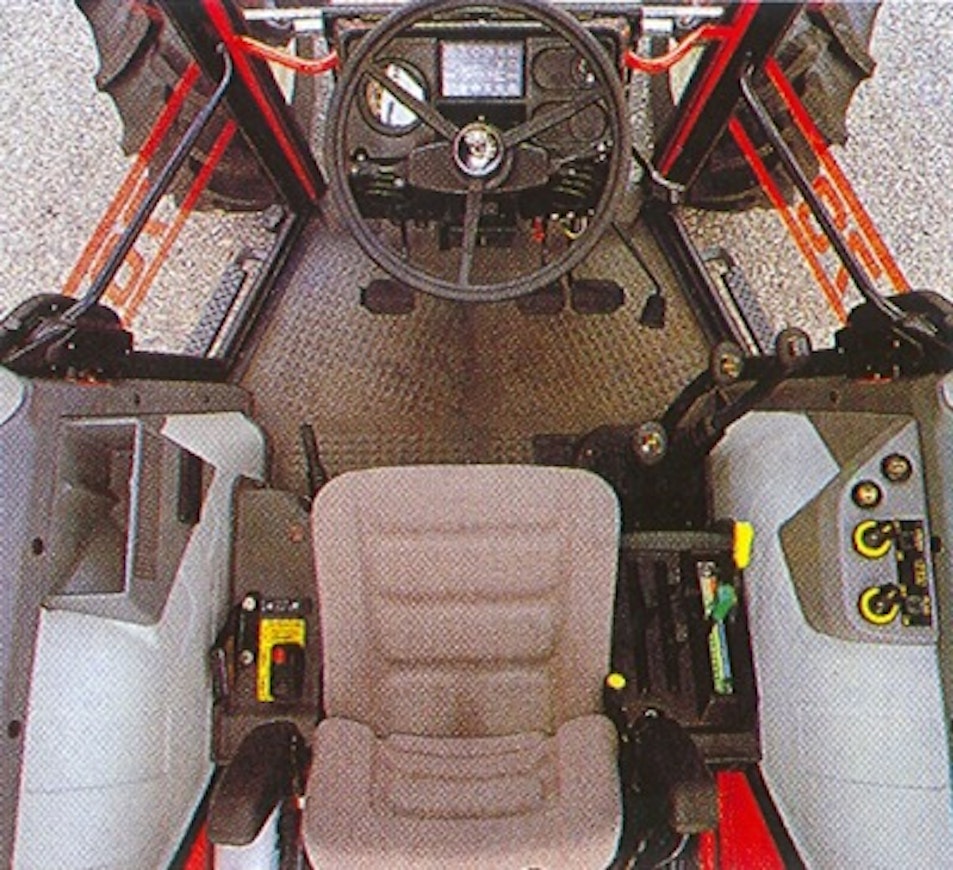

Familiar features also included a 4-speed power take-off, four-wheel disc brakes, draft sensing lift arms, and a 3,450 kg mechanical lift. With the addition of extra hydraulic cylinders, lift capacity could be increased to 4,760 kg (standard on the 90 hp model in Finland). Optional equipment included electronic engine speed control, an electrically engaged differential lock and four-wheel drive (standard on the 90 hp in Finland), a reverse-driving kit, and air conditioning. The cab controls remained as before, but the noise level was now specified at 81 dB. In Finland the cab frame was painted black and a Webasto auxiliary heater was standard.
The Explorer was brought to us in Finland by Suomen Motokov in 1998–1999. Kesko began importing Same tractors at the start of 2000, but did not include the Explorer in its lineup. In 2003 the new 85 hp and 95 hp Explorers were unveiled, along with the more affordable Explorer Classic series. At that time sales began in Finland of the 90 hp water-cooled Explorer.
This is an automated translation. Please report any issues in the translation.
| Model | Same Explorer II Top 70 | Same Explorer II Top 80 | Same Explorer II Top 90 |
|---|---|---|---|
| Manufacturer name | Same | Same | Same |
| Imported to Finland | Yes | No | Yes |
| Years | 1998-2003 | 1998-2003 | 1998-2003 |
| Engine model | 1000.4A | 1000.4A1 | 1000.4AT |
| Cyl/Turbo/Intercooler | 4 | 4 | 4T |
| Displacement | 4000 cm³ | 4000 cm³ | 4000 cm³ |
| Bore x stroke | 105×115,5 mm | 105×115,5 mm | 105×115,5 mm |
| Rated power | 70/2350 hp DIN/rpm | 80/2500 hp DIN/rpm | 88/2500 hp DIN/rpm |
| Torque | - | - | - |
| Gears | 20+20/40+40 | 24+12/40+40 | 20+20/40+40 |
| Synchronized gears | 20+20/40+40 | 24+12/40+40 | 20+20/40+40 |
| Powershift gears | -/hydr. | mech./hydr. | -/hydr. |
| Reverser | mech. | mech. | mech. |
| Speeds in km/h | 0,4-37,3/ 0,34-37,3 | 1,4-38,0/ 0,34-37,3 | 0,4-37,3/ 0,34-37,3 |
| Max. speed | 40 km/h | 40 km/h | 40 km/h |
| Hydr. flow l/min | 35 l/min | 35 (48) l/min | 35 (50/73) l/min |
| Hydraulic pressure | 180 bar | 180 bar | 180 bar |
| Lift controls | mech. | mech. | mech. |
| Lift capacity | 3450 kg | 3450 (4760) kg | 3450 (4760) kg |
| PTO speeds | 540/750/ 1000/1250/ajo | 540/750/ 1000/1250/ajo | 540/750/ 1000/1250/ajo |
| Brakes | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 8.5 | 9.9 | 9.9 |
| Front tyres 4WD | 14.9R24 | 14.9R24 | 14.9R24 |
| Rear tyres 4WD | 16.9R34 | 16.9R34 | 16.9R34 |
| Weight 4WD | 3070 kg | 3380 kg | 3495 kg |
| Height with cab | 250 cm | 260 cm | 260 cm |
| Length (2WD/4WD) | 398 cm | 404 cm | 404 cm |
| Wheelbase (2WD/4WD) | 228 cm | 232 cm | 232 cm |
| Fuel tank | 90 l | 110 l | 110 l |
| Cab noise level | 81 dB | 81 dB | 81 dB |
| Solid cab | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Creeper gear | x | -/x | x |
