Siirry sivupalkkiinSiirry alaosaanRenault Atlès 915 RZ – 936 RZ

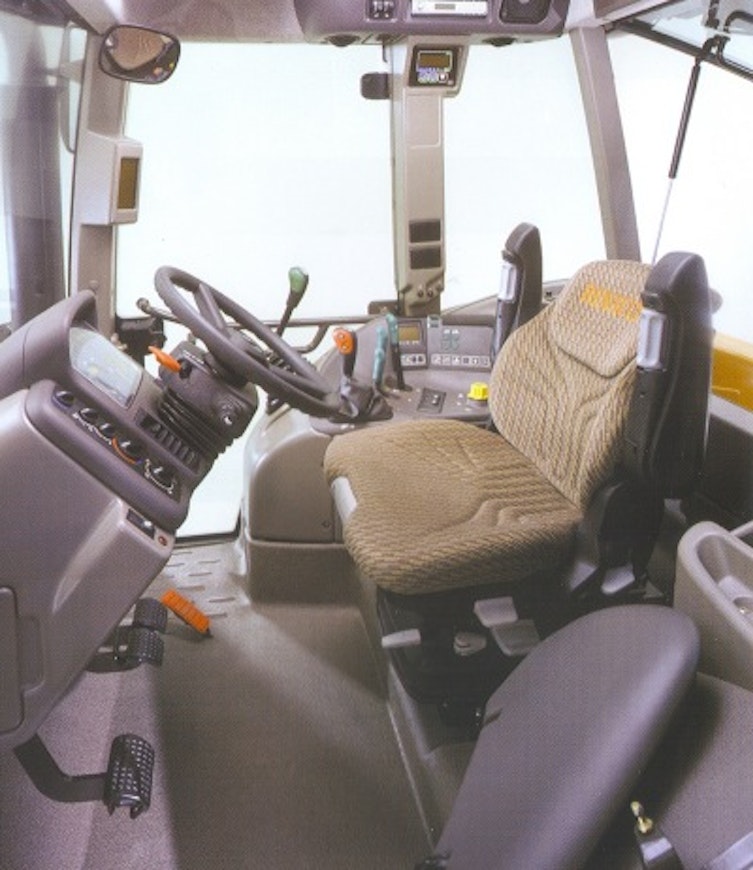

Above the Arès series, the Renault Atlès was introduced in the spring of 2000. Its appearance stood out from smaller models thanks to the lights located at the top of the front, but the technical differences compared to the larger Arès models were minimal. The most important feature was that the Atlès' engine was a 7.2-liter unit manufactured by Deutz. There were three power classes, with the smallest 195-horsepower version seeing limited production. The two larger models featured an intercooler as well as a wastegate. The transmission was a Funk full powershift. The hydraulics were a load-sensing system equipped with a 110 l/min pump. Lifting capacity was 12 tons. Alongside the electrical lift device, there was an onboard computer equipped with radar. The cab, in typical Renault fashion, was equipped with suspension.
In 2002, the 906 series Atlès was introduced. The smallest model was dropped from the lineup. There were minor updates to the control devices, and the noise level had decreased to 74 decibels.
This is an automated translation. Please report any issues in the translation.
| Model | Renault Atlès 915 | Renault Atlès 925 | Renault Atlès 935 | Renault Atlès 926 | Renault Atlès 936 |
|---|---|---|---|---|---|
| Manufacturer name | Renault | Renault | Renault | Renault | Renault |
| Imported to Finland | No | No | No | No | No |
| Years | 2000-02 | 2000-02 | 2000-02 | 2002-03 | 2002-03 |
| Engine model | Deutz BF6L1013EC | Deutz BF6L1013FC | Deutz BF6L1013FC | Deutz BF6L1013FC | Deutz BF6L1013FC |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI | 6TI | 6TI |
| Displacement | 7151 cm³ | 7151 cm³ | 7151 cm³ | 7151 cm³ | 7151 cm³ |
| Bore x stroke | 108×130 mm | 108×130 mm | 108×130 mm | 108×130 mm | 108×130 mm |
| Rated power | 197/2200 hp DIN/rpm | 226/2200 hp DIN/rpm | 250/2200 hp DIN/rpm | 226/2200 hp DIN/rpm | 250/2200 hp DIN/rpm |
| Max power | 205/1800 hp DIN/rpm | 240/1800 hp DIN/rpm | 260/1800 hp DIN/rpm | 240/1800 hp DIN/rpm | 260/1800 hp DIN/rpm |
| Torque | - | - | - | - | - |
| Gears | 18+8 | 18+8 | 18+8 | 18+8 | 18+8 |
| Synchronized gears | powershift | powershift | powershift | powershift | powershift |
| Powershift gears | powershift | powershift | powershift | powershift | powershift |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 2,3-40 | 2,3-40 | 2,5-41,1 | 2,3-40 | 2,5-41,1 |
| Max. speed | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h |
| Hydr. flow l/min | 110 l/min | 110 l/min | 110 l/min | 110 l/min | 110 l/min |
| Lift controls | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 11330 kg | 12000 kg | 12000 kg | 12000 kg | 12000 kg |
| PTO speeds | 750/1000 | 750/1000 | 750/1000 | 750/1000 | 750/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 9.82 | 10.4 | 11.3 | 10.4 | 11.3 |
| Front tyres 4WD | 16.9R30 | 16.9R30 | 600/70R38 | 16.9R30 | 600/70R38 |
| Rear tyres 4WD | 20.8R42 | 20.8R42 | 650/85R38 | 20.8R42 | 650/85R38 |
| Weight 4WD | 8610 kg | 9660 kg | 10280 kg | 9660 kg | 10280 kg |
| Height with cab | 321 cm | 321 cm | 324 cm | 321 cm | 324 cm |
| Length (2WD/4WD) | (558) cm | (573) cm | (573) cm | 504 cm | 509 cm |
| Wheelbase (2WD/4WD) | 304 cm | 304 cm | 304 cm | 304 cm | 304 cm |
| Fuel tank | 325 l | 455 l | 455 l | 455 l | 455 l |
| Solid cab | x | x | x | x | x |
| Diff. lock | disc lock | disc lock | disc lock | disc lock | disc lock |
| Autom. differential locks | x | x | x | x | x |
| Air suspension seat | x | x | x | x | x |
| Air conditioning | x | x | x | x | x |
| Trip computer | x | x | x | x | x |
| Creeper gear | opt. | opt. | opt. | opt. | opt. |
| Cab noise level | - | - | 79.5 dB | 74 dB | 74 dB |
