Siirry sivupalkkiinSiirry alaosaanLandini 5-080H – 5-115H

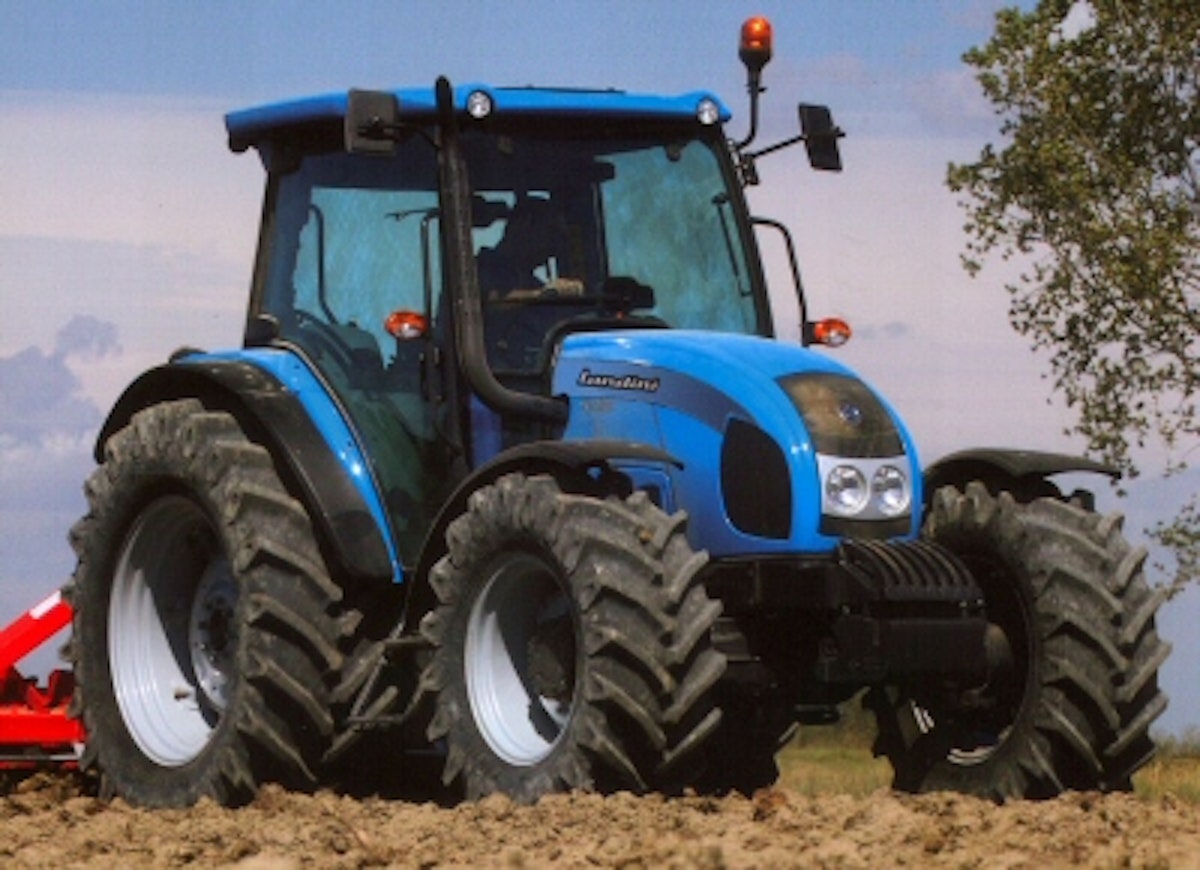

At the end of 2009, Landini introduced the 5H series, which was developed based on the Powerfarm series. The most significant differences were the rear axle and the 3-speed quick-shift in the Top version. The 5H replaced the Vision series as well as the Power Shuttle versions of the Powerfarm series. The engines were 4.4-liter Perkins. Following Landini's practice, the model numbers were rounded up considerably relative to the power rating. The transmissions had 24+12 speeds, or 36+12 in the Top version. In some countries, a basic version with 12+12 speeds was also available. There were many options for the power take-off (PTO), with standard speeds of 540 and 540E. Unlike the Powerfarm, the PTO clutch was an oil-immersed multi-disc clutch. The electronic lift was an optional extra. The cab, named Total View, was essentially the same as in the Powerfarm, with a central hump on the floor. Correspondingly, the tractor's height was only 256 cm. The 5H series ended Landini's long tradition of naming series with model names.

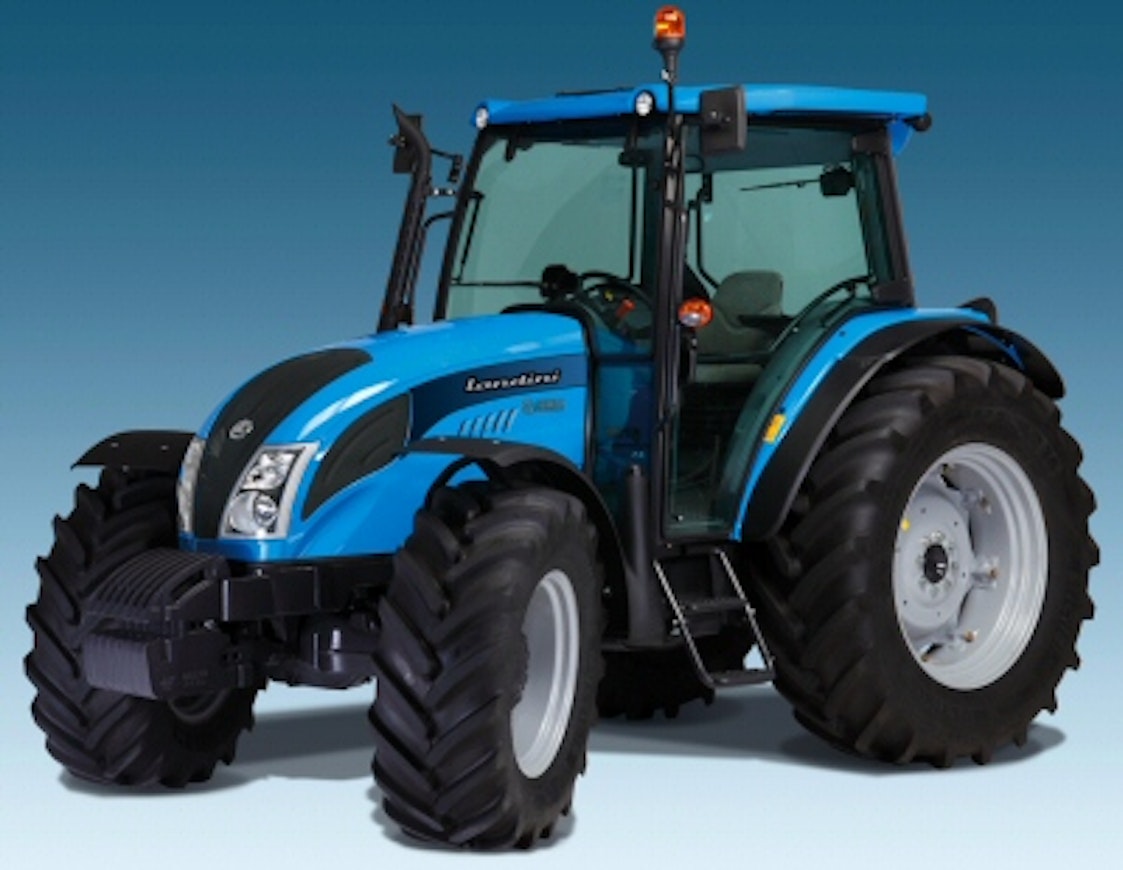

Just a year later, the front design was changed. At the same time, a 110-horsepower 5-115H was added to the series. A new transmission option was 12+12 speeds with a hydraulic shuttle.
This is an automated translation. Please report any issues in the translation.
| Model | Landini 5-080H | Landini 5-090H | Landini 5-100H | Landini 5-110H | Landini 5-115H |
|---|---|---|---|---|---|
| Manufacturer name | Landini | Landini | Landini | Landini | Landini |
| Imported to Finland | No | No | No | No | No |
| Years | 2009-12 | 2009-12 | 2009-12 | 2009-12 | 2010-12 |
| Engine model | Perkins 1104D-44 | Perkins 1104D-44T | Perkins 1104D-44TA | Perkins 1104D-44TA | Perkins 1104D-44TA |
| Cyl/Turbo/Intercooler | 4 | 4T | 4TI | 4TI | 4TI |
| Displacement | 4400 cm³ | 4400 cm³ | 4400 cm³ | 4400 cm³ | 4400 cm³ |
| Bore x stroke | 105×127 mm | 105×127 mm | 105×127 mm | 105×127 mm | 105×127 mm |
| Rated power | - | - | - | - | - |
| Torque | - | - | - | - | - |
| Gears | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 |
| Synchronized gears | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 | 24+12/36+12 |
| Powershift gears | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. |
| Reverser | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. |
| Speeds in km/h | 2,0-40 | 2,0-40 | 2,0-40 | 2,0-40 | 2,0-40 |
| Hydr. flow l/min | 52 l/min | 52 l/min | 52 l/min | 52 l/min | 52 l/min |
| Hydraulic pressure | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar |
| Lift controls | mech. (elec.) | mech. (elec.) | mech. (elec.) | mech. (elec.) | mech. (elec.) |
| Lift capacity | 4350 kg | 4350 kg | 4350 kg | 4350 kg | 4350 kg |
| PTO speeds | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydr. | hydr. | hydr. | hydr. | hydr. |
| Turning circle m 4WD | 8.4 | 8.4 | 8.4 | 8.4 | 8.4 |
| Front tyres 4WD | 340/85R24 | 340/85R24 | 340/85R24 | 340/85R24 | 340/85R24 |
| Rear tyres 4WD | 420/85R34 | 420/85R34 | 420/85R34 | 420/85R34 | 420/85R34 |
| Weight 4WD | 3650 kg | 3650 kg | 3650 kg | 3650 kg | 3650 kg |
| Height with cab | 256 cm | 256 cm | 256 cm | 256 cm | 256 cm |
| Length (2WD/4WD) | 416 cm | 416 cm | 416 cm | 416 cm | 416 cm |
| Wheelbase (2WD/4WD) | 237/234 cm | 237/234 cm | 237/234 cm | 237/234 cm | 237/234 cm |
| Fuel tank | 102 l | 102 l | 102 l | 102 l | 102 l |
| Solid cab | x | x | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Air suspension seat | -/x | -/x | -/x | -/x | -/x |
| Creeper gear | opt. | opt. | opt. | opt. | opt. |
