Siirry sivupalkkiinSiirry alaosaanLamborghini 483-714

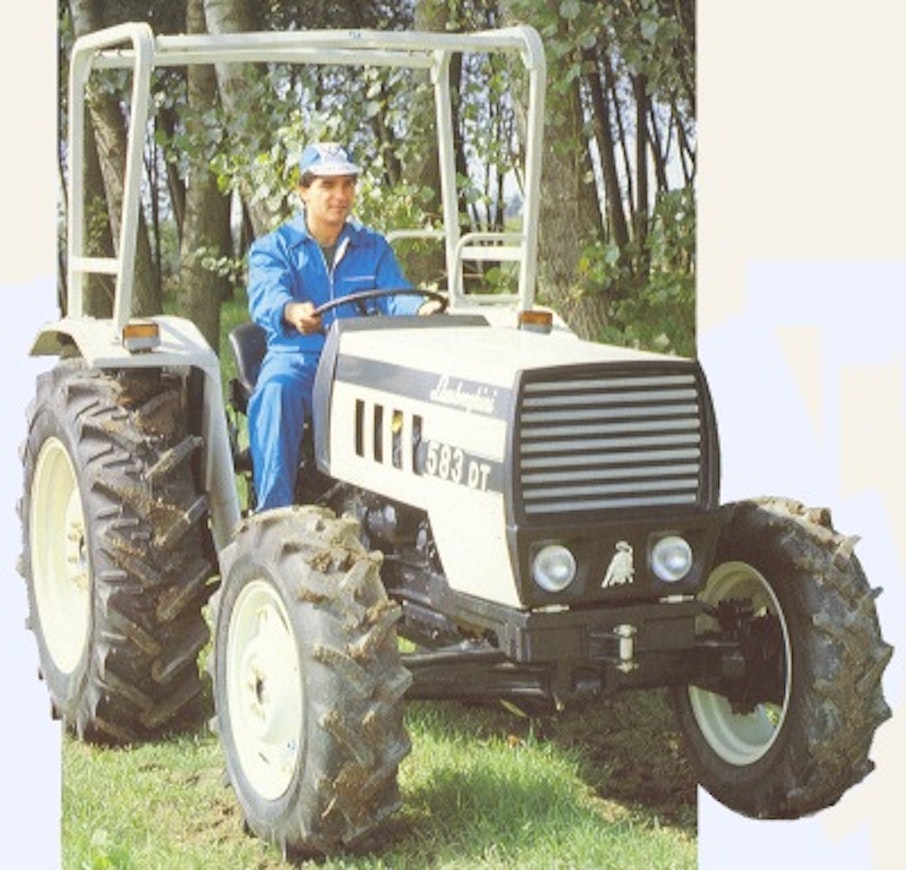

The 483, 583, 613, 683, and 684 models, introduced in 1982, served as the basic tractors for the long-term positions of the R 503 and 603. There were many series of air-cooled engines: the smallest ones originated from predecessors, and the 3.1-liter Same engine had previously been used in Lamborghini crawler tractors. The four-cylinder engine in the 684 was the same as in the heavier models 654 and 754. The 653 differed from the series in design: its front end resembled that of the 654.
The transmission was the previous fully synchronized 12+3, but the gear ratios were adjusted for higher speeds to achieve a highway speed of 30 km/h. Steering was hydrostatic in most models, and the brakes were oil-bath type.
The lineup was reduced in 1985, but the 613 and the newly introduced 714—which featured a newer 4.0-liter engine from the 1000 series—continued production until 1989.
The production years of the models are approximate.
This is an automated translation. Please report any issues in the translation.
| Model | Lamborghini 483 | Lamborghini 583 | Lamborghini 653 | Lamborghini 683 | Lamborghini 684 |
|---|---|---|---|---|---|
| Manufacturer name | Lamborghini | Lamborghini | Lamborghini | Lamborghini | Lamborghini |
| Imported to Finland | No | No | No | No | No |
| Years | 1982-85 | 1982-85 | 1980-85 | 1982-85 | 1982-85 |
| Engine model | 983 L | FL 1003 | 105.3P | 105.3P | 984P |
| Cyl/Turbo/Intercooler | 3 | 3 | 3 | 3 | 4 |
| Displacement | 2715 cm³ | 2827 cm³ | 3117 cm³ | 3117 cm³ | 3620 cm³ |
| Bore x stroke | 98×120 mm | 100×120 mm | 105×120 mm | 105×120 mm | 105×120 mm |
| Rated power | 48/2200 hp DIN/rpm | 53/2300 hp DIN/rpm | 62/2300 hp DIN/rpm | 60/2300 hp DIN/rpm | 67/2100 hp DIN/rpm |
| Gears | 12+3 | 12+3 | 12+3 | 12+3 | 12+3 |
| Synchronized gears | 12+3 | 12+3 | 12+3 | 12+3 | 12+3 |
| Speeds in km/h | 0,8-28,2 | 1,3-27,3 | 1,1-23,5 | - | 1,6-28,2 |
| Max. speed | 30 km/h | 30 km/h | 25 km/h | 30 km/h | 30 km/h |
| Hydr. flow l/min | 21.7 l/min | 21.7 l/min | 32 l/min | 32 l/min | 30 l/min |
| Lift controls | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 2000 kg | 2500 kg | 3000 kg | 2500 kg | 3000 kg |
| PTO speeds | 540 (1000) | 540 (1000) | 540 (1000) | 540 (1000) | 540/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | mech. | mech./hydrost. | hydrost. | hydrost. | hydrost. |
| Front tyres 2WD | 6.00-16 | 6.00-16 | 6.50-16 | 6.50-16 | 6.50-16 |
| Front tyres 4WD | 8.0-20 | 9.5-20 | 9.5-24 | 9.5-24 | 9.5-24 |
| Rear tyres 2WD | 12.4-28 | 13.6-28 | 14.9-30 | 14.9-30 | 14.9-30 |
| Rear tyres 4WD | 12.4-28 | 13.6-28 | 14.9-30 | 14.9-30 | 14.9-30 |
| Weight 2WD | (1960) kg | (1970) kg | 2580 kg | 2240 kg | - |
| Weight 4WD | (2110) kg | (2200) kg | 2820 kg | 2470 kg | - |
| Height with cab | 217 cm | 220 cm | 238 cm | - | - |
| Length (2WD/4WD) | 330 cm | 330 cm | 336 cm | - | - |
| Wheelbase (2WD/4WD) | 200 cm | 200 cm | 214/215 cm | 200 cm | - |
| Fuel tank | 54 l | 54/60 l | 70 l | 60 l | 68 l |
| Creeper gear | opt. | opt. | opt. | opt. | opt. |
| Torque | - | - | - | - | - |
| Solid cab | - | - | x | - | x |
