IMT 533-539

82IMT539b
82IMT539
82IMT539ohjaamo
06IMT539P
82IMT539b
82IMT539
82IMT539ohjaamo
06IMT539P
Manufacturer
Models
IMT 533, IMT 539, IMT 539 P
Years
1961-n. 88
Info

The Yugoslavian Industry of Machines and Tractors (IMT) began licensed production of MF tractors with the TE20 model in 1956. In 1961, the IMT 533, based on the MF 35, entered production. The agreement with MF ended in 1968, but the manufacturing of existing models continued, and MF's influence was also visible in later models. The engines used were Perkins engines manufactured under license. The smallest models, the 528 and 530, had a version converted to 2 cylinders. At least in the Eastern European markets, IMT was known early on as ITM.

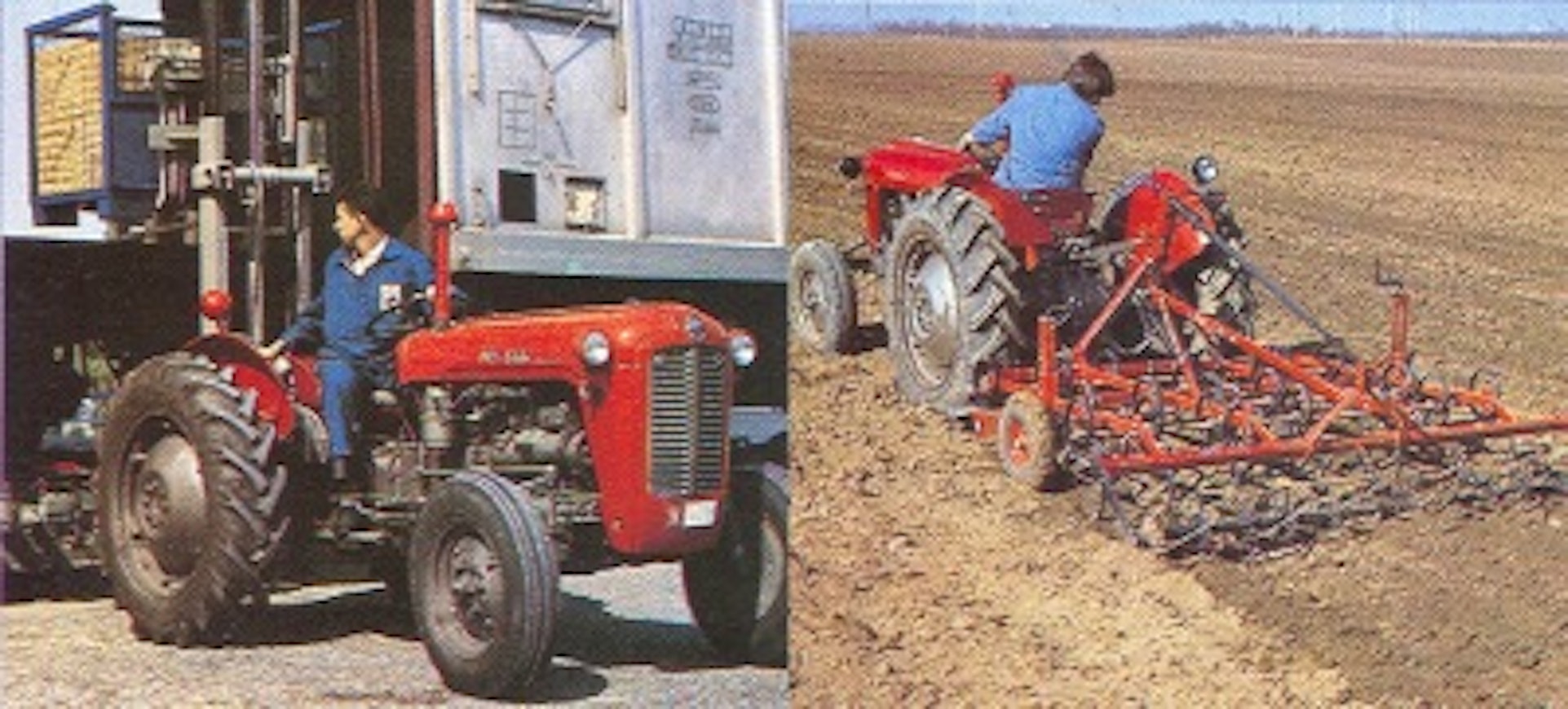

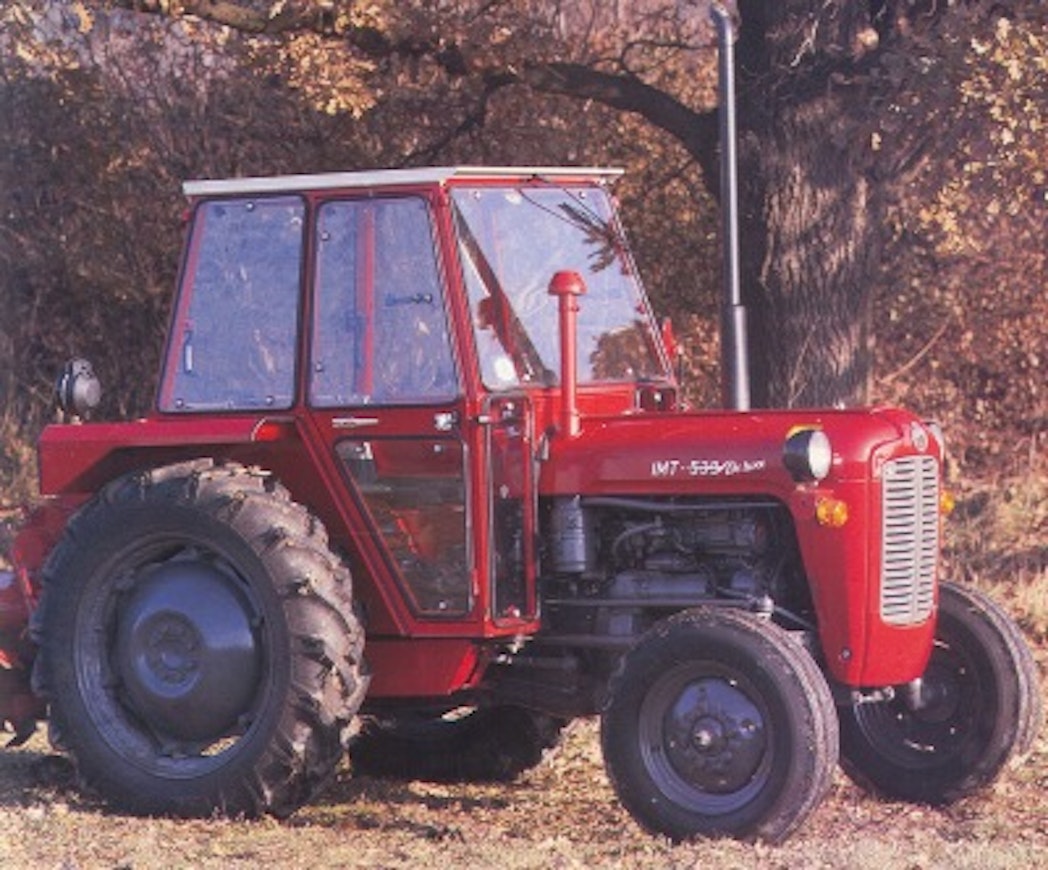

The engine of the IMT 533 was a 2.36-liter based on the Perkins P3. It had 6+2 gears, and technically in other respects corresponded to the MF 35. In 1971, the model designation added "De Luxe," whose main significance was the dual clutch. In 1980, alongside it was introduced the more powerful 539, which had a 2.5-liter M 33/T engine based on the Perkins A3.152.

IMT exports were quite extensive even to Western countries. Different safety cabins were installed in different countries. In Finland, the IMT 533/539 became known mainly from news footage showing Yugoslavs evacuating their families and belongings with IMTs equipped with rear loaders or trailers. IMT exports were interrupted from 1993 to 1998. After that, the 539 P was introduced alongside the traditionally styled models, featuring angular bodywork. It is also available with a synchronized 12+4 transmission, hydrostatic steering, and as a four-wheel drive model.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelIMT 533IMT 539IMT 539 P
Options
Manufacturer nameIMTIMTIMT
Imported to FinlandNoNoNo
Years1961-n. 881980-n. 1998-
First year sold196119801998
Engine modelIM 033/TM 33/TM 33/T
Cyl/Turbo/Intercooler333
Displacement2360 cm³2500 cm³2500 cm³
Bore x stroke88,9×127 mm91,44×127 mm91,44×127 mm
Rated power hp/rpm DIN35/200039/200040/2000
Rated power353940
Rated speed200020002000
Torque Nm/rpm DIN125/1300154/1350-
Gears6+26+26+2/12+4
Synchronized gears---/12+4
Powershift gears---/mech.
Speeds in km/h2,2-23,42,1-23,02,3-25,0
Hydr. flow l/min-12/16 l/min16 l/min
Lift controlsmech.mech.mech.
Lift capacity817 kg813/1100 kg1100 kg
PTO speeds540/ajo540/ajo540/ajo
Brakesdrum brakesdrum brakesdrum brakes
Steeringmech.mech.mech.
Turning circle m 2WD6.026.3-
Front tyres 2WD5.00-166.00-166.00-16
Front tyres 4WD--6.00-16
Rear tyres 2WD11.2-2811.2-2811.2-28
Rear tyres 4WD--11.2-28
Weight 2WD(1516) kg1630 kg1685 kg
Weight 4WD--1835 kg
Height with cab(137) cm203 cm222 cm
Length (2WD/4WD)297 cm297 cm322 cm
Wheelbase (2WD/4WD)184 cm183 cm183 cm
Fuel tank35 l35 l35 l
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information. There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed. Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
