Here is the English translation of your text:
IMT’s licensing agreement with MF ended in 1968. IMT retained the rights to tractors based on the MF 35 and 65, the 6+2 transmission, and prechamber diesels. However, what was significant was that IMT also obtained the rights to the basic structure and engine of the MF 175.

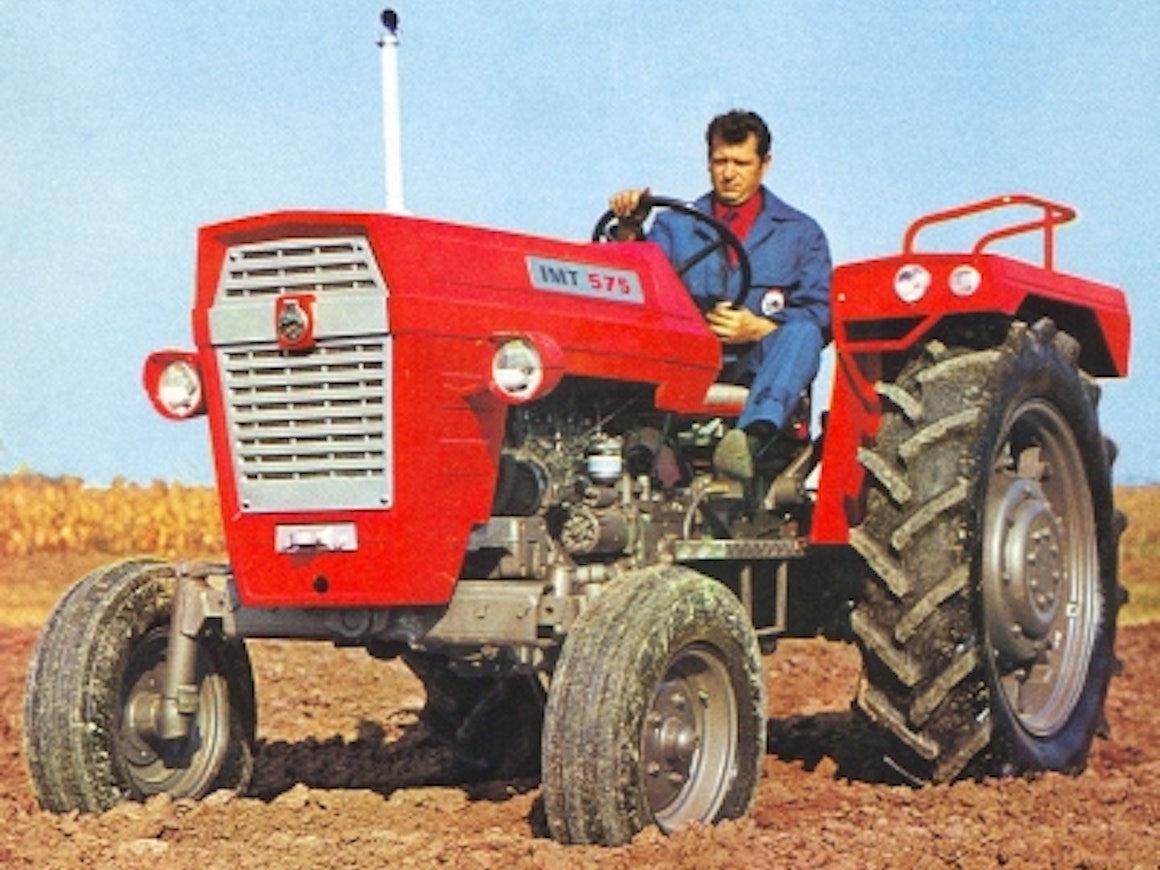

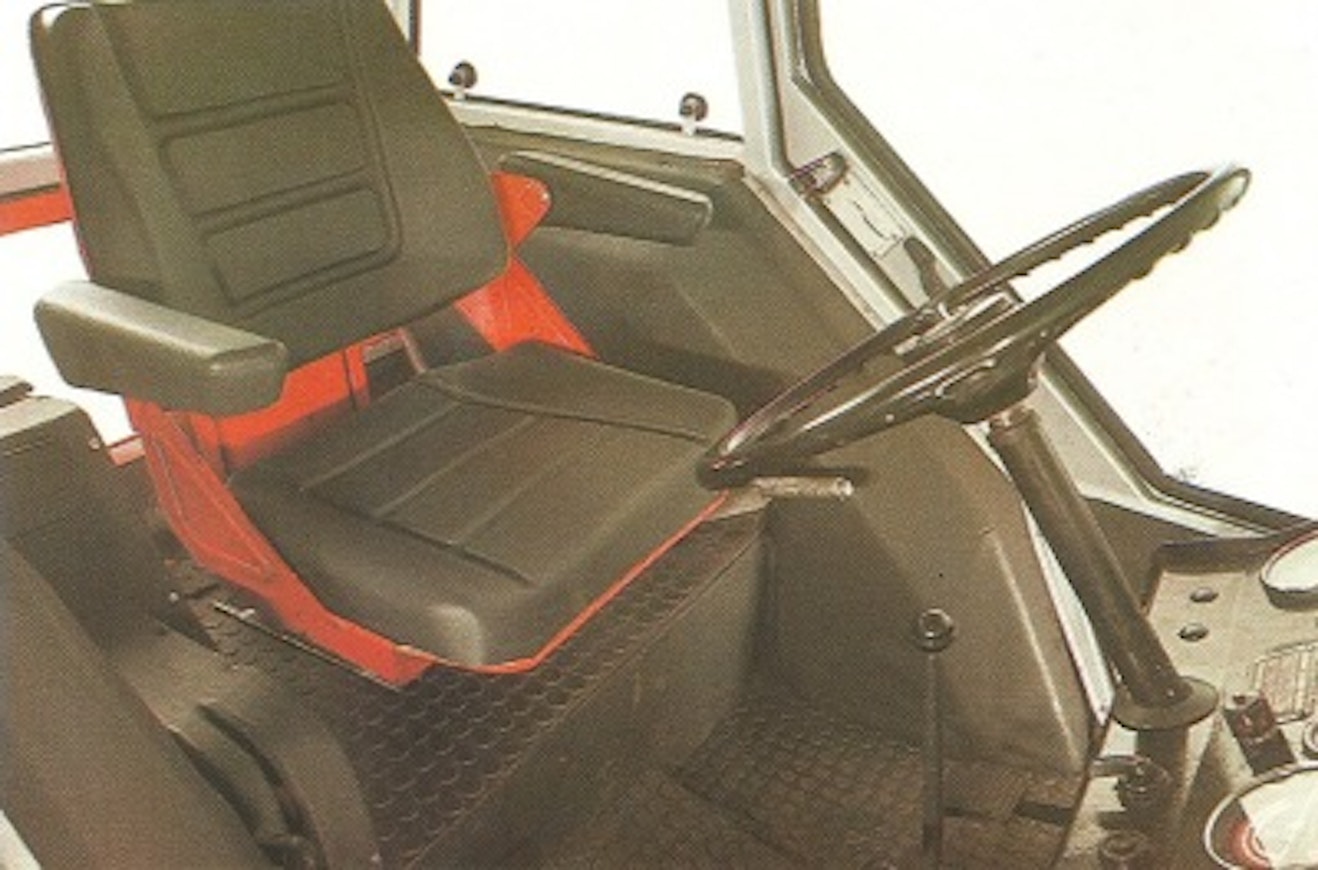

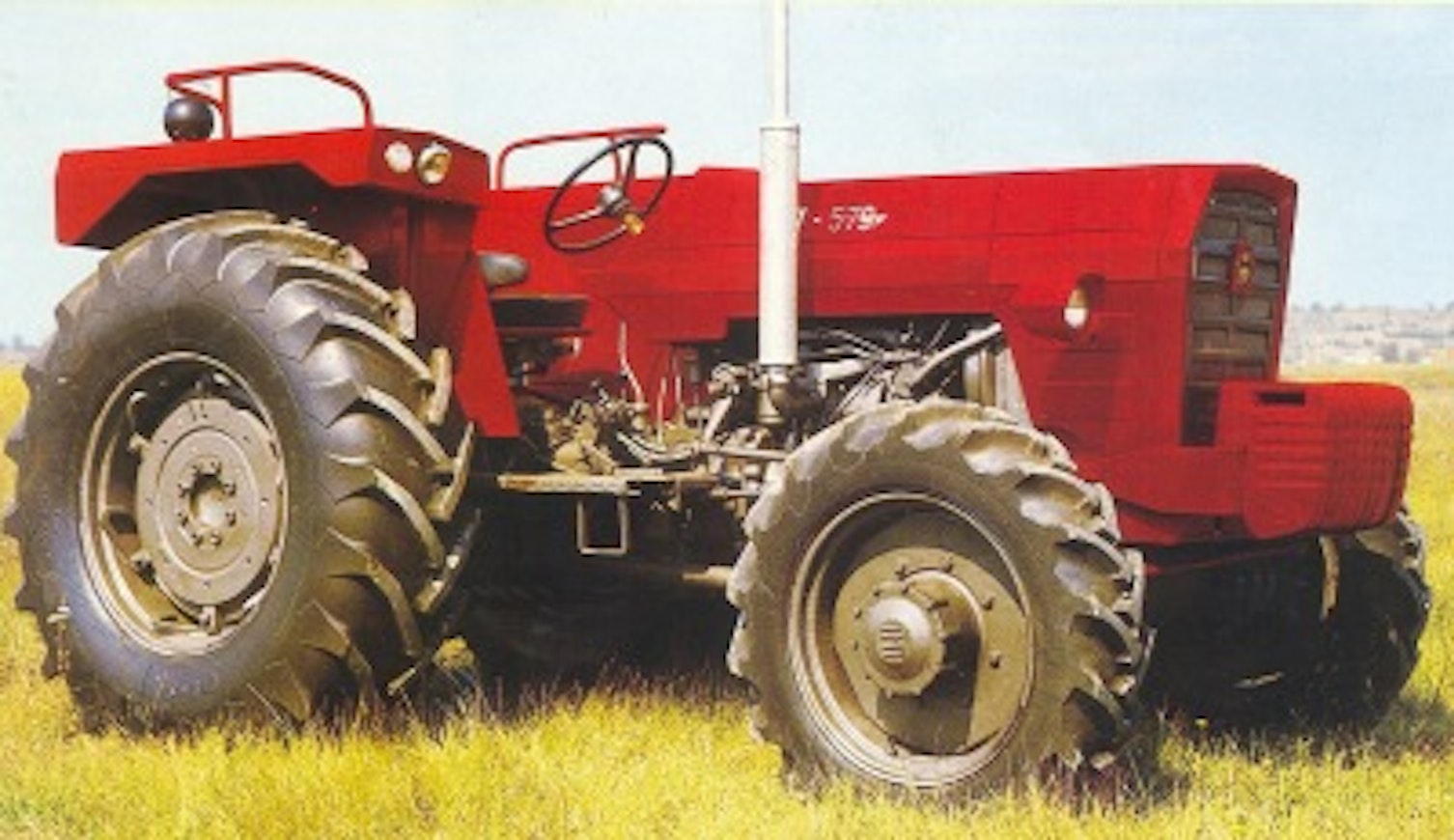

The first models based on the technology of the 175 were the 574 and its four-wheel-drive version, the 576, which appeared in the early 1970s. An improved version of it, designed for the Western market, was the four-wheel-drive model 579. In the 579, four-wheel drive was engaged automatically when slippage exceeded 5%; the driver could not engage four-wheel drive manually at all. Apparently, there were problems with this system, as later versions switched to selectable four-wheel drive. The steering wheel had tilt adjustment. Other models in the same series were the 575, 578, and 585. The differences between the models were based on rear/four-wheel drive, mechanical/hydrostatic steering, lifting capacity, and the transmission, which in some of the range was IMT’s own partially synchronized 10+2, based on their prior 6+2 design. The 578 differed from the 575 only in the use of an auxiliary cylinder in the lifting device.

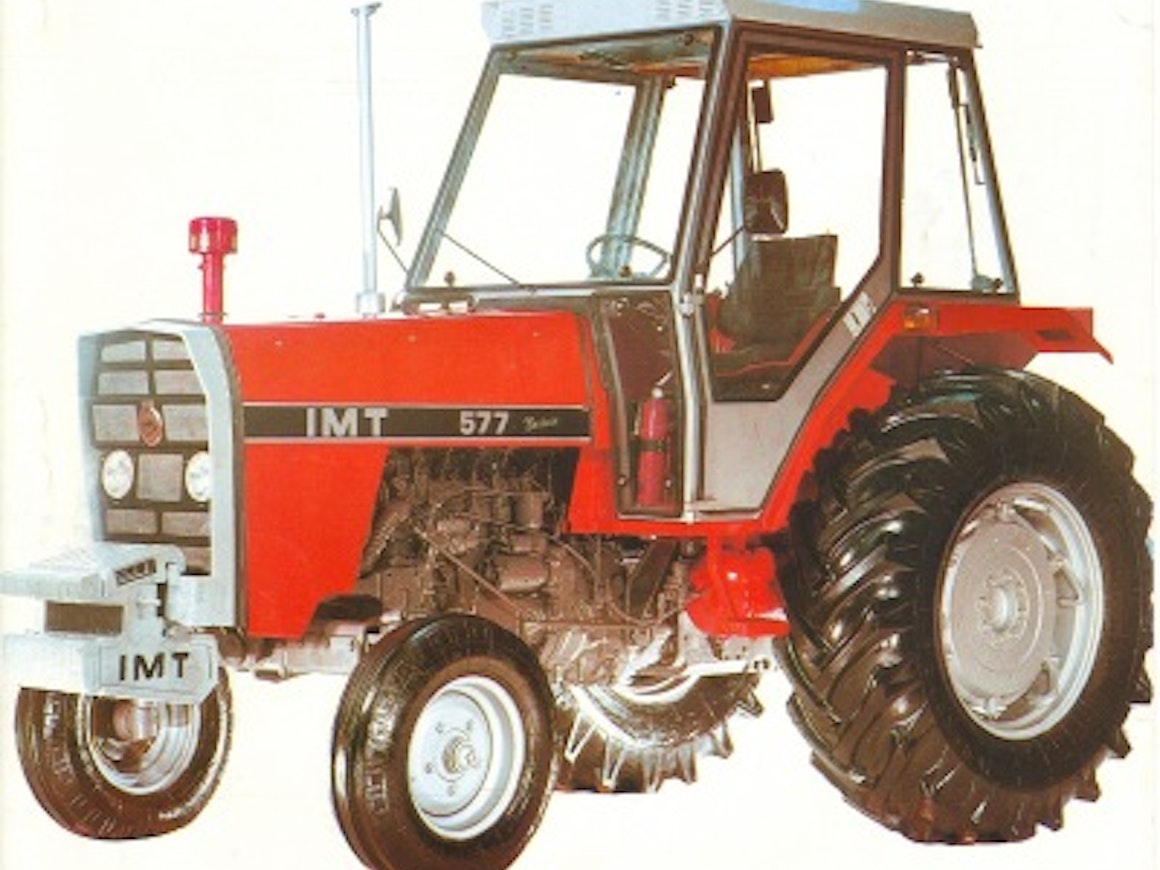

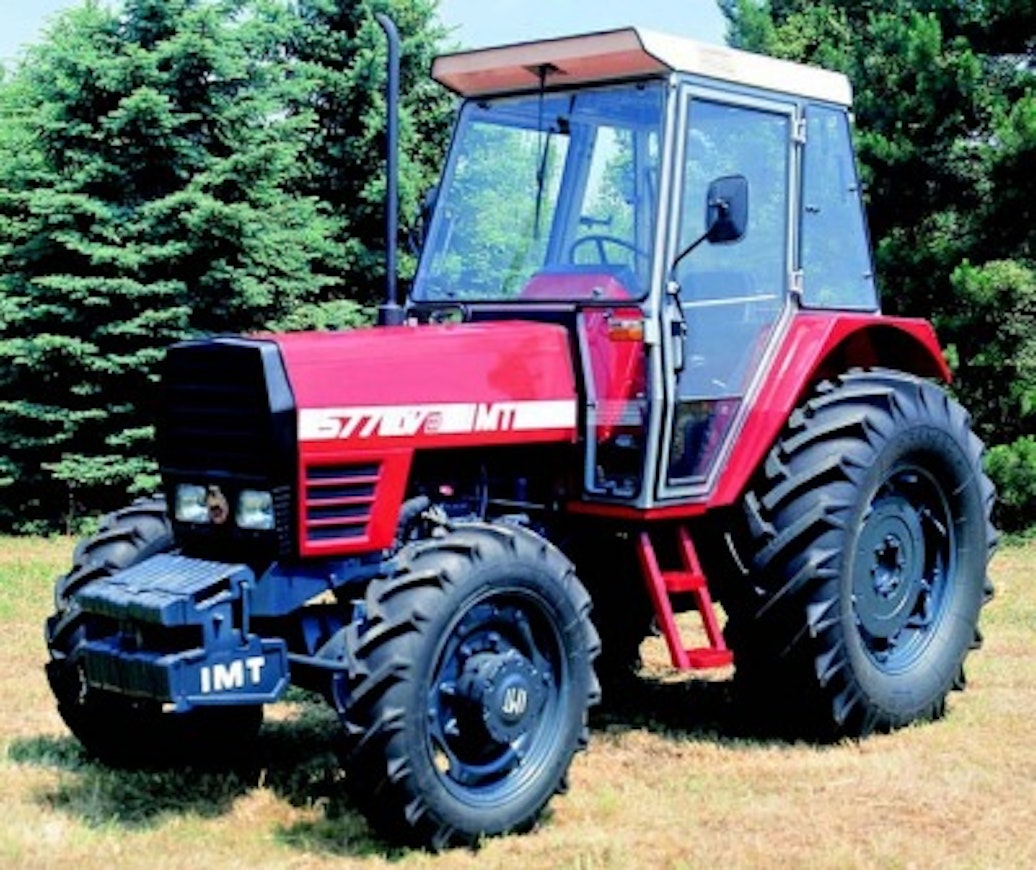

In 1983, the product range was streamlined, and the rear- and four-wheel-drive 577 was introduced, with styling similar to that of the smaller new models and resembling the MF 500 series. The 577’s power had been increased by a couple of horsepower (70 DIN/77 SAE). The transmission was 10+2. In 1989, the turbocharged 585 and 590 were introduced, each with 85 horsepower. The latter had a 16+4 transmission. In the 2000s, only the 577 was available, offered in both traditional and new designs.
This is an automated translation. Please report any issues in the translation.
| Model | IMT 575 | IMT 575/578 | IMT 576 | IMT 579 | IMT 585 | IMT 577 |
|---|---|---|---|---|---|---|
| Manufacturer name | IMT | IMT | IMT | IMT | IMT | IMT |
| Imported to Finland | No | No | No | No | No | No |
| Engine model | A4.236 | A4.248 | A4.248 | S 44A | A4.248 | S 44A |
| Cyl/Turbo/Intercooler | 4 | 4 | 4 | 4 | 4 | 4 |
| Displacement | 3860 cm³ | 4060 cm³ | 4060 cm³ | 4060 cm³ | 4060 cm³ | 4060 cm³ |
| Bore x stroke | 98,4×127 mm | 101×127 mm | 101×127 mm | 101×127 mm | 101×127 mm | 101×127 mm |
| Rated power | 72SAE/2250 hp DIN/rpm | 70/2250 hp DIN/rpm | 70SAE/2250 hp DIN/rpm | 75SAE/2000 hp DIN/rpm | 80SAE/2250 hp DIN/rpm | 70/2000 hp DIN/rpm |
| Torque | - | - | - | - | - | - |
| Gears | 6+2/12+4 | 6+2/12+4 | 6+2 | 6+2 | 12+4 | 10+2 |
| Powershift gears | -/mech. | -/mech. | - | - | mech. | - |

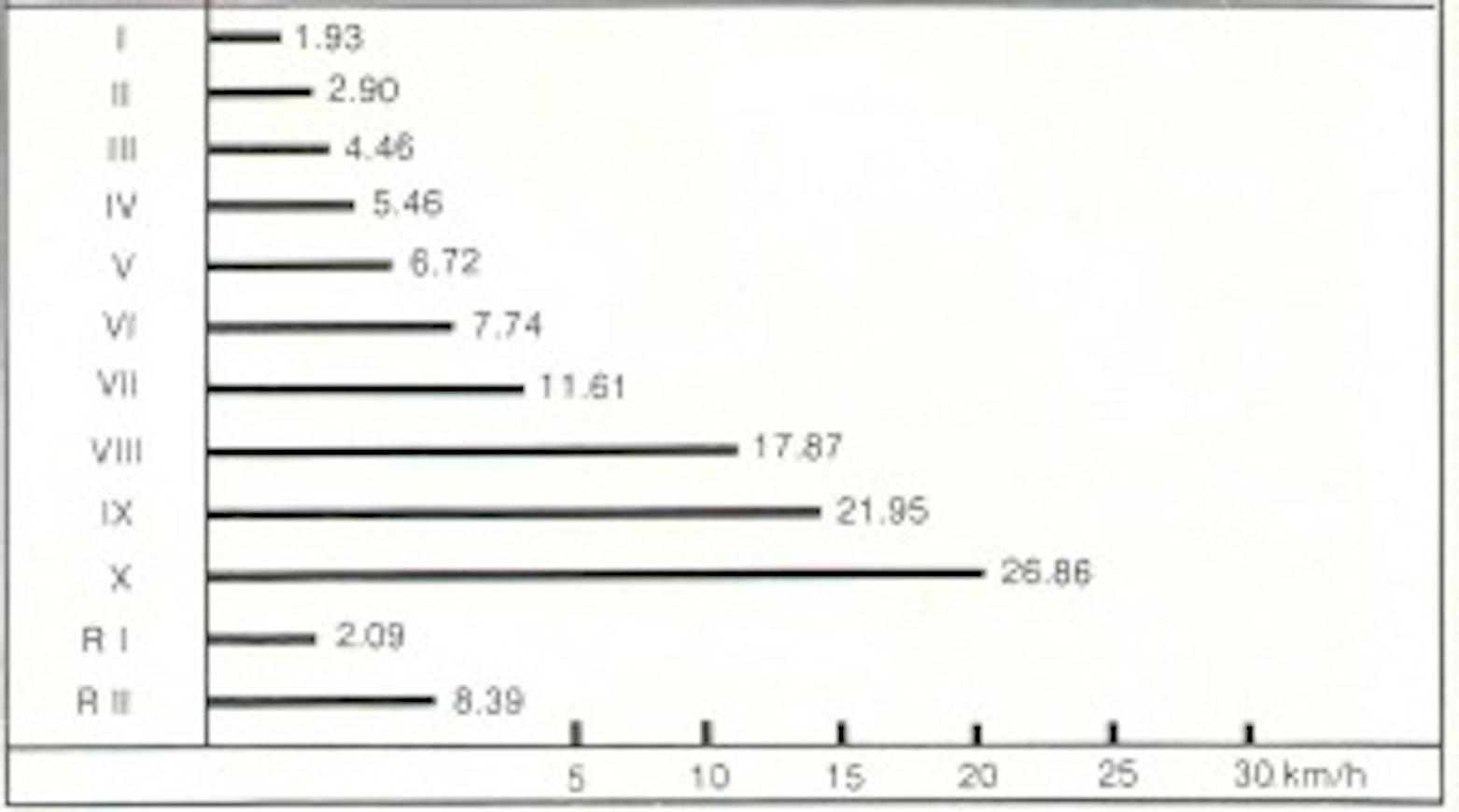

| Speeds in km/h | 3,4-22,8 | 3,3-23,1 | 3,3-23,1 | 4,0-28 | 2,6-22,8 | 2,1-29,5 |
| Hydr. flow l/min | 22,7+30 l/min | 22,7+33 l/min | 22,7+33 l/min | 22,7+33 l/min | 22,7+30 l/min | 22,7+33 l/min |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 1500 kg | 1500/2100 kg | 1500 kg | 2100 kg | 1500 kg | 2100 kg |
| PTO speeds | 720/ajo | 720/ajo | 720/ajo | 540/ajo | 720/ajo | 540/ajo |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Front tyres 2WD | 7.50-16 | 7.50-16 | - | - | 7.50-16 | 7.50-16 |
| Rear tyres 2WD | 13.6-36 | 13.6-36 | - | - | 13.6-36 | 18.4-30 |
| Weight 2WD | (2350) kg | (2743/2967) kg | - | - | (3010) kg | 3370 kg |
| Height with cab | (182) cm | (181) cm | (181) cm | (181) cm | (182) cm | 268 cm |
| Length (2WD/4WD) | 352 cm | 398 cm | 398 cm | 399 cm | 352 cm | 398/424 cm |
| Wheelbase (2WD/4WD) | 221 cm | 222 cm | 223 cm | 223 cm | 221 cm | 222 cm |
| Fuel tank | 110 l | 90 l | 90 l | 90 l | 110 l | 90 (110) l |
| Front tyres 4WD | - | - | 9.5-24 | 9.5-24 | - | 9.5-24 |
| Rear tyres 4WD | - | - | 18.4-30 | 18.4-30 | - | 18.4-30 |
| Weight 4WD | - | - | (3390) kg | (3418) kg | - | 3635 kg |
| Years | - | - | - | - | - | 1983- |
| Synchronized gears | - | - | - | - | - | 4 |
| Cab noise level | - | - | - | - | - | 85 dB |
| Solid cab | - | - | - | - | - | -/x |
| Creeper gear | - | - | - | - | - | opt. |
