IMT 551-558

65IMT555
75IMT558
65IMT555
75IMT558
Manufacturer
Models
IMT 551, IMT 555, IMT 558
Years
1963-
Info

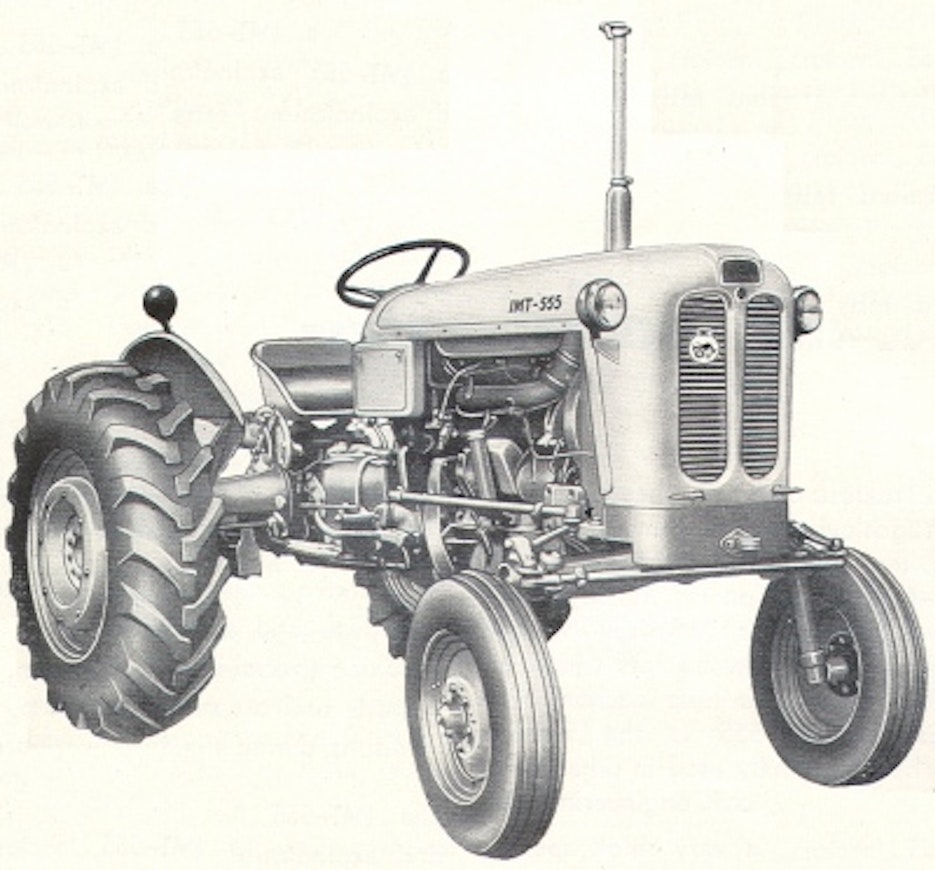

Alongside the 533, which was based on the FE-35, IMT also manufactured the 551 in Yugoslavia, which was based on the MF 65. It was equipped with the first version of the 65’s 3.1-liter engine. Alongside it, IMT began production of the 50-horsepower 555 in 1963. The 555 was noted for having a completely new dual clutch. The power take-off gearing was still the same as the early MF 65 models, meaning that at 2000 engine RPM, the PTO shaft rotated at 720 RPM. Instead of the MF’s disc brakes, drum brakes were used. IMT’s sales program also included an extensive range of implements designed for the 555, covering everything from a corn planter to, for example, a reversible plow that was turned only 90 degrees back and forth.

The successor to the 555 was the 558, whose 3.3-liter M34T engine had 56 hp. Its appearance was still similar to the original towards the end of the 1970s.

IMT’s larger tractors were also manufactured by IMR-Rakovica, which produced engines for the main factory’s products as well. At IMT, the engine color was gray, while at IMR it was silver. The model designations were different; for example, the IMR R60 corresponded to the 558.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelIMT 551IMT 555IMT 558
Options
Manufacturer nameIMTIMTIMT
Imported to FinlandNoNoNo
Years-1963--
First year sold-1963-
Engine modelA4.192IM 0 34/TAM34/T
Cyl/Turbo/Intercooler444
Displacement3146 cm³3330 cm³3330 cm³
Bore x stroke88,9×127 mm91,44×127 mm91,44×127 mm
Rated power hp/rpm DIN47/200050/200058/2250
Rated power475058
Rated speed200020002250
Torque Nm/rpm DIN-191/1300201/1300
Gears6+26+26+2
Speeds in km/h2,3-25,62,4-26,32,0-22,0
Hydr. flow l/min15 l/min15 l/min15 l/min
Lift controlsmech.mech.mech.
Lift capacity1134 kg1180 kg1120 kg
PTO speeds720/ajo720/ajo720/ajo
Brakes-drum brakesdrum brakes
Steeringmech.mech.mech.
Turning circle m 2WD-8.279.57
Front tyres 2WD6.00-166.00-167.50-16
Rear tyres 2WD12.4/11-3214.9/13-2816.9/14-28
Weight 2WD(1820) kg(1870) kg(2040) kg
Height with cab(161) cm(169) cm(181) cm
Length (2WD/4WD)334 cm349 cm372 cm
Wheelbase (2WD/4WD)213 cm215 cm212 cm
Fuel tank-45 l60 l
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information. There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed. Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
