Siirry sivupalkkiinSiirry alaosaanIMT 5160-5500

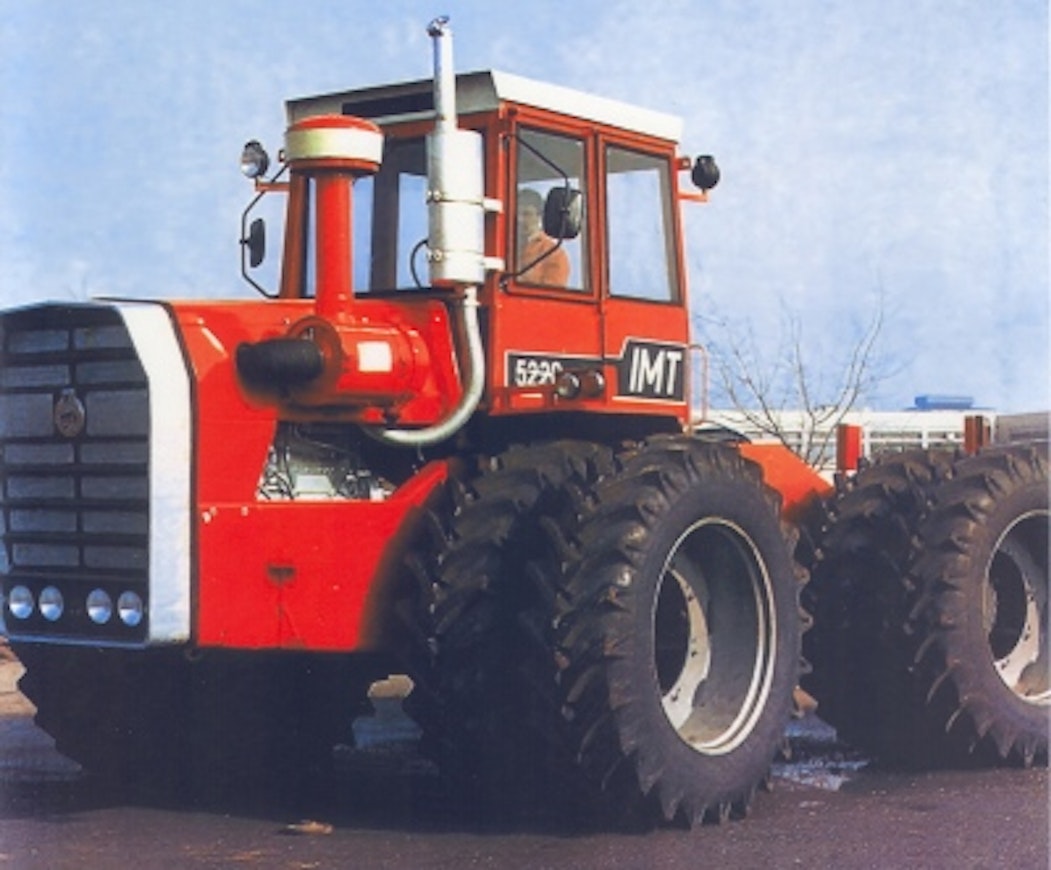

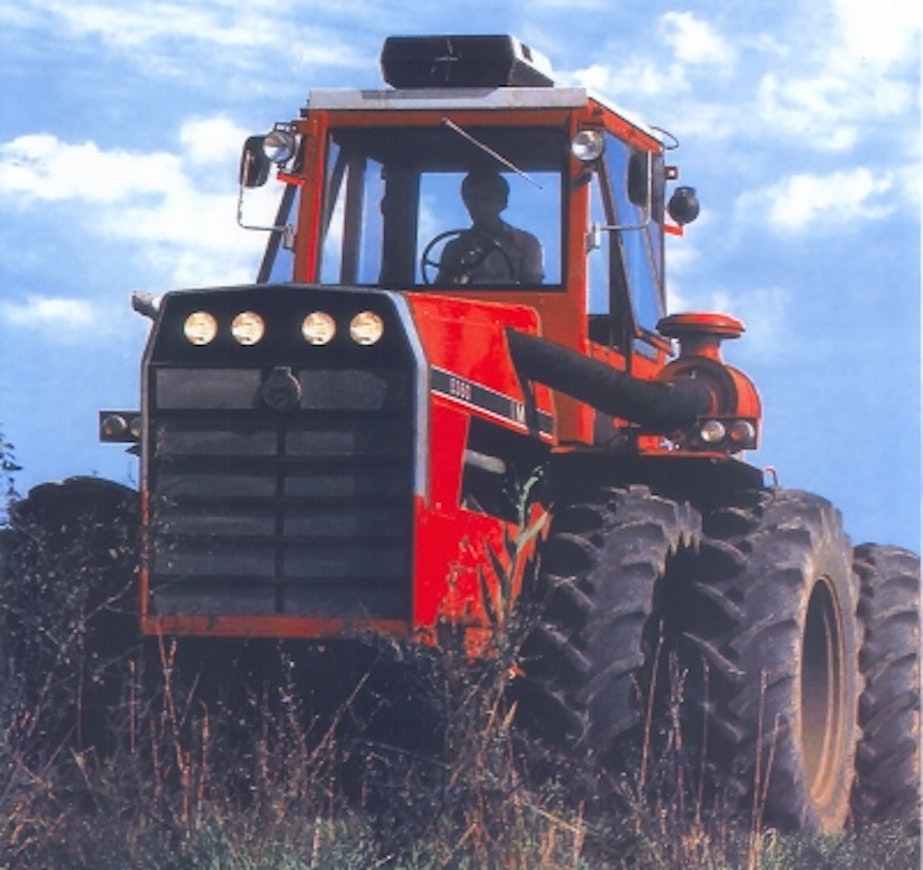

The flagship models of IMT's lineup from 1977 until the late 1990s were chassis-steered models that closely resembled Massey Ferguson's 1500/1800 and 4000 series. Even the decals were similar. However, there was no license from MF. In the three smallest models, the 5160, 5200, and 5220, six-cylinder engines from the local truck manufacturer FAP-Famos were used, which were based on an old Mercedes-Benz license.
The 5270 and 5360 models introduced in 1983 featured Mercedes V10 and V12 engines. Later, the 5200 was also equipped with a Mercedes engine. Europe’s largest tractor, the IMT 5500, had a turbocharged Mercedes V12 producing 517 horsepower. The power ratings of the smaller chassis-steered models roughly corresponded to the latter part of their model numbers. An exception to this was the later 5220 DL, whose turbocharged FAP engine produced 280 horsepower. The transmissions in the chassis-steered models were mechanical with 9+1 gears, and the two largest models had 16+2. The chassis-steered tractors were mainly sold to state farms in the home country and neighboring countries.
This is an automated translation. Please report any issues in the translation.
| Model | IMT 5160 | IMT 5200 | IMT 5200 (MB) | IMT 5220 | IMT 5270 | IMT 5360 | IMT 5500 |
|---|---|---|---|---|---|---|---|
| Manufacturer name | IMT | IMT | IMT | IMT | IMT | IMT | IMT |
| Imported to Finland | No | No | No | No | No | No | No |
| Years | 1977- | 1977- | - | 1983- | 1983- | 1983- | - |
| Engine model | 2F 402 B | 2F 403 B | OM 400 | 2FP 403 B | OM 403 | OM 404 | OM 404 |
| Cyl/Turbo/Intercooler | 6 | 6 | V8 | 6 | V10 | V12 | V12T |
| Displacement | 11040 cm³ | 11040 cm³ | 12760 cm³ | 11040 cm³ | 15950 cm³ | 19144 cm³ | 19144 cm³ |
| Bore x stroke | 125×150 mm | 125×150 mm | 125×130 mm | 125×150 mm | 125×130 mm | 125×130 mm | 125×130 mm |
| Rated power | 160/2000 hp DIN/rpm | 220/2000 hp DIN/rpm | 207/2000 hp DIN/rpm | 227/2000 hp DIN/rpm | 270/2000 hp DIN/rpm | 360/2000 hp DIN/rpm | 517/2200 hp DIN/rpm |
| Torque | - | - | - | - | - | - | - |
| Gears | 9+1 | 9+1 | 9+1 | 9+1 | 9+1 | 16+2 | 16+2 |
| Speeds in km/h | 2,5-32,2 | 2,5-32,2 | 2,5-32,2 | ?-31,7 | 2,5-32,2 | ?-30,0 | ?-30,0 |
| Hydr. flow l/min | 66 l/min | 66 l/min | 66 l/min | 66 l/min | 66 l/min | 84 l/min | 84 l/min |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 4500 kg | 4500 kg | 4500 kg | 4500 kg | 4500 kg | 5500 kg | 5500 kg |
| PTO speeds | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 10.2 | 10.2 | 10.2 | 11.2 | 11.2 | 12.2 | 12.2 |
| Front tyres 4WD | 18.4-38 | 18.4-38 | 18.4-38 | 18.4-38 | 18.4-38 | 20.8-38 | 20.8-38 |
| Rear tyres 4WD | 18.4-38 | 18.4-38 | 18.4-38 | 18.4-38 | 18.4-38 | 20.8-38 | 20.8-38 |
| Weight 4WD | 11000 kg | 11000 kg | 11000 kg | 11460 kg | 11000 kg | 16100 kg | 16100 kg |
| Height with cab | 344 cm | 344 cm | 344 cm | 344 cm | 344 cm | 367 cm | 367 cm |
| Length (2WD/4WD) | 700 cm | 700 cm | 700 cm | 700 cm | 700 cm | 766 cm | 766 cm |
| Wheelbase (2WD/4WD) | 315 cm | 315 cm | 315 cm | 315 cm | 315 cm | 350 cm | 350 cm |
| Fuel tank | 560 l | 560 l | 560 l | 560 l | 560 l | 900 l | 900 l |
| Cab noise level | 82 dB | 82 dB | 82 dB | 82 dB | 82 dB | - | - |
| Solid cab | x | x | x | x | x | x | x |
