Fiatagri / New Holland 90-90 – 110-90

88Fiatagri90-90
88Fiatagri100-90ohjaamo
88Fiatagri90-90ohjaamo
88Fiatagri110-90
00NH100-90
02NH110-90
02NH110-90ohjaamo
88Fiatagri90-90
88Fiatagri100-90ohjaamo
88Fiatagri90-90ohjaamo
88Fiatagri110-90
00NH100-90
02NH110-90
02NH110-90ohjaamo
Manufacturer
Models
Fiatagri 90-90, Fiatagri 90-90, Fiatagri 95-90, Fiatagri 100-90, Fiatagri 100-90, Fiatagri 110-90, Fiatagri 110-90
Years
1984-93
Info

Here is the translation of the provided text into English:

The 5- and 6-cylinder 880 and 980 models remained in the lineup slightly longer than some other 80-series tractors, and their successors, the 90-90 and 100-90, were introduced only in the autumn of 1984. In these models as well, engine displacement was increased, but torque figures were weaker than those of the main competitors’ four-cylinder engines, which had 10-15 hp less power. Unlike the smaller models, the transmission was a 15+3-speed, and with creep gears equipped, it was 20+4.

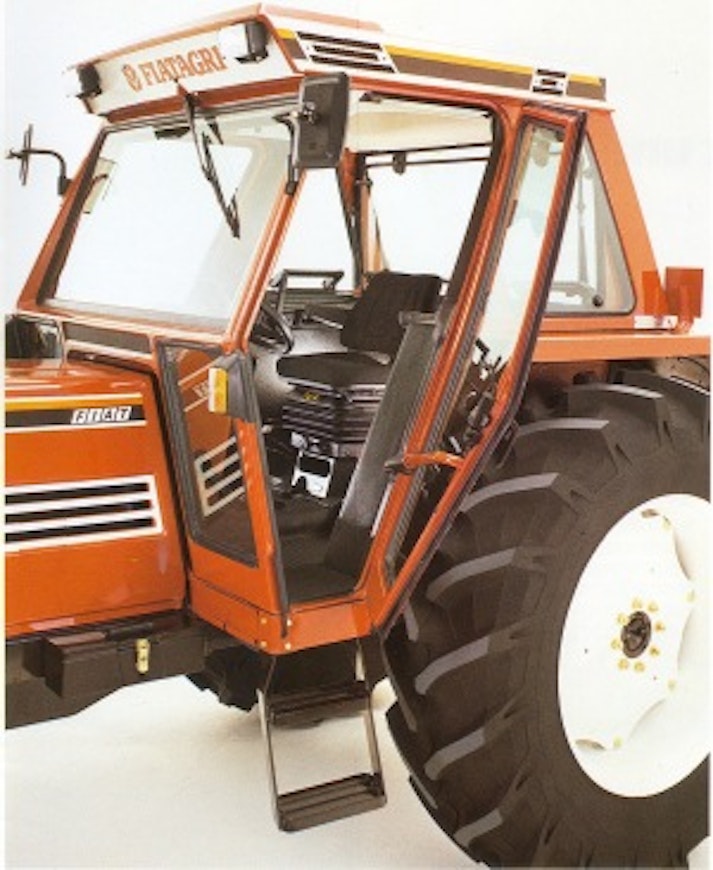

Lifting capacity was significantly increased to 4,500 kilograms. Unfortunately, the turning circle diameter remained unchanged at 11.4 meters. The Pininfarina cab was also nearly unchanged and no longer reached the top level in terms of quietness or spaciousness.

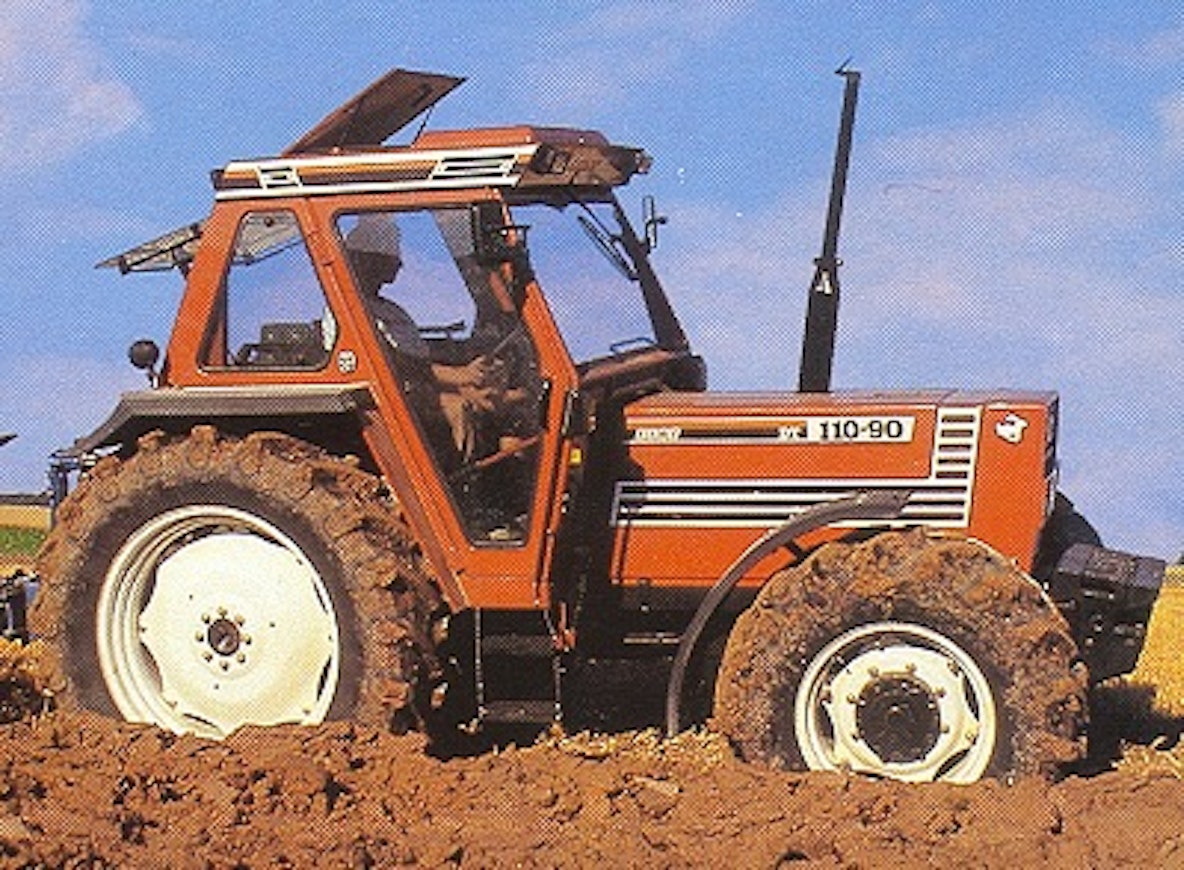

In 1986 (in Finland 1988), the 110-90 went on sale, featuring a more robust basic structure with a 5.9-liter engine equivalent to that of the 115-90. Other features corresponded to those of the 100-90 except for higher hydraulic output. In 1988, the road speed of mid-range models was increased to nearly 40 km/h. At the same time, the front axle was replaced with a significantly more agile one. The 110-90 occasionally came with air conditioning as a standard feature. In 1992, the 6-cylinder 95-90 (98 hp) replaced the 90-90 but was not imported to Finland.

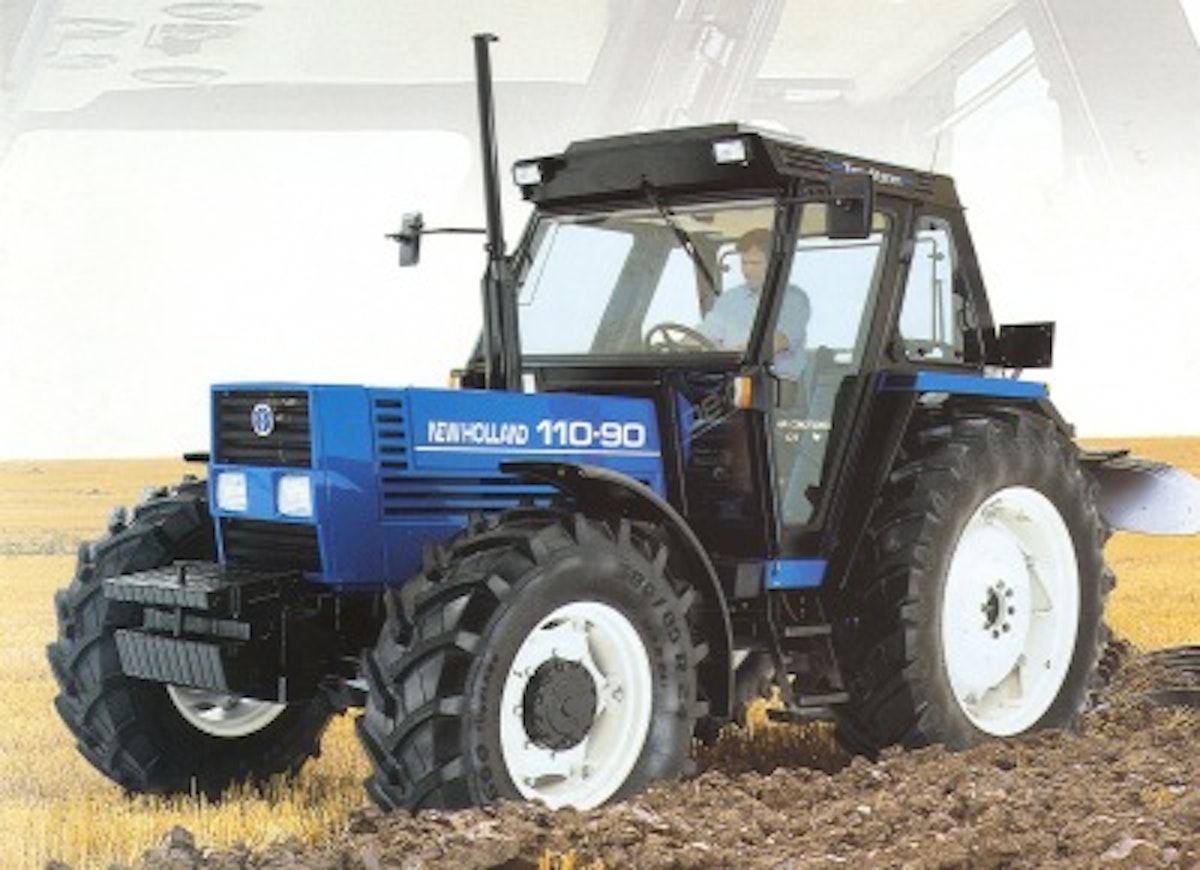

The 100-90 and 110-90 remained in the lineup as affordable basic tractors for a very long time. The 110-90 was removed from Western markets due to emission regulations in 2003. At that time, the tractor brand was New Holland, and the color had also been changed to blue the year before.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelFiatagri 90-90Fiatagri 90-90Fiatagri 95-90Fiatagri 100-90Fiatagri 100-90Fiatagri 110-90Fiatagri 110-90
Manufacturer nameFiatagriFiatagriFiatagriFiatagriFiatagriFiatagriFiatagri
Imported to FinlandYesYesNoYesYesNoYes
Years1984-881988-911992-931984-881988-021986-881988-03
First year sold1984198819921984198819861988
Last year sold1988199119931988200219882003
Engine model8055.058055.058065.068065.068065.068065.058065.05
Cyl/Turbo/Intercooler5566666
Displacement4885 cm³4885 cm³5419 cm³5419 cm³5419 cm³5861 cm³5861 cm³
Bore x stroke104×115 mm104×115 mm100×115 mm100×115 mm100×115 mm104×115 mm104×115 mm
Rated power hp/rpm DIN90/250090/250098/2500100/2500100/2500110/2500110/2500
Rated power909098100100110110
Rated speed2500250025002500250025002500
Torque Nm/rpm DIN295/1500295/1500?/1500330/1500330/1500366/1400366/1400
Gears15+315+315+3/20+420+415+3/20+420+420+4
Synchronized gears15+315+315+3/20+420+415+3/20+420+420+4
Speeds in km/h1,1-29,01,1-36,21,2-33,20,3-29,01,2-36,20,4-29,00,4-36,2
Max. speed 32.9 km/h39 km/h36.5 km/h32.9 km/h39 km/h32.9 km/h39 km/h
Hydr. flow l/min44 l/min48 l/min44 l/min44 l/min48/57 l/min57 l/min57 l/min
Hydraulic pressure190 bar190 bar190 bar190 bar190 bar190 bar190 bar
Lift controlsmech.mech.mech.mech.mech.mech.mech.
Lift capacity4537 kg4537 kg4537 kg4537 kg4537 kg4537 kg4537 kg
PTO speeds540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo
Brakeswet discwet discwet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 2WD10--10-10-
Turning circle m 4WD11.49.2-11.49.411.49.4
Front tyres 2WD10,00-16-7,50-2010,00-16-10,00-16-
Front tyres 4WD14.9-2414.9-2413.6-2414.9-2414.9-2414.9-2414.9-24
Rear tyres 2WD18,4-34-16,9-3418,4-34-18,4-34-
Rear tyres 4WD18.4-3418.4-3416.9-3418.4-3418.4-3418.4-3418.4-34
Weight 2WD3870 kg-3840 kg4280 kg-4280 kg-
Weight 4WD4450 kg4450 kg4240 kg4670 kg4300 kg4670 kg4400 kg
Height with cab260 cm260 cm272 cm262 cm262/267 cm262 cm262 cm
Length (2WD/4WD)403/415 cm415 cm403/415 cm420/432 cm431 cm420/432 cm432 cm
Wheelbase (2WD/4WD)247/242 cm242 cm247/242 cm258/254 cm253 cm258/254 cm254 cm
Fuel tank130 l130 l93 (133) l130 l130 l130 l130 l
Cab noise level82.5 dB82.5 dB-79 dB79 dB80.5 dB80.5 dB
Solid cabxxxxxxx
Diff. lockdifferential lock with cogsdifferential lock with cogsdifferential lock with cogsdifferential lock with cogsdifferential lock with cogsdifferential lock with cogscogs / friction 95->
Creeper gearopt.opt.opt.xopt./standardxx
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information. There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed. Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
