Fiat 500-640

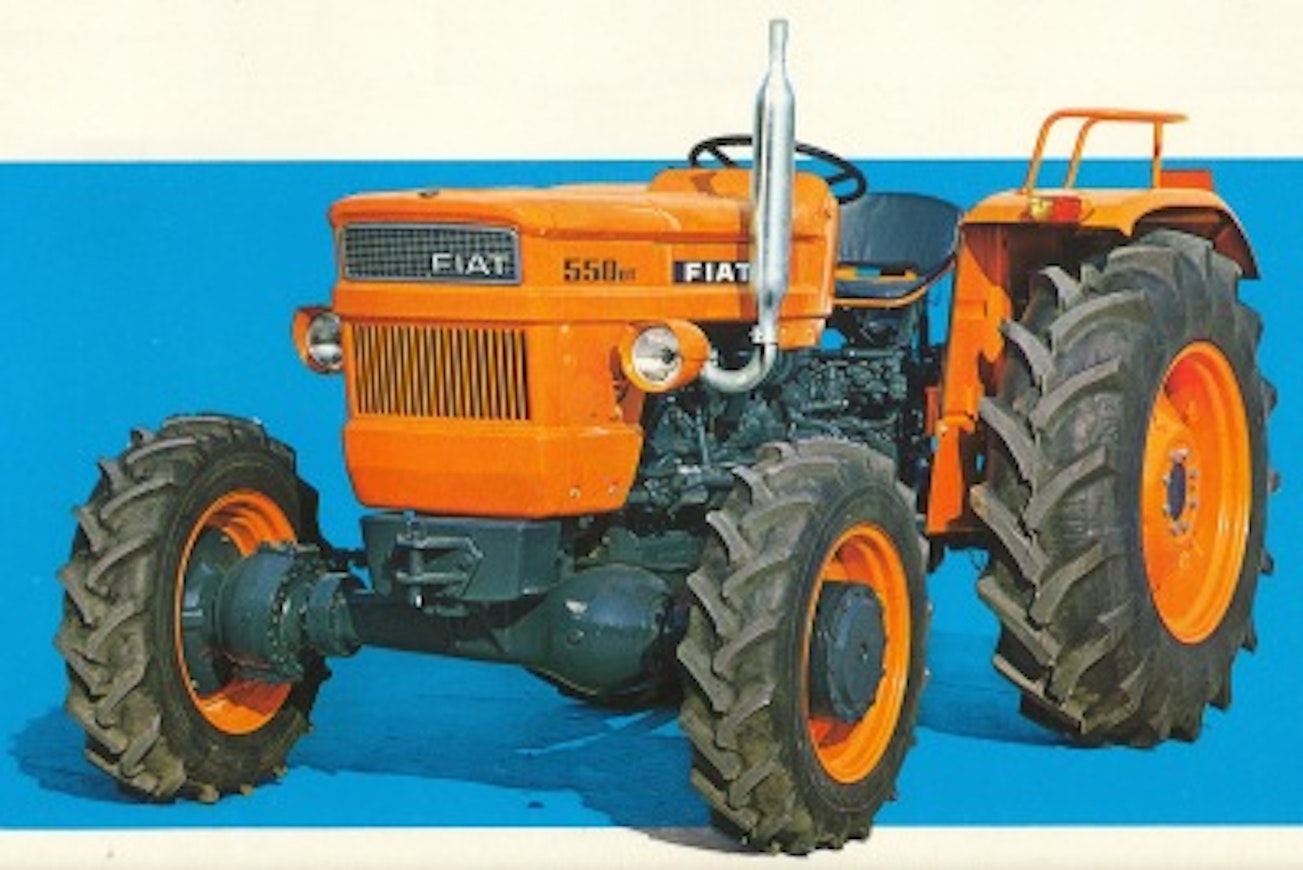

70Fiat550a
70Fiat550b
70Fiat550c
71Fiat600
75Fiat640pikkukuvat
75Fiat640
70Fiat550a
70Fiat550b
70Fiat550c
71Fiat600
75Fiat640pikkukuvat
75Fiat640
Manufacturer
Models
Fiat 500, Fiat 540, Fiat 550, Fiat 600, Fiat 600, Fiat 640
Years
1968-80
Info

In 1968, Fiat introduced a completely new tractor lineup equipped with direct injection diesel engines. The popular category of just under 60 hp was initially represented by the model 550. It had a 4-cylinder 3.1-liter engine fitted with a balance shaft. The transmission in this class was an 8+2 gearbox, with gears 3, 4, 7, and 8 synchronized. Additionally, a crawler gearbox was naturally available. The clutch diameter was 11 inches and was operated by a hand lever. The brakes were rim brakes, the power take-off (PTO) was standard equipment, and the draft sensing was done via a push rod. The Controlmatic hydraulics offered position control, a draft force equalizer, and adjustable sensitivity.

In spring 1971, the 550 in the Finnish import lineup was replaced by new 500 and 600 models. The 500 had a 2.6-liter 3-cylinder engine and the 600 a 3.5-liter 4-cylinder. Power was achieved at high RPMs, typical for Fiat (2600/2400). At the same time, four-wheel-drive models received a new front axle, where the drive wheels and planetary gearboxes were located in the wheel hubs. This increased ground clearance and improved maneuverability. Power steering became standard equipment on the four-wheel-drive models. The 600 featured a dual clutch and a separate hand clutch for the PTO.

In spring 1972, the 600 DT3 was introduced, featuring a sturdier front axle and a longer wheelbase. At the same time, the Steel cabs received a removable partial rear wall and improved sound insulation. The lower windows at the front remained very small, providing hardly any view of the front wheels.

At the beginning of 1973, the 500 was replaced by the 540, which was not imported into Finland, and the 600 was replaced by the 640. The engines were the same as before but had 4 more horsepower. The drivetrain had stronger gears than before and a more efficient radiator. At the same time, the Steel cab with larger windows was introduced. At the beginning of 1974, the cab was completely redesigned. It was more spacious than before and fully enclosed thanks to a fiberglass rear wall, but the heater was still optional. At the beginning of 1977, the cab no longer met safety regulations and was replaced by the Swedish Fernmo cab.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelFiat 500Fiat 540Fiat 550Fiat 600Fiat 600Fiat 640
Manufacturer nameFiatFiatFiatFiatFiatFiat
Imported to FinlandYesNoYesYesYesYes
Years1971-801973-801968-781971-721972-731973-80
Engine model8035.028035.028548045.028045.028045.02
Cyl/Turbo/Intercooler334444
Displacement2592 cm³2592 cm³3119 cm³3456 cm³3456 cm³3456 cm³
Bore x stroke100×110 mm100×110 mm95×110 mm100×110 mm100×110 mm100×110 mm
Rated power50/2600 hp DIN/rpm54/2600 hp DIN/rpm55/2400 hp DIN/rpm60/2400 hp DIN/rpm60/2400 hp DIN/rpm64/2400 hp DIN/rpm
Torque------
Gears8+28+28+28+28+28+2
Synchronized gears444444
Speeds in km/h2,4-29,32,4-29,32,6-29,02,7-29,22,4-29,22,8-30,3
Max. speed DT 2,4-25,0 km/hDT 2,4-25,0 km/hDT 2,2-23,1 km/hDT 2,2-23,2 km/hDT 2,2-25,1 km/hDT 2,2-25,1 km/h
Hydr. flow l/min24 l/min23,6 (31) l/min22 l/min22 l/min22 l/min21,8 (31) l/min
Hydraulic pressure150 bar150 bar150 bar150 bar150 bar150 bar
Lift controlsmech.mech.mech.mech.mech.mech.
Lift capacity1400 (1550) kg1550 kg1820 kg1820 kg1820 kg1850 kg
PTO speeds540/ajo540/ajo540/ajo540/ajo540/ajo540/ajo
Brakesband brakesband brakesband brakesband brakesband brakesband brakes
SteeringDT powerDT powermech.DT powerDT powerDT power
Turning circle m 2WD6.86.86,8 jarrulla7.47.47.4
Turning circle m 4WD8.68.68,4 jarrulla9.610.610.6
Front tyres 2WD7,50-167,50-167,50-167,50-167,50-167,50-16
Front tyres 4WD9.50-209.50-208.00-209.50-209.50-249.50-24
Rear tyres 2WD12,4-3212,4-3212,4-3612,4-3612,4-3613,6-36
Rear tyres 4WD12.4-3212.4-3212.4-3614.9-2816.9-3016.9-30
Weight 2WD1890 kg2100 kg2170 kg2250 kg2250 kg2250 kg
Weight 4WD2250 kg2350 kg2440 kg2550 kg2780 kg2800 kg
Length (2WD/4WD)318 (322) cm309 cm317 cm320 cm-350/363 cm
Wheelbase (2WD/4WD)192/181 (195) cm192/195 cm207/196 cm207/196 cm207/211 cm207/211 cm
Fuel tank54 l54 l54 l54 l54 l54 l
Cab noise level99/95 dB98 dB99 dB96/93 dB96/93 dB90 dB
Creeper gearopt.opt.opt.opt.opt.opt.
Height with cab---234 cm--
Solid cab-----x
