Fendt Favorit 600 SL – 615 SL

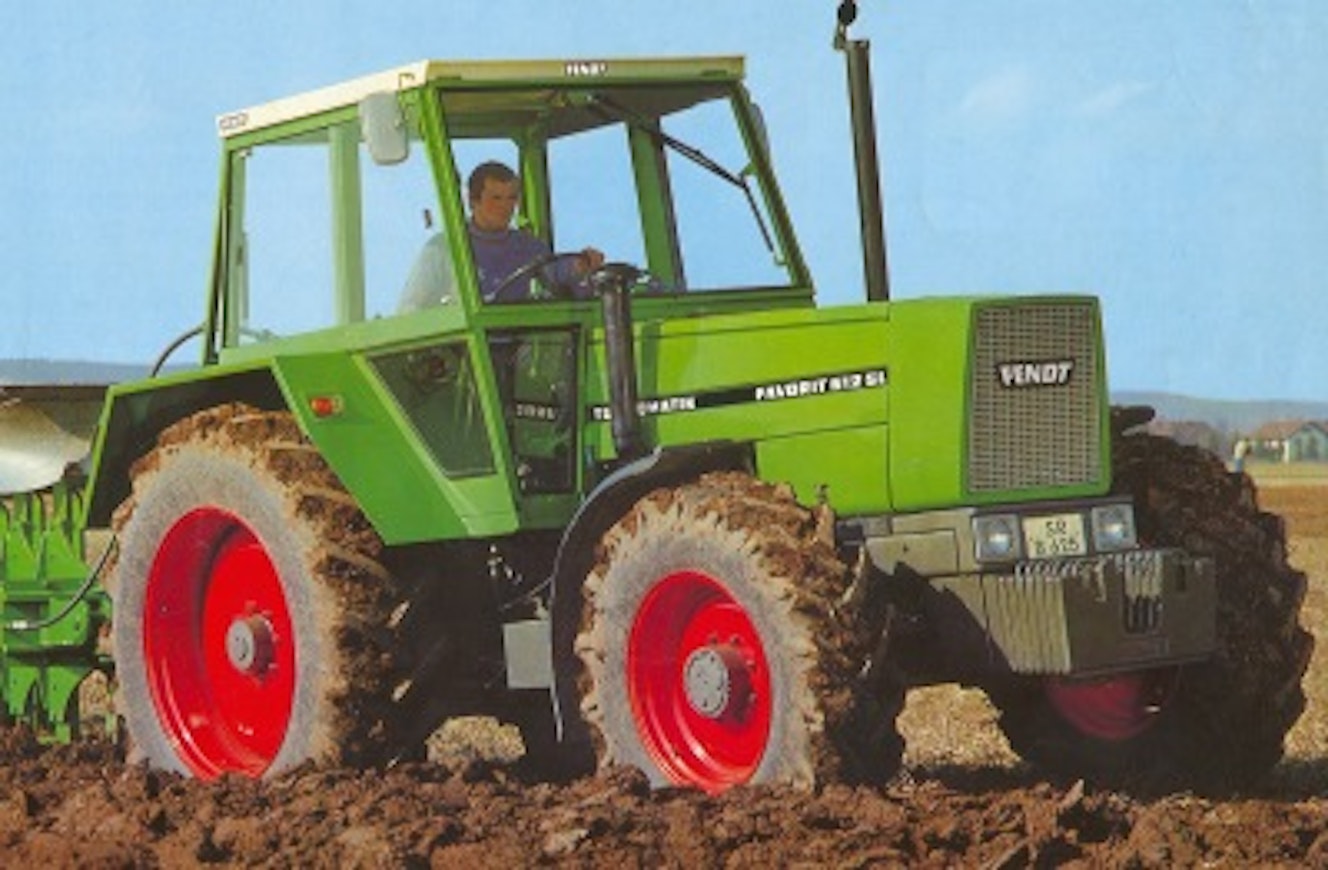

76Fendt612SL

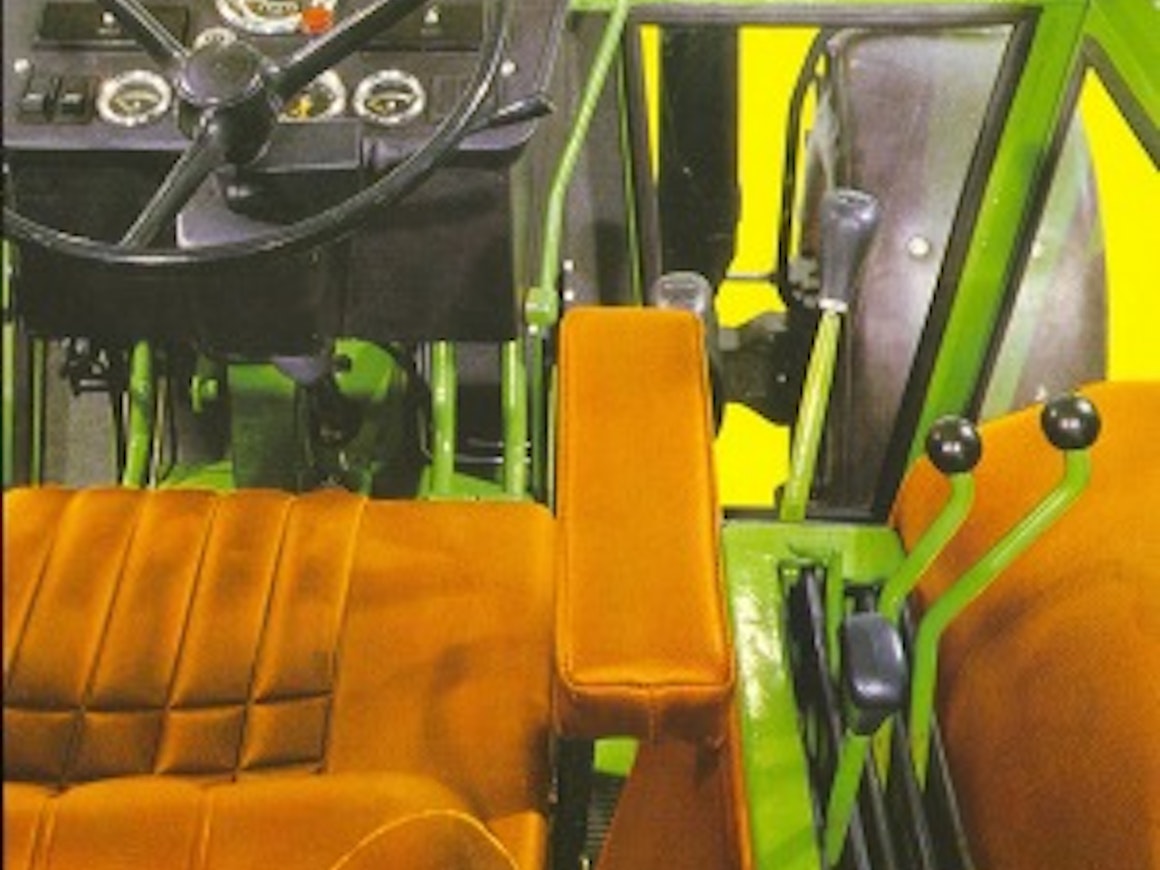

76Fendt612SLohjaamo
76Fendt612SL
76Fendt612SLohjaamo
Manufacturer
Models
Fendt Favorit 600 SL, Fendt Favorit 610 SL, Fendt Favorit 611 SL, Fendt Favorit 612 SL, Fendt Favorit 614 SL, Fendt Favorit 615 SL
Years
1976-79
Info

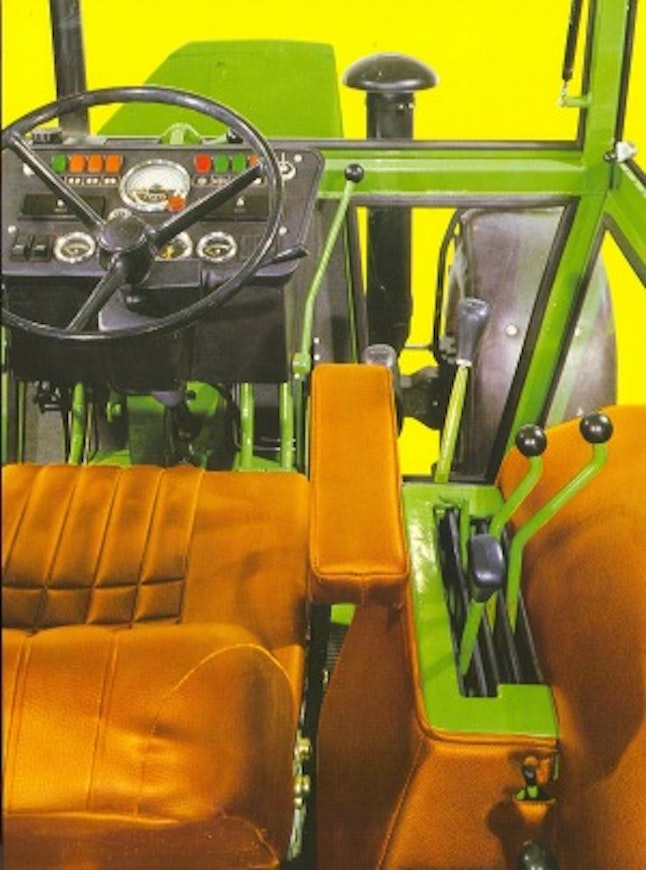

The Favorites were updated for the year 1976 and now carried the model designation SL instead of S. The appearance already largely corresponded to the Favorites of the 1980s. The entire lineup grew to the dimensions of the 614, and the weights increased significantly. Perhaps the most significant change, however, was the modern, quiet cab installed above rubber pads.

The 610 SL received the same 6.2-liter engine as the rest of the lineup, and power increased to 90 hp. The range was first expanded at the top end with the introduction of the 150-horsepower 615 SL. In 1978, the smallest model in the lineup, the 600 SL (85 hp), was introduced, equipped with MWM’s 5.65-liter engine. At this stage, the 610’s engine was also downsized to 5.65 liters.

The standard transmission was still a 16+7 gearbox. A new option was a 20+9 gearbox with even slower crawling speeds. The gear levers were moved to the side. An air conditioning system was available as an option. The lifting capacities were greater than before.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelFendt Favorit 600 SLFendt Favorit 610 SLFendt Favorit 611 SLFendt Favorit 612 SLFendt Favorit 614 SLFendt Favorit 615 SL
Manufacturer nameFendt FavoritFendt FavoritFendt FavoritFendt FavoritFendt FavoritFendt Favorit
Imported to FinlandNoNoNoNoNoNo
Years1978-791976-781976-791976-791976-791976-79
Engine modelMWM D227-6MWM D226-6MWM D226-6MWM D226-6MWM TD226-6MWM TD226-6
Cyl/Turbo/Intercooler66666T6T
Displacement5652 cm³6240 cm³6240 cm³6240 cm³6240 cm³6240 cm³
Bore x stroke100×120 mm105×120 mm105×120 mm105×120 mm105×120 mm105×120 mm
Rated power85/2300 hp DIN/rpm90/2270 hp DIN/rpm105/2350 hp DIN/rpm120/2400 hp DIN/rpm135/2400 hp DIN/rpm150/2400 hp DIN/rpm
Torque------
Gears12+612+616+716+716+716+7
Synchronized gears12+612+616+716+716+716+7
Powershift gearsmech.mech.mech.mech.mech.mech.
Speeds in km/h2,3-30,02,3-30,00,9-30,00,9-30,00,9-30,00,9-30,0
Hydr. flow l/min44 l/min44 l/min45 l/min45 l/min45 l/min45 l/min
Lift controlsmech.mech.mech.mech.mech.mech.
Lift capacity4500 kg4500 kg5600 kg5800 kg5800 kg5800 kg
PTO speeds540/1000540/1000540/1000540/1000540/10001000
Brakesdrum brakesdrum brakesdrum brakesdrum brakesdrum brakesdrum brakes
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD11.411.412121212.4
Front tyres 2WD7,50-207,50-207,50-20---
Front tyres 4WD11.2-2811.2-2812.4-2813.6-2813.6-2814.9-28
Rear tyres 2WD18,4-3418,4-3416,9-38---
Rear tyres 4WD18.4-3418.4-3416.9-3818.4-3818.4-3818.4-38
Weight 2WD4850 kg4770 kg4850 kg---
Weight 4WD5145 kg5150 kg5340 kg5810 kg5950 kg6100 kg
Height with cab272 cm272 cm275 cm281 cm281 cm281 cm
Length (2WD/4WD)464 cm464 cm464 cm464 cm464 cm464 cm
Wheelbase (2WD/4WD)272 cm272 cm272 cm272 cm272 cm272 cm
Fuel tank222 l222 l222 l222 l222 l222 l
Solid cabxxxxxx
Diff. lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lock
Creeper gearopt.opt.xxxx
