Fendt Farmer 307 Ci – 309 Ci
Manufacturer
Models
Fendt Farmer 307 Ci, Fendt Farmer 308 Ci, Fendt Farmer 309 Ci
Years
2003-2008
Info
At the end of 2003, the 300 C models were replaced by Ci models, which featured new Deutz 4.0-liter pump-nozzle diesels. There was significantly more torque than before, with a torque increase of 45%.

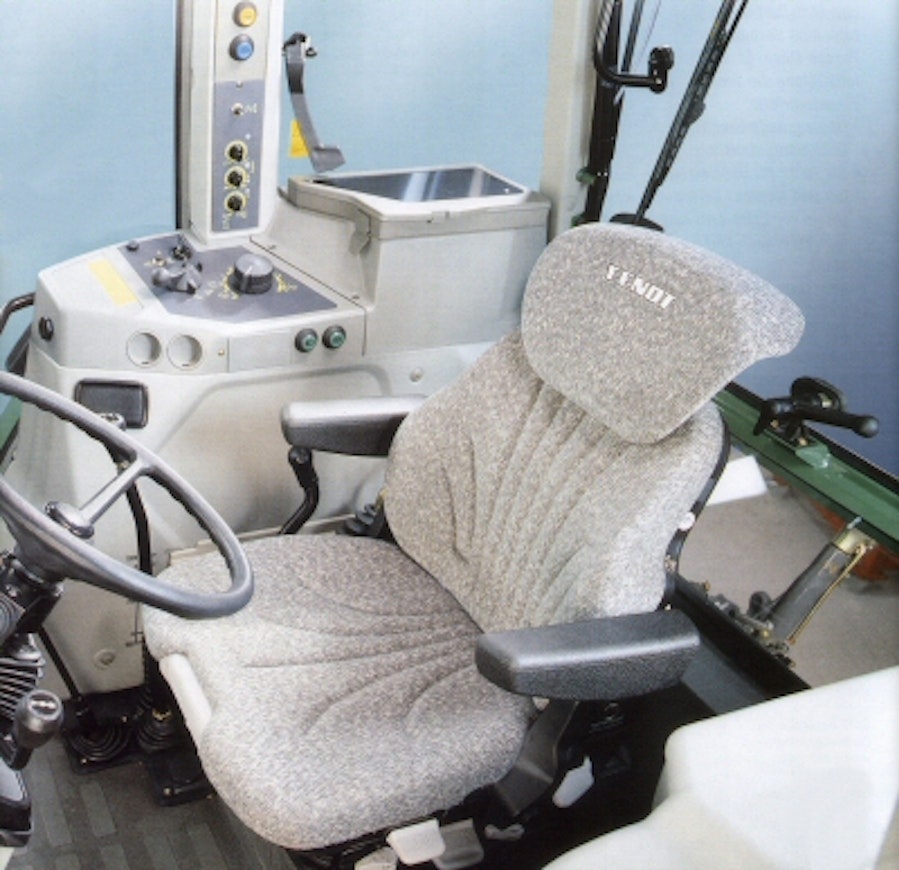

Other features remained mostly unchanged. The power shift was a mechanical 3-speed, and the direction changer was an optional accessory. The lifting capacity was 5 tons. The cab was fundamentally based on the structure from the Vario models.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | Fendt Farmer 307 Ci | Fendt Farmer 308 Ci | Fendt Farmer 309 Ci |
|---|---|---|---|
| Manufacturer name | Fendt Farmer | Fendt Farmer | Fendt Farmer |
| Imported to Finland | Yes | Yes | Yes |
| Years | 2003-08 | 2003-08 | 2003-07 |
| First year sold | 2003 | 2003 | 2003 |
| Last year sold | 2008 | 2008 | 2007 |
| Engine model | BF4M2012C | BF4M2012C | BF4M2012C |
| Cyl/Turbo/Intercooler | 4TI | 4TI | 4TI |
| Displacement | 4040 cm³ | 4040 cm³ | 4040 cm³ |
| Bore x stroke | 101×126 mm | 101×126 mm | 101×126 mm |
| Rated power | 80/2300 hp DIN/rpm | 90/2300 hp DIN/rpm | 105/2300 hp DIN/rpm |
| Max power | 92/1900 hp DIN/rpm | 98/1900 hp DIN/rpm | 112/1900 hp DIN/rpm |
| Torque | - | - | - |
| Gears | 21+6 | 21+6 | 21+6 |
| Synchronized gears | 21+6 | 21+6 | 21+6 |
| Powershift gears | mech. 3-step | mech. 3-step | mech. 3-step |
| Reverser | opt. | opt. | opt. |
| Speeds in km/h | 1,4-40 | 1,4-40 | 1,4-40 |
| Max. speed | 40 km/h | 40 km/h | 40 km/h |
| Hydr. flow l/min | 70 l/min | 70 l/min | 70 l/min |
| Lift controls | elec. | elec. | elec. |
| Lift capacity | 4980 kg | 4980 kg | 4980 kg |
| PTO speeds | 540/750/1000 | 540/750/1000 | 540/750/1000 |
| Brakes | drum brakes | drum brakes | drum brakes |
| Steering | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 8.2 | 8.6 | - |
| Turning circle m 4WD | 8.8 | 8.8 | 9 |
| Front tyres 2WD | 11.00-16 | 11.00-16 | - |
| Front tyres 4WD | 13.6R24 | 380/70R24 | 440/65R24 |
| Rear tyres 2WD | 16.9R34 | 480/70R34 | - |
| Rear tyres 4WD | 16.9R34 | 480/70R34 | 540/65R34 |
| Weight 2WD | 3800 kg | 3850 kg | - |
| Weight 4WD | 4130 kg | 4190 kg | 4220 kg |
| Height with cab | 271 (254) cm | 271 (254) cm | 271 (254) cm |
| Length (2WD/4WD) | 400 cm | 400 cm | 400 cm |
| Wheelbase (2WD/4WD) | 239/228 cm | 239/228 cm | 228 cm |
| Fuel tank | 108 l | 108 l | 108 l |
| Cab noise level | 75 dB | 75 dB | 75 dB |
| Solid cab | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock |
| Air suspension seat | x | x | x |
| Creeper gear | opt. | opt. | opt. |
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information.
There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed.
Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
