Fendt Farmer 307 C – 309 C
In the autumn of 2001, the Farmer 300 C-series tractors were redesigned to match the Vario look. The engines were still 3.2-liter Deutz models, but the power of the 309 C increased from 95 to 100 horsepower. All models now had a lifting capacity of 4980 kg. The C-models also now featured an electric lift. Its functions included a damping feature to reduce oscillation. The rear differential's limited-slip lock was electrically engaged. At the front, the ZF axle still had an automatic friction brake. The engagement of the four-wheel drive was now electric as well. The transmission remained by default the traditional 21+6, and the reverser was an optional extra. A creeper gear was a new option for the C-models.
At the end of 2003, the C-models were replaced by the Ci-models, which featured new 4.0-liter common rail diesel engines.
This is an automated translation. Please report any issues in the translation.
| Model | Fendt Farmer 307 C | Fendt Farmer 308 C | Fendt Farmer 309 C |
|---|---|---|---|
| Options | |||
| Manufacturer name | Fendt Farmer | Fendt Farmer | Fendt Farmer |
| Imported to Finland | Yes | Yes | Yes |
| Years | 2001-2003 | 2001-2003 | 2001-2003 |
| First year sold | 2001 | 2001 | 2001 |
| Last year sold | 2003 | 2003 | 2003 |
| Engine model | BF4M1012E | BF4M1012EC | BF4M1012EC |
| Cyl/Turbo/Intercooler | 4T | 4TI | 4TI |
| Displacement | 3192 cm³ | 3192 cm³ | 3192 cm³ |
| Bore x stroke | 94×115 mm | 94×115 mm | 94×115 mm |
| Rated power hp/rpm DIN | 75/2250 | 86/2250 | 100/2350 |
| Rated power | 75 | 86 | 100 |
| Rated speed | 2250 | 2250 | 2350 |

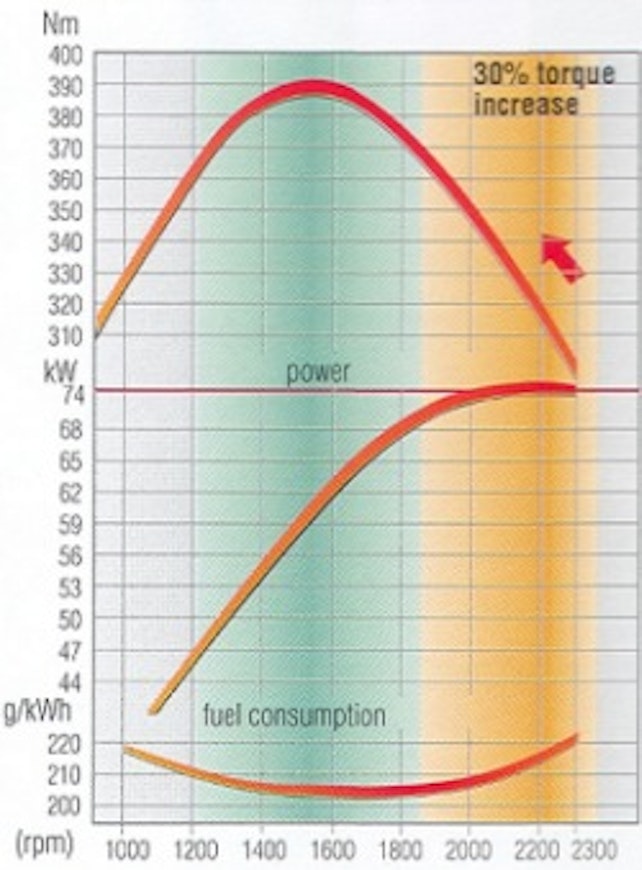

| Torque Nm/rpm DIN | 296/1500 | 337/1500 | 390/1500 |

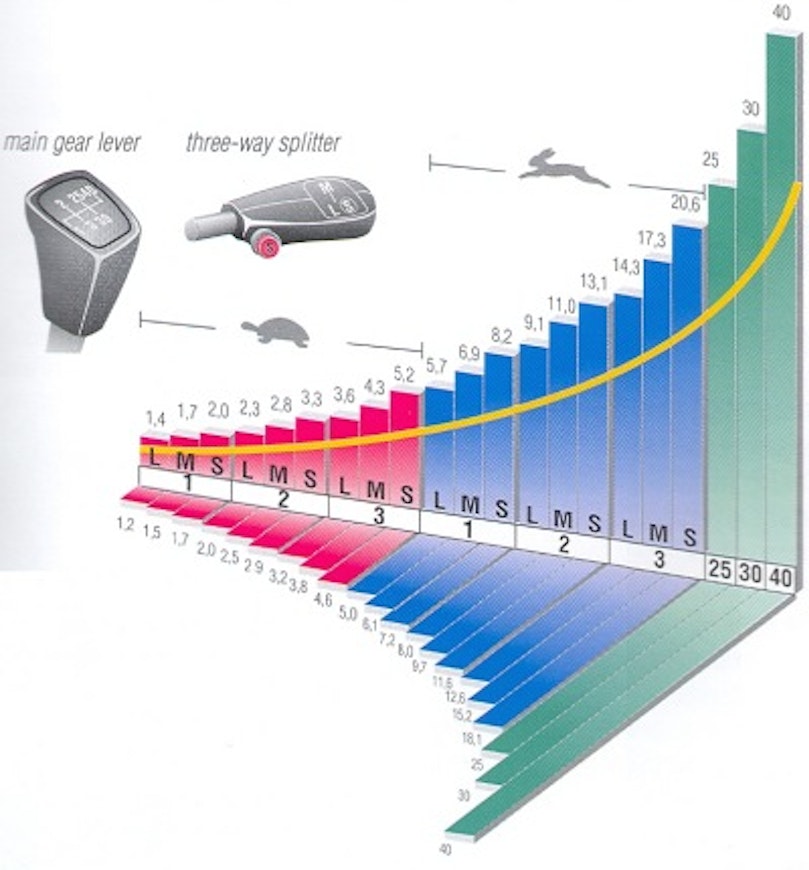

| Gears | 21+6 | 21+6 | 21+6 |
| Synchronized gears | 21+6 | 21+6 | 21+6 |
| Powershift gears | mech. 3-step | mech. 3-step | mech. 3-step |
| Speeds in km/h | 1,4-40 | 1,4-40 | 1,4-40 |
| Max. speed | 40 km/h | 40 km/h | 40 km/h |
| Hydr. flow l/min | 70 l/min | 70 l/min | 70 l/min |
| Lift controls | elec. | elec. | elec. |
| Lift capacity | 4980 kg | 4980 kg | 4980 kg |
| PTO speeds | 540/750/1000 | 540/750/1000 | 540/750/1000 |
| Brakes | drum brakes | drum brakes | drum brakes |
| Steering | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 8.2 | 8.6 | - |
| Turning circle m 4WD | 8.8 | 8.8 | 9 |
| Front tyres 2WD | 11.00-16 | 11.00-16 | - |
| Front tyres 4WD | 13.6R24 | 380/70R24 | 440/65R24 |
| Rear tyres 2WD | 16.9R34 | 16.9R34 | - |
| Rear tyres 4WD | 16.9R34 | 480/70R34 | 540/65R34 |
| Weight 2WD | 3800 kg | 3850 kg | - |
| Weight 4WD | 4130 kg | 4190 kg | 4220 kg |
| Height with cab | 268 cm | 268 cm | 268 cm |
| Length (2WD/4WD) | 400 cm | 400 cm | 400 cm |
| Wheelbase (2WD/4WD) | 239/228 cm | 239/228 cm | 228 cm |
| Fuel tank | 110 l | 110 l | 110 l |
| Cab noise level | 75 dB | 75 dB | 75 dB |
| Solid cab | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock |
| Air suspension seat | x | x | x |
| Creeper gear | opt. | opt. | opt. |
