Siirry sivupalkkiinSiirry alaosaanFendt Farmer 304 LS – 309 LS
Manufacturer
Models
Fendt Farmer 304 LS, Fendt Farmer 307 LS, Fendt Farmer 305 LS, Fendt Farmer 306 LS, Fendt Farmer 308 LS, Fendt Farmer 309 LS
Years
1987-90
Info

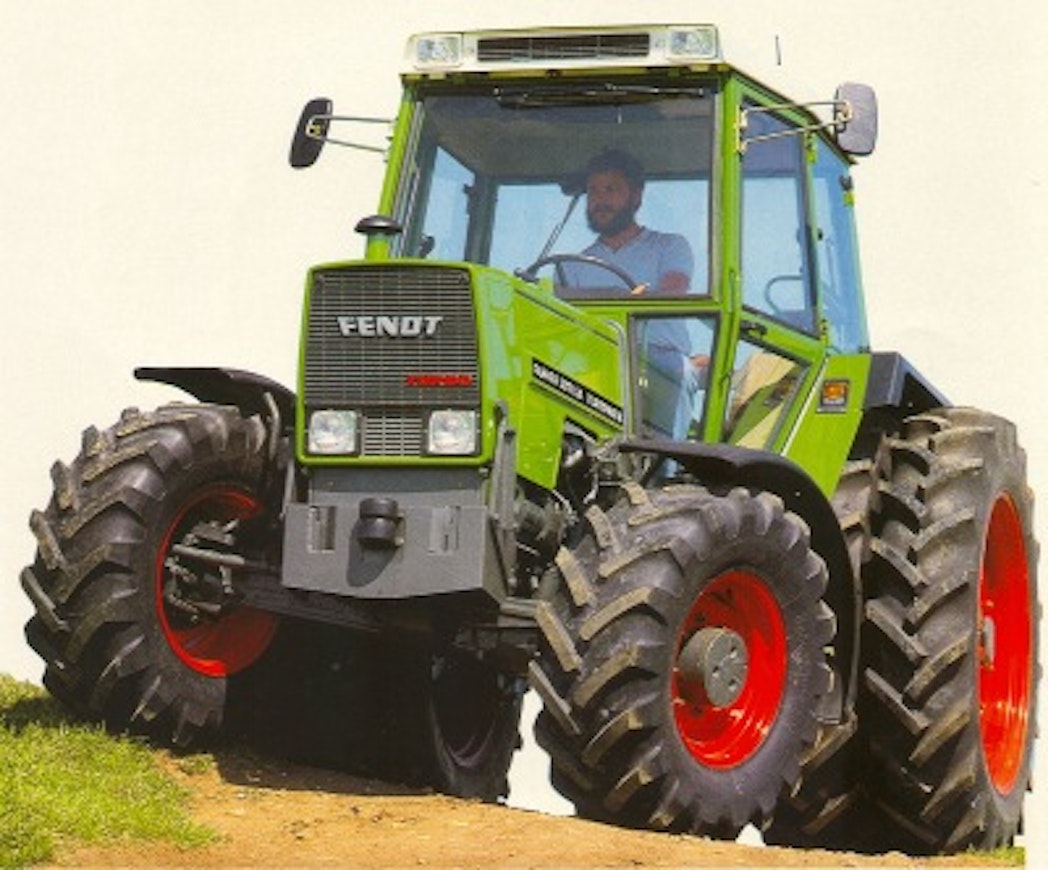

Fendt’s practice was to refresh its lineup every few years. The 1988 model updates included an improved cab and a fully enclosed front-drive driveshaft. In addition, the 307 received a more torque-rich engine.

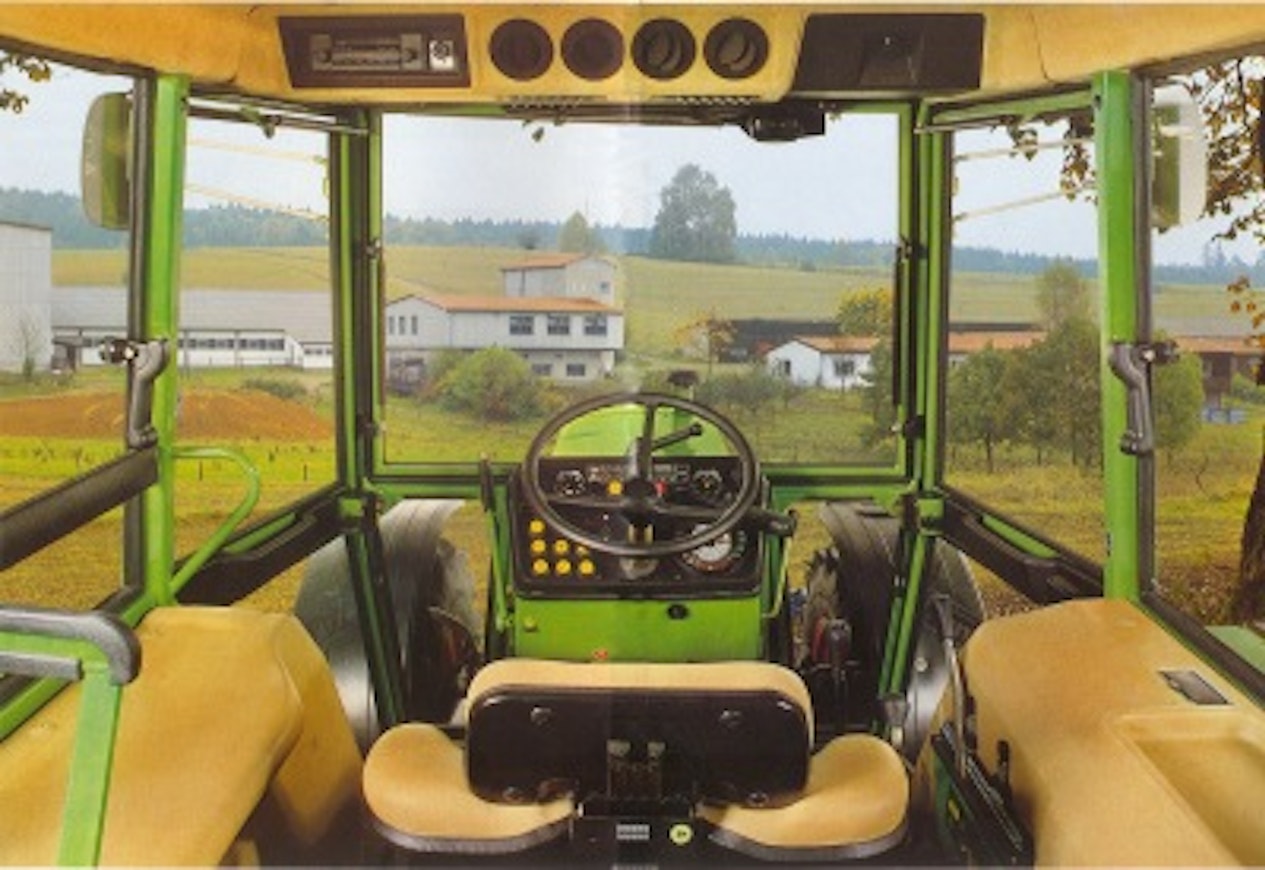

Cab noise levels dropped from the previous 83 decibels to 76–79.5 decibels. The instrument cluster was now digital. Overall cab equipment was upgraded, but it could still be described as rather spartan.
On the 1989 models, a power lift was standard on all Farmer tractors over 70 hp. Lifting capacity increased to 3,890 kg.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | Fendt Farmer 304 LS | Fendt Farmer 307 LS | Fendt Farmer 305 LS | Fendt Farmer 306 LS | Fendt Farmer 308 LS | Fendt Farmer 309 LS |
|---|---|---|---|---|---|---|
| Manufacturer name | Fendt Farmer | Fendt Farmer | Fendt Farmer | Fendt Farmer | Fendt Farmer | Fendt Farmer |
| Imported to Finland | Yes | Yes | No | Yes | Yes | Yes |
| Years | 1987-90 | 1987-90 | 1987-90 | 1987-90 | 1987-90 | 1987-90 |
| Engine model | MWM D226-3 | MWM TD226-3 | MWM D226-4 | MWM D226-4 | MWM D226-4 | MWM TD226-4 |
| Cyl/Turbo/Intercooler | 3 | 3T | 4 | 4 | 4 | 4T |
| Displacement | 3116 cm³ | 3116 cm³ | 4154 cm³ | 4154 cm³ | 4154 cm³ | 4154 cm³ |
| Bore x stroke | 105×120 mm | 105×120 mm | 105×120 mm | 105×120 mm | 105×120 mm | 105×120 mm |
| Rated power | 58/2350 hp DIN/rpm | 70/2200 hp DIN/rpm | 62/2175 hp DIN/rpm | 70/2200 hp DIN/rpm | 78/2350 hp DIN/rpm | 86/2350 hp DIN/rpm |
| Torque | - | - | - | - | - | - |
| Gears | 21+6 | 21+6 | 21+6 | 21+6 | 21+6 | 21+6 |
| Synchronized gears | 21+6 | 21+6 | 21+6 | 21+6 | 21+6 | 21+6 |
| Powershift gears | mech. 3-step | mech. 3-step | mech. 3-step | mech. 3-step | mech. 3-step | mech. 3-step |
| Speeds in km/h | 1,4-40 | 1,4-40 | 1,4-40 | 1,4-40 | 1,4-40 | 1,4-40 |
| Max. speed | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h |
| Hydr. flow l/min | 40 l/min | 40 l/min | 37 l/min | 38 l/min | 40 l/min | 40 l/min |
| Hydraulic pressure | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar |
| Lift controls | mech./elec. | mech./elec. | mech./elec. | mech./elec. | elec. | elec. |
| Lift capacity | 2140 kg | 2865/3960 kg | 2770/3960 kg | 2770/3960 kg | 3750/3960 kg | 3750/3960 kg |
| PTO speeds | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 |
| Brakes | drum brakes | drum brakes | dry disc | dry disc | dry disc | dry disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 7.8 | 7.8 | 8.6 | 8.6 | 8.6 | 8.8 |
| Turning circle m 4WD | 8 | 8 | 8.8 | 9 | 9 | 9 |
| Front tyres 2WD | 7,50-18 | 10,00-16 | 7,50-20 | 10,00-16 | 10,00-16 | 11,00-16 |
| Front tyres 4WD | 12.4R20 | 12.4R24 | 12.4R24 | 12.4R24 | 13.6R24 | 13.6R24 |
| Rear tyres 2WD | 13,6R36 | 16,9R34 | 16,9R34 | 16,9R34 | 16,9R34 | 16,9R34 |
| Rear tyres 4WD | 16.9R30 | 16.9R34 | 16.9R34 | 16.9R34 | 16.9R34 | 16.9R34 |
| Weight 2WD | 2936 kg | 3150 kg | 3280 kg | 3535 kg | 3665 kg | 3805 kg |
| Weight 4WD | 3390 kg | 3420 kg | 3550 kg | 3705 kg | 3870 kg | 4010 kg |
| Height with cab | 257 cm | 262 cm | 262 cm | 262 cm | 262 cm | 262 cm |
| Length (2WD/4WD) | 390 cm | 390 cm | 403/399 cm | 403/399 cm | 408/402 cm | 408/413 cm |
| Wheelbase (2WD/4WD) | 229/215 cm | 229/215 cm | 239/228 cm | 239/228 cm | 239/228 cm | 239/228 cm |
| Fuel tank | 80 l | 80 l | 107 l | 107 l | 107 l | 107 l |
| Cab noise level | 79.5 dB | 79.5 dB | 78 dB | 78 dB | 78.5 dB | 78 dB |
| Solid cab | x | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock |
| Creeper gear | opt. | opt. | opt. | opt. | opt. | opt. |
