Fendt Farmer 250 S – 280 S
Manufacturer
Models
Fendt Farmer 250 S, Fendt Farmer 260 S, Fendt Farmer 280 S
Years
1996-2003
Info

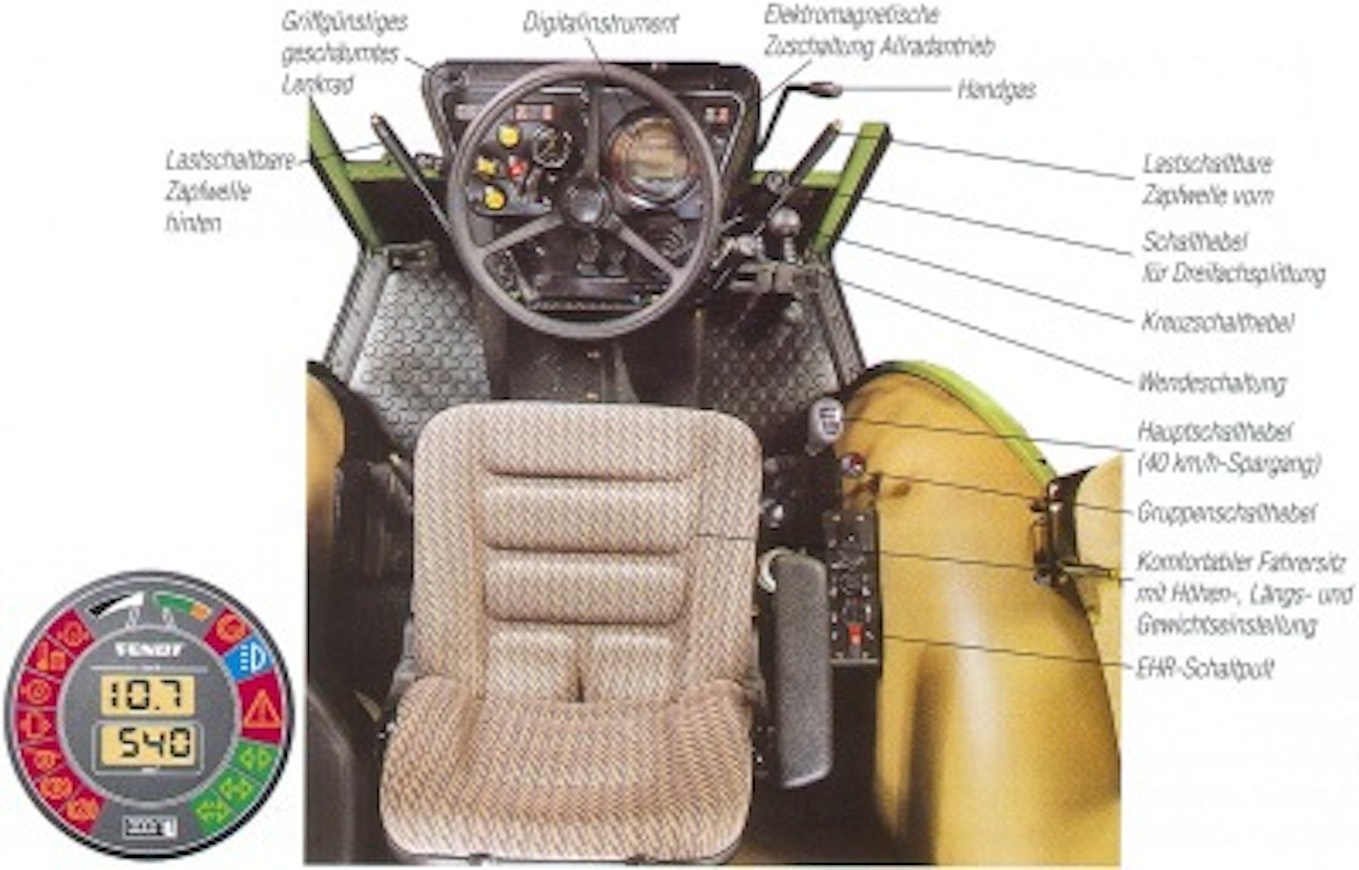

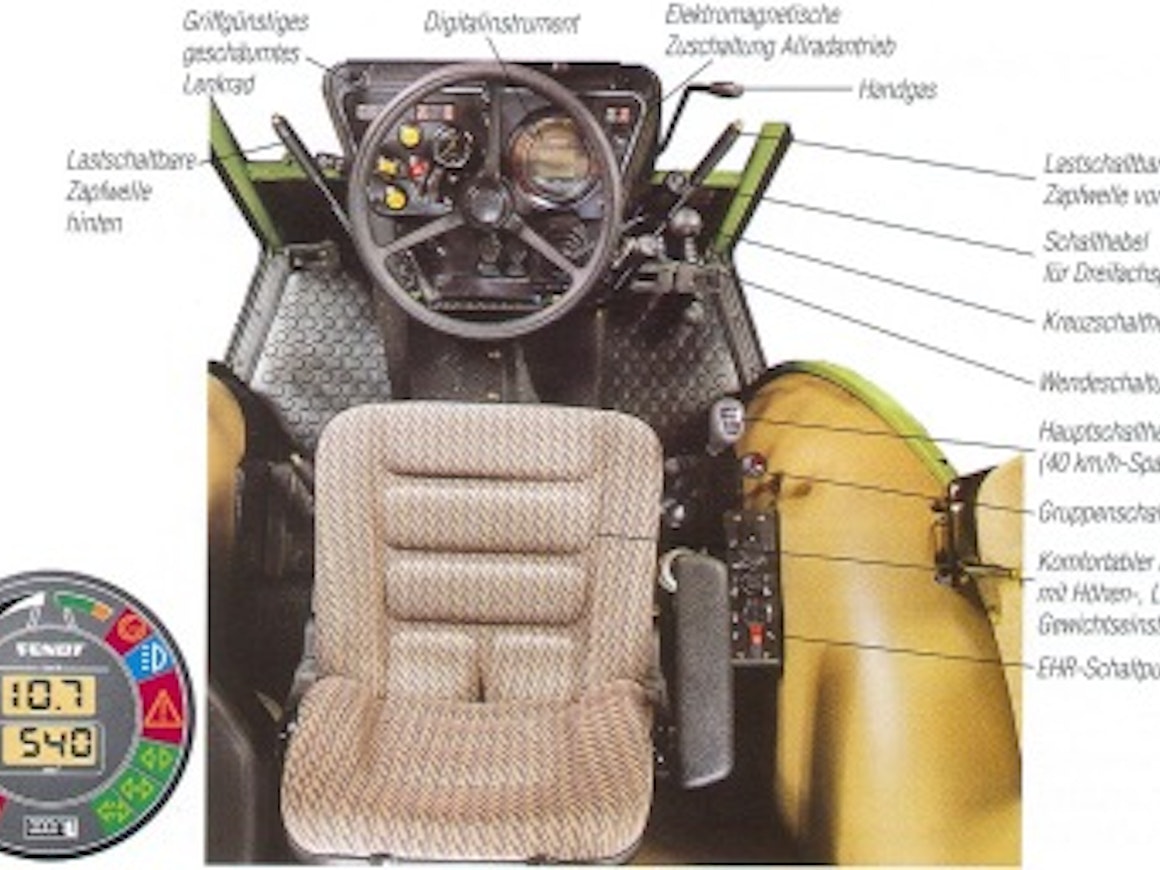

In the autumn of 1996, updates were made to the Farmer 200 series. The engines became more economical and gained more torque. The 275 was replaced by the more powerful 280 with 5 more horsepower. The cabin was renovated, with the most noticeable change being fully glass doors. An air conditioning unit was available as an optional accessory. Another new accessory was the direction reverser, which provided 21+21 gears.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | Fendt Farmer 250 S | Fendt Farmer 260 S | Fendt Farmer 280 S |
|---|---|---|---|
| Options | |||
| Manufacturer name | Fendt Farmer | Fendt Farmer | Fendt Farmer |
| Imported to Finland | No | No | No |
| Years | 1996-2003 | 1996-2003 | 1996-2003 |
| First year sold | 1996 | 1996 | 1996 |
| Last year sold | 2003 | 2003 | 2003 |
| Engine model | KHD F3L912 | KHD F3L913 | KHD F4L913 |
| Cyl/Turbo/Intercooler | 3 | 3 | 4 |
| Displacement | 2826 cm³ | 3064 cm³ | 4086 cm³ |
| Bore x stroke | 100×120 mm | 102×125 mm | 102×125 mm |
| Rated power hp/rpm DIN | 50/2300 | 60/2400 | 80/2300 |
| Rated power | 50 | 60 | 80 |
| Rated speed | 2300 | 2400 | 2300 |
| Torque Nm/rpm DIN | 187/1550 | 202/1550 | 272/1550 |
| Gears | 21+6 | 21+6 | 21+6 |
| Synchronized gears | 21+6 | 21+6 | 21+6 |
| Powershift gears | mech. | mech. | mech. |
| Reverser | opt. | opt. | opt. |
| Speeds in km/h | 1,4-40,0 | 1,4-40,0 | 1,4-40,0 |
| Hydr. flow l/min | 39 l/min | 41 l/min | 41 l/min |
| Lift controls | elec. | elec. | elec. |
| Lift capacity | 2790 kg | 2790 kg | 2790 kg |
| PTO speeds | 540/750/1000 | 540/750/1000 | 540/750/1000 |
| Brakes | dry disc | dry disc | dry disc |
| Steering | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 6.2 | 6.2 | - |
| Turning circle m 4WD | 6.6 | 6.6 | 7.2 |
| Front tyres 2WD | 7,50-18 | 7,50-18 | - |
| Front tyres 4WD | 11.2R20 | 11.2R20 | 12.4R20 |
| Rear tyres 2WD | 14,9R30 | 16,9R28 | - |
| Rear tyres 4WD | 14.9R30 | 16.9R28 | 16.9R30 |
| Weight 2WD | 2500 kg | 2520 kg | - |
| Weight 4WD | 2750 kg | 2770 kg | 2970 kg |
| Height with cab | 230 cm | 232 cm | 235 cm |
| Length (2WD/4WD) | 354 cm | 354 cm | 364 cm |
| Wheelbase (2WD/4WD) | 205 cm | 205 cm | 218 cm |
| Fuel tank | 60 l | 60 l | 60 l |
| Cab noise level | 82 dB | 82 dB | 82 dB |
| Solid cab | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock |
| Creeper gear | opt. | opt. | opt. |
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information.
There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed.
Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
