Fendt F 230 GT – F 231 GT

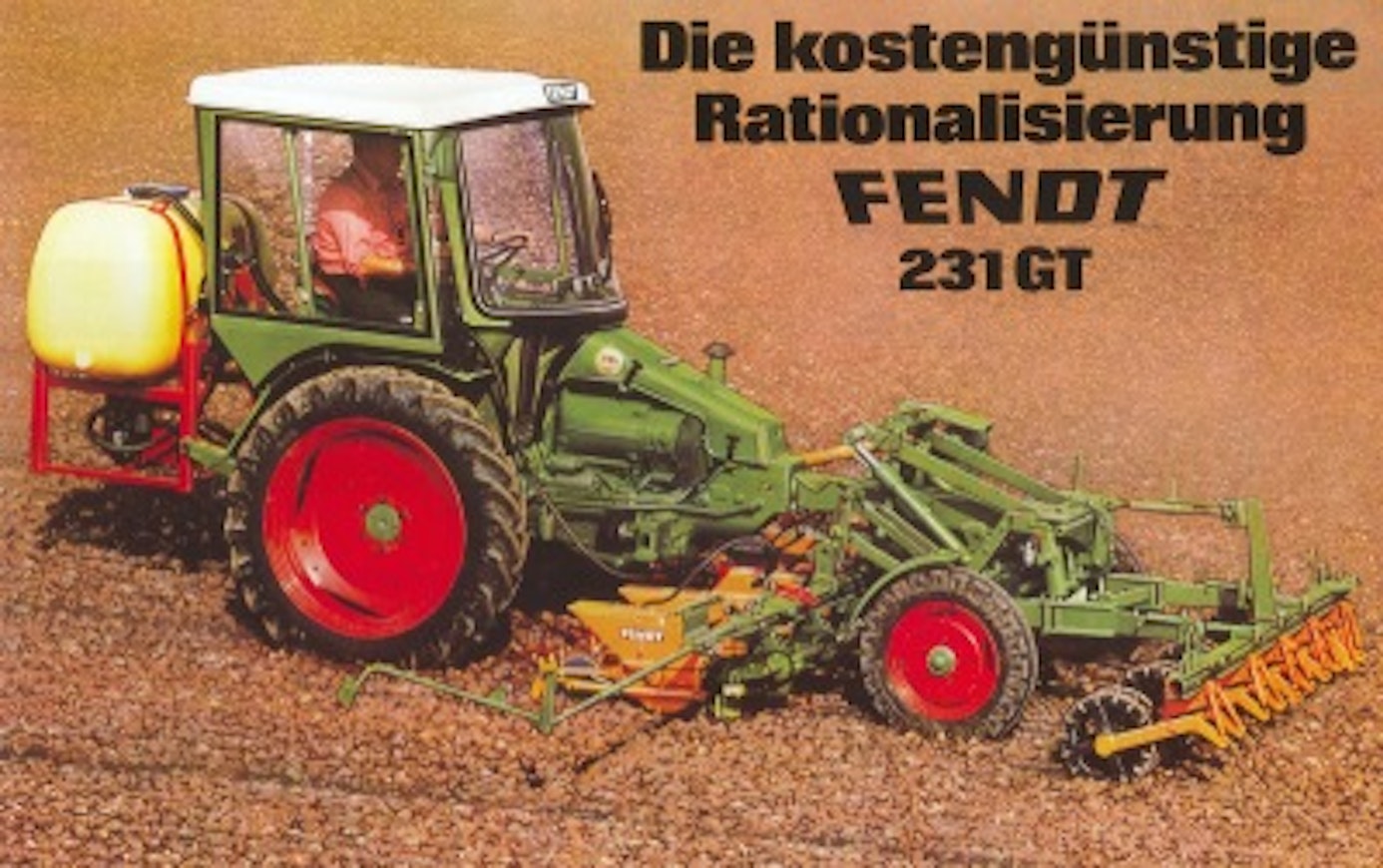

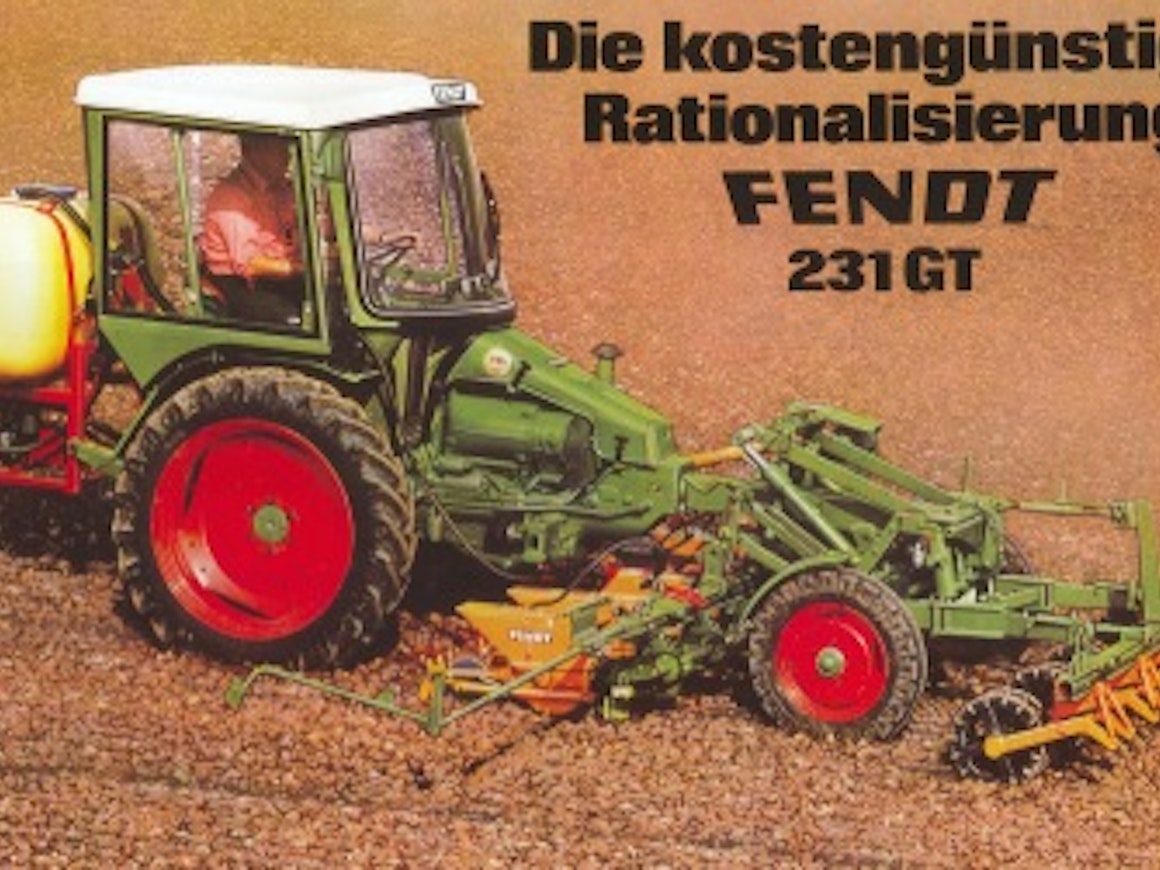

The Fendt tool carrier "One-Man-System" first came onto the market in 1957. The engine had been enlarged several times from the original 12 horsepower. The first 3-cylinder GT (Geräteträger = tool carrier) was the F 230 GT introduced in 1964 (MWM 30 hp), which in appearance corresponded to the F 231 shown in the illustration below. The Deutz engine of the F 231 GT introduced in autumn 1967 was 2 hp more powerful than its predecessor, and power was increased to 35 horsepower in 1973 when the engine was once again changed back to MWM.
In spring 1980, the engine was enlarged to 2.55 liters, and a powershift became standard equipment. In 1987, the engine was enlarged again to a displacement of 2.8 liters. Alongside it came a shorter and nimbler GTM version. These models did not have draft control.
This is an automated translation. Please report any issues in the translation.
| Model | Fendt F 230 GT | Fendt F 231 GT | Fendt F 231 GT | Fendt F 231 GT | Fendt F 231 GT |
|---|---|---|---|---|---|
| Options | |||||
| Manufacturer name | Fendt | Fendt | Fendt | Fendt | Fendt |
| Imported to Finland | No | No | No | No | No |
| Years | 1964-67 | 1967-72 | 1973-80 | 1980-87 | 1987-91 |
| First year sold | 1964 | 1967 | 1973 | 1980 | 1987 |
| Last year sold | 1967 | 1972 | 1980 | 1987 | 1991 |
| Engine model | MWM AKD 210,5D | KHD | MWM D308-3 | MWM D325-3 | MWM D327-3 |
| Cyl/Turbo/Intercooler | 3 | 3 | 3 | 3 | 3 |
| Displacement | 2230 cm³ | 2230 cm³ | 2232 cm³ | 2550 cm³ | 2826 cm³ |
| Bore x stroke | 95×105 mm | 95×105 mm | 95×105 mm | 95×120 mm | 100×120 mm |
| Rated power hp/rpm DIN | 30/2000 | 32/1950 | 35/2050 | 35/2050 | 35/2050 |
| Rated power | 30 | 32 | 35 | 35 | 35 |
| Rated speed | 2000 | 1950 | 2050 | 2050 | 2050 |
| Torque Nm/rpm DIN | - | - | - | 146/1500 | 140/? |
| Gears | 8+4 | 8+4 | 8+4 | 16+8 | 16+8 |
| Synchronized gears | - | - | - | - | 16+8 |
| Powershift gears | - | opt. | opt. | mech. | mech. |
| Speeds in km/h | 1,0-20,0 | 1,0-20,0 | 1,0-20,0 | 1,0-30,0 | 1,0-30,0 |
| Max. speed | - | 20/30 km/h | 20/30 km/h | - | - |
| Hydr. flow l/min | - | - | 34 l/min | 34 l/min | 34 l/min |
| Lift controls | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | - | 1600 kg | 1800 kg | 1800 kg | 1800 kg |
| PTO speeds | - | 540/1000/ajjo | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo |
| Brakes | dry disc | dry disc | dry disc | dry disc | dry disc |
| Steering | mech. | mech. | mech. | mech. | hydrost. |
| Turning circle m 2WD | - | 8.34 | 8 | 8 | 8 |
| Front tyres 2WD | 5,50-16 | 5,50-16 | 5,50-16 | 5,50-16 | 7,50-16 |
| Rear tyres 2WD | 9-30 | 9,5-32 | 9,5-32 | 9,5-32 | 11,2-32 |
| Weight 2WD | 1500 kg | 1800 kg | 1920 kg | 1950 kg | 2050 kg |
| Height with cab | (163) cm | 219 cm | 234 cm | 241 cm | 241 cm |
| Length (2WD/4WD) | 366 cm | 402 cm | 414 cm | 414 cm | 428 cm |
| Wheelbase (2WD/4WD) | 241 cm | 241 cm | 241 cm | 241 cm | 241 cm |
| Fuel tank | - | 41 l | 40 l | 40 l | 40 l |
| Cab noise level | - | - | - | 93 dB | 93 dB |
| Solid cab | - | - | - | x | x |
| Creeper gear | opt. | opt. | opt. | opt. | opt. |
