Fendt 822-828 Vario
Here is the translation of the text to English:
The 2014 model year Fendt 800 Vario series featured Tier 4 Final compliant Deutz engines with SCR technology, a particulate filter, and exhaust gas recirculation. The constant power range was now broader, but otherwise the performance figures were roughly the same as before. Due to increased AdBlue consumption, its tank size was increased. The Vario ML 220 transmission enabled a top speed of 60 km/h at 1750 rpm. The lifting capacity was 11 tons. Hydraulic pumps were available in 152 or 205 liters. The wheelbase was extended by 5 centimeters.

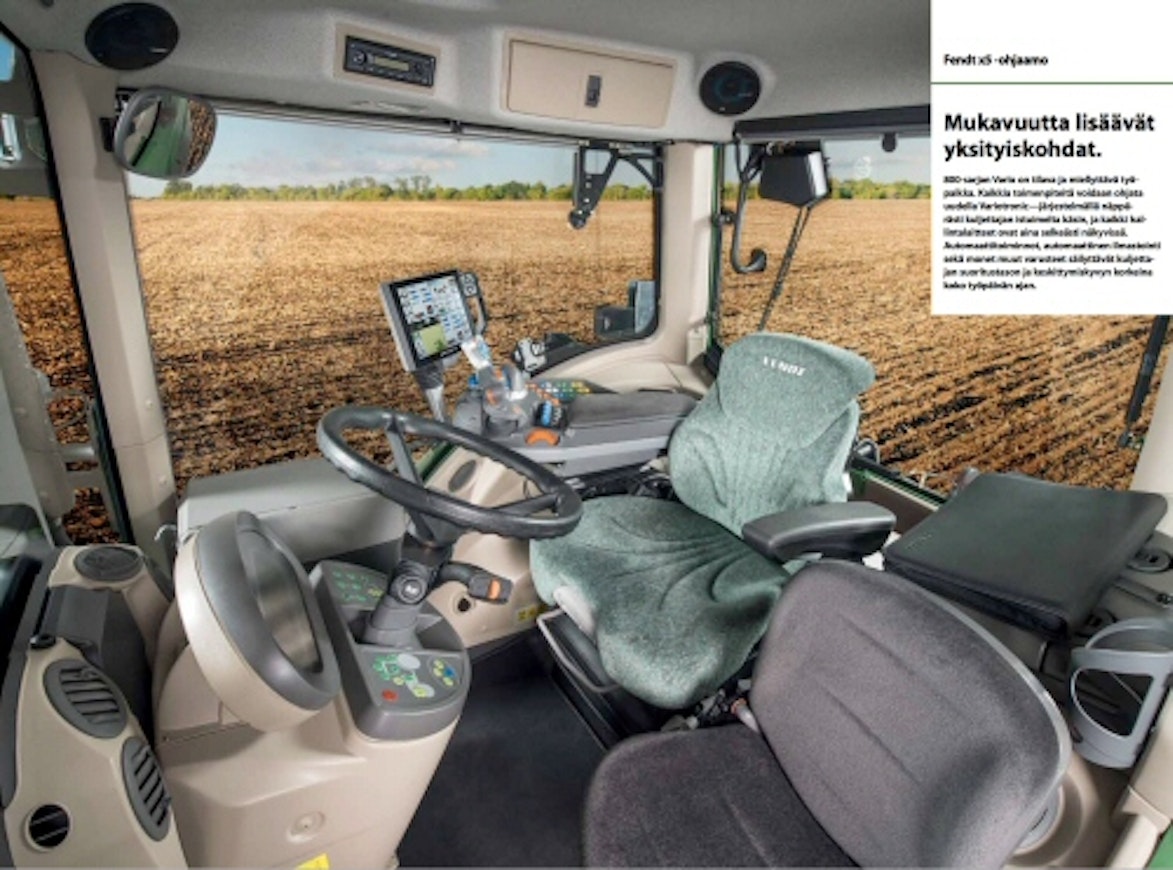

There were still three equipment options available. The most affordable Power version included, among other features, a 7" Varioterminal, TMS, automatic climate control, air-suspended seat, mechanical cab suspension, and front axle suspension. The Profi version had a multifunction joystick, Isobus, headland automation, electrically adjustable and heated mirrors, as well as a front linkage; in Finland, it also included a driving stability system. ProfiPlus equipment featured a 10.4" display and VarioDoc field documentation. Steering brakes were not included as standard equipment, meaning there was only one brake pedal.
This is an automated translation. Please report any issues in the translation.
| Model | Fendt 822 Vario | Fendt 824 Vario | Fendt 826 Vario | Fendt 828 Vario |
|---|---|---|---|---|
| Options | ||||
| Manufacturer name | Fendt | Fendt | Fendt | Fendt |
| Imported to Finland | Yes | Yes | Yes | Yes |
| Years | 2013- | 2013- | 2013- | 2013- |
| First year sold | 2013 | 2013 | 2013 | 2013 |
| Engine model | Deutz TCD 6.1 L6 | Deutz TCD 6.1 L6 | Deutz TCD 6.1 L6 | Deutz TCD 6.1 L6 |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI | 6TI |
| Displacement | 6057 cm³ | 6057 cm³ | 6057 cm³ | 6057 cm³ |
| Bore x stroke | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm |
| Rated power hp/rpm DIN | 220/2100 | 240/2100 | 260/2100 | 280/2100 |
| Rated power | 220 | 240 | 260 | 280 |
| Rated speed | 2100 | 2100 | 2100 | 2100 |
| Max power hp/rpm DIN | 220/1900 | 240/1900 | 260/1900 | 280/1900 |
| Max power | 220 | 240 | 260 | 280 |
| Max speed | 1900 | 1900 | 1900 | 1900 |
| Rated power hp/rpm ISO | 226/2100 | 248/2100 | 265/2100 | 287/2100 |
| Max power hp/rpm ISO | 226/1900 | 248/1900 | 265/1900 | 287/1900 |
| Torque Nm/rpm DIN | 960/1450 | 1054/1450 | 1125/1450 | 1217/1450 |
| Gears | stepless | stepless | stepless | stepless |
| Synchronized gears | stepless | stepless | stepless | stepless |
| Powershift gears | stepless | stepless | stepless | stepless |
| Reverser | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 0,02-50 | 0,02-50 | 0,02-50 | 0,02-50 |
| Max. speed | 40/50/60 km/h | 40/50/60 km/h | 40/50/60 km/h | 40/50/60 km/h |
| Hydr. flow l/min | 152 (205) l/min | 152 (205) l/min | 152 (205) l/min | 152 (205) l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar |
| Lift controls | elec. | elec. | elec. | elec. |
| Lift capacity | 11110 kg | 11110 kg | 11110 kg | 11110 kg |
| PTO speeds | 750/1000 | 750/1000 | 750/1000 | 750/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 11 | 11 | 11 | 11 |
| Front tyres 4WD | 540/65R30 | 540/65R30 | 540/65R34 | 540/65R34 |
| Rear tyres 4WD | 650/65R42 | 650/65R42 | 650/85R38 | 650/85R38 |
| Weight 4WD | 9370 kg | 9370 kg | 9520 kg | 9520 kg |
| Height with cab | 328 cm | 328 cm | 328 cm | 328 cm |
| Length (2WD/4WD) | 528 cm | 528 cm | 528 cm | 528 cm |
| Wheelbase (2WD/4WD) | 295 cm | 295 cm | 295 cm | 295 cm |
| Fuel tank | 505+AB50 l | 505+AB50 l | 505+AB50 l | 505+AB50 l |
| Solid cab | x | x | x | x |
| Diff. lock | disc lock | disc lock | disc lock | disc lock |
| Autom. differential locks | x | x | x | x |
| Air suspension seat | x | x | x | x |
| Air conditioning | x | x | x | x |
| Trip computer | x | x | x | x |
| Creeper gear | x | x | x | x |
