Eicher EKL 11 - EKL 15

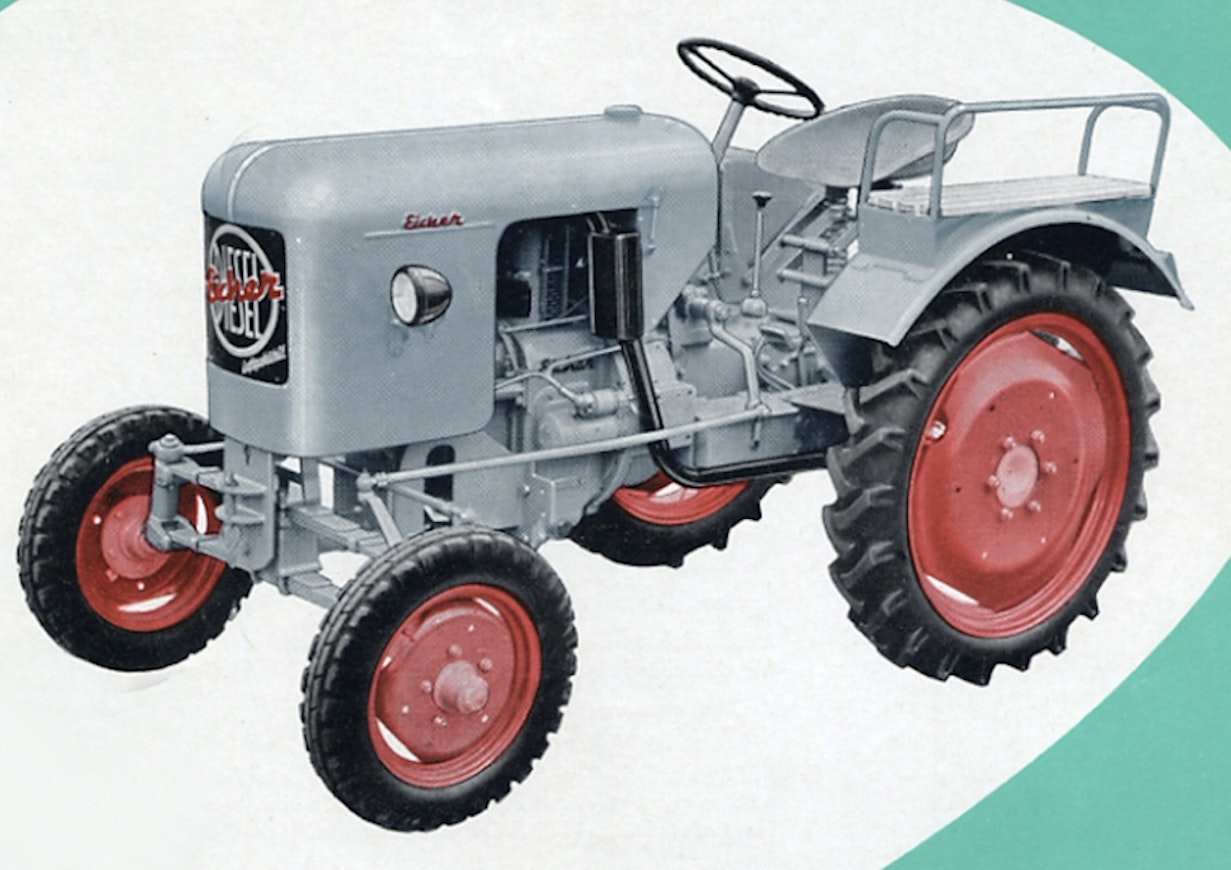

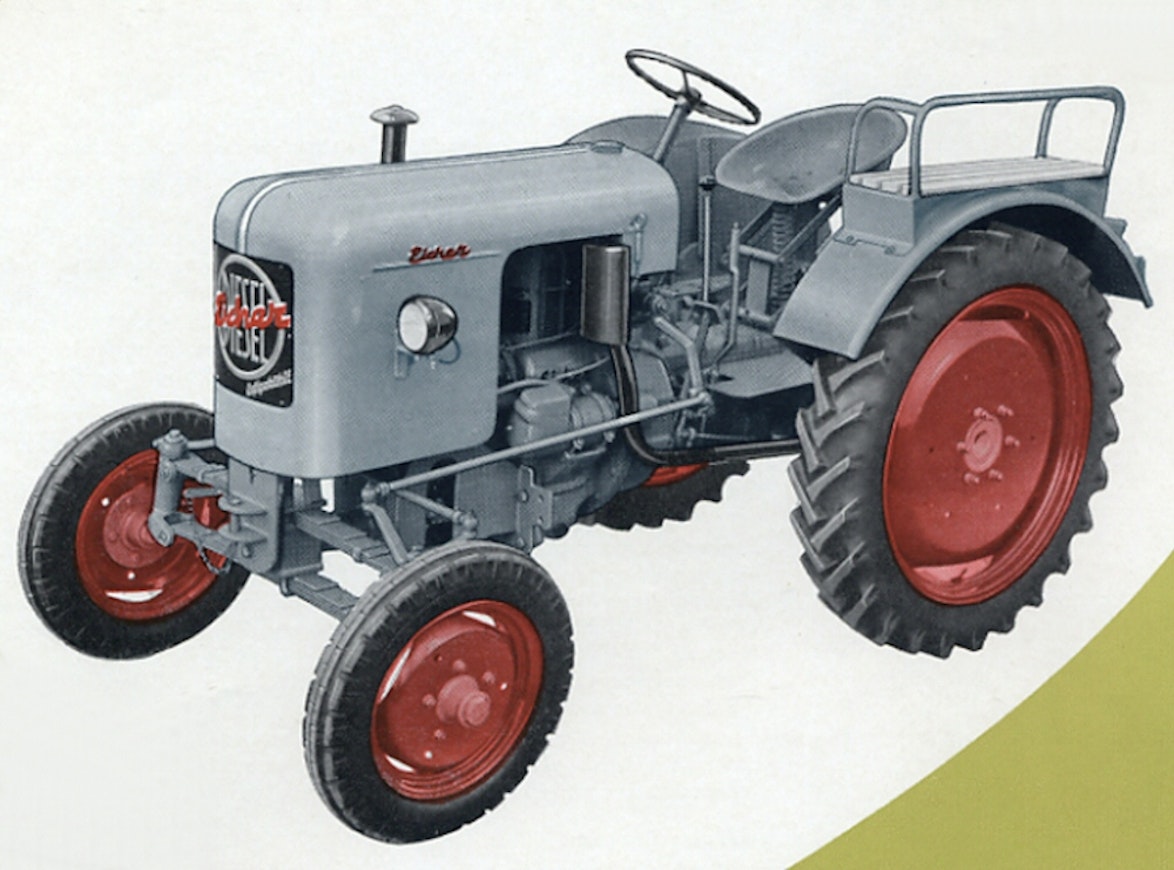

In 1953, smaller models EKL 11 and EKL 15 were introduced. The 11-horsepower model was equipped with a 1-cylinder Deutz engine, and the 15/16-horsepower model with a 1-cylinder Eicher engine. The transmission was a ZF 5+1. The EKL 11 featured a standard PTO. Unlike the larger models, these did not have front axle suspension. Hydraulics, three-point hitch, and electrical system were optional extras. With over 12,000 units produced, the EKL 15 was the most produced Eicher tractor of the 1950s.
In 1956, the ED 13 was introduced, featuring a smaller, 1.3-liter 1-cylinder Eicher engine and a ZF 6+1 transmission.
Also introduced in 1956, the lightweight LH 12 equipped with a Hatz engine was the last Eicher to have an externally sourced engine. The 12-horsepower tractor weighed only 770 kg. A special feature of this model was the electrically operated three-point hitch.
| Model | Eicher EKL 11 | Eicher LH 12 | Eicher ED 13 | Eicher EKL 15 | Eicher EKL 15/II |
|---|---|---|---|---|---|
| Options | |||||
| Imported to Finland | No | No | No | No | No |
| Years | 1953-57 | 1956-59 | 1956-60 | 1953-53 | 1953-58 |
| First year sold | 1953 | 1956 | 1956 | 1953 | 1953 |
| Last year sold | 1957 | 1959 | 1960 | 1953 | 1958 |
| Engine model | F1L612 | Hatz E 89 FG | ED 1e | ED 1a | ED 1a |
| Cyl/Turbo/Intercooler | 1 | 1 | 1 | 1 | 1 |
| Displacement | 763 cm³ | 668 cm³ | 1298 cm³ | 1425 cm³ | 1425 cm³ |
| Bore x stroke | 90x120 mm | 90x105 mm | 105x150 mm | 110x150 mm | 110x150 mm |
| Rated power hp/rpm DIN | 11/2100 | 12/2500 | 13/1500 | 15/1550 | 16/1500 |
| Rated power | 11 | 12 | 13 | 15 | 16 |
| Rated speed | 2100 | 2500 | 1500 | 1550 | 1500 |
| Torque Nm/rpm DIN | - | 39/2000 | - | - | - |
| Gears | 5+1 | 6+2 | 6+1 | 5+1 | 5+1 |
| Speeds in km/h | - | 1,4-19,0 | 1,8-20,0 | 2,6-18,9 | 2,6-18,9 |
| Max. speed | 19,0 km/h | - | - | - | - |
| Lift controls | mech. | Elec. | mech. | mech. | mech. |
| PTO speeds | 590/ajo | 575 | 540 | 540/ajo | 540/ajo |
| Brakes | drum brakes | drum brakes | drum brakes | drum brakes | drum brakes |
| Steering | mech. | mech. | mech. | mech. | mech. |
| Turning circle m 2WD | - | - | 5,6 | - | 5,86 |
| Front tyres 2WD | 4.00-16 | 4.00-16 | 4.50-15 | 4.00-16 | 4.50-16 |
| Rear tyres 2WD | 7-24 | 7-24 | 8-24 | 7-24 | 7-30 |
| Weight 2WD | (950) kg | (770) kg | (1080) kg | (1210) kg | (1150-1240) kg |
| Height with cab | (150) cm | (137) cm | (154) cm | (158) cm | (159) cm |
| Length (2WD/4WD) | 247 cm | 248 cm | 285 cm | 228 cm | 242 cm |
| Wheelbase (2WD/4WD) | 162 cm | 164 cm | 170 cm | 150 cm | 160-164 cm |
| Creeper gear | lisäv. | x | x | opt. | lisäv. |
