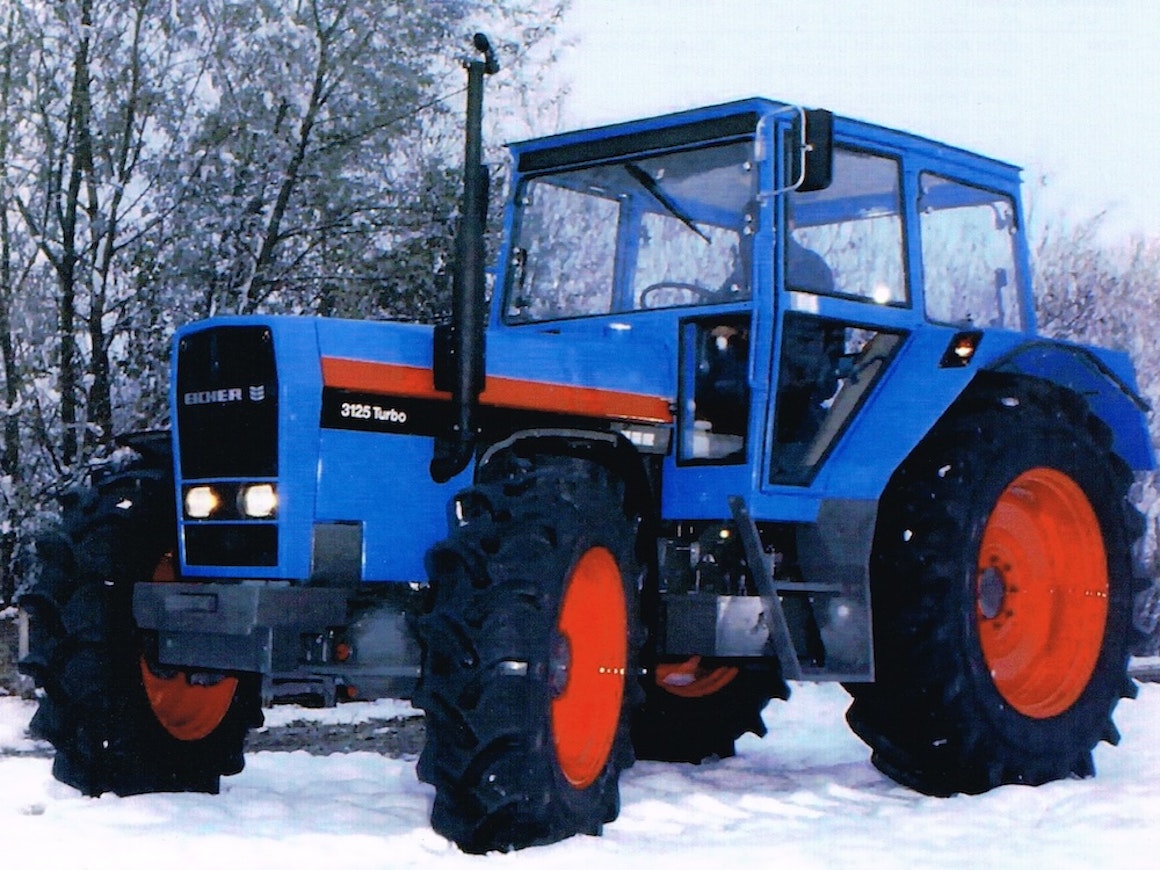

Eicher 3108-3145
Eicher sales had dropped significantly during the MF years. In 1982, Massey Ferguson relinquished ownership of Eicher due to its own financial difficulties, and the new owner became the Indian Eicher Goodearth, which had originally been Eicher’s Indian subsidiary.
The Wotan 3000 series resembled MF’s later introduced 2000 series in appearance, but technical similarities were minimal. Eichers had their own air-cooled 6-cylinder engines. The turbo models were equipped with wastegate turbochargers.
The transmission was a ZF 20+9 and the top speed was now 40 km/h. Lift capacity was considerably increased to 6.6 tons. In 1989, an electric hydraulic lift became standard equipment. The front axle was a ZF with a power take-off shaft running on the side and friction lock. In the final years’ models, the turning circle diameter decreased from 11.8 meters to 10.2 meters.
| Model | Eicher 3108 S | Eicher 3108 T S | Eicher 3125 T S | Eicher 3145 T S |
|---|---|---|---|---|
| Options | ||||
| Imported to Finland | No | No | No | No |
| Years | 1982-85 | 1982-85 | 1982-90 | 1982-90 |
| First year sold | 1982 | 1982 | 1982 | 1982 |
| Last year sold | 1985 | 1985 | 1990 | 1990 |
| Engine model | EDK 6-3 | EDK 6-7 | EDK 6-5 | EDK 6-6 |
| Cyl/Turbo/Intercooler | 6 | 6T | 6T | 6T |
| Displacement | 5890 cm³ | 5890 cm³ | 5890 cm³ | 5890 cm³ |
| Bore x stroke | 100x125 mm | 100x125 mm | 100x125 mm | 100x125 mm |
| Rated power hp/rpm DIN | 108/2300 | 108/2300 | 125/2300 | 145/2300 |
| Rated power | 108 | 108 | 125 | 145 |
| Rated speed | 2300 | 2300 | 2300 | 2300 |
| Torque Nm/rpm | 400/1700 | 405/1600 | 452/1500 | 523/1500 |
| Gears | 16+7/20+9 | 20+9 | 20+9 | 20+9 |
| Synchronized gears | 16+7/20+9 | 20+9 | 20+9 | 20+9 |
| Powershift gears | mech. | mech. | mech. | mech. |
| Speeds in km/h | 1,4-39,0 | 1,6-39,0 | 1,7-38,5 | 1,7-38,5 |
| Max. speed | 30/40 km/h | 30/40 km/h | 30/40 km/h | 30/40 km/h |
| Hydr. flow l/min | 50,6 l/min | 50,6 l/min | 50,6 l/min | 50,6 l/min |
| Hydraulic pressure | 175 bar | 175 bar | 175 bar | 175 bar |
| Lift controls | mech. | mech./elec. | mech./elec. | mech./elec. |
| Lift capacity | 4500/6810 kg | 6810 kg | 6810 kg | 6810 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 11,2 | 11,7/10,2 | 11,8/10,2 | 11,8/10,2 |
| Front tyres 2WD | 11.00-16 | - | - | - |
| Front tyres 4WD | 12.4-28 | 14.9-26 | 14.9R28 | 14.9R28 |
| Rear tyres 2WD | 18.4-38 | - | - | - |
| Rear tyres 4WD | 18.4-38 | 18.4R38 | 20.8R38 | 20.8R38 |
| Weight 2WD | 4650 kg | - | - | - |
| Weight 4WD | 5150 kg | 5475 kg | 5705 kg | 5815 kg |
| Height with cab | 275 cm | 275 cm | 275 cm | 275 cm |
| Length (2WD/4WD) | 461 cm | 461 cm | 465 cm | 465 cm |
| Wheelbase (2WD/4WD) | 278/273 cm | 273 cm | 273 cm | 273 cm |
| Fuel tank | 248 l | 241 l | 241 l | 241 l |
| Cab noise level | 87 dB | 87 dB | 86 dB | 86 dB |
| Solid cab | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock |
