Eicher ED 40 - ED 60
Manufacturer
Models
Eicher ED 40, Eicher ED 42, Eicher ED 50, Eicher ED 60, Eicher L 60
Years
1954-63
Info

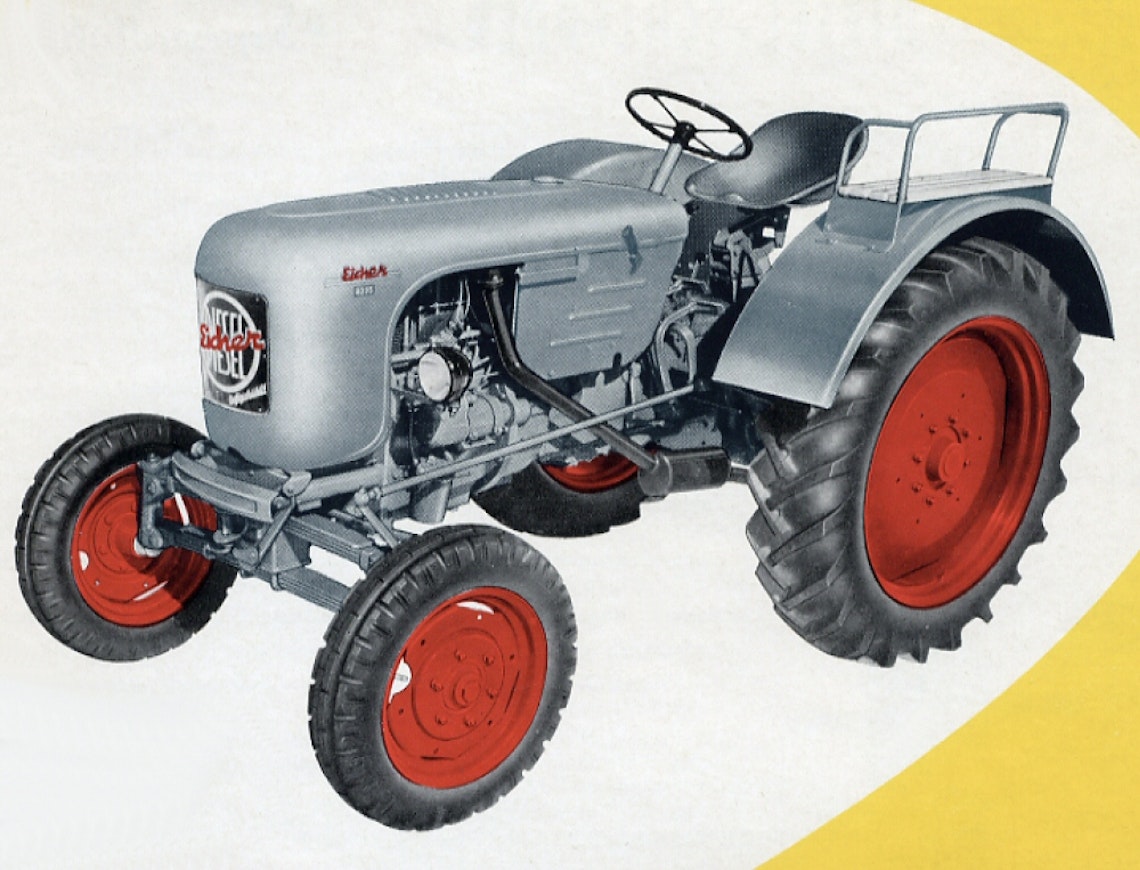

Introduced in 1955, the ED 40 was equipped with a 3.1-liter enlarged 2-cylinder Eicher diesel engine. The ED 42, which was a few horsepower more powerful, was its four-wheel-drive model.
The 1957 ED 50 was Eicher's first model equipped with their own 3-cylinder engine. The engine had a displacement of 4.7 liters, the same as in the more powerful ED 60, which was a more robust model in many other aspects.
In the 60-horsepower class, however, the first Eicher had been the L 60 developed in cooperation with Deutz and Fahr, equipped with a Deutz engine. Its engine was the first Eicher engine to be part of the load-bearing structure. The biggest differences of the model compared to its sibling models were in the bodywork.
Technical data
| Model | Eicher ED 40 | Eicher ED 42 | Eicher ED 50 | Eicher ED 60 | Eicher L 60 |
|---|---|---|---|---|---|
| Options | |||||
| Imported to Finland | No | No | No | No | No |
| Years | 1955-58 | 1959-60 | 1957-59 | 1957-63 | 1954-58 |
| First year sold | 1955 | 1959 | 1957 | 1957 | 1954 |
| Last year sold | 1958 | 1960 | 1959 | 1963 | 1958 |
| Engine model | ED 2 | ED 2d | ED 3d | ED 3d | F4 L 514 |
| Cyl/Turbo/Intercooler | 2 | 2 | 3 | 3 | 4 |
| Displacement | 3114 cm³ | 3114 cm³ | 4671 cm³ | 4671 cm³ | 5322 cm³ |
| Bore x stroke | 115×150 mm | 115×150 mm | 115×150 mm | 115×150 mm | 110x140 mm |
| Rated power hp/rpm DIN | 40/1500 | 42/1600 | 50/1500 | 60/1500 | 60/1650 |
| Rated power | 40 | 42 | 50 | 60 | 60 |
| Rated speed | 1500 | 1600 | 1500 | 1500 | 1650 |
| Torque Nm/rpm DIN | 196/1025 | - | 245/1025 | 250/1250 | 245/1100 |
| Gears | 5+1 | 7+2 | 5+1/5+2 | 5+1/5+2 | 5+1 |
| Speeds in km/h | 3,2-19,5 | 3,2-19,5 | 4,2-20,0 | 4,4-21,2 | - |
| Max. speed | - | - | - | - | 23,2 km/h |
| Lift controls | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 625 kg | - | - | - | - |
| PTO speeds | 540 | 540 | 540 | 540 | 540 |
| Brakes | drum brakes | drum brakes | drum brakes | drum brakes | drum brakes |
| Steering | mech. | mech. | mech. | mech. | mech. |
| Turning circle m 2WD | 6,75 | - | 9,45 | 8,5 | - |
| Front tyres 2WD | 6.00-16 | - | 6.00-20 | 6.50-20 | 6.50-20 |
| Front tyres 4WD | - | 11.2/10-24 | - | - | - |
| Rear tyres 2WD | 12.4/11-28 | - | 14.9/13-30 | 18.4/15-30 | 18.4/15-30 |
| Rear tyres 4WD | - | 11.2/10-24 | - | - | - |
| Weight 2WD | (2200) kg | - | (3040) kg | (3320) kg | (3230) kg |
| Weight 4WD | - | (2225) kg | - | - | - |
| Height with cab | (174) cm | (167) cm | (197) cm | (200) cm | (200) cm |
| Length (2WD/4WD) | 330 cm | 315 cm | 376 cm | 370 cm | 380 cm |
| Wheelbase (2WD/4WD) | 195 cm | 200 cm | 240 cm | 240 cm | 245 cm |
| Creeper gear | opt. | - | opt. | opt. | opt. |
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information.
There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed.
Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
