Eicher 22 - L 40
Manufacturer
Models
Eicher 22/I, Eicher L 22, Eicher 25/I, Eicher L 28, Eicher 30, Eicher L 40, Eicher L 40
Years
1946-58
Info

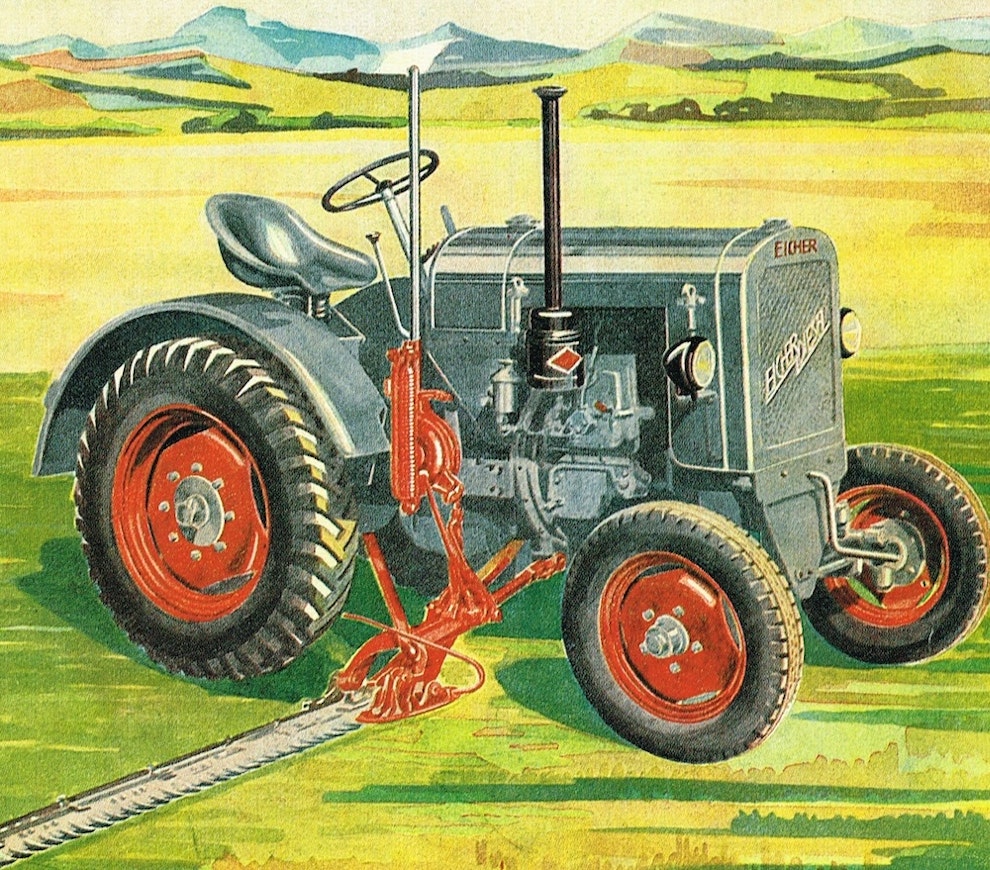

Eicher started tractor manufacturing in Bavaria in 1937. Before the war, 20- and 22-horsepower models equipped with Deutz water-cooled diesel engines were launched on the market. This was followed in 1946 by a slightly improved 22-horsepower model. New features included, among others, a suspended front axle and ZF transmission (4+1). There was a shortage of materials, and only about 300 tractors were produced between 1945 and 1948.
The rare 30 model produced in 1949 and 1950 was exceptionally equipped with an MWM engine.
The L 28, introduced in 1950, was the first model equipped with an air-cooled Deutz engine. The following year, the 3-cylinder L 40 was introduced, featuring 42 hp.
Technical data
| Model | Eicher 22/I | Eicher L 22 | Eicher 25/I | Eicher L 28 | Eicher 30 | Eicher L 40 | Eicher L 40 |
|---|---|---|---|---|---|---|---|
| Options | |||||||
| Imported to Finland | No | No | No | No | No | No | No |
| Years | 1946-50 | 1954-58 | 1950-54 | 1950-57 | 1949-50 | 1951-54 | 1954-57 |
| First year sold | 1946 | 1954 | 1950 | 1950 | 1949 | 1951 | 1954 |
| Last year sold | 1950 | 1958 | 1954 | 1957 | 1950 | 1954 | 1957 |
| Engine model | F2M414 | F2L612 | F2M414 | F2L514 | MWM TD 15 | F3L514 | F3L514 |
| Cyl/Turbo/Intercooler | 2 | 2 | 2 | 2 | 2 | 3 | 3 |
| Displacement | 2198 cm³ | 1526 cm³ | 2198 cm³ | 2660 cm³ | 2850 cm³ | 3990 cm³ | 3990 cm³ |
| Bore x stroke | 100×140 mm | 90x120 mm | 100×140 mm | 110×140 mm | 110×150 mm | 110×140 mm | 110×140 mm |
| Rated power hp/rpm DIN | 22/1500 | 22/2100 | 25/1500 | 28/1550 | 30/1550 | 42/1450 | 45/1450 |
| Rated power | 22 | 22 | 25 | 28 | 30 | 42 | 45 |
| Rated speed | 1500 | 2100 | 1500 | 1550 | 1550 | 1450 | 1450 |
| Torque Nm/rpm DIN | - | - | - | - | - | 196/1025 | 215/1200 |
| Gears | 4+1 | 5+1 | 4+1/5+1 | 7+2 | 5+1/7+2 | 5+1 | 5+1 |
| Speeds in km/h | 4,6-17,5 | - | 3,3-19,5 | 3,6-17,1 | 3,1-20,0 | 3,3-18,4 | 3,3-18,4 |
| Max. speed | 20 km/h | 20,0 km/h | - | - | - | - | 20,0/28,0 km/h |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. | mech. |
| PTO speeds | 540 | 540 | 540 | 540 | 540 | 540 | 540 |
| Brakes | drum brakes | drum brakes | drum brakes | drum brakes | drum brakes | drum brakes | drum brakes |
| Steering | mech. | mech. | mech. | mech. | mech. | mech. | mech. |
| Turning circle m 2WD | - | - | - | - | - | 7,6 | - |
| Front tyres 2WD | 5.50-16 | 5.50-16 | 5.50-16 | 6.00-16 | 6.00-16 | 6.00-20 | 6.00-20 |
| Rear tyres 2WD | 9.5/9-24 | 8-32 | 9.5/9-24 | 11.25-24 | 11.2/10-28 | 12.75-28 | 12.75-28 |
| Weight 2WD | (1800) kg | (1170) kg | (1850) kg | (1870) kg | (1870) kg | (2350) kg | (2350) kg |
| Height with cab | (160) cm | (160) cm | (183) cm | (170) cm | (170) cm | (178) cm | (178) cm |
| Length (2WD/4WD) | 260 cm | 273 cm | 276 cm | 298 cm | 298 cm | 330 cm | 330 cm |
| Wheelbase (2WD/4WD) | 162 cm | 178 cm | 168 cm | 185 cm | 184 cm | 200 cm | 200 cm |
| Fuel tank | - | - | - | - | - | 50 l | 50 l |
| Creeper gear | - | - | - | - | - | opt. | opt. |
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information.
There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed.
Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
