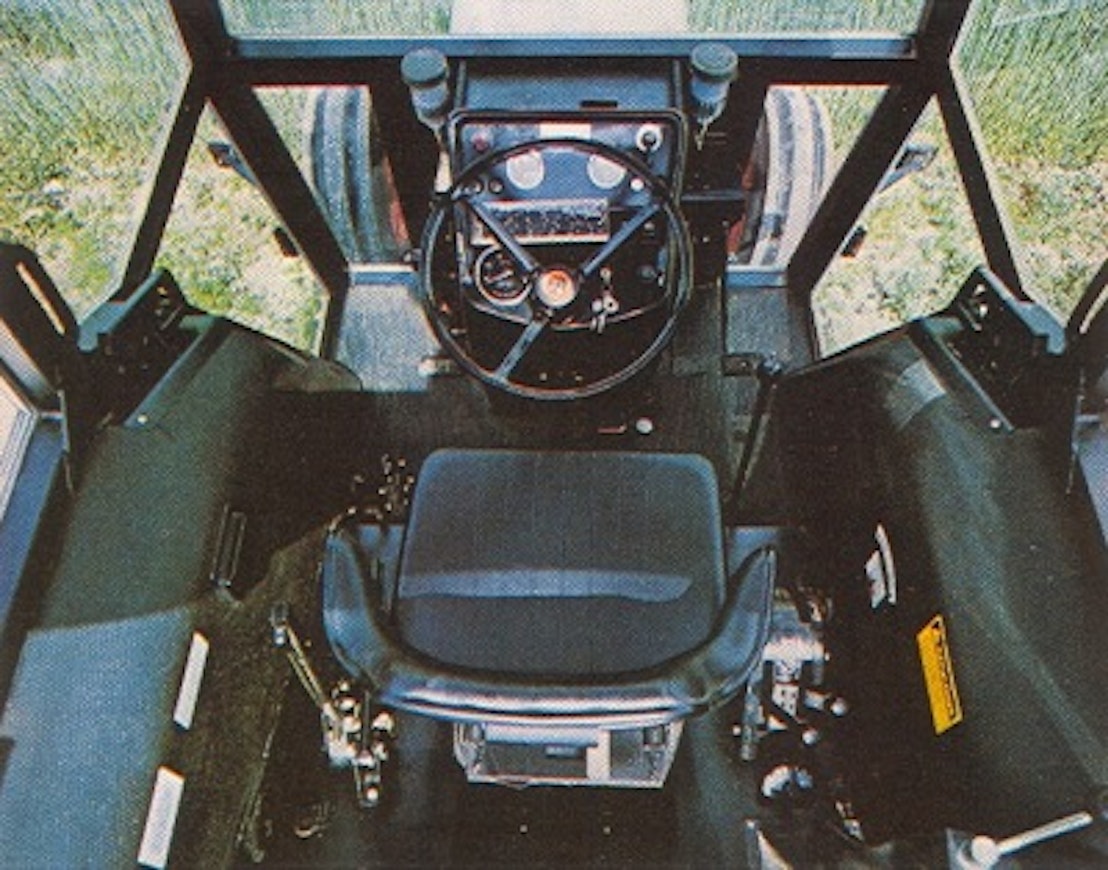

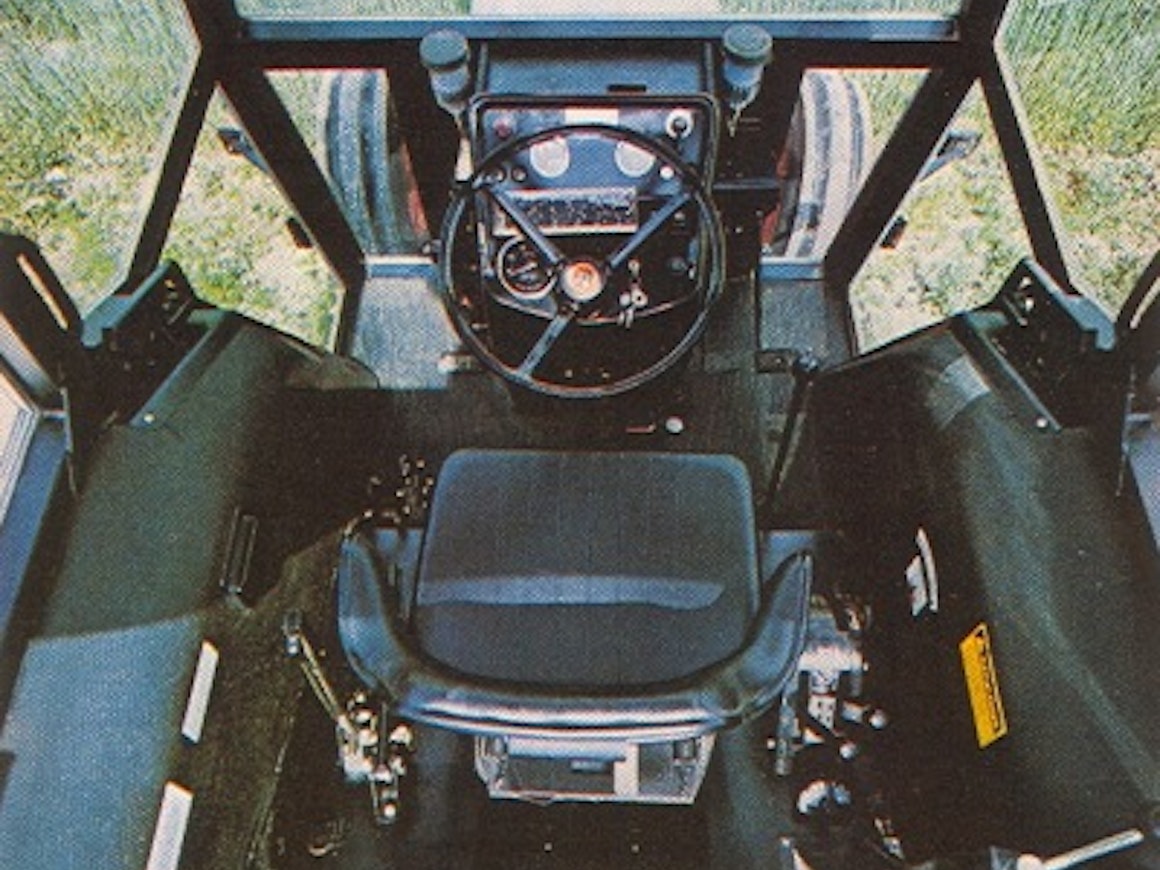

The Secura cab was significantly quieter than before, but otherwise its integration into the DB was not accomplished in the best way. One of the problems was, among other things, attaching work machines to a cabin positioned too far back. The external hydraulic control valve became standard only in 1978.

This is an automated translation. Please report any issues in the translation.

David Brown 885 Sekura-ohj.

malli

hinta (sis. alv)

Series specifier

Manufacturer name

Model specifier

Imported to Finland

Years

Engine model

Cyl/Turbo/Intercooler

Displacement

Bore x stroke

Rated power

Max power

Torque

Gears

Creeper speeds

Synchronized gears

Powershift gears

Reverser

Speeds in km/h

Max. speed

Hydr. flow l/min

Hydraulic pressure

Lift controls

Lift capacity

PTO speeds

Brakes

Steering

Turning circle m 2WD

Turning circle m 4WD

Front tyres 2WD

Front tyres 4WD

Rear tyres 2WD

Rear tyres 4WD

Weight 2WD

Weight 4WD

Height with cab

Length (2WD/4WD)

Wheelbase (2WD/4WD)

Fuel tank

Cab noise level

Solid cab

Diff. lock

Autom. differential locks

Air suspension seat

Air conditioning

Trip computer

Creeper gear

sylinterien lukumäärä

iskutilavuus

iskusuhde

suurin vääntömomentti, nm

suurin vääntömomentti, r/min

vääntömomentin nousu

polttonesteen kulutus suurimman tehon pisteessä

kytkimen tyyppi

ajovoimanotto

nopeus eteenpäin moottorin nimellisnopeudella, pienin

nopeus eteenpäin moottorin nimellisnopeudella, suurin

jarrut

hydrauliikan suurin paine

hydrauliikan suurin tuotto

nostolaitehydrauliikan hallinta

ulkopuolinen hydrauliikka, venttiililohkoja

1-toimisia

2-toimisia

nostovoima (kn=100 kg)

hydrauliikan tyyppi

kääntöympyrän halkaisija ilman ohjausjarrua

eturenkaat

takarenkaat

kokonaismassa säiliöt täynnä vakiovarustein

etuakselipaino

taka-akselipaino

suurin korkeus (ohjaamon ylimpään kohtaan)

kokonaispituus

akseliväli

maavara, pienin

polttoainesäiliön tilavuus

korkein melutaso

etuakselin tasauspyörästön lukko

etunostolaite

etulokasuojat

ilmastointilaite

perävaunun jarruventtiili

ilmaistuin

ohjauksen tyyppi

David Brown 990 Sekura-ohj.

David Brown 996 Sekura-ohj.

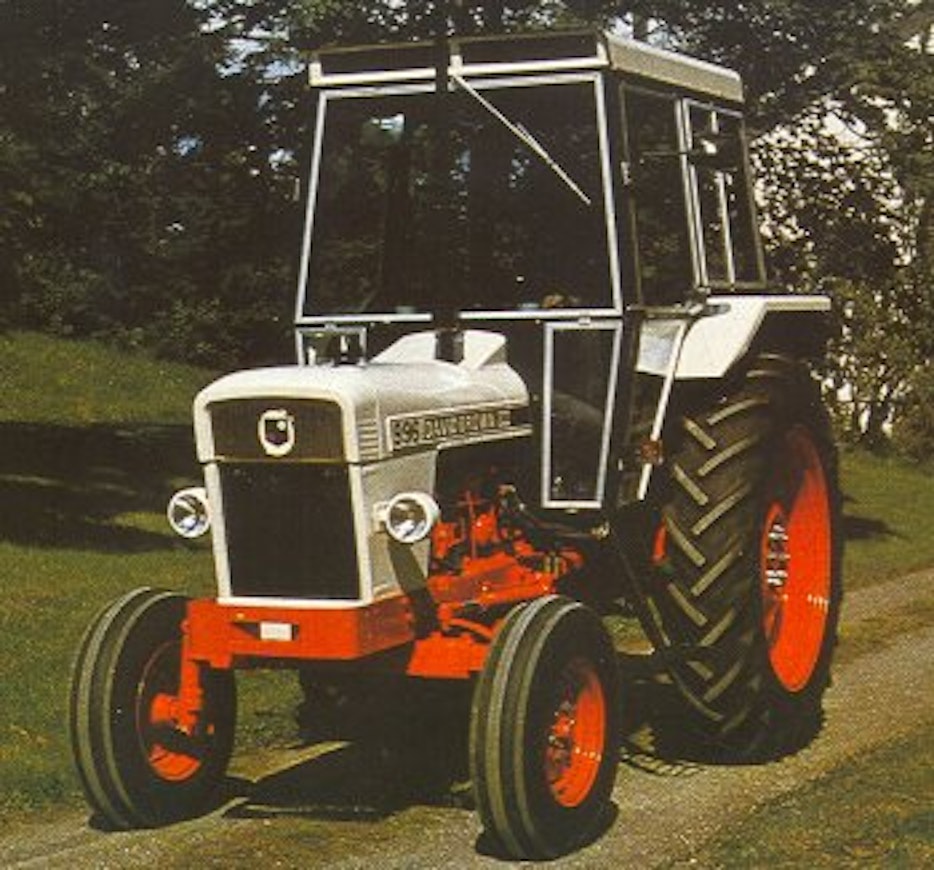

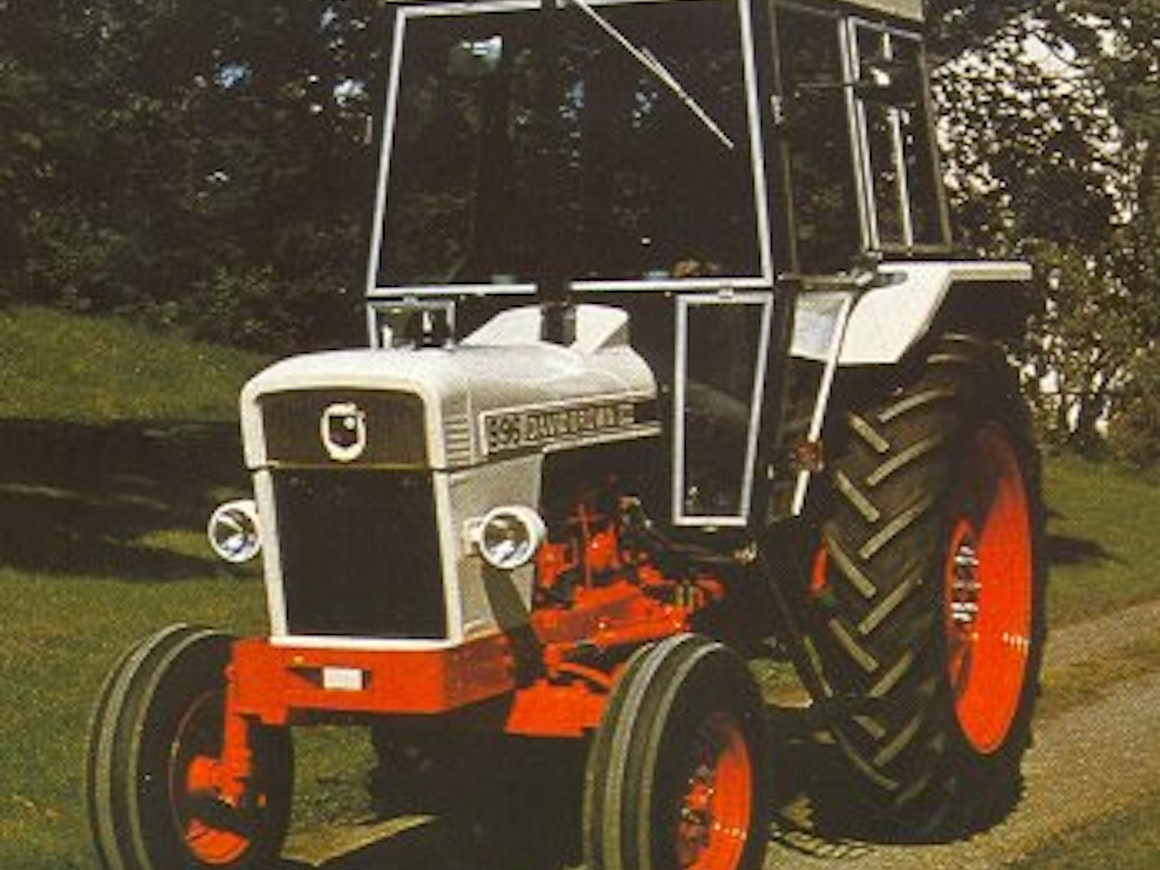

David Brown 885-996

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	David Brown 885 Sekura-ohj.	David Brown 990 Sekura-ohj.	David Brown 996 Sekura-ohj.
Manufacturer name	David Brown	David Brown	David Brown
Imported to Finland	Yes	Yes	Yes
Years	1977-80	1977-80	1977-80
Engine model	DB AD3/55	DB AD4/49001	DB AD4/55071
Cyl/Turbo/Intercooler	3	4	4
Displacement	2695 cm³	3195 cm³	3592 cm³
Bore x stroke	100×114,3 mm	100×101,6 mm	100×114,3 mm
Rated power	48/2200 hp DIN/rpm	58/2200 hp DIN/rpm	64/2200 hp DIN/rpm
Torque	-	-	-
Gears	12+4	12+4	12+4
Synchronized gears	8	8	8
Speeds in km/h	1,8-29,5	1,6-26,7	1,8-25,6
Max. speed	30 km/h	28 km/h	30 km/h
Hydr. flow l/min	28 l/min	28 l/min	28 l/min
Hydraulic pressure	175 bar	175 bar	175 bar
Lift controls	mech.	mech.	mech.
Lift capacity	1540 kg	1890 kg	2040 kg
PTO speeds	540/1000	540/1000	540/1000
Brakes	drum brakes	drum brakes	drum brakes
Steering	hydrost.	hydrost.	hydrost.
Turning circle m 2WD	6.6	7.2	7.2
Front tyres 2WD	7,50-16	7,50-16	7,50-16
Rear tyres 2WD	12,4-32	13,6-36	13,6-38
Weight 2WD	2190 kg	2610 kg	2660 kg
Height with cab	259 cm	265 cm	268/273 cm
Length (2WD/4WD)	327 cm	361 cm	361/365 cm
Wheelbase (2WD/4WD)	196 cm	208 cm	208 cm
Fuel tank	48 l	68 l	68 l
Solid cab	x	x	x
Cab noise level	-	87 dB	84.5 dB
Turning circle m 4WD	-	-	8.8
Front tyres 4WD	-	-	11.2-24
Rear tyres 4WD	-	-	16.9-34
Weight 4WD	-	-	3160 kg
