Siirry sivupalkkiinSiirry alaosaanDavid Brown 775-996

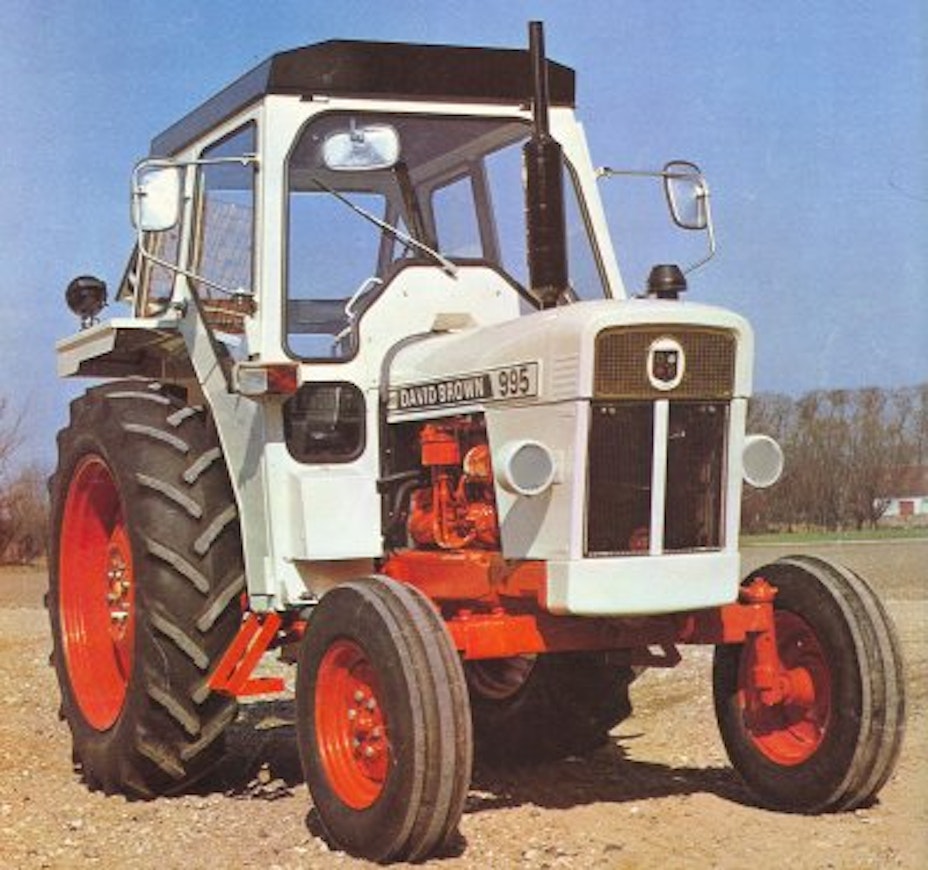

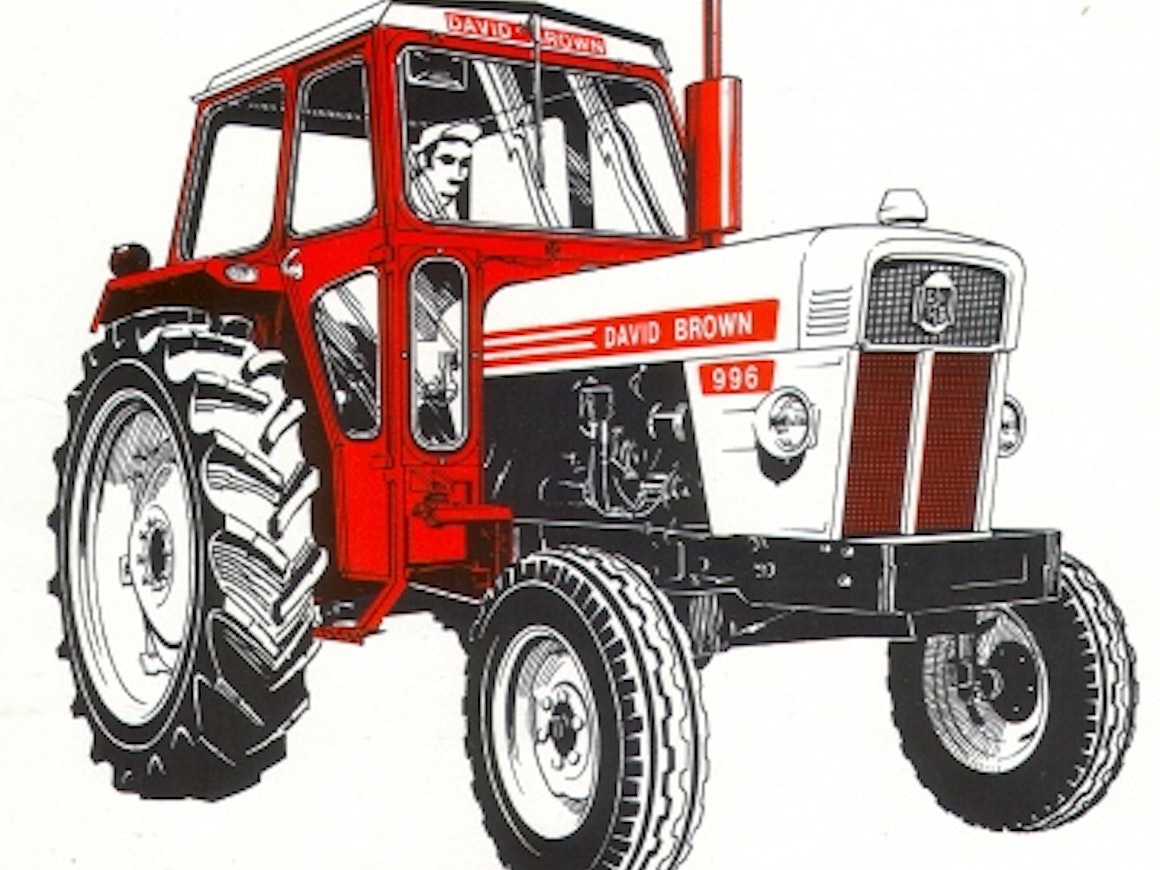

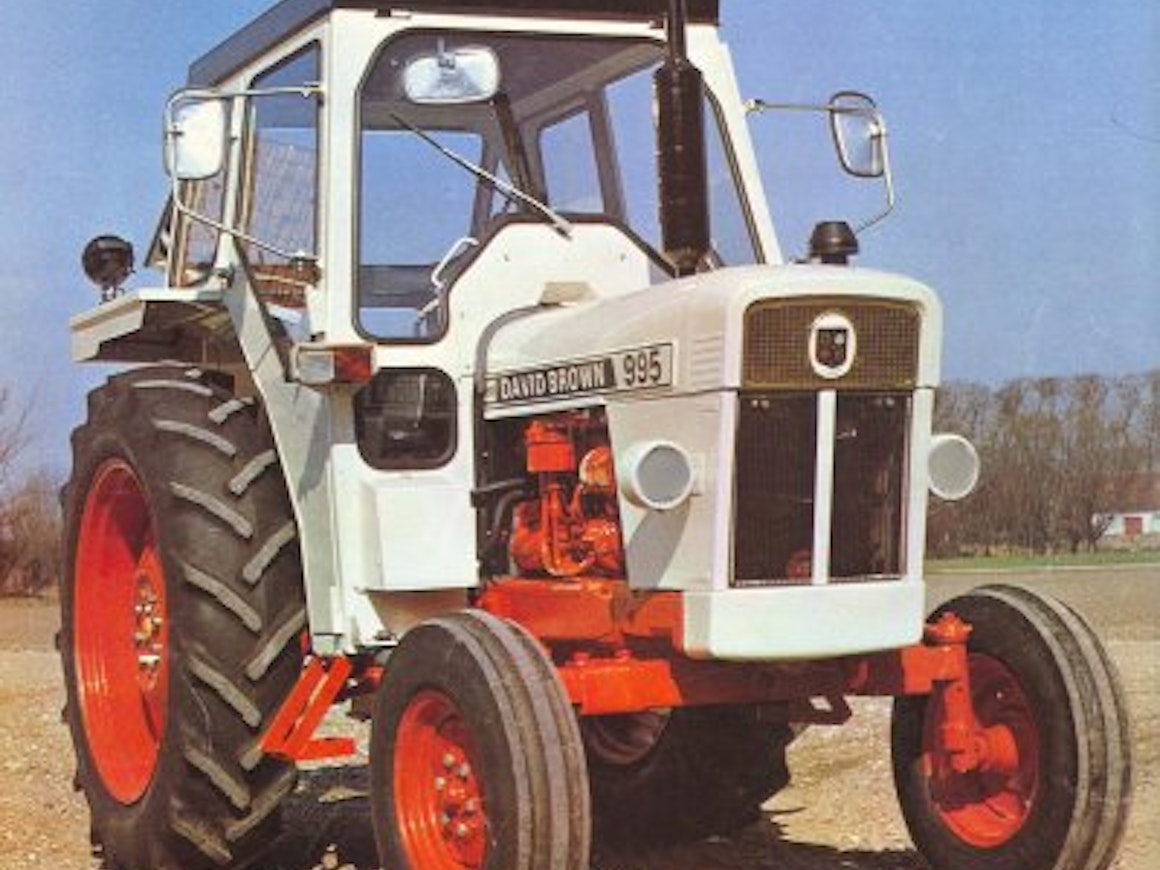

In 1971, the 770, 880, and 990 Selectamatic models introduced in 1965 were replaced with improved versions 775, 885, and 990. Above these came the more powerful 995 and 996. The main differences in the 996 compared to the 995 were a dual clutch and a manually operated independent power take-off. The frame was extended by 8 cm due to the consecutively positioned clutches. Hydrostatic steering was also introduced to the 995 with the launch of the 996. The 775 model was sold mainly in Germany. The 885 was shorter than its predecessor, the 880, and was based on the core technology of the earlier 780.

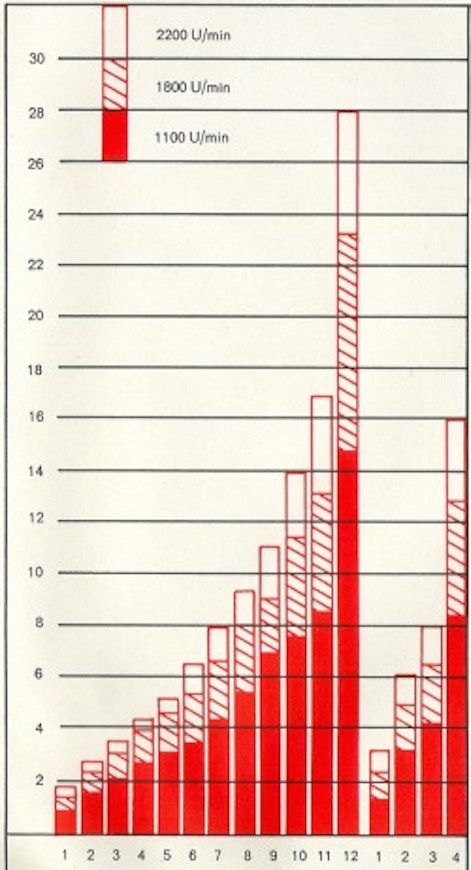

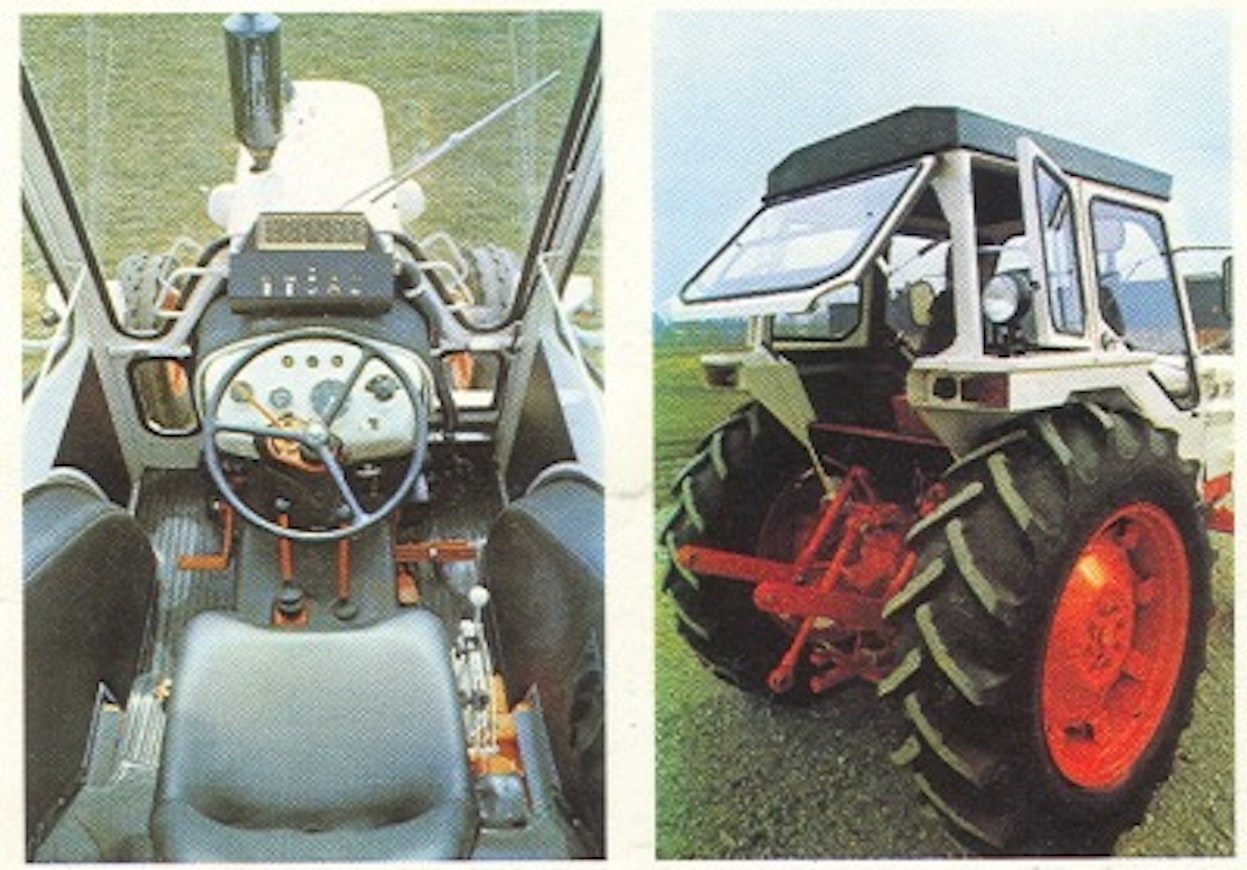

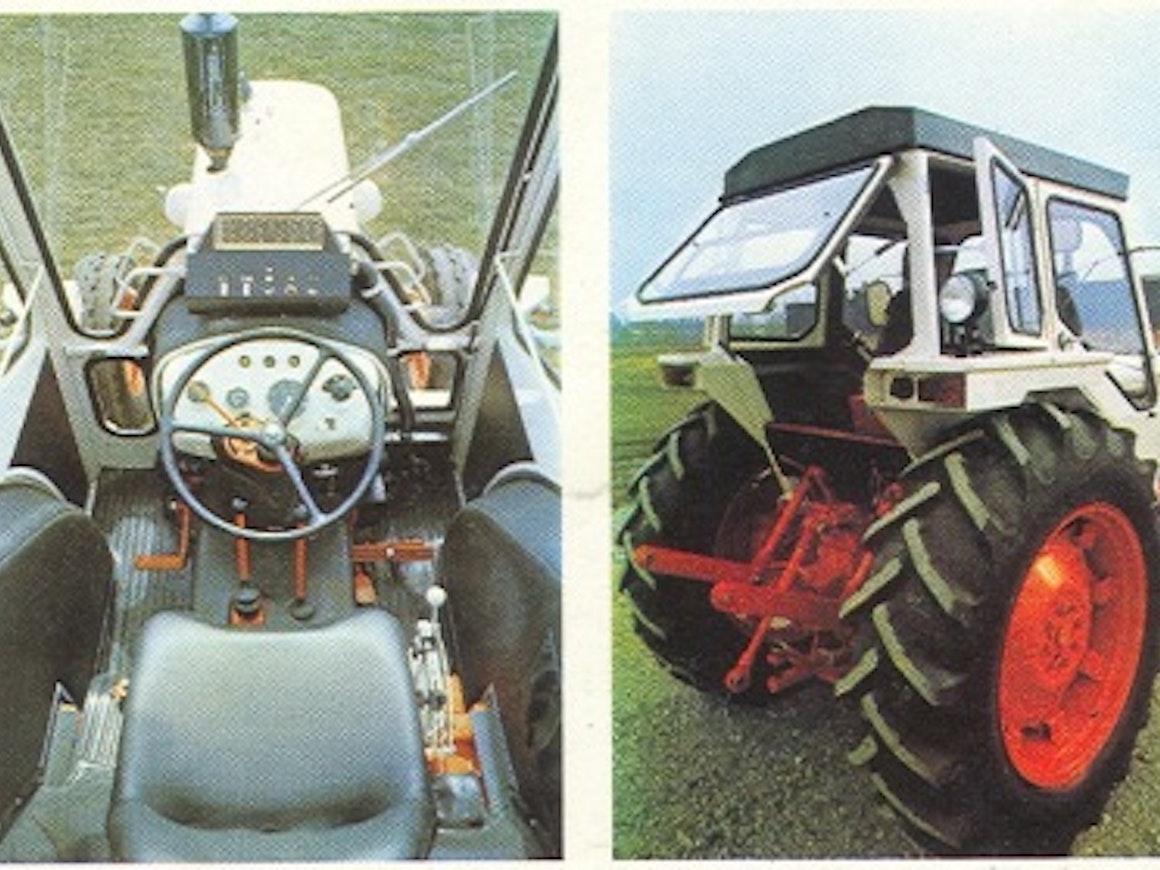

Selectamatic hydraulics with push-rod sensing were already familiar from earlier models. The transmission was now partially synchronized (Synchromesh). A drawback of the transmission was the large gap between the two highest gears. On the other hand, there were plenty of low gears. All models had a 2-speed power take-off. Like DB models, except for the 996, the clutch was a dual clutch, which required the tractor to be stopped when engaging or disengaging the implement. In the 885, the clutch disc diameters were 254/254 mm, in the 990-995 models 279/254 mm, and in the 996 the dual clutch was 279/279 mm. Four-wheel-drive models equipped with Italian Selene axles were not imported to Finland. The cabin was either a Swedish Klippan or a Taavi manufactured by the Ylö factory in Finland. The heater was an optional extra. An alternating current generator was introduced in 1973.
This is an automated translation. Please report any issues in the translation.
| Model | David Brown 775 | David Brown 885 Taavi-ohj. | David Brown 990 Taavi-ohj. | David Brown 995 Taavi-ohj. | David Brown 996 Taavi-ohj. |
|---|---|---|---|---|---|
| Manufacturer name | David Brown | David Brown | David Brown | David Brown | David Brown |
| Imported to Finland | No | Yes | Yes | Yes | Yes |
| Years | 1972-76 | 1971-77 | 1971-77 | 1971-75 | 1973-77 |
| Engine model | DB AD3/49 | DB AD3/55 | DB AD4/49 | DB AD4/55051 | DB AD4/55051 |
| Cyl/Turbo/Intercooler | 3 | 3 | 4 | 4 | 4 |
| Displacement | 2400 cm³ | 2695 cm³ | 3195 cm³ | 3592 cm³ | 3592 cm³ |
| Bore x stroke | 100×101,6 mm | 100×114,3 mm | 100×101,6 mm | 100×114,3 mm | 100×114,3 mm |

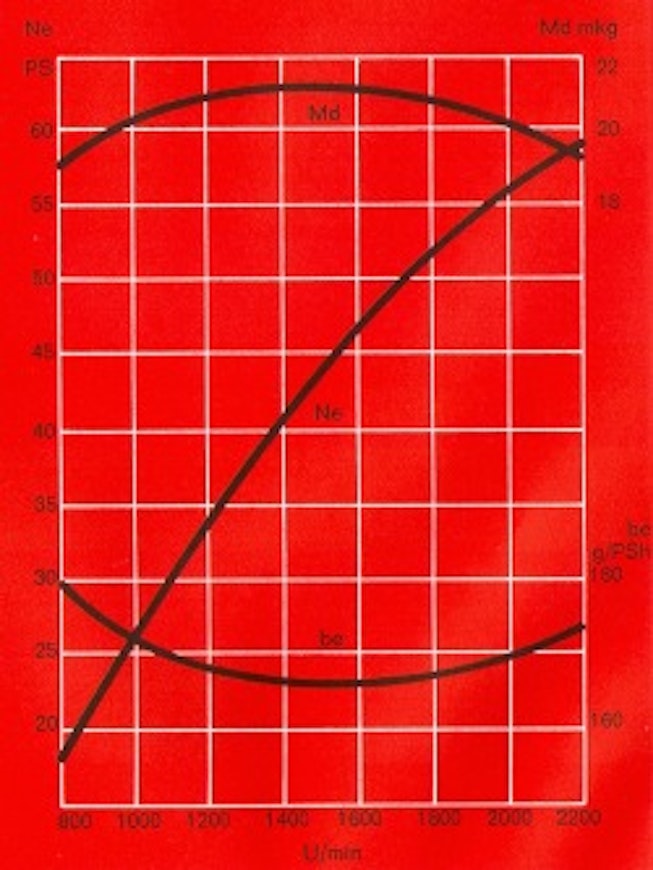

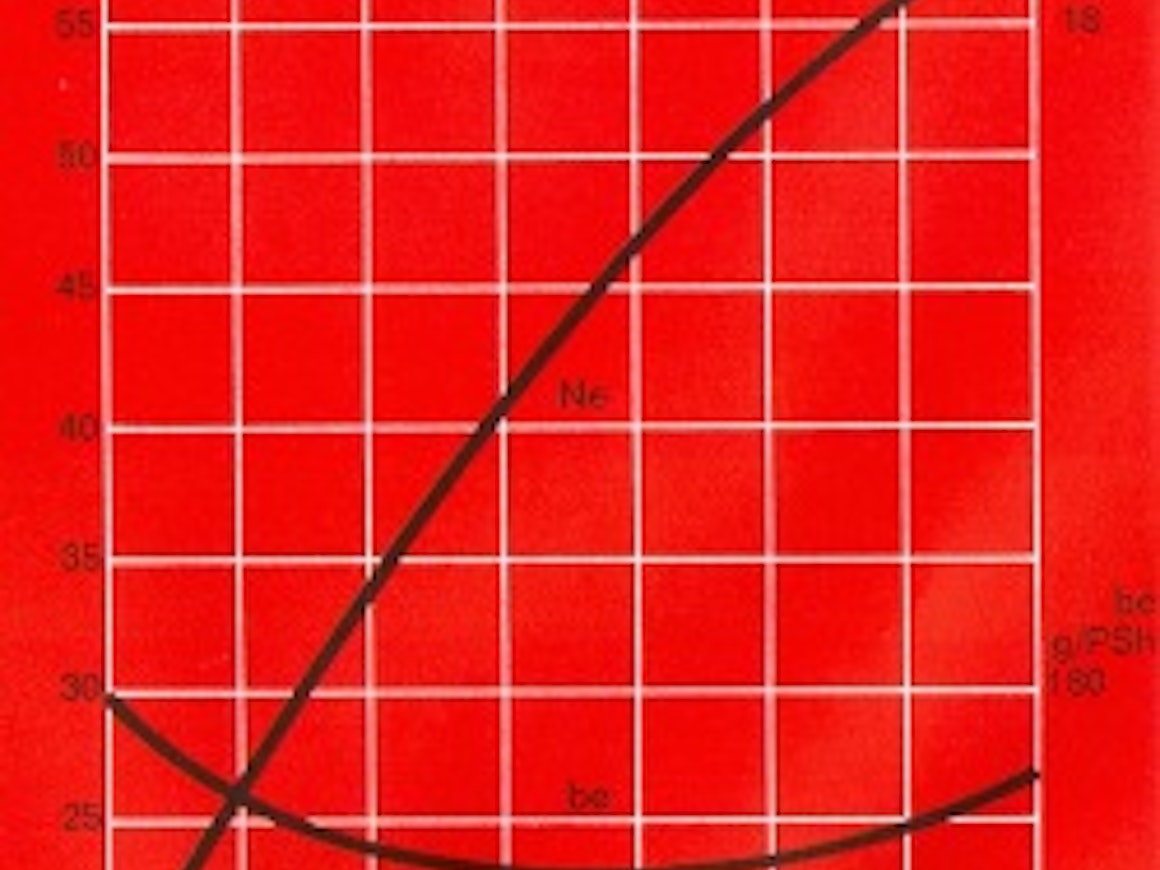

| Rated power | 38/2000 hp DIN/rpm | 48/2200 hp DIN/rpm | 58/2200 hp DIN/rpm | 63/2200 hp DIN/rpm | 63/2200 hp DIN/rpm |
| Torque | - | - | - | - | - |
| Gears | 12+4 | 12+4 | 12+4 | 12+4 | 12+4 |
| Synchronized gears | 8 | 8 | 8 | 8 | 8 |

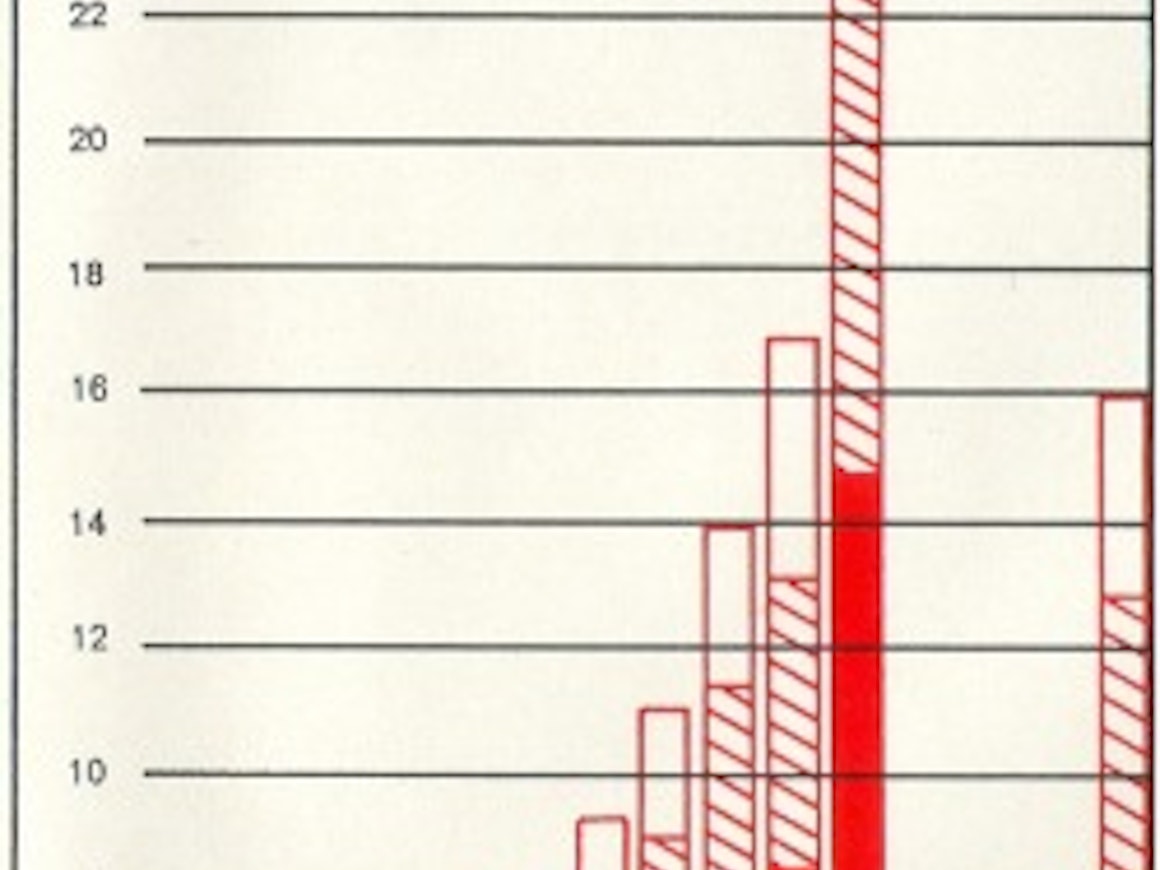

| Speeds in km/h | 0,9-24,3 | 1,7-27,6 | 1,6-25,6 | 1,8-26,7 | 1,9-27,6 |
| Hydr. flow l/min | 23 l/min | 28 l/min | 28 l/min | 28 l/min | 28 l/min |
| Hydraulic pressure | 140 bar | 140 bar | 140 bar | 140 bar | 140 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 1200 kg | 1320 kg | 1930 kg | 1940/2080 kg | 2080 kg |
| PTO speeds | 540 | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Brakes | drum brakes | drum brakes | drum brakes | drum brakes | drum brakes |
| Steering | mech. | mech. | mech. | mech./hydr. | hydrost. |
| Turning circle m 2WD | 6.5 | 6.7 | 7.02 | 7.02 | 7.18 |
| Front tyres 2WD | 6,00-16 | 6,00-16 | 7,50-16 | 7,50-16 | 7,50-16 |
| Rear tyres 2WD | 12,4-28 | 12,4-32 | 13,6-36 | 13,6-36 | 13,6-38 |
| Weight 2WD | 2060 kg | 2125 kg | 2450 kg | 2490 kg | 2550 kg |
| Height with cab | 224 cm | 224 cm | 238 cm | 248/242 cm | 242 cm |
| Length (2WD/4WD) | 319 cm | 325 cm | 348 cm | 353 cm | 361 cm |
| Wheelbase (2WD/4WD) | 196 cm | 195 cm | 200 cm | 200 cm | 208/202 cm |
| Fuel tank | 48 l | 48 l | 60/68 l | 60/68 l | 60/68 l |
| Max. speed | - | 29.5 km/h | 27.3 km/h | 29.5 km/h | 32.5 km/h |
| Cab noise level | - | 95 dB | 95 dB | 95N/89 dB | 95 dB |
| Front tyres 4WD | - | - | - | - | 11.2-24 |
| Rear tyres 4WD | - | - | - | - | 16.9-30 |
| Weight 4WD | - | - | - | - | 2970 kg |
