<p>Dawid Brown’s 2D row-crop tractor was introduced in 1956. It was powered by a 2-cylinder, 4-stroke, air-cooled diesel engine producing 14.5 hp. The gearbox offered 4 forward gears and 1 reverse, and the top road speed was only 15 km/h. A lifting device mounted under the tubular frame in the center of the tractor was operated by an air compressor. At the rear there was a mechanically operated tow hook. Optional equipment included a rear three-point linkage and a power take-off shaft. The track gauge was adjustable from 100 to 173 cm. Plowing capacity was rated at 1 hectare per 8-hour day using a single 14″ plow.</p>
<p>This is an automated translation. Please report any issues in the translation.</p>

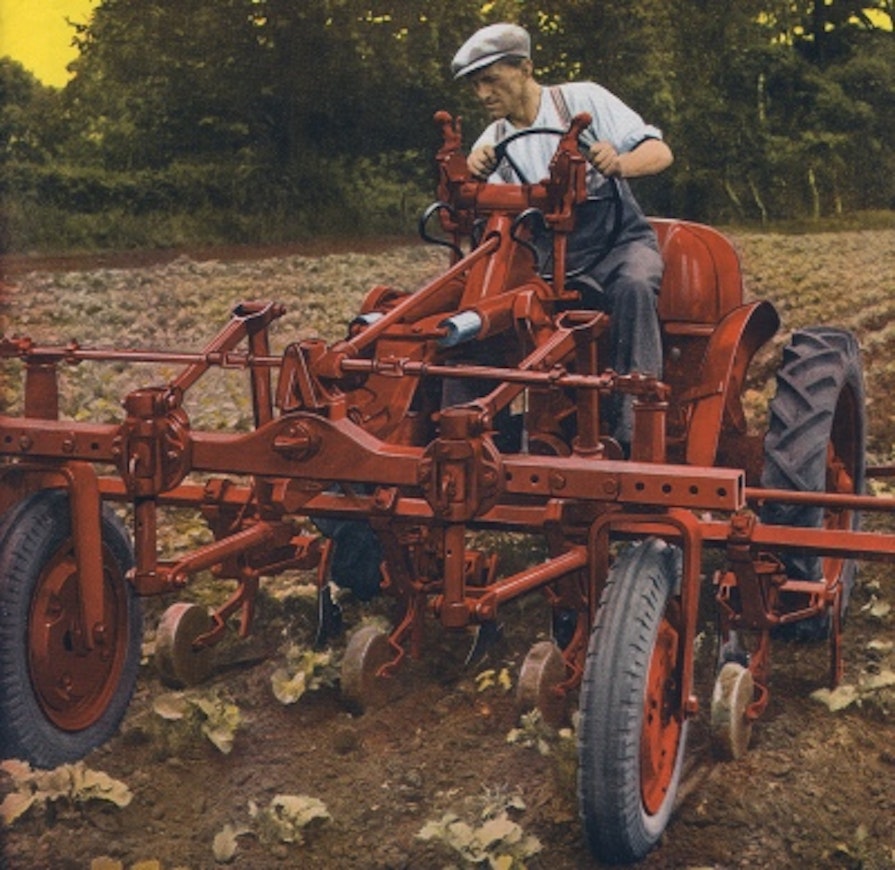

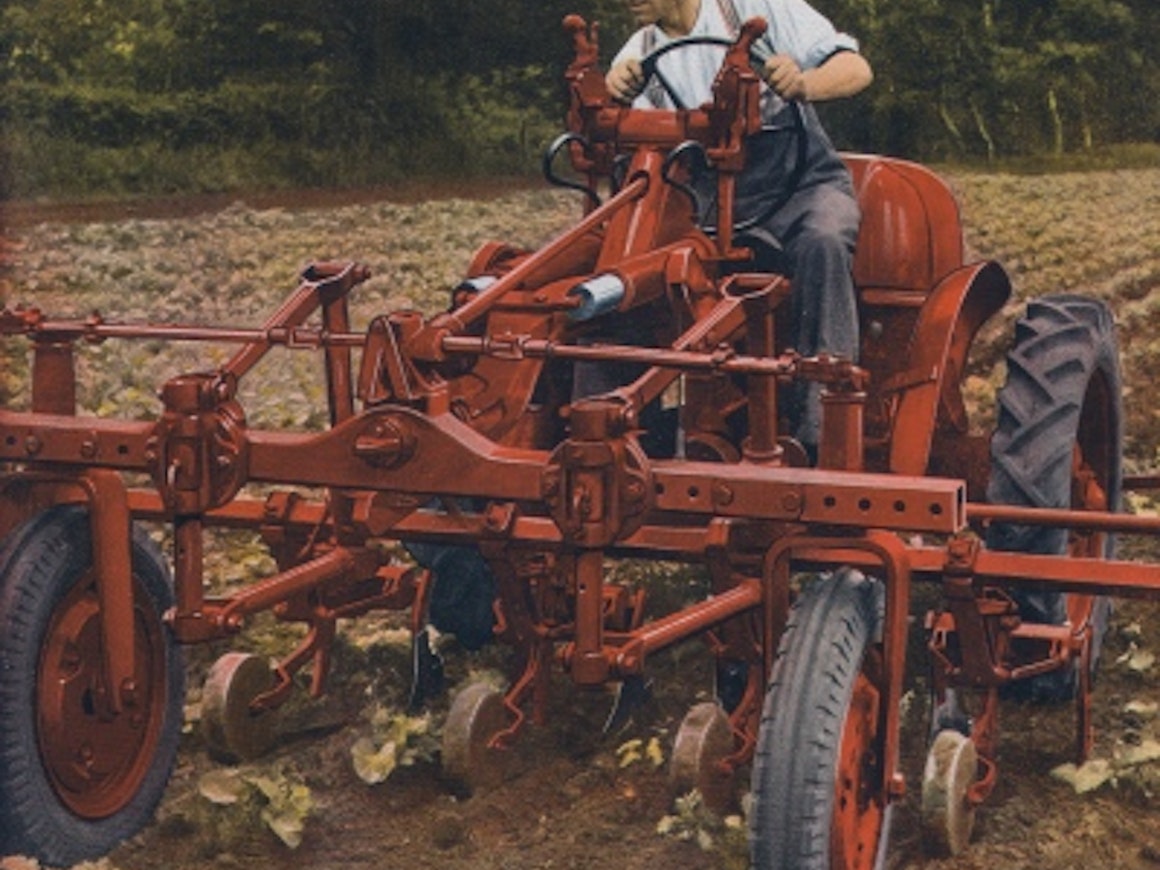

Dawid Brown’s 2D row-crop tractor was introduced in 1956. It was powered by a 2-cylinder, 4-stroke, air-cooled diesel engine producing 14.5 hp. The gearbox offered 4 forward gears and 1 reverse, and the top road speed was only 15 km/h. A lifting device mounted under the tubular frame in the center of the tractor was operated by an air compressor. At the rear there was a mechanically operated tow hook. Optional equipment included a rear three-point linkage and a power take-off shaft. The track gauge was adjustable from 100 to 173 cm. Plowing capacity was rated at 1 hectare per 8-hour day using a single 14″ plow.

This is an automated translation. Please report any issues in the translation.

David Brown 2D

Malli

Hinta (sis. alv)

Series specifier

Manufacturer name

Model specifier

Imported to Finland

Years

First year sold

Last year sold

Engine model

Cyl/Turbo/Intercooler

Displacement

Bore x stroke

Power

Power speed

Rated power hp/rpm DIN

Rated power

Rated speed

Max power hp/rpm DIN

Max power

Max speed

Rated power hp/rpm ISO

Max power hp/rpm ISO

Max power hp/rpm

Rated power hp/rpm ECE

Max power	hp/rpm ECE

Rated power hp/rpm SAE

Rated power hp/rpm PTO

Rated power hp/rpm engine pulley

Rated power hp/rpm

Torque Nm/rpm

Torque Nm/rpm ECE

Torque Nm/rpm ISO

Torque Nm/rpm SAE

Torque Nm/rpm DIN

Gears

Creeper speeds

Synchronized gears

Powershift gears

Reverser

Speeds in km/h

Max. speed

Hydr. flow l/min

Hydraulic pressure

Lift controls

Lift capacity

PTO speeds

Brakes

Steering

Turning circle m 2WD

Turning circle m 4WD

Front tyres 2WD

Front tyres 4WD

Rear tyres 2WD

Rear tyres 4WD

Weight 2WD

Weight 4WD

Height with cab

Length (2WD/4WD)

Wheelbase (2WD/4WD)

Fuel tank

Cab noise level

Solid cab

Diff. lock

Autom. differential locks

Air suspension seat

Air conditioning

Trip computer

Creeper gear

Sylinterien lukumäärä

Iskutilavuus

Iskusuhde

Suurin vääntömomentti, Nm

Suurin vääntömomentti, r/min

Vääntömomentin nousu

Polttonesteen kulutus suurimman tehon pisteessä

Kytkimen tyyppi

Ajovoimanotto

Nopeus eteenpäin moottorin nimellisnopeudella, pienin

Nopeus eteenpäin moottorin nimellisnopeudella, suurin

Jarrut

Hydrauliikan suurin paine

Hydrauliikan suurin tuotto

Nostolaitehydrauliikan hallinta

Ulkopuolinen hydrauliikka, venttiililohkoja

1-toimisia

2-toimisia

Nostovoima (kN=100 kg)

Hydrauliikan tyyppi

Kääntöympyrän halkaisija ilman ohjausjarrua

Eturenkaat

Takarenkaat

Kokonaismassa säiliöt täynnä vakiovarustein

Etuakselipaino

Taka-akselipaino

Suurin korkeus (ohjaamon ylimpään kohtaan)

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Lukijan kuvat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Subscribe

Paywall

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	David Brown 2D
Options
Manufacturer name	David Brown
Imported to Finland	Yes
Years	1956-61
First year sold	1956
Last year sold	1961
Cyl/Turbo/Intercooler	2
Displacement	1262 cm³
Bore x stroke	88,9×101,6 mm
Rated power hp/rpm DIN	14,5SAE/1800
Rated speed	1800
Gears	4+1
Speeds in km/h	3,2-14,9
Lift controls	pneum.
PTO speeds	540 lisäv.
Brakes	drum brakes
Steering	mech.
Turning circle m 2WD	4.48
Front tyres 2WD	4.00-15
Rear tyres 2WD	6.00-22
Weight 2WD	(965) kg
Height with cab	(140) cm
Length (2WD/4WD)	296 cm
Wheelbase (2WD/4WD)	183 cm
Fuel tank	13.5 l
