Siirry sivupalkkiinSiirry alaosaanCase / Case IH 1194-1394

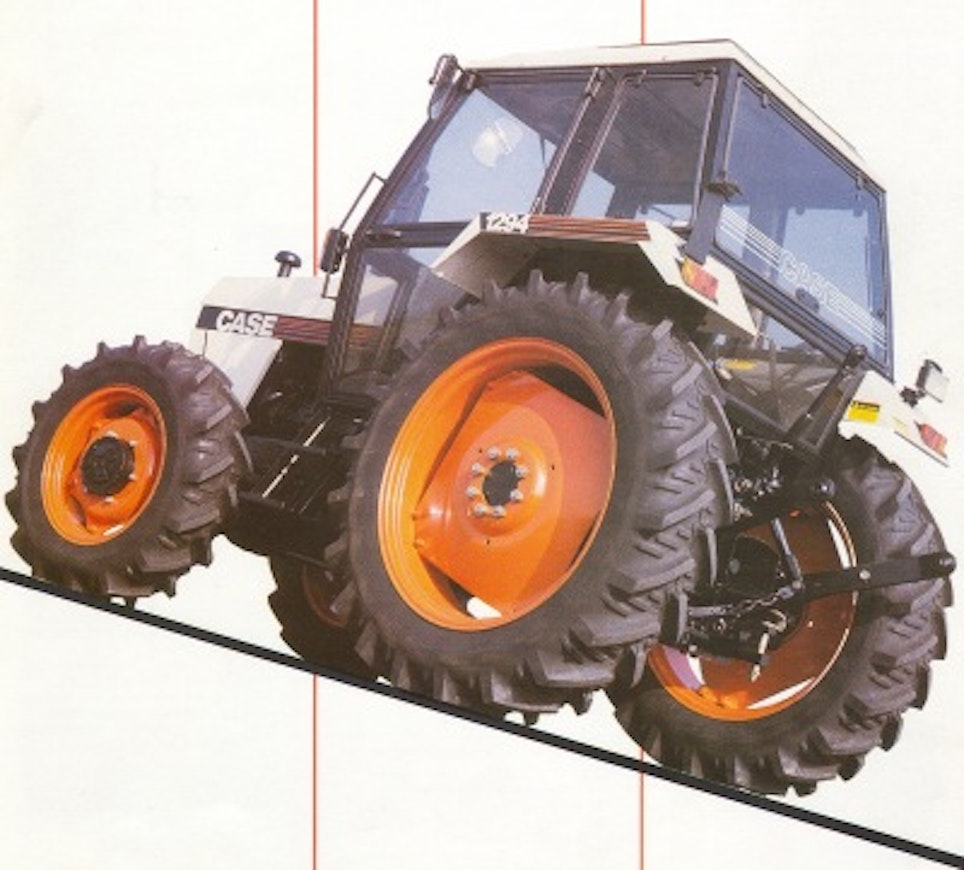

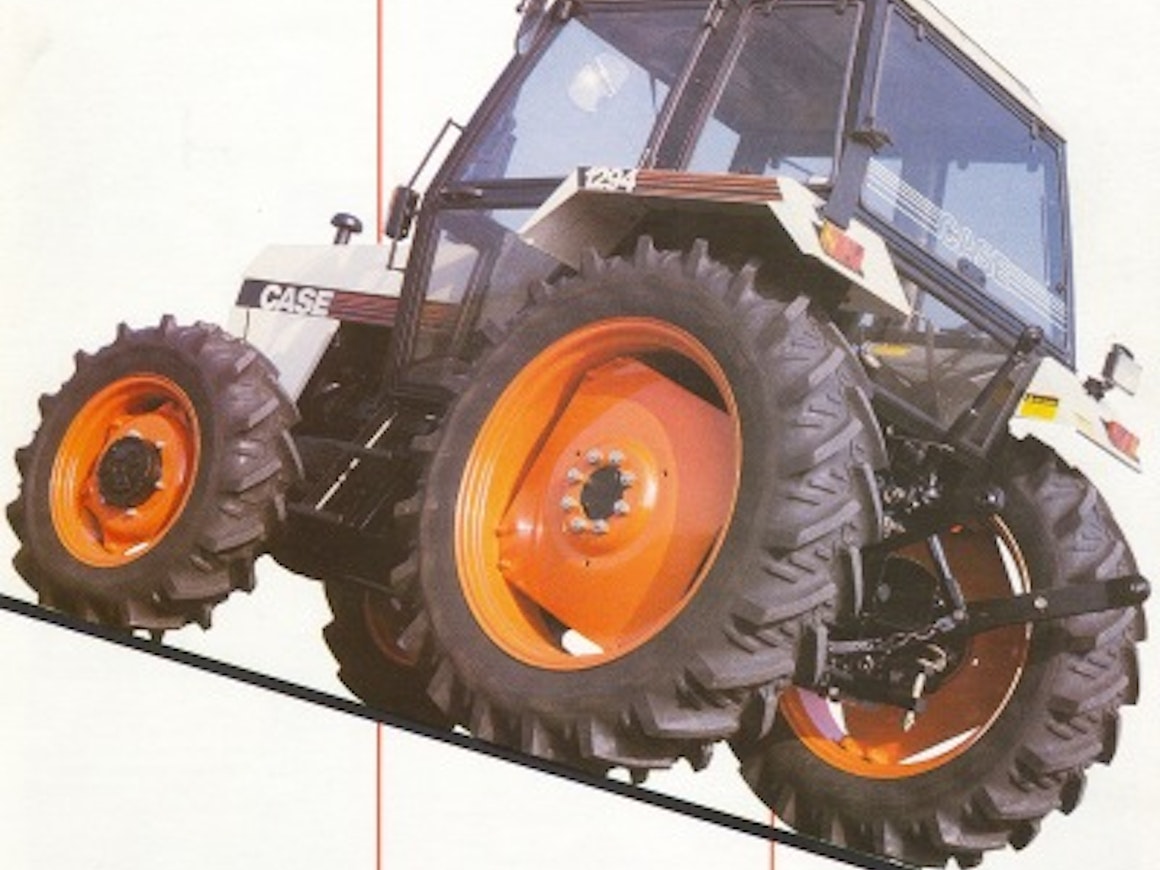

In the spring of 1984, the updated 94 series models replaced the 90 series. In the 94 series, the tractor frame had been changed to black, but the striping was given a red color. The 1394 received a turbocharger, and its power increased by 6 horsepower. Ergonomics in the cab were improved, and the upholstery color changed to gray. The clutch was self-adjusting, except for the 1194 model. Otherwise, the technology remained almost unchanged. The tractor was equipped, among other things, with Selectamatic hydraulics and a 12+4 gearbox.

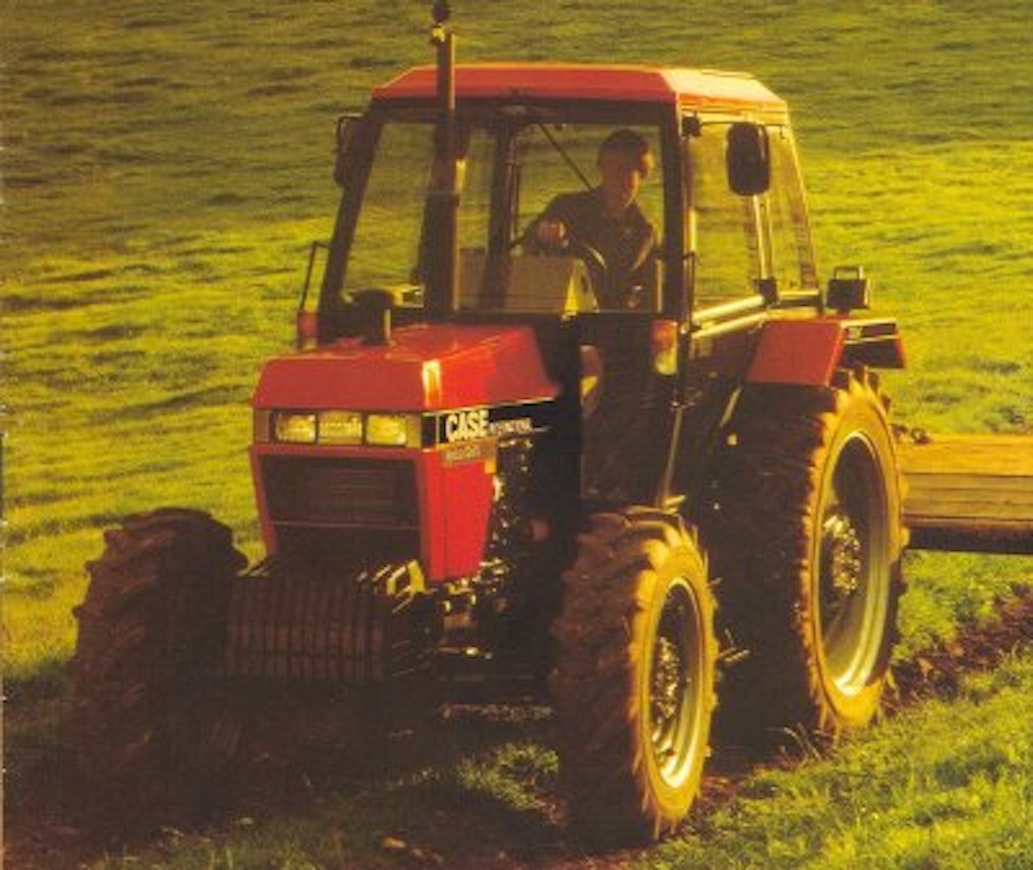

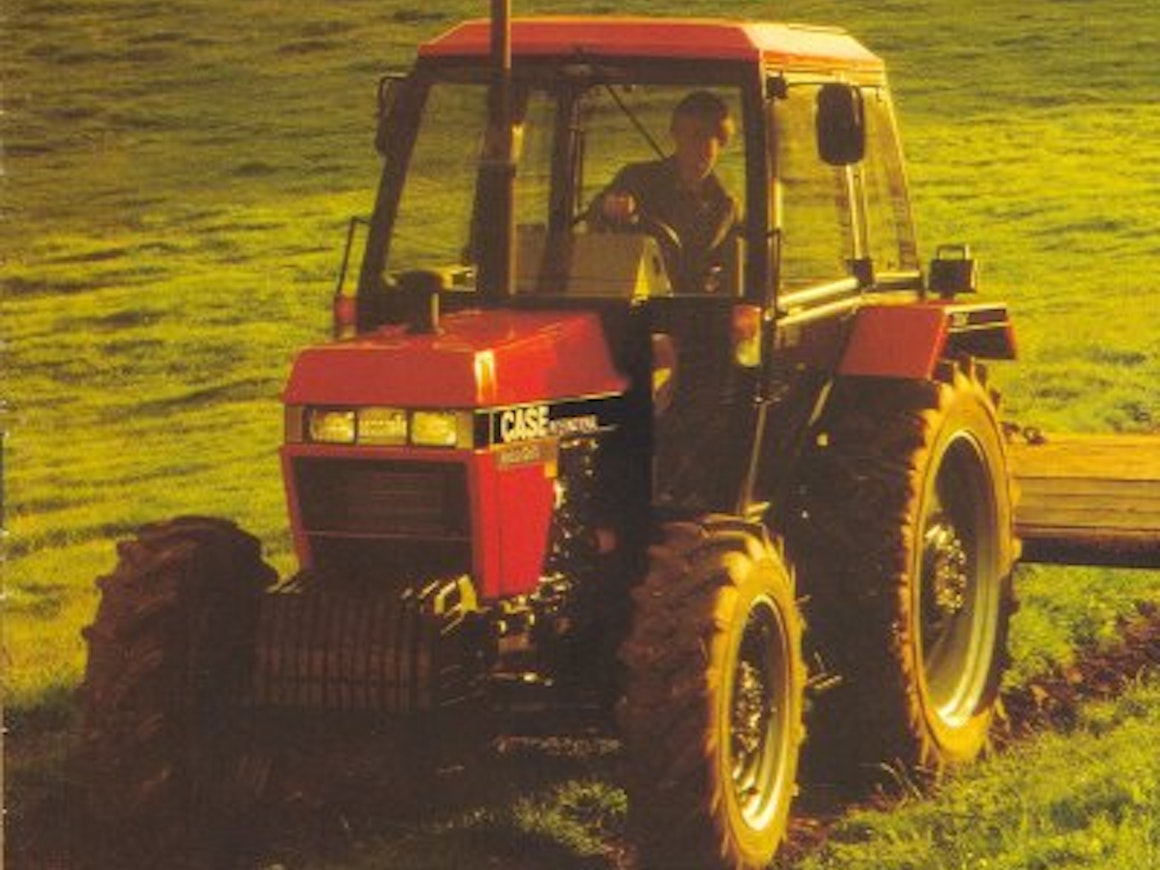

At the end of 1984, Case's owner Tenneco acquired International Harvester's agricultural machinery production. The first effects on the tractors were seen at the end of 1985, when the colors of both brands changed to red and black, and the brand was renamed Case International. The smallest models were removed from the 94 series, leaving the 1394-1694 models. In Finland, all tractors were imported with the HS transmission except for the 1394, which was also available with a traditional transmission. In the autumn of 1986, the transmission gear ratios were thinned by 10% to increase highway speed.
This is an automated translation. Please report any issues in the translation.
| Model | Case 1194 | Case 1294 | Case 1394 | Case 1394 Hydra Shift | Case 1394 | Case 1394 Hydra Shift |
|---|---|---|---|---|---|---|
| Manufacturer name | Case | Case | Case | Case | Case | Case |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 1984-85 | 1984-85 | 1984-85 | 1984-85 | 1985-88 | 1985-88 |
| Engine model | AD3/55 | AD4/55 | AD4/55T | AD4/55T | AD4/55T | AD4/55T |
| Cyl/Turbo/Intercooler | 3 | 4 | 4T | 4T | 4T | 4T |
| Displacement | 2695 cm³ | 3594 cm³ | 3594 cm³ | 3594 cm³ | 3594 cm³ | 3594 cm³ |
| Bore x stroke | 100×114,3 mm | 100×114,3 mm | 100×114,3 mm | 100×114,3 mm | 100×114,3 mm | 100×114,3 mm |
| Rated power | 48/2200 hp DIN/rpm | 64/2300 hp DIN/rpm | 73/2300 hp DIN/rpm | 73/2300 hp DIN/rpm | 72/2220 hp DIN/rpm | 72/2220 hp DIN/rpm |
| Torque | - | - | - | - | - | - |
| Gears | 12+4 | 12+4 | 12+4 | 12+4 | 12+4 | 12+4 |
| Synchronized gears | 8 | 8 | 8 | hydr. plan. | 8 | hydr. plan. |
| Speeds in km/h | 1,6-28,7 | 1,4-28,7 | 1,9-27,0 | 1,7-26,7 | 1,6-26,7 | 1,7-26,7 |
| Max. speed | 31 km/h | 31 km/h | 31 km/h | 31 km/h | 31 km/h | 31 km/h |
| Hydr. flow l/min | 27 l/min | 28 l/min | 33 l/min | 33 l/min | 33 l/min | 33 l/min |
| Hydraulic pressure | 176 bar | 176 bar | 176 bar | 176 bar | 176 bar | 176 bar |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 1540 kg | 1930 kg | 2080 kg | 2080 kg | 2230 kg | 2230 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Brakes | drum brakes | drum brakes | drum brakes | drum brakes | drum brakes | drum brakes |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 6.3 | 6.8 | 7.2 | 7.2 | 7.2 | 7.2 |
| Front tyres 2WD | 7,50-16 | 7,50-16 | 10,00-16 | 10,00-16 | 10,00-16 | 10,00-16 |
| Rear tyres 2WD | 12,4-32 | 13,6-38 | 13,6-38 | 13,6-38 | 13,6-38 | 13,6-38 |
| Weight 2WD | 2480 kg | 2870 kg | 2960 kg | 3040 kg | 2960 kg | 3040 kg |
| Height with cab | 238 cm | 253 cm | 253 cm | 253 cm | 255 cm | 255 cm |
| Length (2WD/4WD) | 340 cm | 363 cm | 363 cm | 363 cm | 363 cm | 363 cm |
| Wheelbase (2WD/4WD) | 197 cm | 210 cm | 210 cm | 210 cm | 210 cm | 210 cm |
| Fuel tank | 100 l | 100 l | 100 l | 100 l | 100 l | 100 l |
| Cab noise level | 83 dB | 84 dB | 84.5 dB | 83 dB | 81 dB | 81 dB |
| Solid cab | x | x | x | x | x | x |
| Turning circle m 4WD | - | 9 | 9 | 9 | 8.5 | 8.5 |
| Front tyres 4WD | - | 12.4-24 | 12.4-24 | 12.4-24 | 12.4-24 | 12.4-24 |
| Rear tyres 4WD | - | 13.6-38 | 16.9-34 | 16.9-34 | 13.6-38 | 16.9-34 |
| Weight 4WD | - | 3180 kg | 3250 kg | 3250 kg | - | 3630 kg |
| Diff. lock | - | friction lock | friction lock | friction lock | friction lock | friction lock |
| Powershift gears | - | - | - | 4-step | - | 4-step |
