Case 770-1570 Agri King

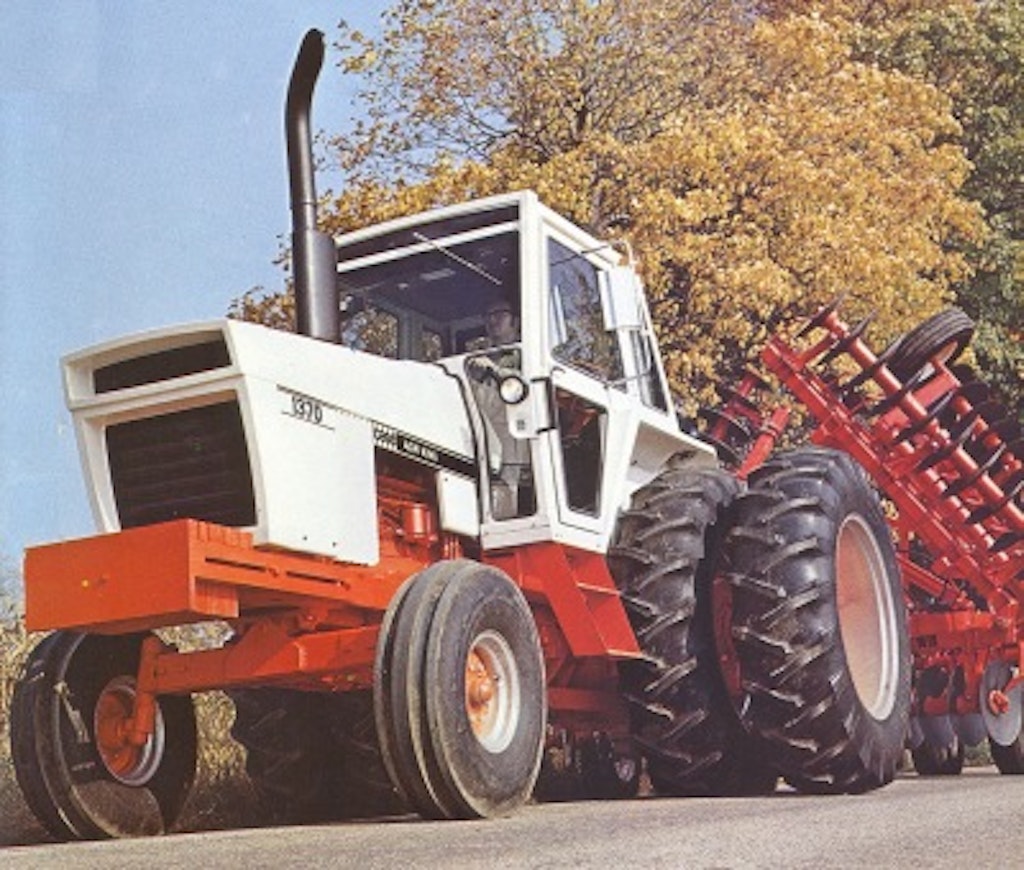

75Case1370

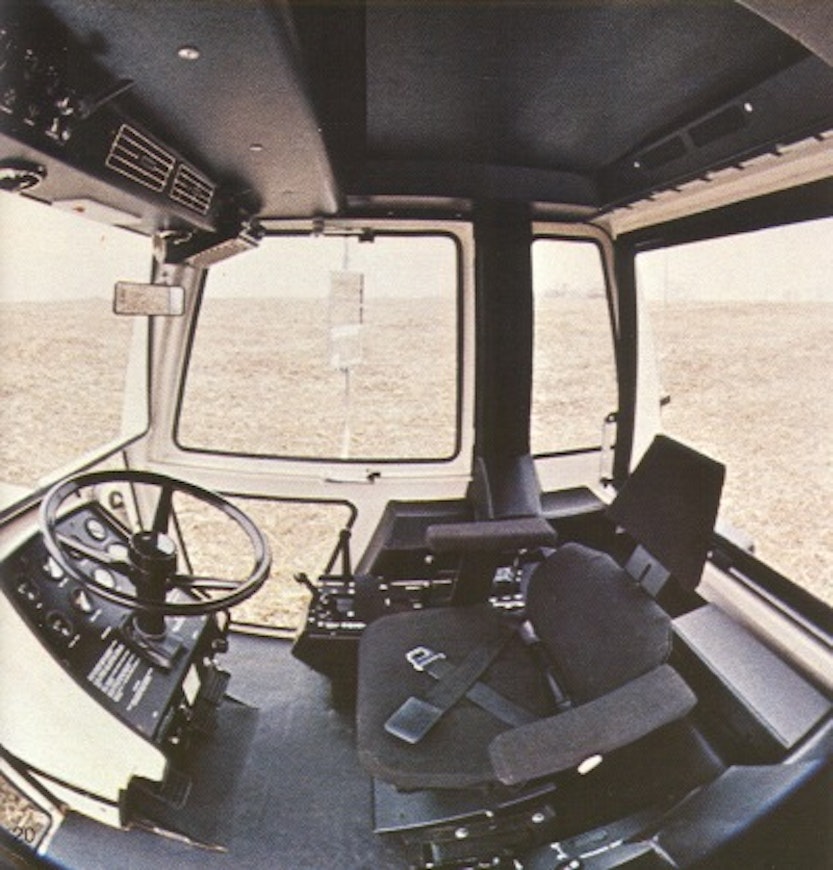

75Case1370ohjaamo

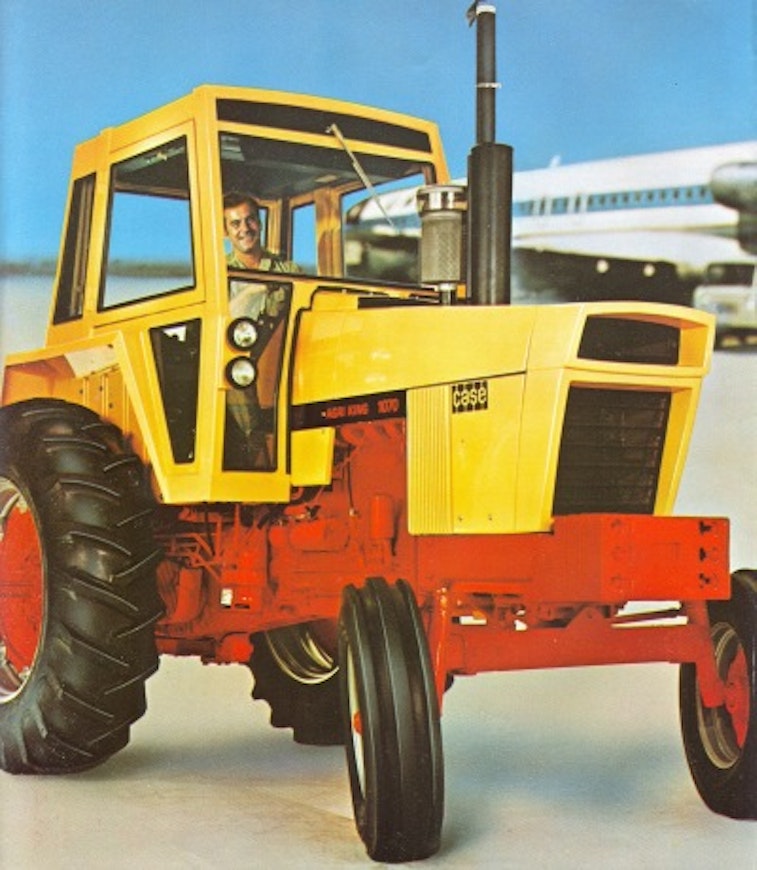

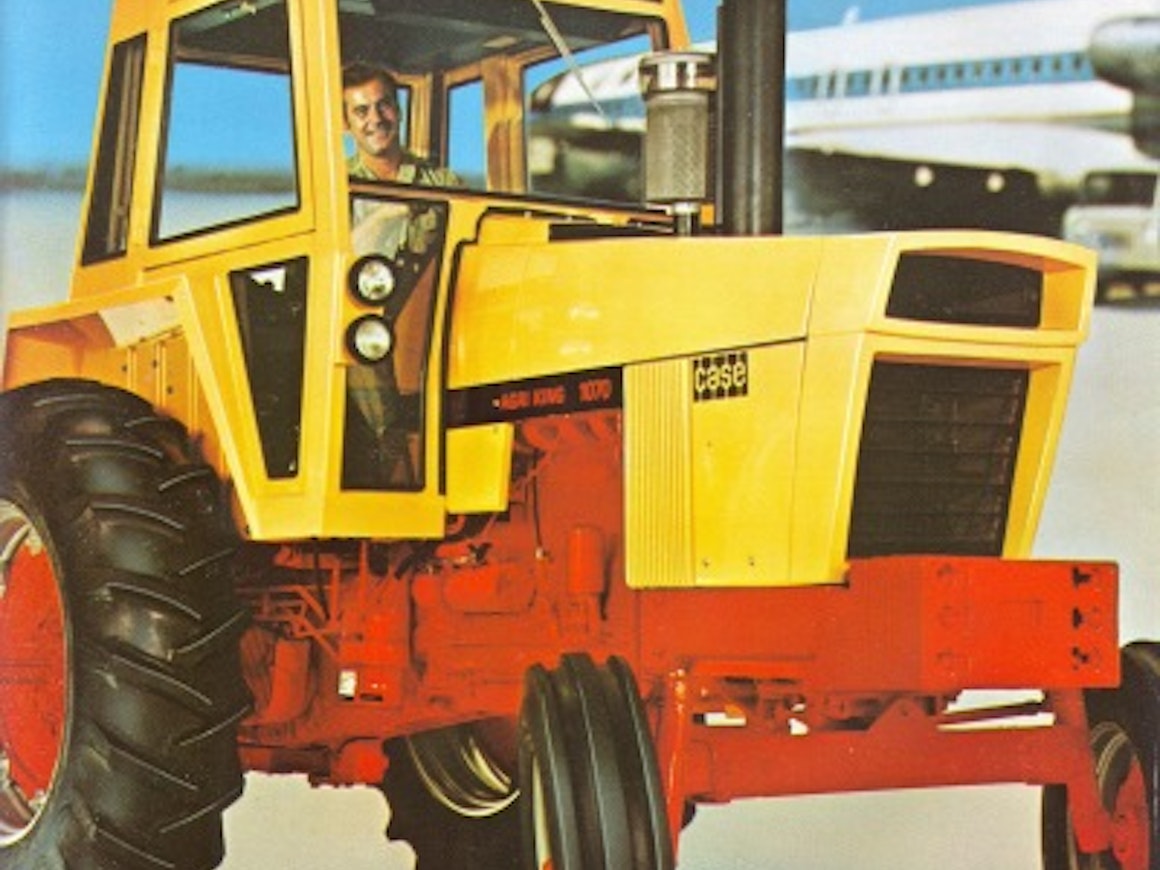

70Case1070
75Case1370
75Case1370ohjaamo
70Case1070
Manufacturer
Models
Case 770 Agri King, Case 870 Agri King, Case 970 Agri King, Case 1070 Agri King, Case 1170 Agri King, Case 1175 Agri King, Case 1270 Agri King, Case 1370 Agri King, Case 1570 Agri King
Years
1969-78
Info

In Finland, American Case tractors remained unknown, as they were considered too large for the local markets. In Case's production lineup, following the American tradition, there were rear-wheel-drive tractors as well as over 200-horsepower four-wheel-drive models with four-wheel steering, where all the wheels were the same size.

The first models in the Agri King series introduced in 1969 were the 770, 870, 970, and 1070. The three smallest ones, the 4.1-, 5.5-, and 6.6-liter models, along with the 1170 introduced a year later, were discontinued after Case acquired David Brown in 1972. The remaining models were the 1070 and, from 1972 onwards, the 1175, 1270, 1370, and from 1976 the 1570 (190 hp). Starting with the 1270, the transmission was more robust and the brakes were oil-immersed.

The Agri Kings featured direct injection diesel engines as a novelty. Most models had an alternative option of a gasoline engine, though gas engines had been abandoned. The transmissions available were either an 8+2 or a 12+3 with a 3-speed partial powershift. The transmissions were synchronized except for the range shift. The Agri King cab was considerably advanced and better soundproofed than earlier models. The steering was hydrostatic, and the hydraulic system was load-sensing. Tractor colors were standardized with David Brown in 1974, changing the base color from yellowish to white. The legendary special edition is the star-spangled Spirit of ’76, made in honor of the United States’ 200th anniversary celebrations.

In Finland, there were also attempts to sell the 1270 model, which had an SAE power output of 163 horsepower. Elsewhere in Europe, the 1370 (196 hp SAE) and 970 (93 hp) models were also known. Their engines were 7.4 and 8.3 liters, respectively. In Europe, the transmission was a 12+3 gearbox, and air conditioning was standard equipment.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelCase 770 Agri KingCase 870 Agri KingCase 970 Agri KingCase 1070 Agri KingCase 1170 Agri KingCase 1175 Agri KingCase 1270 Agri KingCase 1370 Agri KingCase 1570 Agri King
Manufacturer nameCaseCaseCaseCaseCaseCaseCaseCaseCase
Imported to FinlandNoNoNoNoNoNoYesNoNo
Years1969-731969-731969-781969-781970-721972-781972-781972-781976-78
Engine modelA267A336A401A451A451TA451TA451BDTA504TA504T
Cyl/Turbo/Intercooler44666T6T6T6T6T
Displacement4375 cm³5506 cm³6570 cm³7390 cm³7390 cm³7390 cm³7390 cm³8259 cm³8259 cm³
Bore x stroke104,7×127 mm122,5×127 mm104,8×127 mm111,11×127 mm111,11×127 mm111,11×127 mm111,11×127 mm117,5×127 mm117,5×127 mm
Rated power57 (pto)/ 1900 hp DIN/rpm80 (pto)/ 1900 hp DIN/rpm93 (pto)/ 1900 hp DIN/rpm108 (pto)/ 1900 hp DIN/rpm145SAE/2100 hp DIN/rpm145SAE/2100 hp DIN/rpm163SAE/2100 hp DIN/rpm196SAE/2200 hp DIN/rpm180 (pto)/2100 hp DIN/rpm
Gears8+28+28+28+28+28+212+312+312+3
Synchronized gears8+28+28+28+28+28+212+312+312+3
Powershift gearsopt.opt.opt.opt.opt.opt.3-step3-step3-step
Speeds in km/h3,2-25,43,2-25,43,1-24,13,1-24,13,5-26,63,5-24,63,1-28,73,2-29,83,4-31,4
Lift controlsmech.mech.mech.mech.mech.mech.mech.mech.mech.
PTO speeds540/1000540/1000540/1000540/1000540/1000540/1000100010001000
Brakesdry discdry discdry discdry discdry discdry discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Weight 2WD4040 kg4130 kg4540 kg5430 kg6260 kg4830 kg6200 kg6250 kg6033 kg
Length (2WD/4WD)489 cm489 cm411 cm411 cm437 cm437 cm462 cm462 cm470 cm
Wheelbase (2WD/4WD)257 cm257 cm274 cm274 cm279 cm264 cm264 cm264 cm269 cm
Fuel tank189 l189 l189 l189 l189 l189 l303 l303 l303 l
Cab noise level94 dB88.5 dB94.5 dB92.5 dB91 dB85 dB85 dB85 dB84.5 dB
Solid cab(x)(x)(x)(x)(x)xxxx
Torque---------
Hydr. flow l/min-----60 l/min76 l/min76 l/min-
Turning circle m 2WD-----9.029.029.02-
Front tyres 2WD-----11,00-1611,00-1611,00-1611,00-16
Rear tyres 2WD-----18,4-3818,4-3820,8-3818,4-38
Height with cab-----295 cm295 cm295 cm290 cm
Max. speed ------31.1 km/h--
Hydraulic pressure------141 bar141 bar-
Lift capacity------3250/5500 kg5500 kg3600 kg
Air conditioning------xxx
