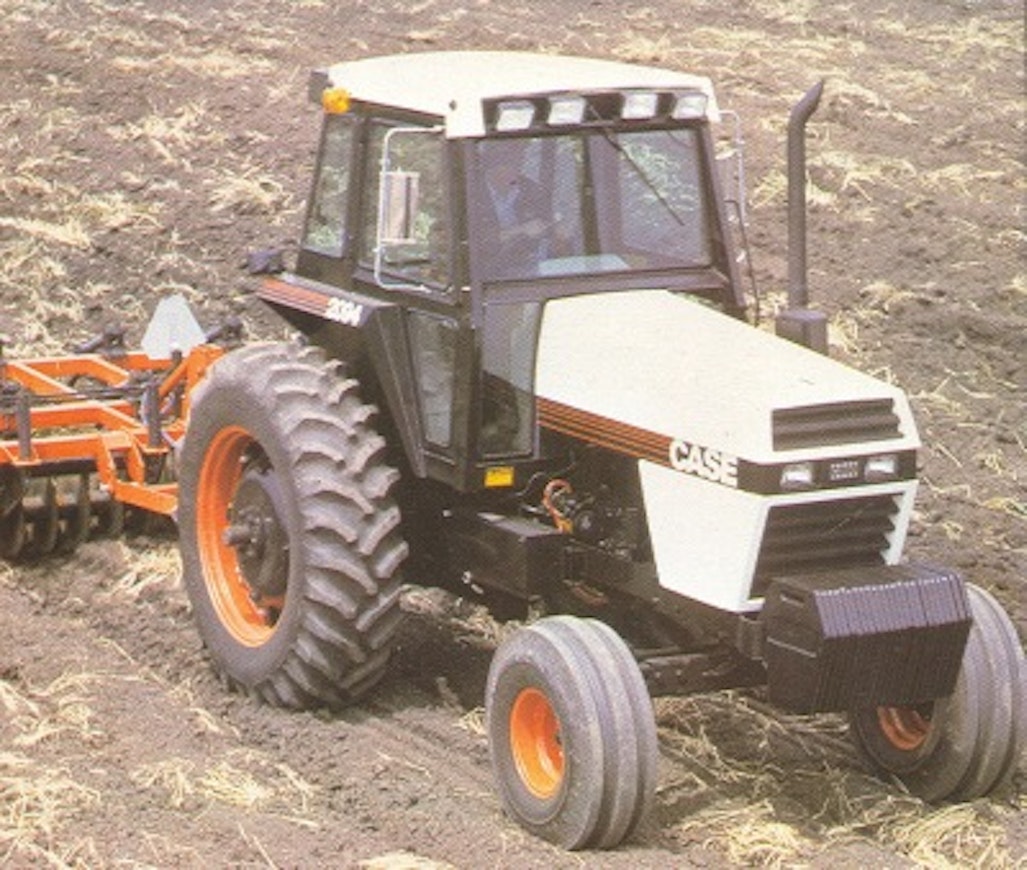

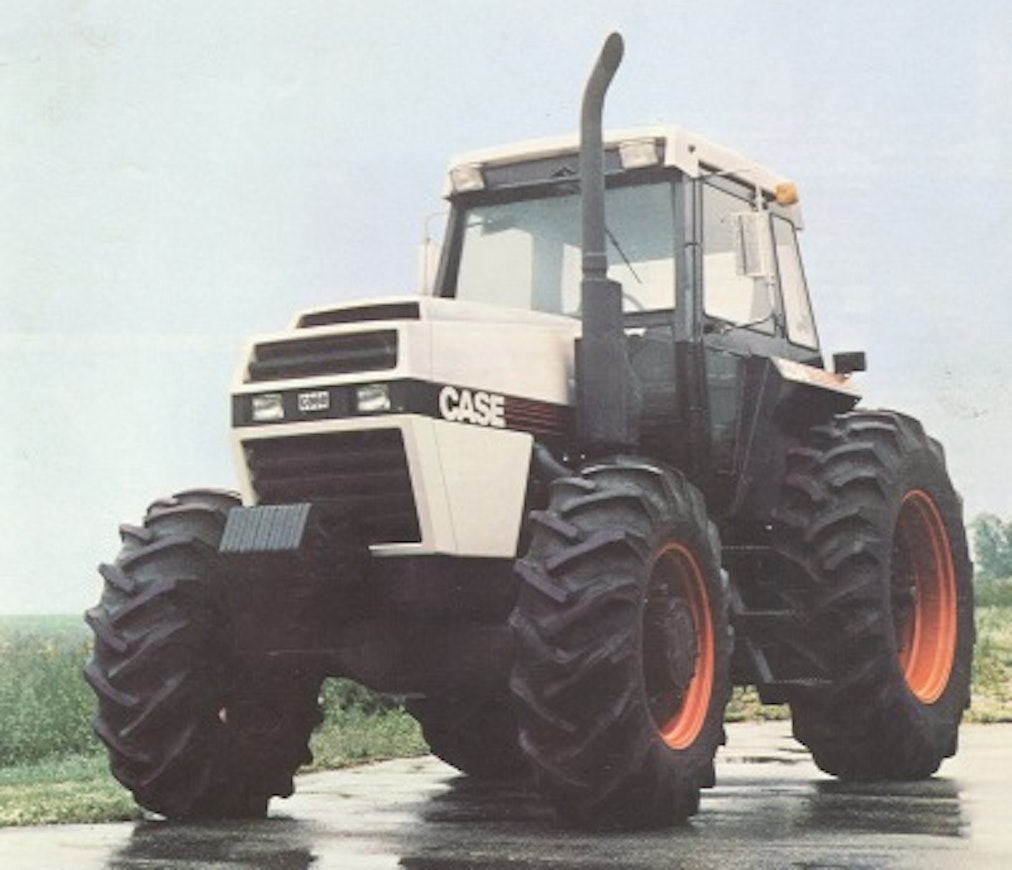

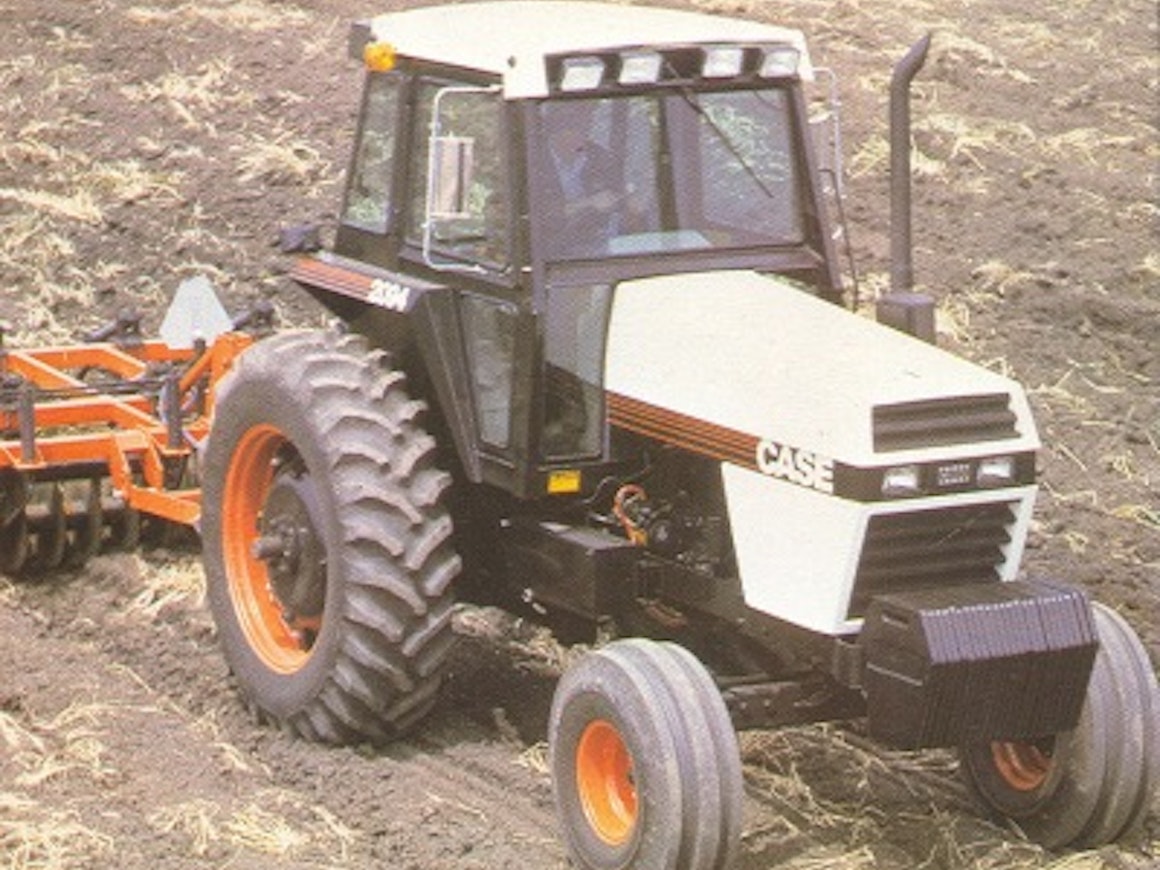

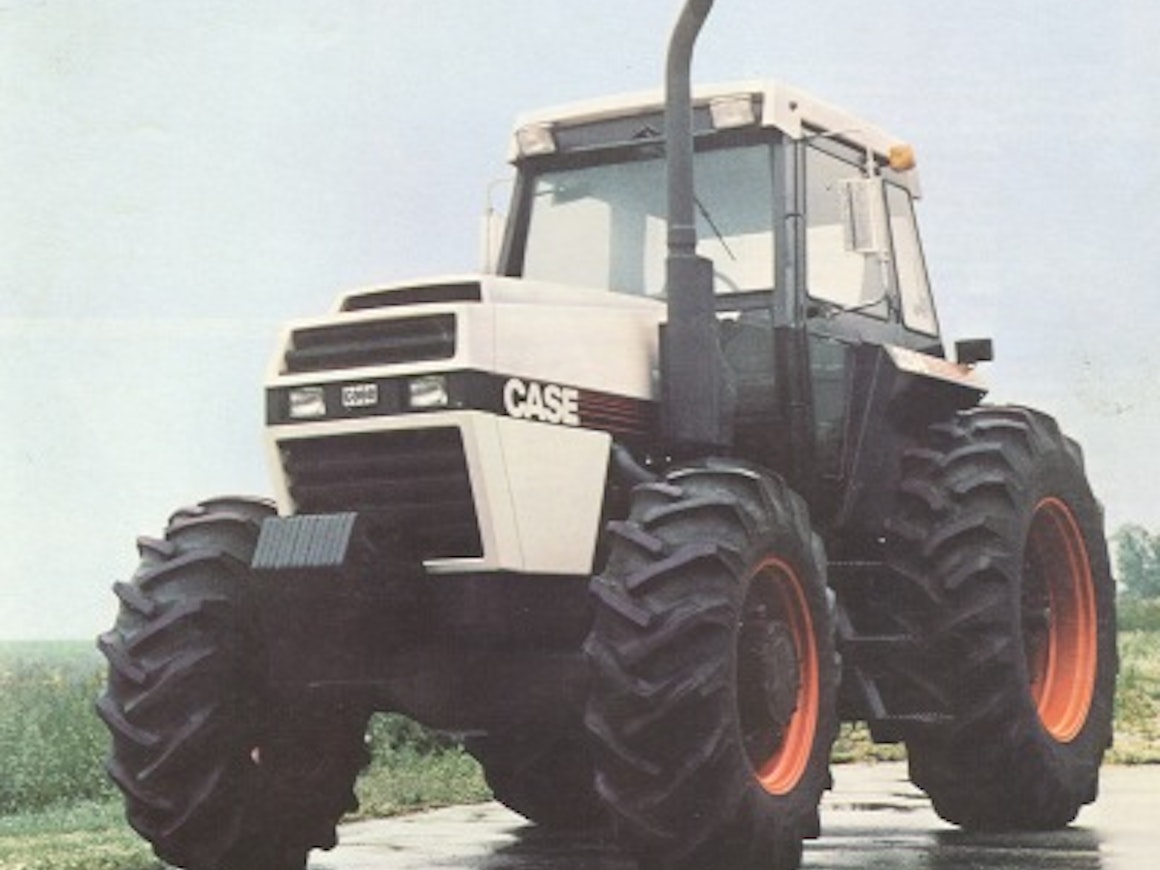

The 94 series was introduced in the USA for the year 1984, just like in Europe. The power classes were the same as in the 90 series, but a four-wheel-drive 170-horsepower 3294 was added alongside them. Four-wheel-drive versions were also available for the 2094 (121 hp) and 2294 (141 hp) models. The four-wheel-drive models used a Carraro front axle. The standard transmission was still a 3-speed powershift, but models 2394 and 2594 could also be equipped with a 6-speed powershift, which doubled the number of gears to 24+3. The 94 series especially focused on cabin ergonomics and electronic monitoring functions. A wheel slip sensor was available as an optional accessory.

For the year 1985, the tractor brand in the USA also changed to Case IH, and the color changed to red and black. In the fall of 1987, the now well-known 7000 series Magnum models were introduced.

This is an automated translation. Please report any issues in the translation.

Case 2094

malli

hinta (sis. alv)

Series specifier

Manufacturer name

Model specifier

Imported to Finland

Years

Engine model

Cyl/Turbo/Intercooler

Displacement

Bore x stroke

Rated power

Max power

Torque

Gears

Creeper speeds

Synchronized gears

Powershift gears

Reverser

Speeds in km/h

Max. speed

Hydr. flow l/min

Hydraulic pressure

Lift controls

Lift capacity

PTO speeds

Brakes

Steering

Turning circle m 2WD

Turning circle m 4WD

Front tyres 2WD

Front tyres 4WD

Rear tyres 2WD

Rear tyres 4WD

Weight 2WD

Weight 4WD

Height with cab

Length (2WD/4WD)

Wheelbase (2WD/4WD)

Fuel tank

Cab noise level

Solid cab

Diff. lock

Autom. differential locks

Air suspension seat

Air conditioning

Trip computer

Creeper gear

sylinterien lukumäärä

iskutilavuus

iskusuhde

suurin vääntömomentti, nm

suurin vääntömomentti, r/min

vääntömomentin nousu

polttonesteen kulutus suurimman tehon pisteessä

kytkimen tyyppi

ajovoimanotto

nopeus eteenpäin moottorin nimellisnopeudella, pienin

nopeus eteenpäin moottorin nimellisnopeudella, suurin

jarrut

hydrauliikan suurin paine

hydrauliikan suurin tuotto

nostolaitehydrauliikan hallinta

ulkopuolinen hydrauliikka, venttiililohkoja

1-toimisia

2-toimisia

nostovoima (kn=100 kg)

hydrauliikan tyyppi

kääntöympyrän halkaisija ilman ohjausjarrua

eturenkaat

takarenkaat

kokonaismassa säiliöt täynnä vakiovarustein

etuakselipaino

taka-akselipaino

suurin korkeus (ohjaamon ylimpään kohtaan)

kokonaispituus

akseliväli

maavara, pienin

polttoainesäiliön tilavuus

korkein melutaso

etuakselin tasauspyörästön lukko

etunostolaite

etulokasuojat

ilmastointilaite

perävaunun jarruventtiili

ilmaistuin

ohjauksen tyyppi

Case 2294

Case 2394

Case 2594

Case / Case IH 2094-3294

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Case 2094	Case 2294	Case 2394	Case 2594
Manufacturer name	Case	Case	Case	Case
Imported to Finland	No	No	No	No
Years	1983-84	1983-87	1983-87	1983-87
Engine model	504 BD	504 BDT	504 BDT	504 BDT
Cyl/Turbo/Intercooler	6	6T	6T	6T
Displacement	8259 cm³	8259 cm³	8259 cm³	8259 cm³
Bore x stroke	117,5×127 mm	117,5×127 mm	117,5×127 mm	117,5×127 mm
Rated power	121/2100 hp DIN/rpm	141/2100 hp DIN/rpm	170/2100 hp DIN/rpm	190/2100 hp DIN/rpm
Torque	-	-	-	-
Gears	12+4	12+4	12+3/24+3	12+3/24+3
Synchronized gears	12+4	12+4	12+3/24+3	12+3/24+3
Powershift gears	3-step	3-step	3/6 step	3/6 step
Speeds in km/h	3,1-29,1	3,1-29,1	2,7-32,3	3,0-33,5
Hydr. flow l/min	80 l/min	80 l/min	91 l/min	91 l/min
Hydraulic pressure	158 bar	158 bar	158 bar	158 bar
Lift controls	mech.	mech.	mech.	mech.
Lift capacity	4535 kg	4535 kg	6100 kg	6100 kg
PTO speeds	540/1000	540/1000	1000	1000
Brakes	wet disc	wet disc	wet disc	wet disc
Steering	hydrost.	hydrost.	hydrost.	hydrost.
Turning circle m 4WD	11.48	11.48	-	-
Front tyres 2WD	11,00-16	11,00-16	14L-16,1	14L-16,1
Front tyres 4WD	14.9-28	14.9-28	-	-
Rear tyres 2WD	18,4-38	18,4-38	20,8-38	20,8-38
Rear tyres 4WD	18.4-38	18.4-38	-	-
Weight 4WD	6115 kg	6160 kg	6747 kg	6756 kg
Height with cab	296 cm	296 cm	297 cm	297 cm
Wheelbase (2WD/4WD)	264 cm	264 cm	300 cm	300 cm
Fuel tank	246 l	246 l	322 l	322 l
Cab noise level	77 dB	76.5 dB	75.5 dB	78 dB
Solid cab	x	x	x	x
Air suspension seat	x	x	x	x
Air conditioning	x	x	x	x
Turning circle m 2WD	-	-	9.38	9.38
Length (2WD/4WD)	-	-	466 cm	466 cm
