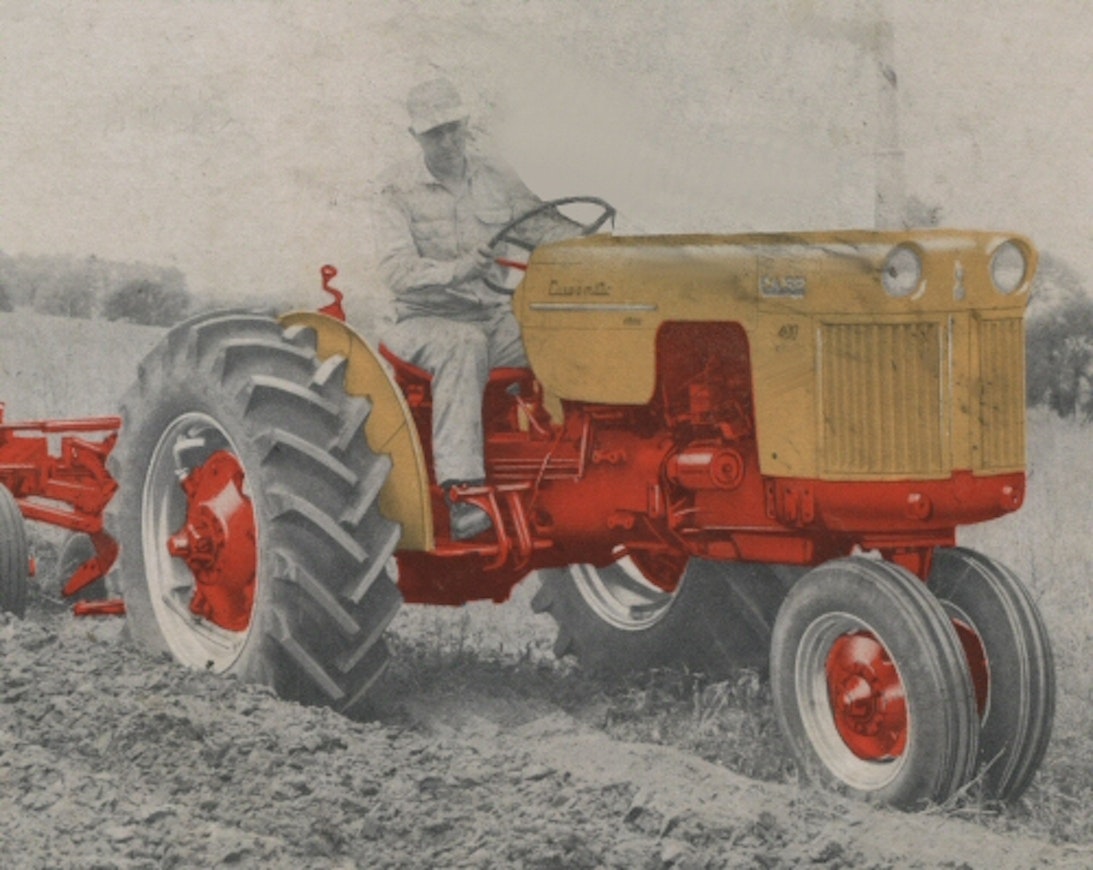

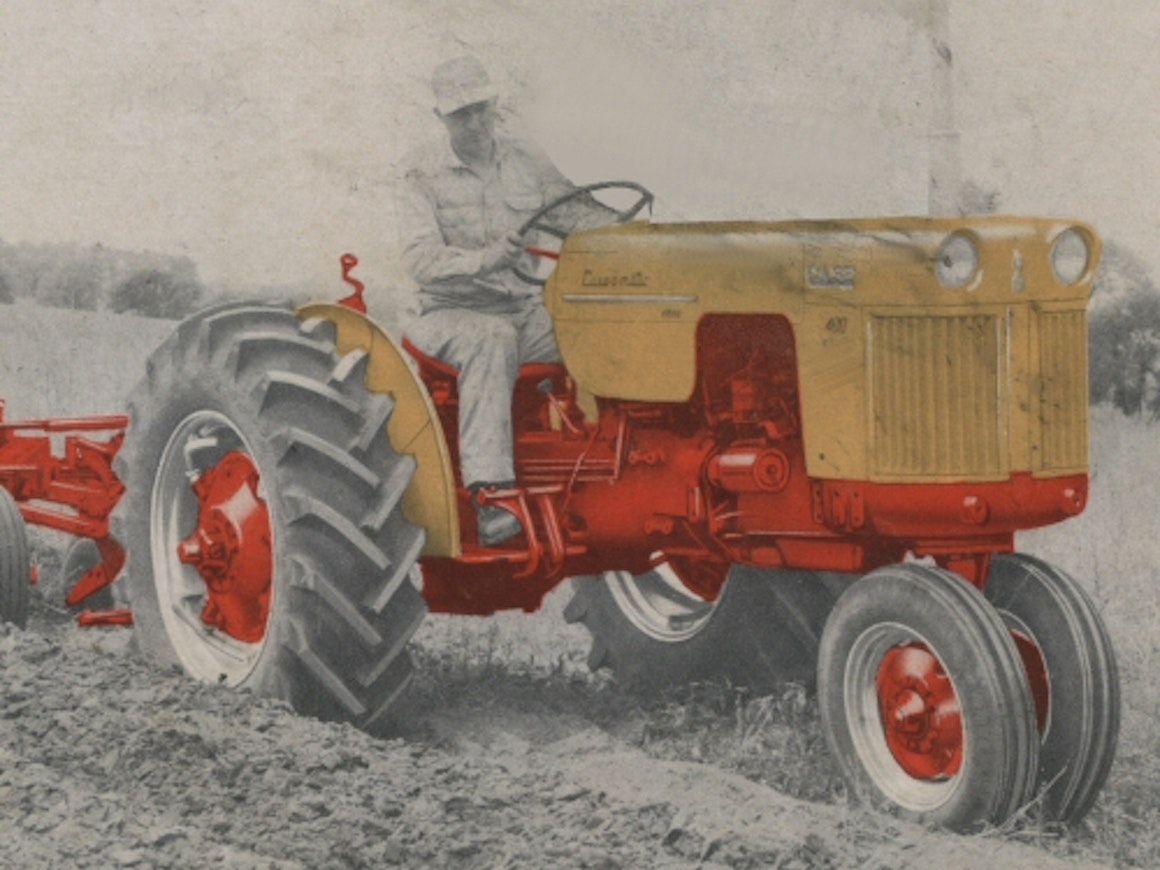

**Case’s rounded front was changed in 1958 to a more angular shape, and the headlights were positioned higher up. Model numbers in the range 200…900 were introduced, even though the power classes corresponded to the previous 300…600 models. For example, the new 600 had 44 horsepower, while the previous one had 70 horsepower. The middle number was still 0 for diesel models and 1 for gasoline versions. Officially, the new models had a B after the model number, but in marketing, only the round hundreds were used. Most of the small models are therefore 210B…611B models — diesels were very rare in the smaller models.**

**The 400 and 600 models had a hydraulic Case-o-matic quick-shifter; otherwise, they corresponded to the 300 and 500 models. The road speed in the 300…500 models was quite brisk. All models had a 12-volt electrical system (2 pcs 6-volt batteries), and starting was done with an ignition key. The hydraulic lifting device was the earlier type Eagle-Hitch.**

This is an automated translation. Please report any issues in the translation.

Case 200 bens.

malli

hinta (sis. alv)

Series specifier

Manufacturer name

Model specifier

Imported to Finland

Years

Engine model

Cyl/Turbo/Intercooler

Displacement

Bore x stroke

Rated power

Max power

Torque

Gears

Creeper speeds

Synchronized gears

Powershift gears

Reverser

Speeds in km/h

Max. speed

Hydr. flow l/min

Hydraulic pressure

Lift controls

Lift capacity

PTO speeds

Brakes

Steering

Turning circle m 2WD

Turning circle m 4WD

Front tyres 2WD

Front tyres 4WD

Rear tyres 2WD

Rear tyres 4WD

Weight 2WD

Weight 4WD

Height with cab

Length (2WD/4WD)

Wheelbase (2WD/4WD)

Fuel tank

Cab noise level

Solid cab

Diff. lock

Autom. differential locks

Air suspension seat

Air conditioning

Trip computer

Creeper gear

sylinterien lukumäärä

iskutilavuus

iskusuhde

suurin vääntömomentti, nm

suurin vääntömomentti, r/min

vääntömomentin nousu

polttonesteen kulutus suurimman tehon pisteessä

kytkimen tyyppi

ajovoimanotto

nopeus eteenpäin moottorin nimellisnopeudella, pienin

nopeus eteenpäin moottorin nimellisnopeudella, suurin

jarrut

hydrauliikan suurin paine

hydrauliikan suurin tuotto

nostolaitehydrauliikan hallinta

ulkopuolinen hydrauliikka, venttiililohkoja

1-toimisia

2-toimisia

nostovoima (kn=100 kg)

hydrauliikan tyyppi

kääntöympyrän halkaisija ilman ohjausjarrua

eturenkaat

takarenkaat

kokonaismassa säiliöt täynnä vakiovarustein

etuakselipaino

taka-akselipaino

suurin korkeus (ohjaamon ylimpään kohtaan)

kokonaispituus

akseliväli

maavara, pienin

polttoainesäiliön tilavuus

korkein melutaso

etuakselin tasauspyörästön lukko

etunostolaite

etulokasuojat

ilmastointilaite

perävaunun jarruventtiili

ilmaistuin

ohjauksen tyyppi

Case 300 bens.

Case 400 bens.

Case 500 bens.

Case 600 bens.

Case 200-600

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Case 200 bens.	Case 300 bens.	Case 400 bens.	Case 500 bens.	Case 600 bens.
Manufacturer name	Case	Case	Case	Case	Case
Imported to Finland	No	No	No	No	No
Years	1958-59	1958-59	1958-59	1958-60	1958-59
Cyl/Turbo/Intercooler	4	4	4	4	4
Displacement	2074 cm³	2419 cm³	2419 cm³	2687 cm³	2687 cm³
Bore x stroke	79,4×104,8 mm	85,7×104,8 mm	85,7×104,8 mm	85,7×104,8 mm	85,7×104,8 mm
Rated power	-	-	-	-	-
Gears	4+1/8+2	4+1/12+3	8+2/16+4	12+3	8+2
Speeds in km/h	4,5-21,6	4,2-19,8/ 2,7-37,2	3,1-32,2/ 2,4-32,2	2,6-34,9	2,4-18,0
PTO speeds	540	540	540	540	540
Brakes	wet disc	wet disc	wet disc	wet disc	wet disc
Steering	mech.	mech./power	mech./power	mech./power	mech./power
Front tyres 2WD	5.50-15	6.00-16	6.00-16	6.00-16	6.00-16
Rear tyres 2WD	12.4-24	12.4-24	12.4-24	13.6-36	13.6-36
Hydraulic pressure	-	82.7 bar	82.7 bar	-	-
Weight 2WD	-	(1324) kg	(1422) kg	(2141) kg	(2268) kg
Height with cab	-	(141) cm	(142) cm	-	-
Length (2WD/4WD)	-	332 cm	321 cm	-	-
Wheelbase (2WD/4WD)	-	192 cm	191 cm	-	-
Fuel tank	-	49 l	52 l	52 l	52 l
Powershift gears	-	-	hydr.	-	hydr.
Turning circle m 2WD	-	-	6.1	-	-
