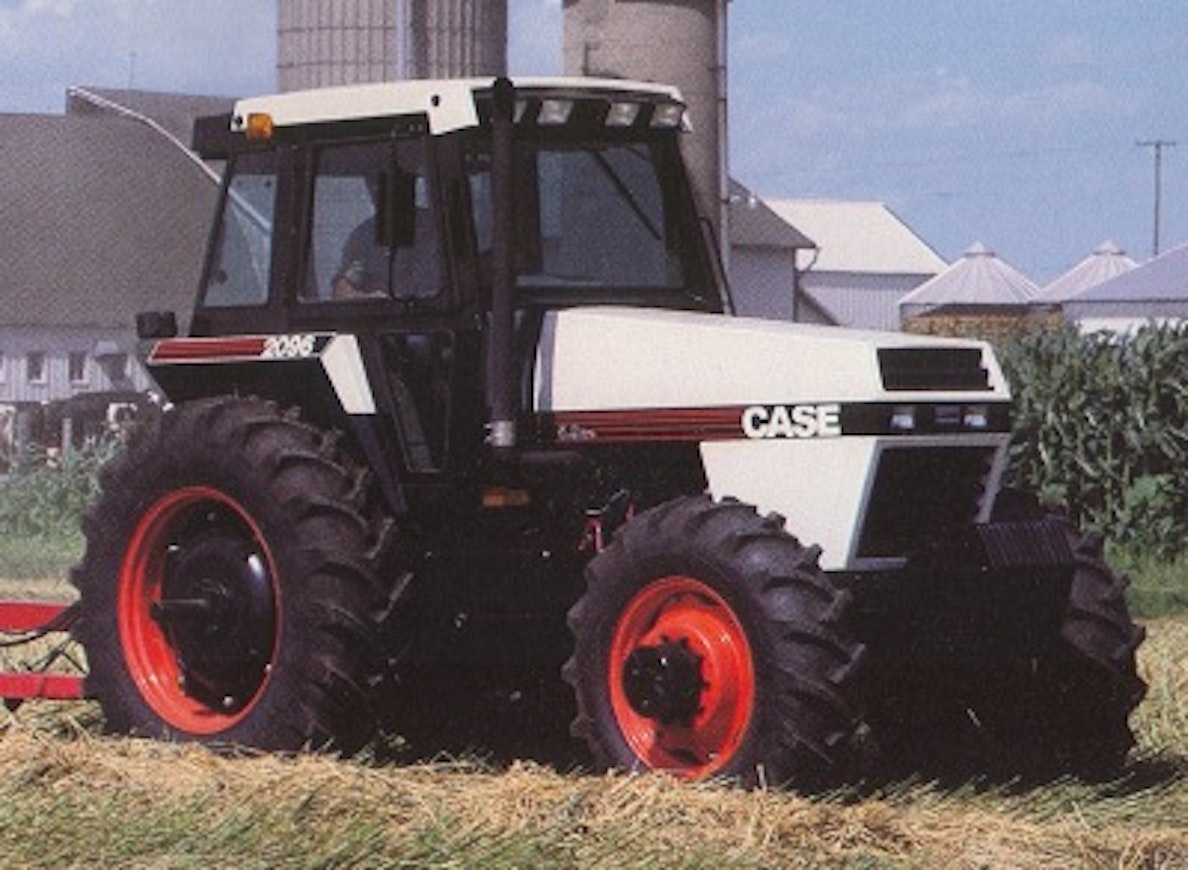

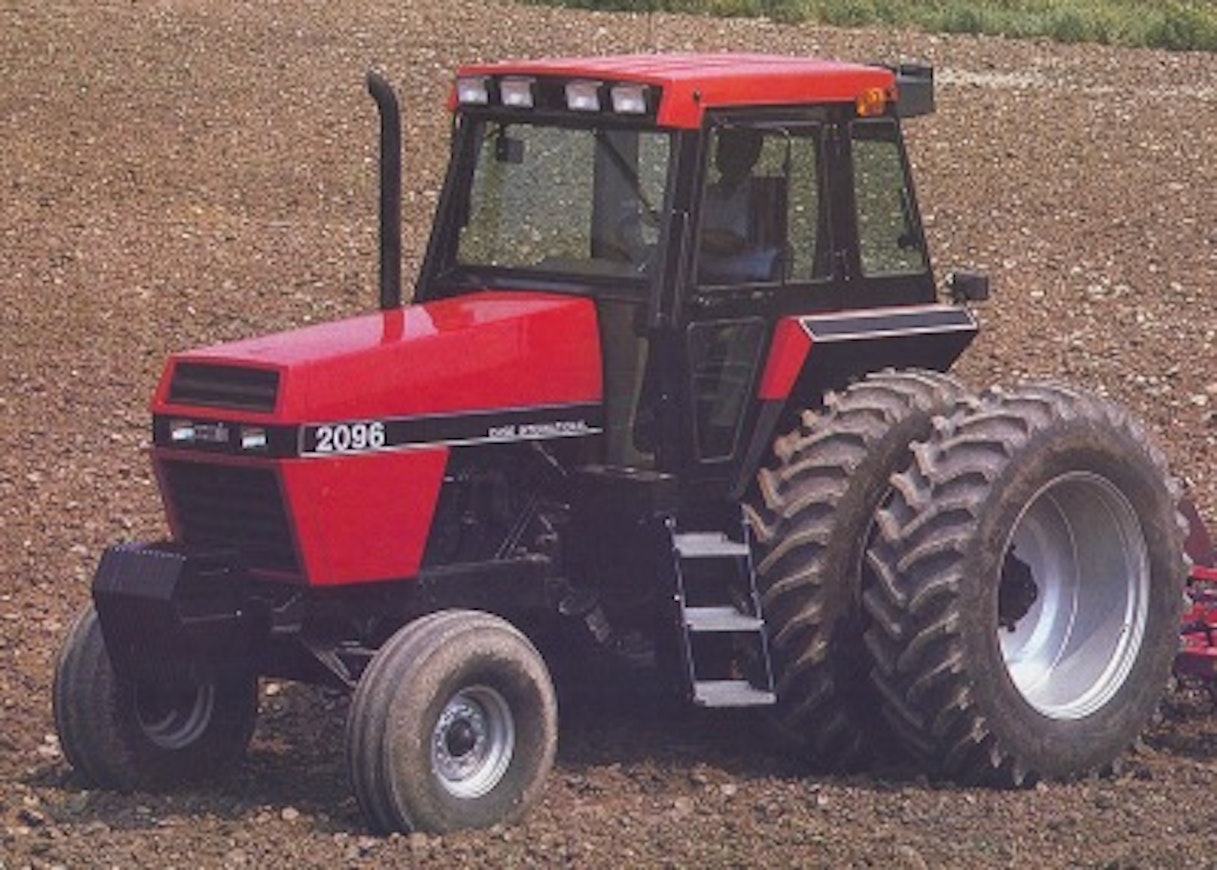

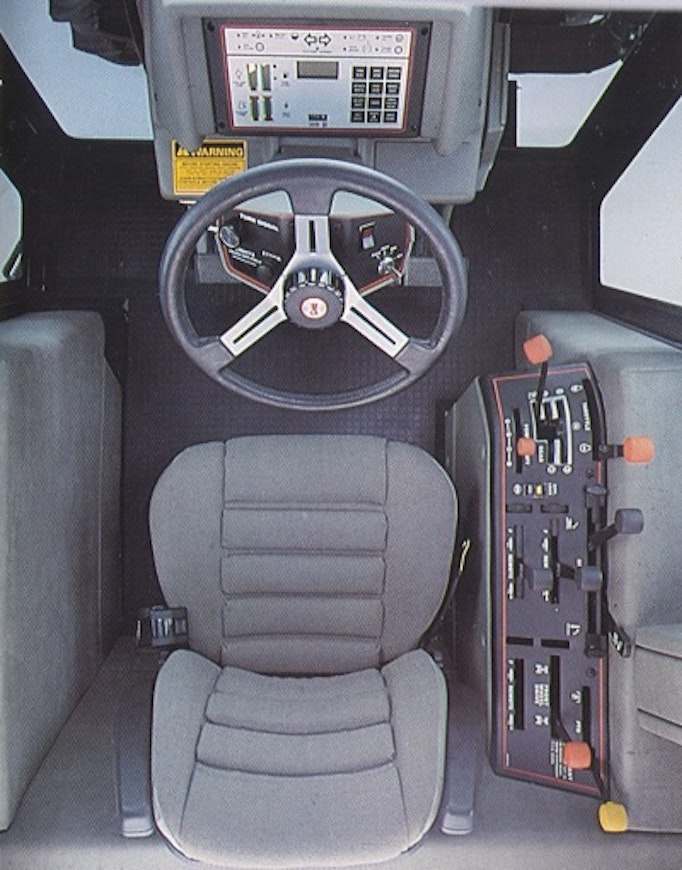

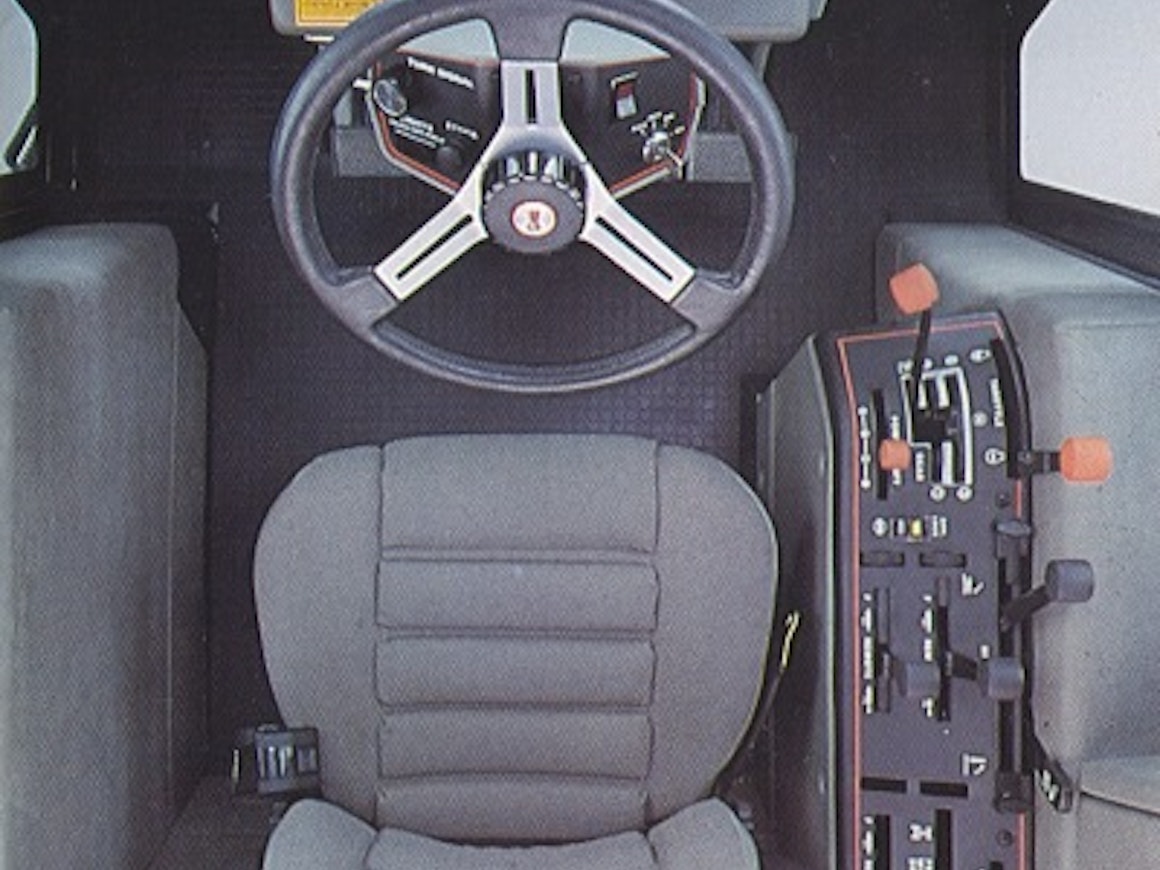

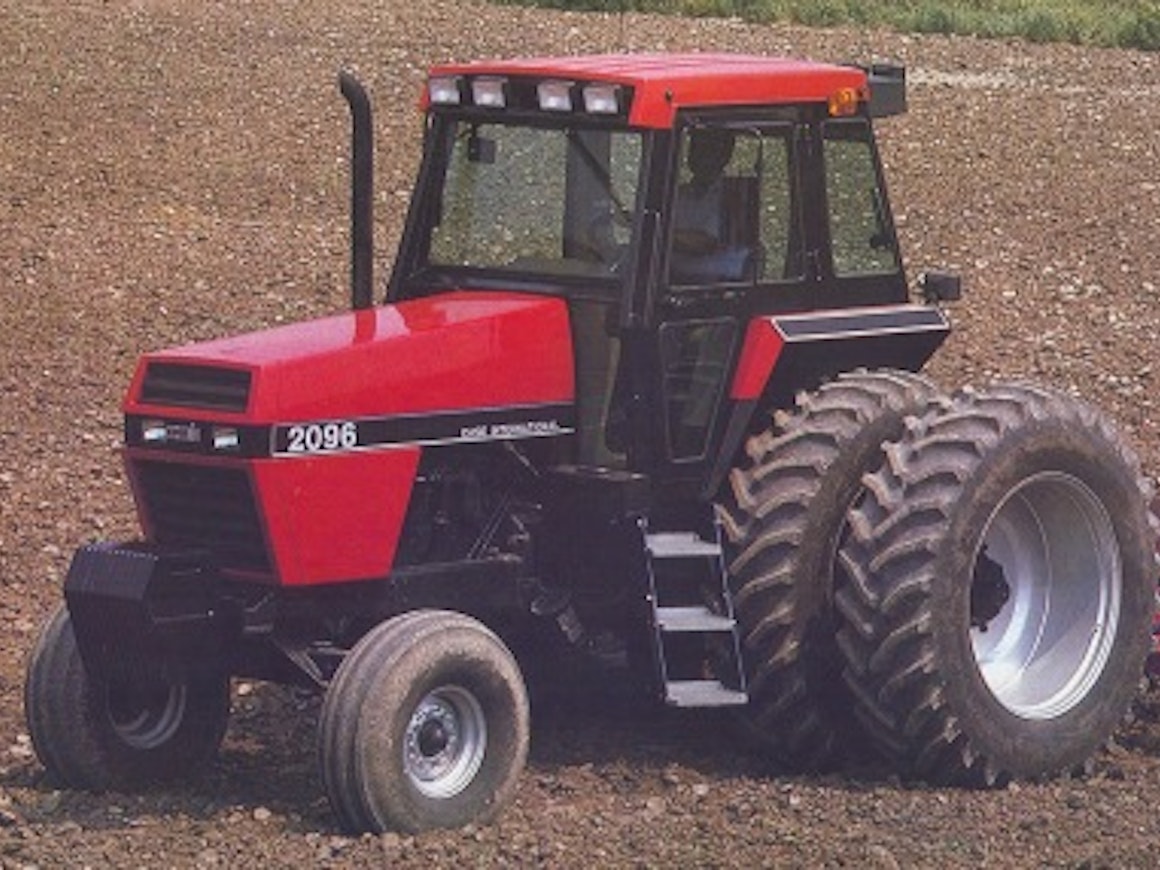

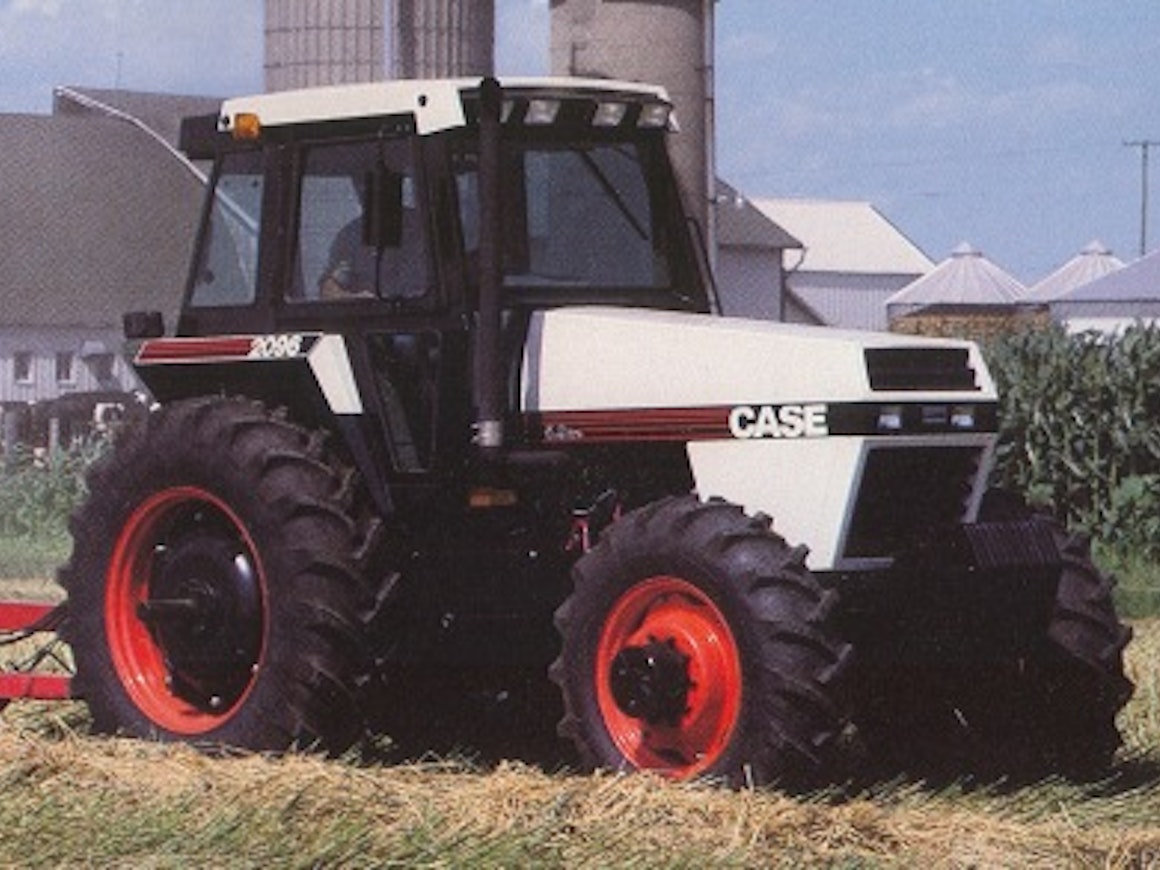

In the summer of 1984, the Case 1896 and 2096 were introduced, sized between the European and American Case models. The tractor had a short but tall structure. The engines were turbocharged 5.9-liter units developed in collaboration with Cummins, also used in the Maxxum. The transmission was equipped with a 3-speed power shift. The cab was the 2094 series Silent Guardian, and radar-equipped slip control was available as an optional extra. To engage or disengage the four-wheel drive, the tractor had to be stopped, and the front axle hubs extended well beyond the width of the tires. For the year 1985, the tractor brand in the USA also changed to Case IH and the color scheme switched to red and black.

This is an automated translation. Please report any issues in the translation.

Case 1896

malli

hinta (sis. alv)

Series specifier

Manufacturer name

Model specifier

Imported to Finland

Years

Engine model

Cyl/Turbo/Intercooler

Displacement

Bore x stroke

Rated power

Max power

Torque

Gears

Creeper speeds

Synchronized gears

Powershift gears

Reverser

Speeds in km/h

Max. speed

Hydr. flow l/min

Hydraulic pressure

Lift controls

Lift capacity

PTO speeds

Brakes

Steering

Turning circle m 2WD

Turning circle m 4WD

Front tyres 2WD

Front tyres 4WD

Rear tyres 2WD

Rear tyres 4WD

Weight 2WD

Weight 4WD

Height with cab

Length (2WD/4WD)

Wheelbase (2WD/4WD)

Fuel tank

Cab noise level

Solid cab

Diff. lock

Autom. differential locks

Air suspension seat

Air conditioning

Trip computer

Creeper gear

sylinterien lukumäärä

iskutilavuus

iskusuhde

suurin vääntömomentti, nm

suurin vääntömomentti, r/min

vääntömomentin nousu

polttonesteen kulutus suurimman tehon pisteessä

kytkimen tyyppi

ajovoimanotto

nopeus eteenpäin moottorin nimellisnopeudella, pienin

nopeus eteenpäin moottorin nimellisnopeudella, suurin

jarrut

hydrauliikan suurin paine

hydrauliikan suurin tuotto

nostolaitehydrauliikan hallinta

ulkopuolinen hydrauliikka, venttiililohkoja

1-toimisia

2-toimisia

nostovoima (kn=100 kg)

hydrauliikan tyyppi

kääntöympyrän halkaisija ilman ohjausjarrua

eturenkaat

takarenkaat

kokonaismassa säiliöt täynnä vakiovarustein

etuakselipaino

taka-akselipaino

suurin korkeus (ohjaamon ylimpään kohtaan)

kokonaispituus

akseliväli

maavara, pienin

polttoainesäiliön tilavuus

korkein melutaso

etuakselin tasauspyörästön lukko

etunostolaite

etulokasuojat

ilmastointilaite

perävaunun jarruventtiili

ilmaistuin

ohjauksen tyyppi

Case 2096

Case / Case IH 1896-2096

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Case 1896	Case 2096
Manufacturer name	Case	Case
Imported to Finland	No	No
Years	1984-87	1984-87
Engine model	B6T-590	B6T-590
Cyl/Turbo/Intercooler	6T	6TI
Displacement	5883 cm³	5883 cm³
Bore x stroke	102×120 mm	102×120 mm
Rated power	95PTO/2100 hp DIN/rpm	115PTO/2100 hp DIN/rpm
Gears	12+3	12+3
Synchronized gears	12+3	12+3
Powershift gears	3-step	3-step

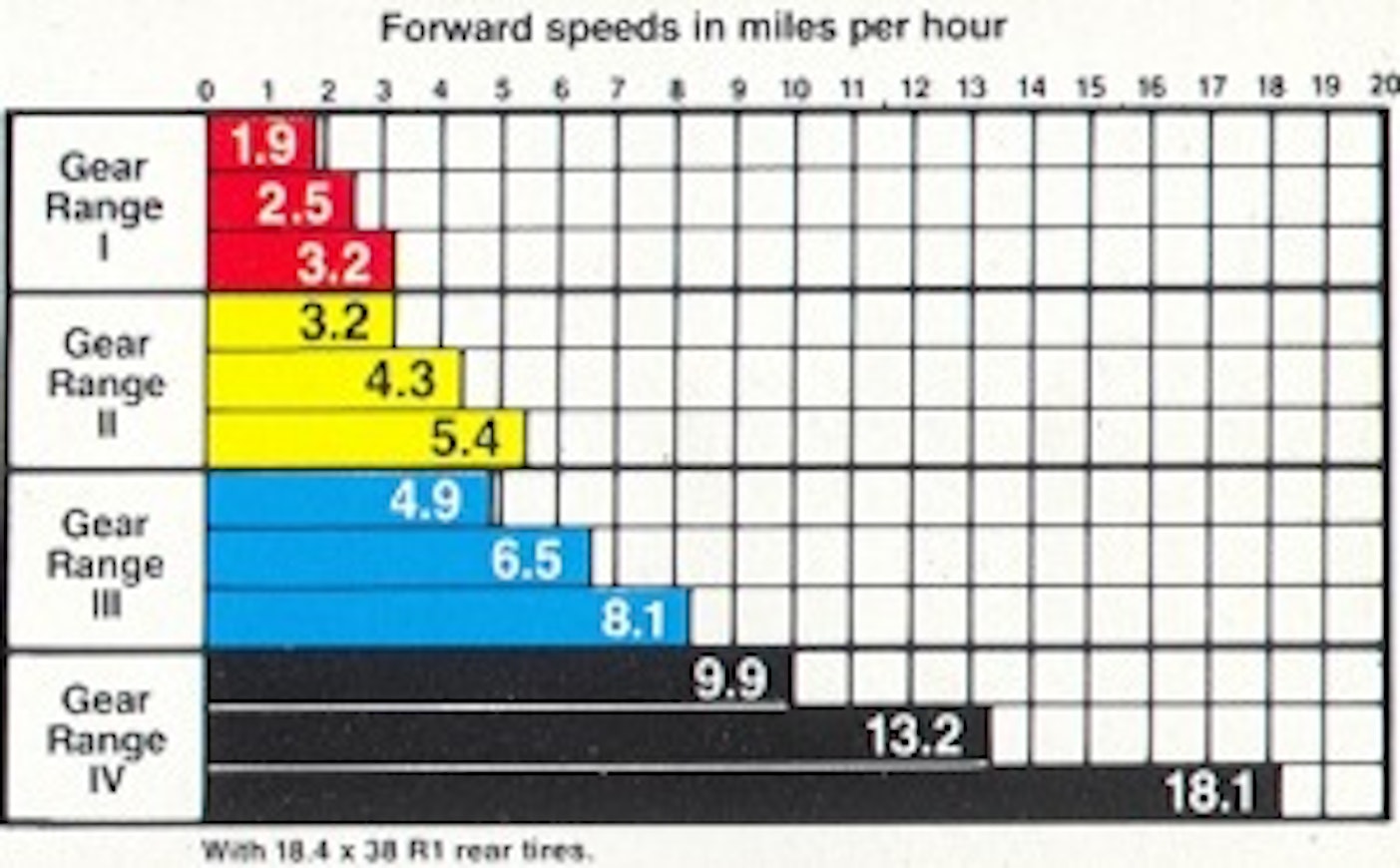

Speeds in km/h	3,1-29,1	3,1-29,1
Hydr. flow l/min	87 l/min	87 l/min
Lift controls	mech.	mech.
Lift capacity	3742 kg	3742 kg
PTO speeds	540/1000	540/1000
Brakes	wet disc	wet disc
Steering	hydrost.	hydrost.
Turning circle m 2WD	8.79	8.79
Turning circle m 4WD	10.82	10.82
Front tyres 2WD	11.00-16	11.00-16
Front tyres 4WD	14.9-28	14.9-28
Rear tyres 2WD	18.4-38	18.4-38
Rear tyres 4WD	18.4-38	18.4-38
Weight 2WD	5375 kg	5386 kg
Weight 4WD	5919 kg	5930 kg
Height with cab	300 cm	300 cm
Length (2WD/4WD)	434 cm	434 cm
Wheelbase (2WD/4WD)	274 cm	274 cm
Fuel tank	246 l	246 l
Cab noise level	78 dB	77.5 dB
Solid cab	x	x
Diff. lock	friction lock	friction lock
Air suspension seat	x	x
Air conditioning	x	x
Trip computer	opt.	opt.
