Claas Xerion 3300-3800

06ClaasXerion4
06ClaasXerion3300b
06ClaasXerion3300ohjaamo
06ClaasXerion3300tehot
06ClaasXerion4
06ClaasXerion3300b
06ClaasXerion3300ohjaamo
06ClaasXerion3300tehot
Manufacturer
Models
Claas Xerion 3300 Trac, Claas Xerion 3800 Trac
Years
2004-2013
Info

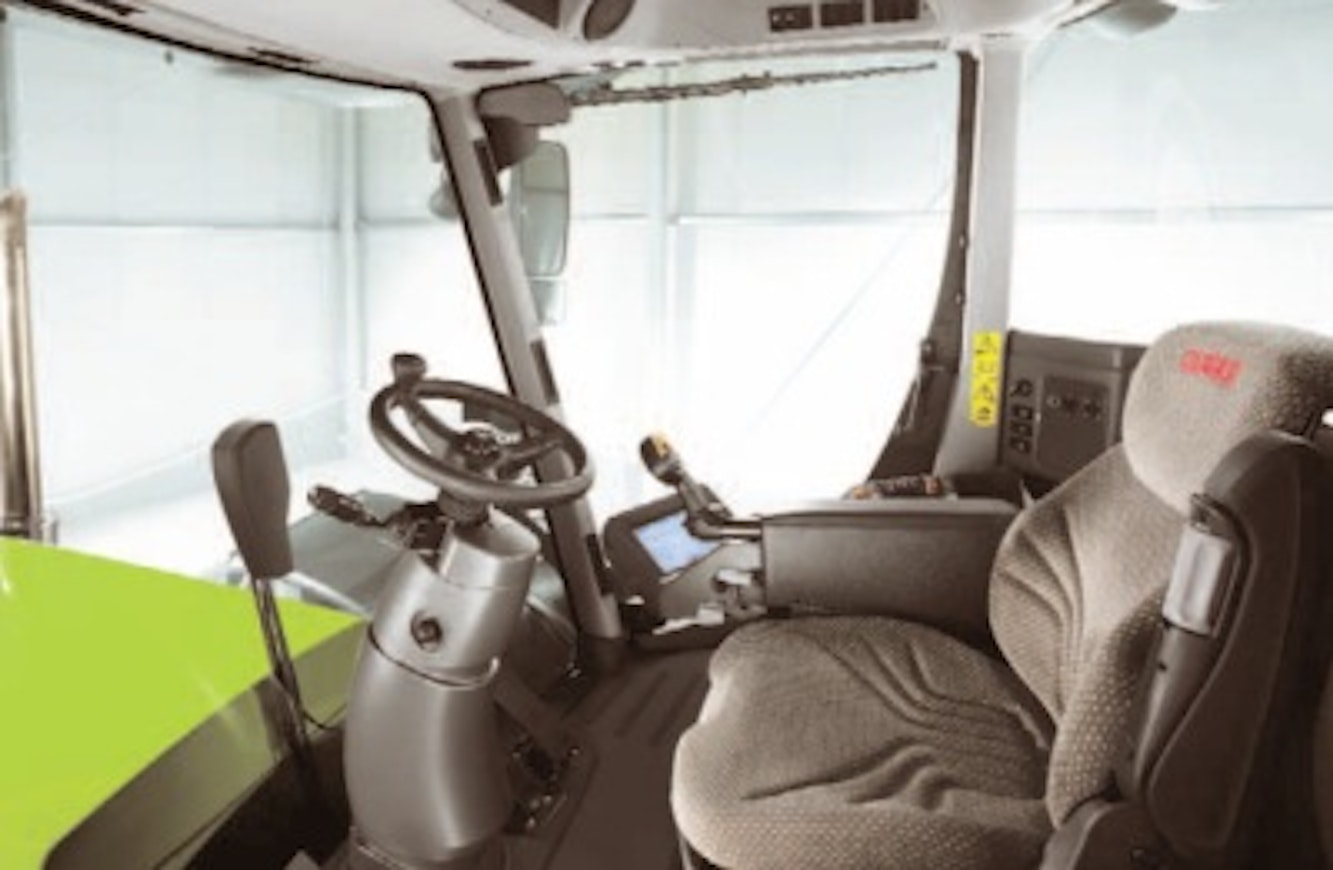

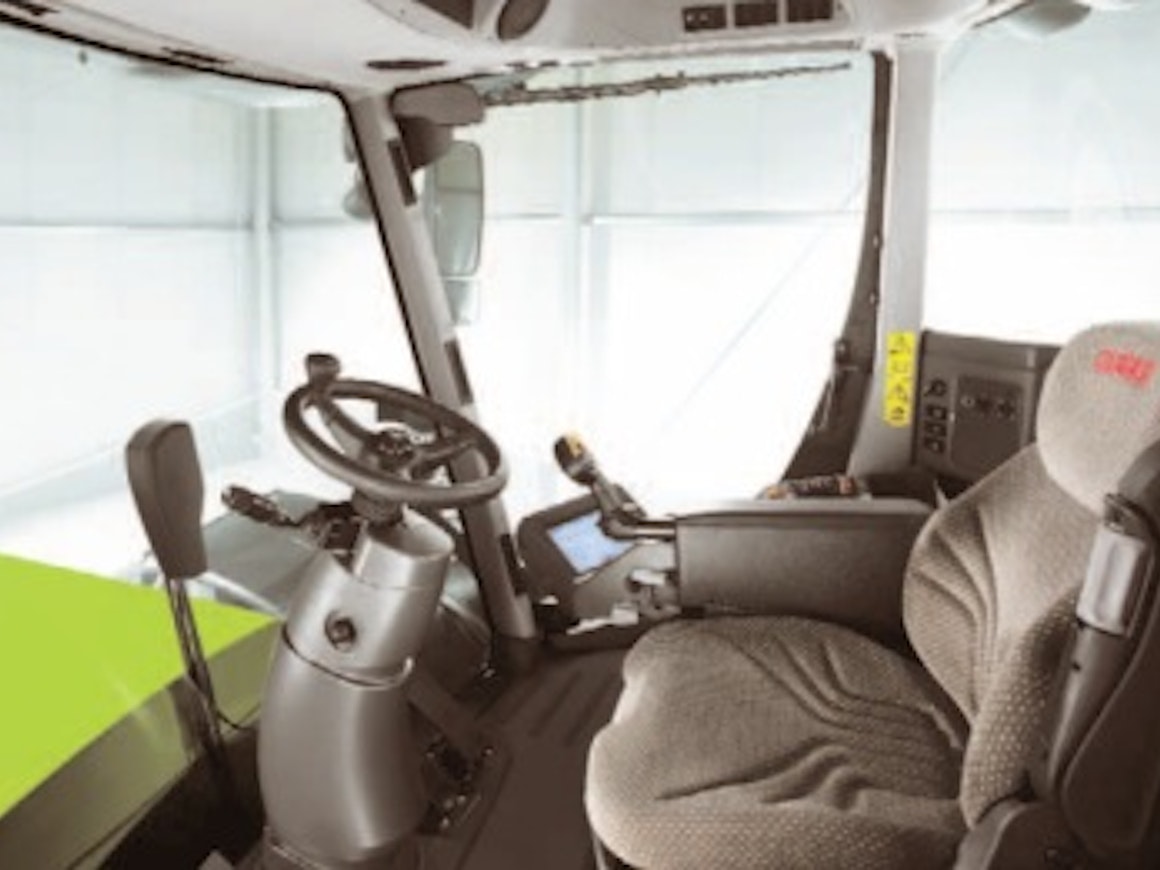

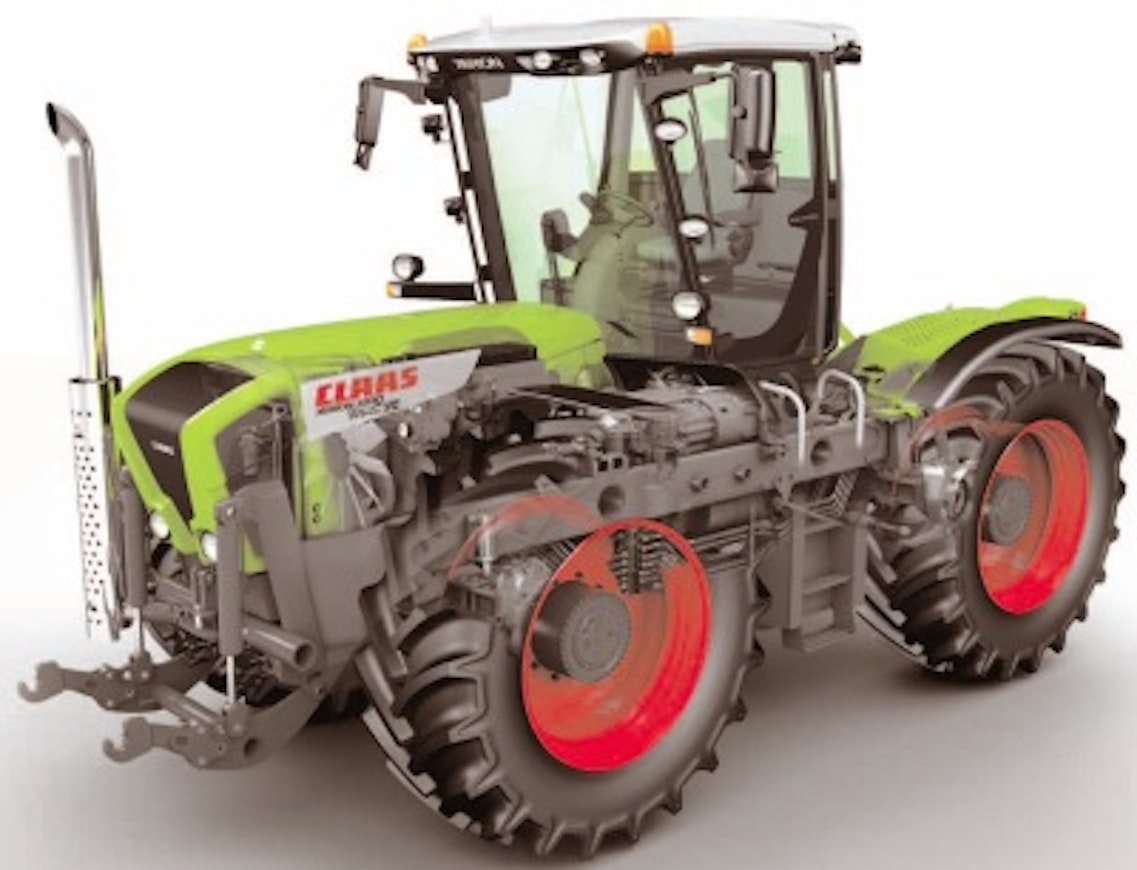

The second generation of the Xerion system tractor came in 2004. There was now only one power class (335 hp), and the engine manufacturer had changed to Caterpillar. The ZF Eccom 3.5 powertrain now allowed a speed of 50 km/h. The cab was completely new, and in the base model, it was fixed in the center. In the VC model, it could be turned to the center or rear as before. The weight distribution was 55/45. The external dimensions had clearly increased, as had the hydraulic performance. The cab was equipped with a Cebis monitoring display.

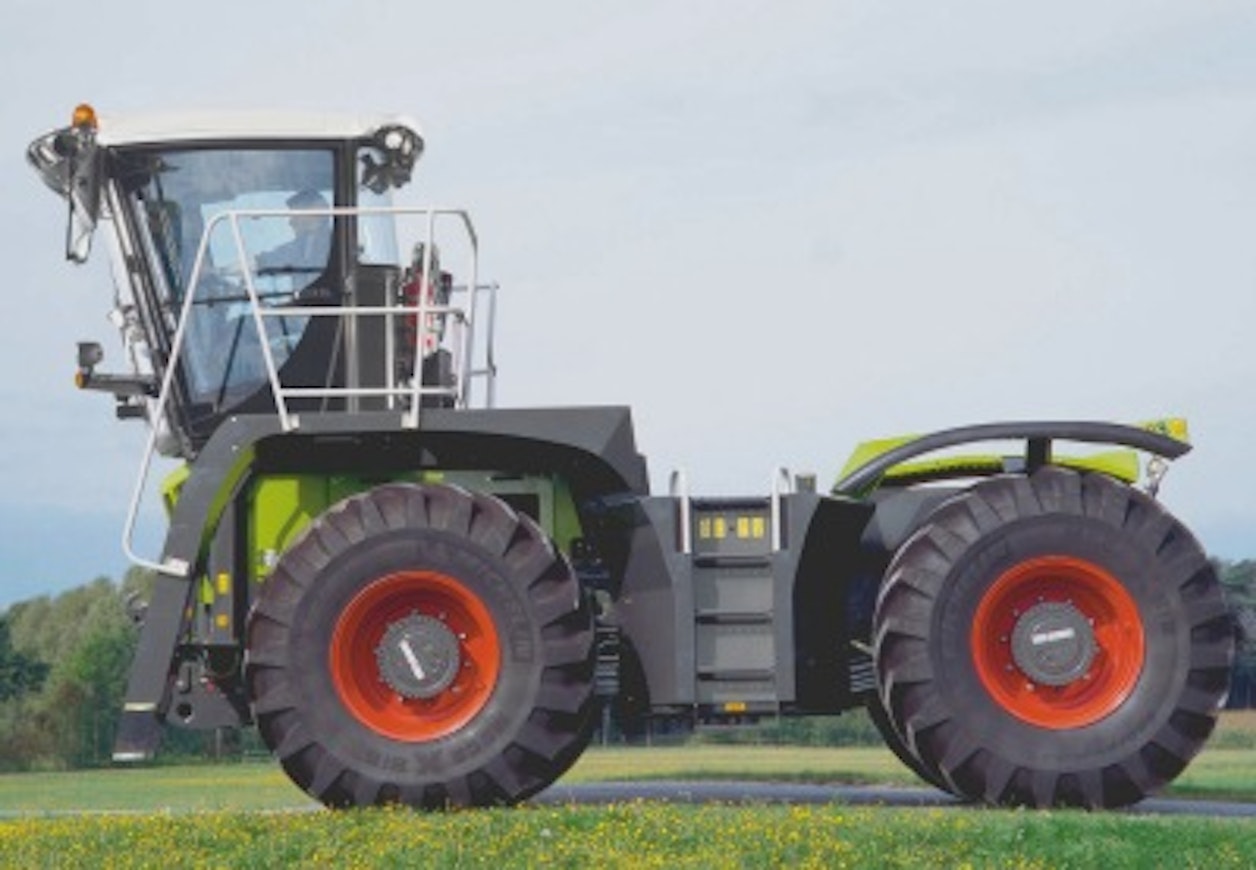

Alongside the Trac and Trac VC, a third option called the Saddle Trac implement carrier was introduced, with the cab at the front. For this, some German implement manufacturers developed, for example, semi-trailer type slurry tanks.

In 2007, alongside the 3300, the more powerful Xerion 3800 was introduced, with a maximum power of 379 hp. In addition to the four previous steering modes, a "dog automation" was introduced, meaning the tracks could be steered parallel.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelClaas Xerion 3300 TracClaas Xerion 3800 Trac
Manufacturer nameClaasClaas
Imported to FinlandNoNo
Years2004-122007-13
Engine modelCat C9Cat C9
Cyl/Turbo/Intercooler6TI6TI
Displacement8804 cm³8804 cm³
Bore x stroke112×149 mm112×149 mm
Rated power305/2100 hp DIN/rpm344/2100 hp DIN/rpm

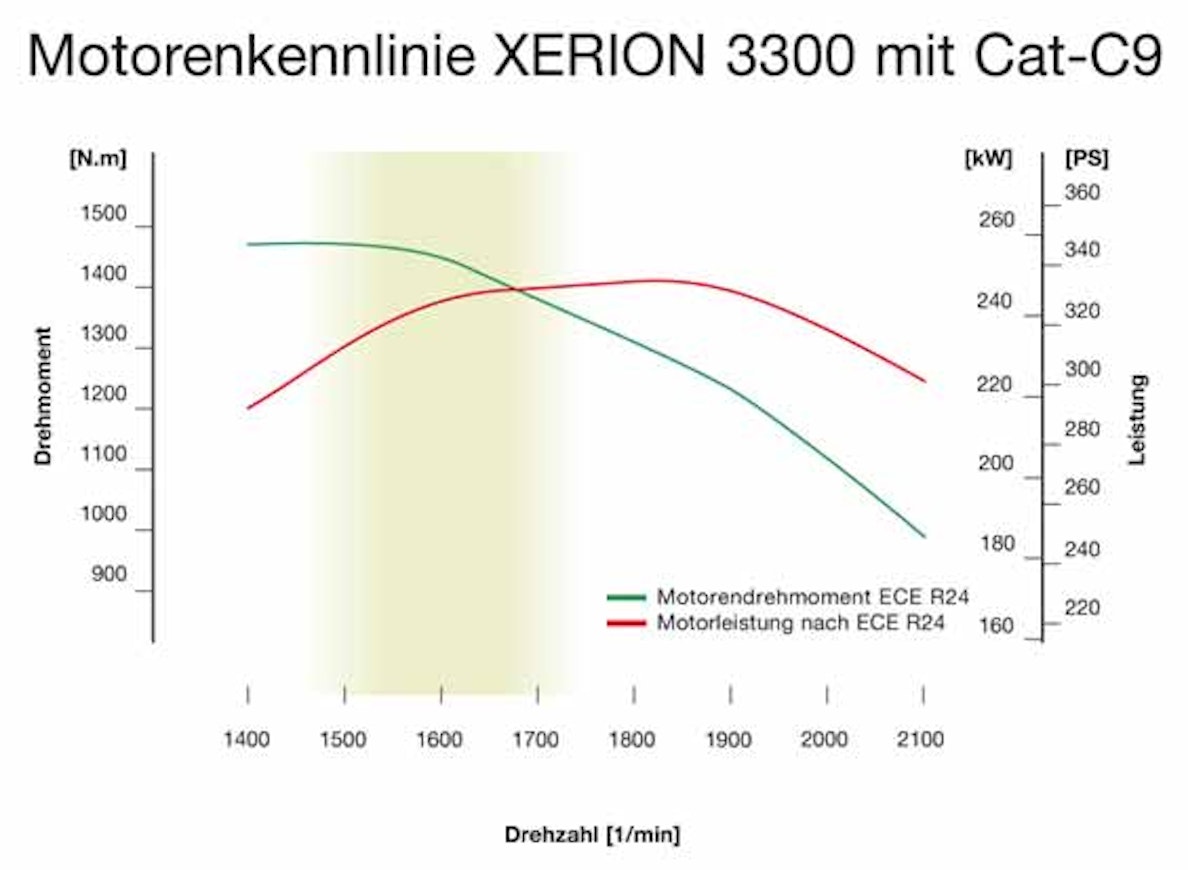

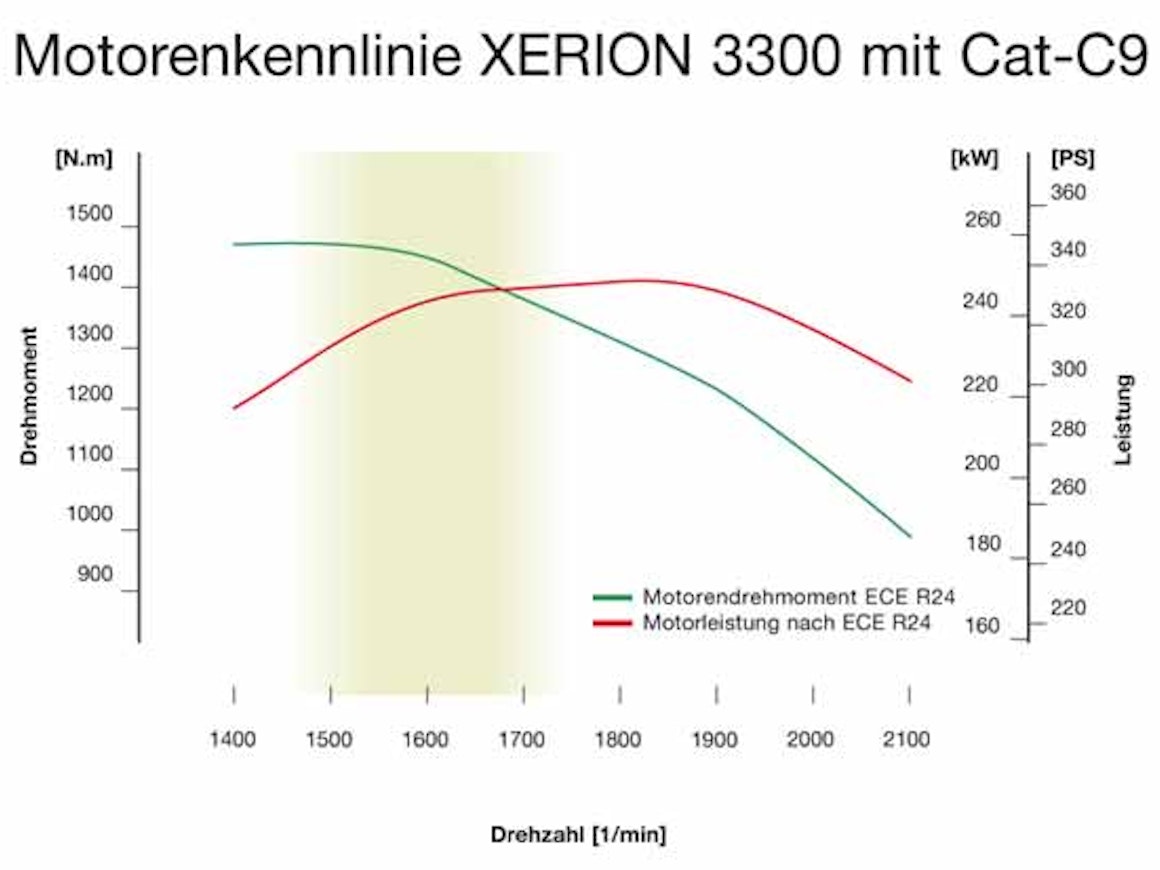

Max power335/1700 hp DIN/rpm379/1700 hp DIN/rpm
Torque--
Gearssteplessstepless
Synchronized gearssteplessstepless
Powershift gearssteplessstepless
Reversersteplessstepless
Speeds in km/h0-500-50
Max. speed 40/50 km/h40/50 km/h
Hydr. flow l/min150 l/min190 l/min
Hydraulic pressure200 bar260 bar
Lift controlselec.elec.
Lift capacity11500, 7000 kg11500, 7000 kg
PTO speeds10001000
Brakeswet discwet disc
Steeringhydrost.hydrost.
Turning circle m 4WD1212
Front tyres 4WD800/65R32800/65R32
Rear tyres 4WD800/65R32800/65R32
Weight 4WD10200 kg10200 kg
Height with cab372 cm372 cm
Length (2WD/4WD)663 cm663 cm
Wheelbase (2WD/4WD)330 cm330 cm
Fuel tank620 l620 l
Solid cabxx
Diff. lockdifferential lock with cogsdifferential lock with cogs
Autom. differential locksxx
Air suspension seatxx
Air conditioningxx
Trip computerxx
Creeper gearxx
