Renault began cooperation with Carraro in 1986, and Claas also continued having its smallest models manufactured in Italy. The Nectis models, mainly aimed at viticulture and fruit growing, were replaced by the updated Nexos, and alongside it, the larger Elios was introduced for general use. The engines were made by Fiat Powertrain Technologies, but all models now had a 4-cylinder 3.2-liter turbocharged engine. The transmission featured Carraro options also used in many other compact tractors. The basic transmission was 12+12 with a mechanical shuttle. As an optional extra, a mechanical or hydraulic quick-shift was available, increasing the gears to 24+24. The most advanced 24+12 version had a hydraulic shuttle and quick-shift. Four-wheel drive was electrically engaged. Optional extras included air conditioning, an electric power take-off (PTO), and electric valves for the hydraulics. The cab noise level was not specified, but the cab was quite basic.

Alongside the Elios, Claas sold the Talos series outside Western Europe, which was manufactured by the Korean company LS.

This is an automated translation. Please report any issues in the translation.

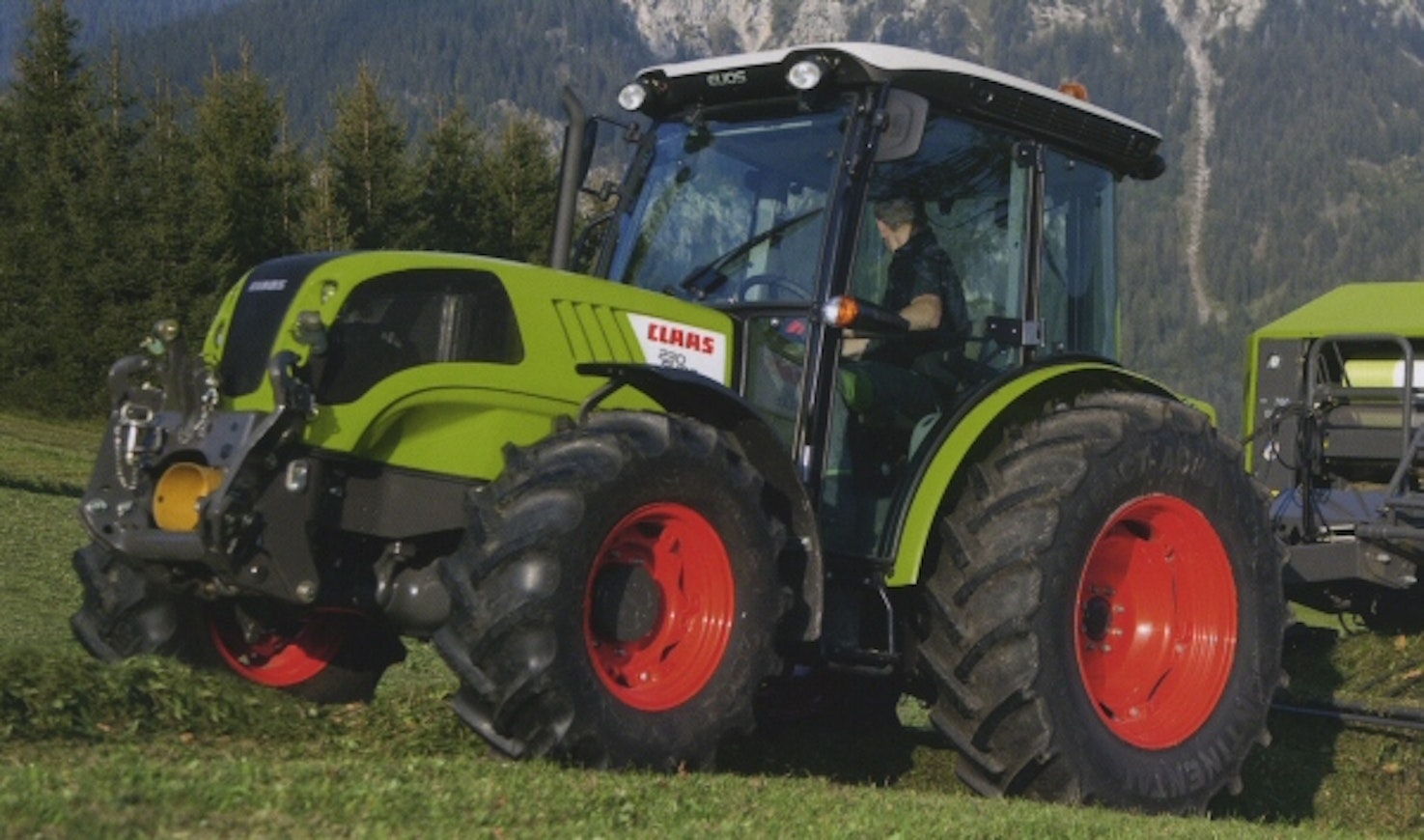

Claas Elios 210

malli

hinta (sis. alv)

Series specifier

Manufacturer name

Model specifier

Imported to Finland

Years

Engine model

Cyl/Turbo/Intercooler

Displacement

Bore x stroke

Rated power

Max power

Torque

Gears

Creeper speeds

Synchronized gears

Powershift gears

Reverser

Speeds in km/h

Max. speed

Hydr. flow l/min

Hydraulic pressure

Lift controls

Lift capacity

PTO speeds

Brakes

Steering

Turning circle m 2WD

Turning circle m 4WD

Front tyres 2WD

Front tyres 4WD

Rear tyres 2WD

Rear tyres 4WD

Weight 2WD

Weight 4WD

Height with cab

Length (2WD/4WD)

Wheelbase (2WD/4WD)

Fuel tank

Cab noise level

Solid cab

Diff. lock

Autom. differential locks

Air suspension seat

Air conditioning

Trip computer

Creeper gear

sylinterien lukumäärä

iskutilavuus

iskusuhde

suurin vääntömomentti, nm

suurin vääntömomentti, r/min

vääntömomentin nousu

polttonesteen kulutus suurimman tehon pisteessä

kytkimen tyyppi

ajovoimanotto

nopeus eteenpäin moottorin nimellisnopeudella, pienin

nopeus eteenpäin moottorin nimellisnopeudella, suurin

jarrut

hydrauliikan suurin paine

hydrauliikan suurin tuotto

nostolaitehydrauliikan hallinta

ulkopuolinen hydrauliikka, venttiililohkoja

1-toimisia

2-toimisia

nostovoima (kn=100 kg)

hydrauliikan tyyppi

kääntöympyrän halkaisija ilman ohjausjarrua

eturenkaat

takarenkaat

kokonaismassa säiliöt täynnä vakiovarustein

etuakselipaino

taka-akselipaino

suurin korkeus (ohjaamon ylimpään kohtaan)

kokonaispituus

akseliväli

maavara, pienin

polttoainesäiliön tilavuus

korkein melutaso

etuakselin tasauspyörästön lukko

etunostolaite

etulokasuojat

ilmastointilaite

perävaunun jarruventtiili

ilmaistuin

ohjauksen tyyppi

Claas Elios 220

Claas Elios 230

Claas Elios 210-230

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Claas Elios 210	Claas Elios 220	Claas Elios 230
Manufacturer name	Claas	Claas	Claas
Imported to Finland	No	No	No
Years	2009-14	2009-14	2009-14
Engine model	FPT F5C	FPT F5C	FPT F5C
Cyl/Turbo/Intercooler	4T	4TI	4TI
Displacement	3200 cm³	3200 cm³	3200 cm³
Bore x stroke	99×104 mm	99×104 mm	99×104 mm
Rated power	-	-	-
Torque	-	-	-
Gears	12+12/24+24	12+12/24+24	12+12/24+24
Synchronized gears	12+12/24+24	12+12/24+24	12+12/24+24
Powershift gears	-/mech./hydr.	-/mech./hydr.	-/mech./hydr.
Reverser	mech./hydr.	mech./hydr.	mech./hydr.

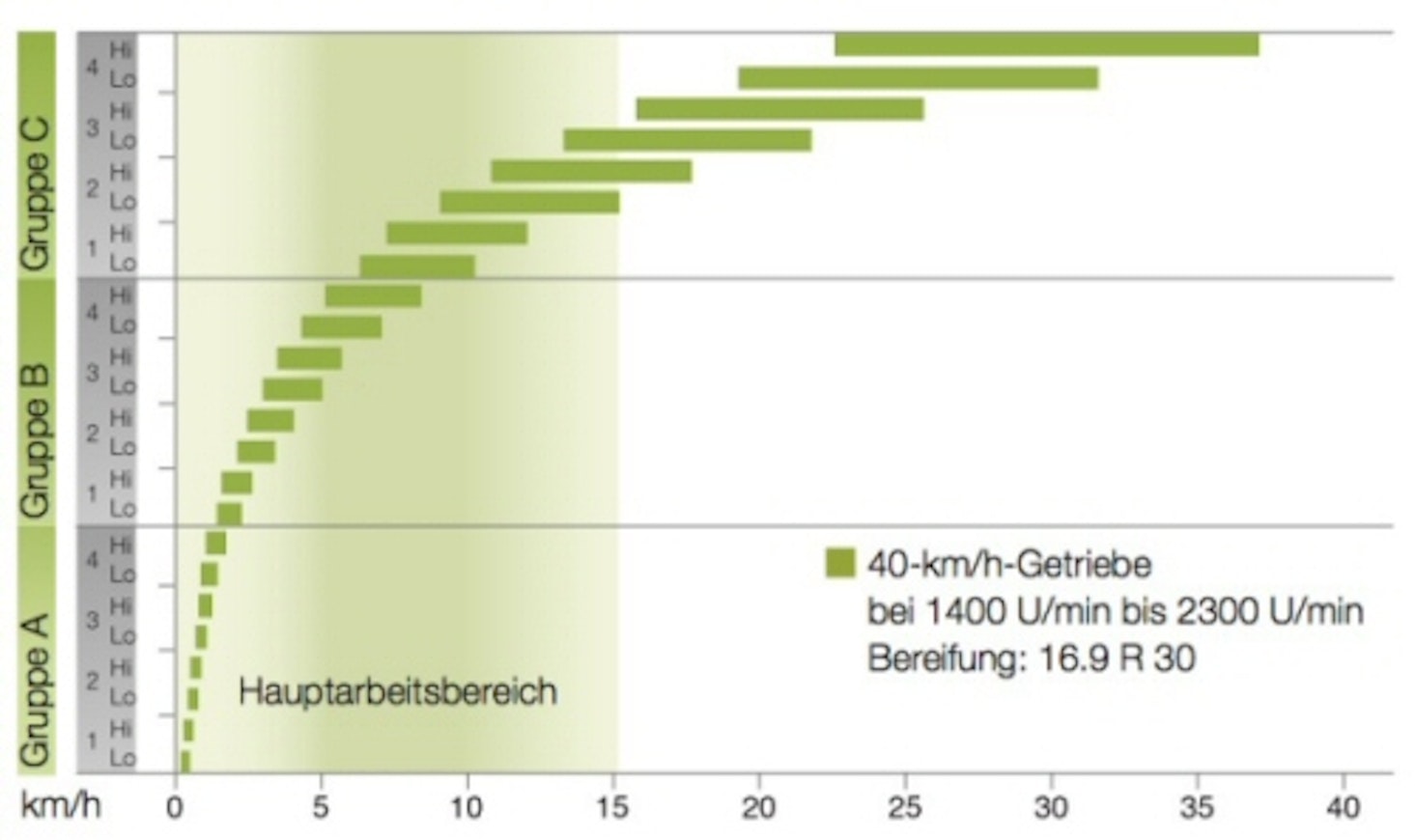

Speeds in km/h	0,5-40	0,5-40	0,5-40
Max. speed	30/40 km/h	30/40 km/h	30/40 km/h
Hydr. flow l/min	59 l/min	59 l/min	59 l/min
Hydraulic pressure	190 bar	190 bar	190 bar
Lift controls	mech. (elec.)	mech. (elec.)	mech. (elec.)
Lift capacity	3100/3240 kg	3100/3240 kg	3100/3240 kg
PTO speeds	540/1000	540/1000	540/1000
Brakes	wet disc	wet disc	wet disc
Steering	hydrost.	hydrost.	hydrost.
Turning circle m 4WD	7.46	7.46	7.46
Front tyres 2WD	7.50-16	7.50-16	7.50-16
Front tyres 4WD	11.2R24	11.2R24	11.2R24
Rear tyres 2WD	12.4R36	12.4R36	12.4R36
Rear tyres 4WD	16.9R30	16.9R30	16.9R30
Weight 4WD	3165 kg	3165 kg	3165 kg
Height with cab	240 cm	240 cm	240 cm
Length (2WD/4WD)	402 cm	402 cm	402 cm
Wheelbase (2WD/4WD)	210 cm	210 cm	210 cm
Fuel tank	80/70 l	80/70 l	80/70 l
Solid cab	(x)	(x)	(x)
Diff. lock	friction lock	friction lock	friction lock
