Siirry sivupalkkiinSiirry alaosaanClaas Celtis 426-456

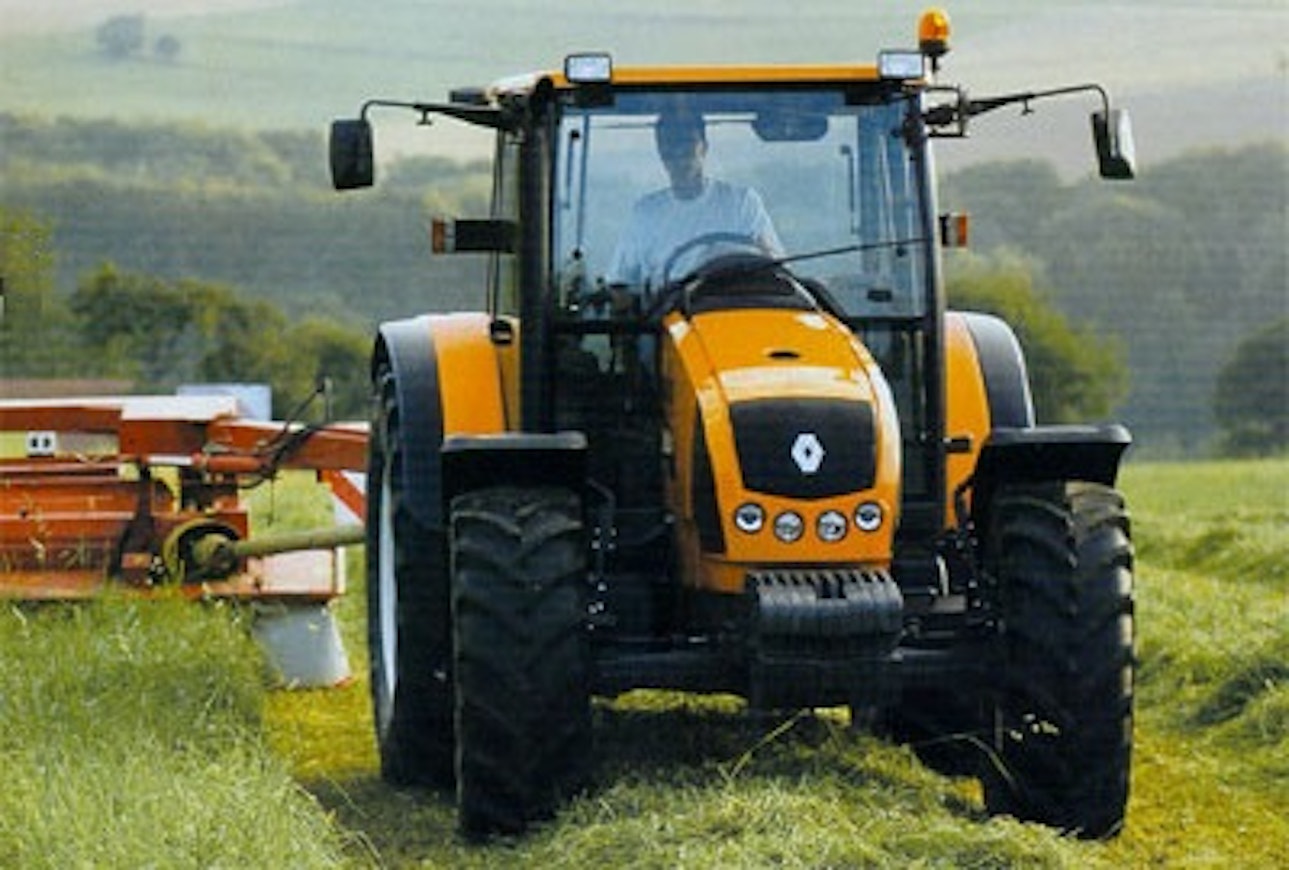

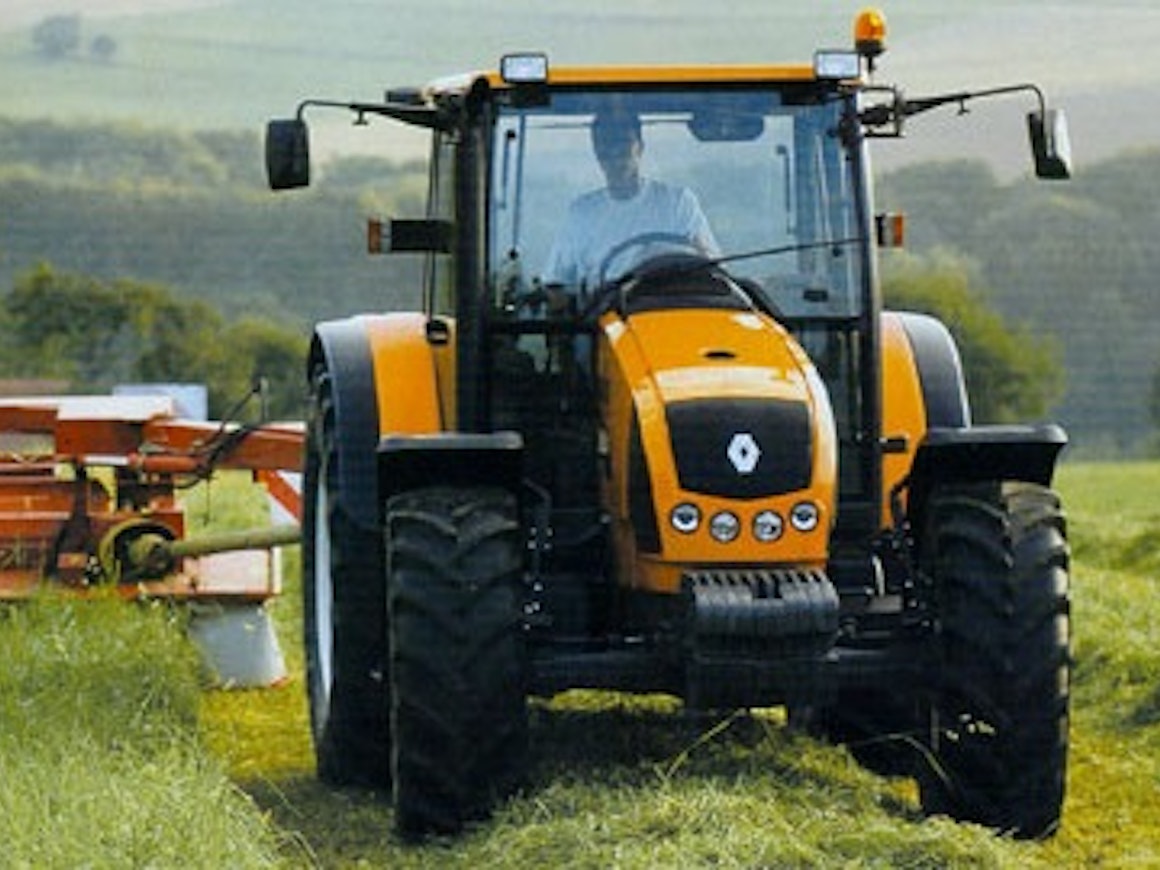

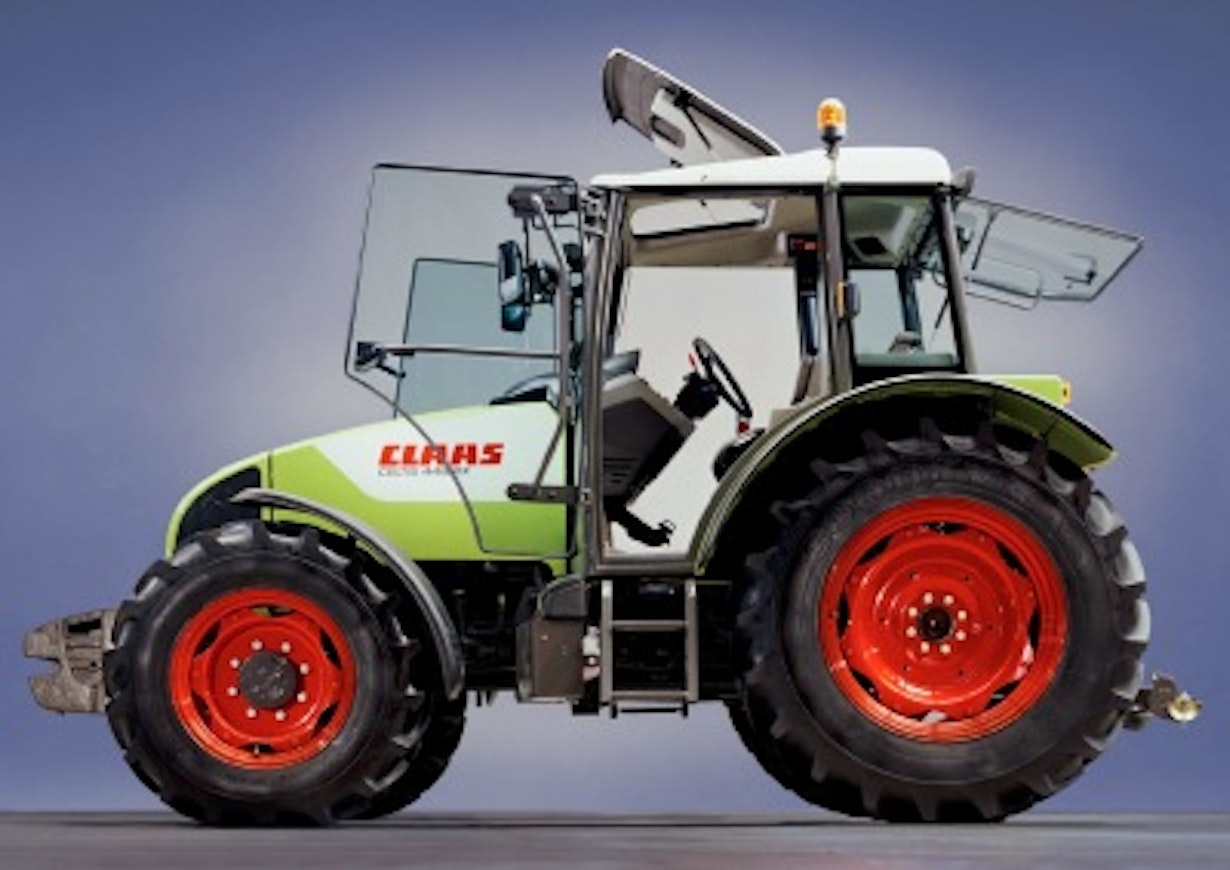

The last tractor series introduced under the Renault name was the 2003 Celtis, which replaced the Cérés. That same autumn, the tractor brand changed to Claas outside of France. The engines were 4.5-liter Deere units, with the two largest being turbocharged. Power outputs ranged from 72 to 97 hp, meaning each model was a few horsepower more powerful than its predecessor. Regarding the transmission, a cheaper technology was offered: the basic transmission was 10+10 without a creeper gear, and as an option, a mechanical or hydraulic creeper gear could be added. A hydraulic shuttle was also available as an option. Alongside the base Profin model, there was a more expensive Comfort model, which came standard with many accessories. Overall, the equipment options were extensive for this size class.

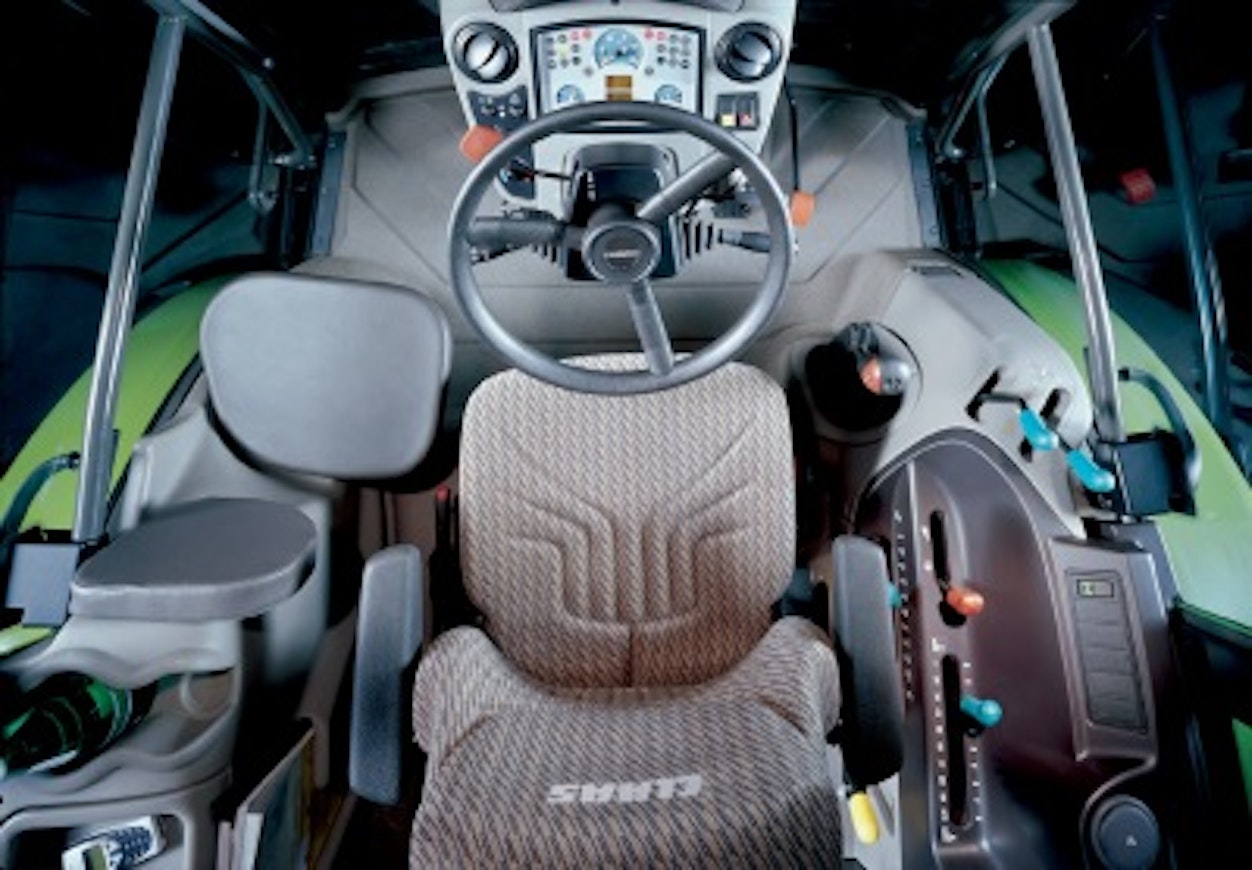

The three smallest Celtis models were also available in rear-wheel-drive versions, with a top speed of 30 km/h. The front axle for the four-wheel-drive versions was manufactured by Carraro. The hydraulic output was 69 liters per minute. Lifting capacity ranged from 2700 to 4600 kg depending on the model. The cab was standardly a low model, but a 14 cm taller comfort cab could be purchased as an extra. There was also a version in the production lineup equipped with a rollover protective structure.
In the 2005 model year, engine power increased by 3 horsepower due to emission updates for all models except the smallest one, and the 80-hp 436 received a turbocharger. The cab noise level dropped to 73 decibels.
This is an automated translation. Please report any issues in the translation.
| Model | Claas Celtis 426 | Claas Celtis 436 | Claas Celtis 446 | Claas Celtis 456 | Claas Celtis 426 | Claas Celtis 436 | Claas Celtis 446 | Claas Celtis 456 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer name | Claas | Claas | Claas | Claas | Claas | Claas | Claas | Claas |
| Imported to Finland | No | No | No | No | No | No | No | No |
| Years | 2003-04 | 2003-04 | 2003-04 | 2003-04 | 2004-08 | 2004-08 | 2004-08 | 2004-08 |
| Engine model | DPS 4045 DRT70 | DPS 4045 DRT70 | DPS 4045 DRT71 | DPS 4045 DRT72 | DPS 4045 DRT | DPS 4045 TRT | DPS 4045 TRT | DPS 4045 TRT |
| Cyl/Turbo/Intercooler | 4 | 4 | 4T | 4T | 4 | 4T | 4T | 4T |
| Displacement | 4530 cm³ | 4530 cm³ | 4530 cm³ | 4530 cm³ | 4530 cm³ | 4530 cm³ | 4530 cm³ | 4530 cm³ |
| Bore x stroke | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm | 106,5×127 mm |
| Rated power | 72/2350 hp DIN/rpm | 77/2350 hp DIN/rpm | 87/2350 hp DIN/rpm | 97/2350 hp DIN/rpm | 72/2200 hp DIN/rpm | 80/2200 hp DIN/rpm | 90/2200 hp DIN/rpm | 100/2200 hp DIN/rpm |
| Max power | 75/2000 hp DIN/rpm | 84/2000 hp DIN/rpm | 92/2000 hp DIN/rpm | 102/2000 hp DIN/rpm | 74/2000 hp DIN/rpm | 82/2000 hp DIN/rpm | 92/2000 hp DIN/rpm | 102/2000 hp DIN/rpm |
| Torque | - | - | - | - | - | - | - | - |
| Gears | 10+10/20+20 | 10+10/20+20 | 10+10/20+20 | 10+10/20+20 | 10+10/20+20 | 10+10/20+20 | 10+10/20+20 | 10+10/20+20 |
| Synchronized gears | 10+10/20+20 | 10+10/20+20 | 10+10/20+20 | 10+10/20+20 | 10+10/20+20 | 10+10/20+20 | 10+10/20+20 | 10+10/20+20 |
| Powershift gears | -/mech./hydr. | -/mech./hydr. | -/mech./hydr. | -/mech./hydr. | -/mech./hydr. | -/mech./hydr. | -/mech./hydr. | -/mech./hydr. |
| Reverser | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. |
| Speeds in km/h | 1,8-36,3 | 1,8-36,3 | 1,8-36,3 | 1,8-36,3 | 1,8-36,3 | 1,8-36,3 | 1,8-36,3 | 1,8-36,3 |
| Max. speed | 30/40 km/h | 30/40 km/h | 30/40 km/h | 30/40 km/h | 30/40 km/h | 30/40 km/h | 30/40 km/h | 30/40 km/h |
| Hydr. flow l/min | 69 l/min | 69 l/min | 69 l/min | 69 l/min | 69 l/min | 69 l/min | 69 l/min | 69 l/min |
| Hydraulic pressure | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar |
| Lift controls | mech. (elec.) | mech. (elec.) | mech. (elec.) | mech. (elec.) | mech. (elec.) | mech. (elec.) | mech. (elec.) | mech. (elec.) |
| Lift capacity | 2700 kg | 3500 kg | 3500 kg | 4600 kg | 2700 kg | 3500 kg | 3500 kg | 4600 kg |
| PTO speeds | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 8.6 | 8.6 | 8.6 | 8.6 | 8.6 | 8.7 | 8.7 | 8.6 |
| Front tyres 4WD | 11.2R24 | 13.6R24 | 13.6R24 | 13.6R28 | 11.2R24 | 13.6R24 | 13.6R24 | 13.6R28 |
| Rear tyres 4WD | 16.9R30 | 16.9R34 | 16.9R34 | 16.9R38 | 16.9R30 | 16.9R34 | 16.9R34 | 16.9R38 |
| Weight 4WD | 3730 kg | 3760 kg | 3790 kg | 3830 kg | 3730 kg | 3760 kg | 3790 kg | 3830 kg |
| Height with cab | 246 (260) cm | 251 (265) cm | 251 (265) cm | 256 (270) cm | 246 (260) cm | 251 (265) cm | 251 (265) cm | 256 (270) cm |
| Length (2WD/4WD) | 381 cm | 387 cm | 396 cm | 396 cm | 381 cm | 387 cm | 396 cm | 396 cm |
| Wheelbase (2WD/4WD) | 252/249 cm | 252/249 cm | 252/249 cm | 249 cm | 252/249 cm | 252/249 cm | 252/249 cm | 249 cm |
| Fuel tank | 145 l | 145 l | 145 l | 145 l | 145 l | 145 l | 145 l | 145 l |
| Cab noise level | 76 dB | 76 dB | - | - | 73 dB | 73 dB | 73 dB | 73 dB |
| Solid cab | x | x | x | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock |
| Creeper gear | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. |
