Siirry sivupalkkiinSiirry alaosaanClaas Axos 310-340








Sure! Here is the translation of your text to English:

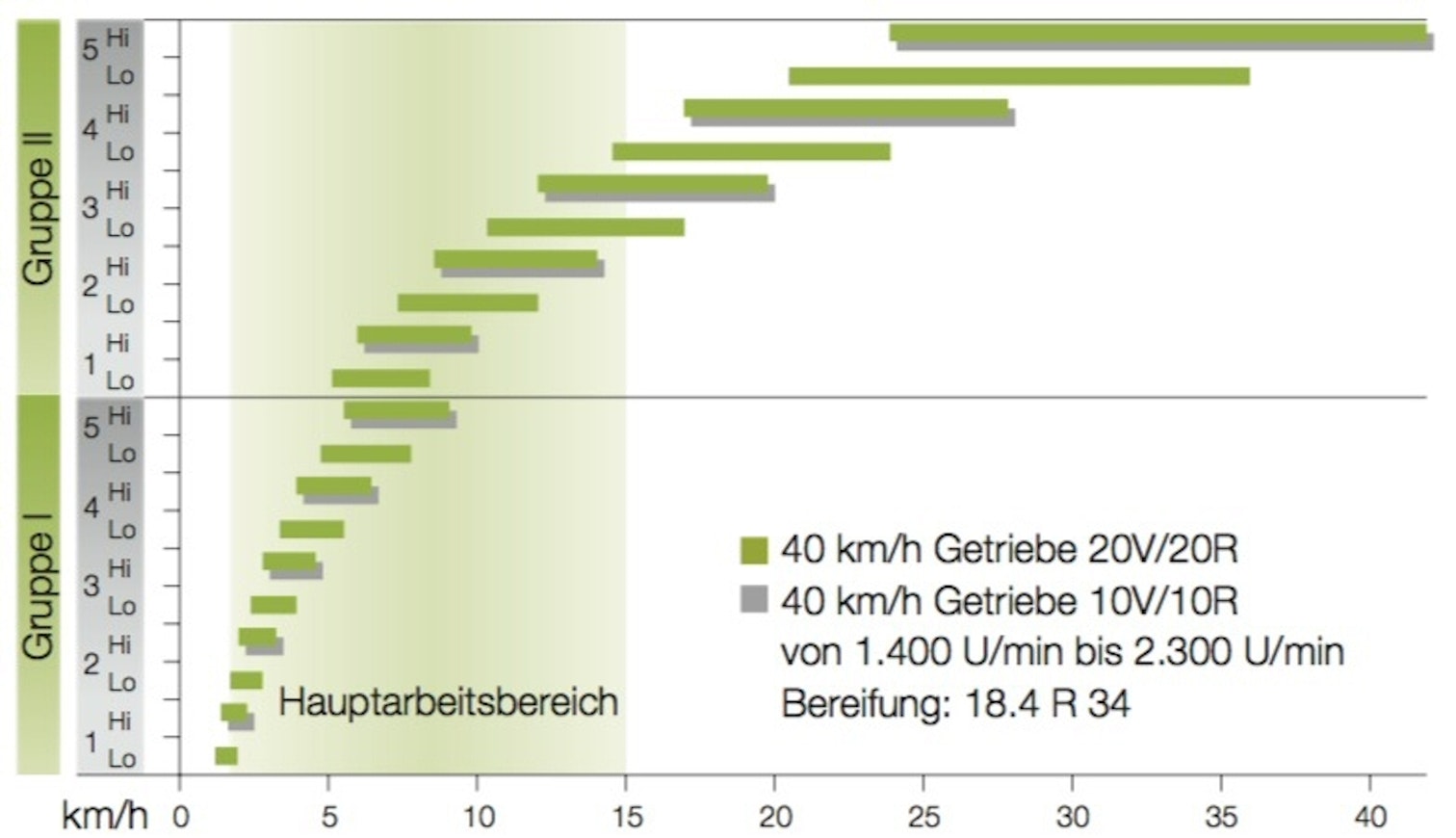

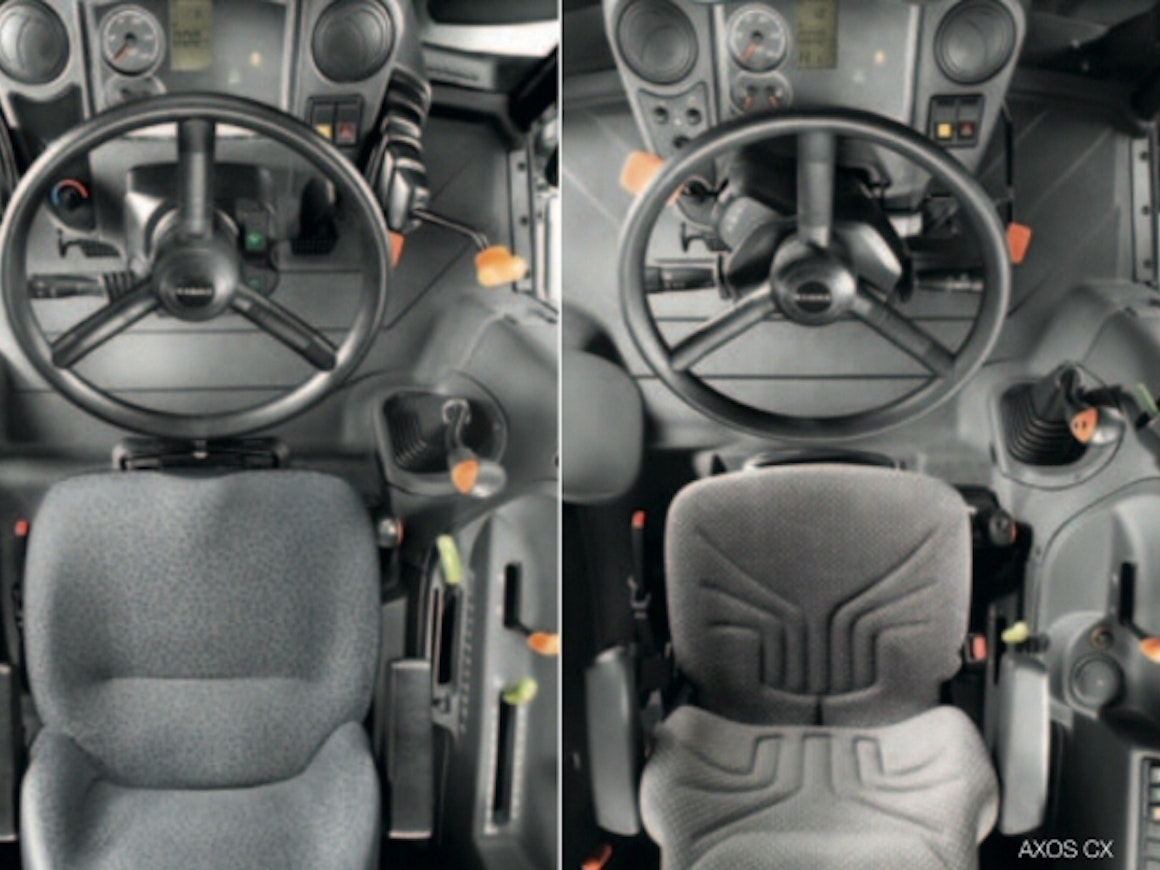

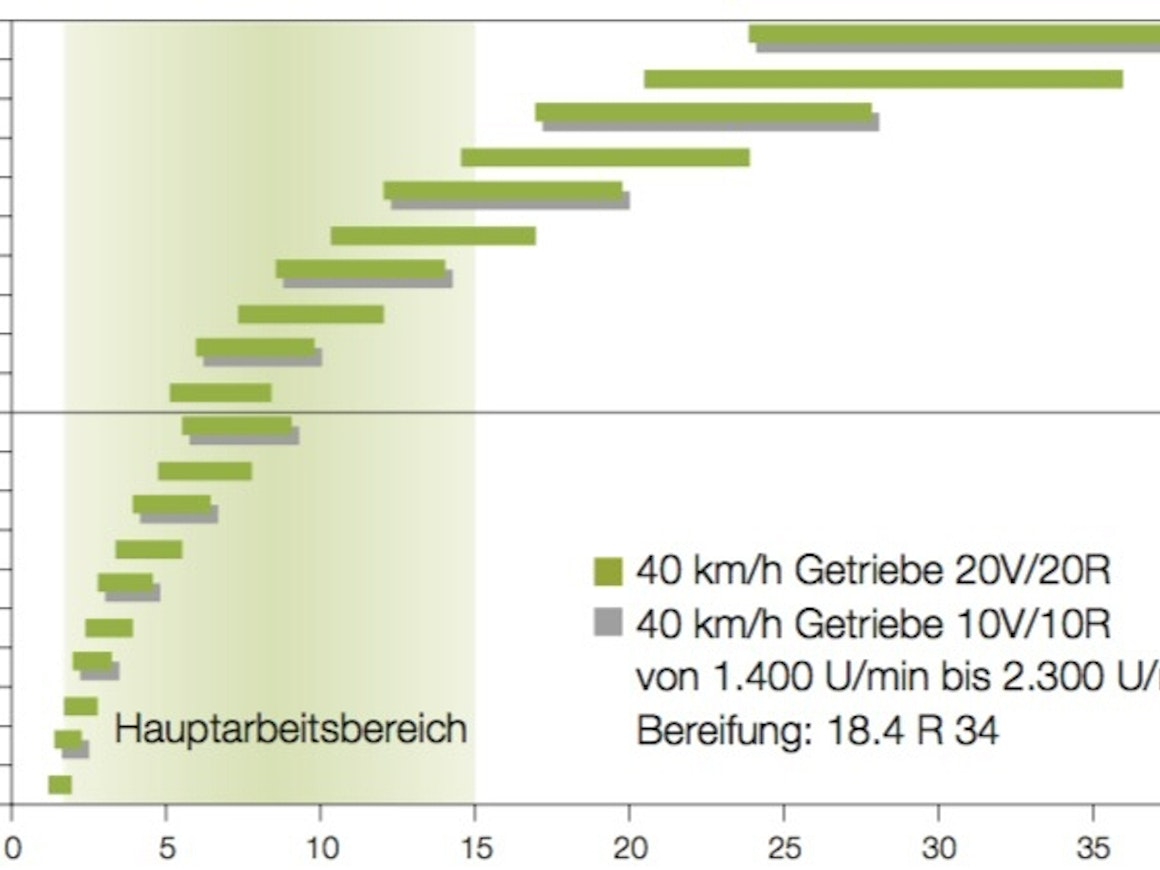

In the autumn of 2008, the Axos series, which replaced the Celtis range, still had strong Renault genes. Technically, no major advancements had been made; the features were mostly on par with its predecessor. For the engine supplier, Claas had chosen Perkins instead of Deere, who supplied the previous model. All models had a 4.4-liter mechanically controlled Tier 3 engine with exhaust gas recirculation. Maximum power was achieved at 2000…2300 rpm. The transmission was the 10+10 type that Renault had used in many model generations. With the help of a mechanical splitter (available at an extra cost), 20+20 gears were possible. The CL model had a 10+10 setup equipped with an electrohydraulic reverser and button clutch. In the CX model, this was combined with a two-stage hydraulic powershift. Other CX model features included an air seat, adjustable steering wheel, and telescopic mirrors. The electric lift arms were available as an option only on the CX model. The cab remained the same as before, except for the roof section. The higher-roofed version had a large skylight. The broader equipment options were made possible by a new cab factory completed in 2008, where each cab was built to customer order.
This is an automated translation. Please report any issues in the translation.
| Model | Claas Axos 310 | Claas Axos 320 | Claas Axos 330 | Claas Axos 340 |
|---|---|---|---|---|
| Manufacturer name | Claas | Claas | Claas | Claas |
| Imported to Finland | No | No | No | No |
| Years | 2008-14 | 2008-15 | 2008-15 | 2008-15 |
| Engine model | Perkins 1104D-44 T | Perkins 1104D-44 T | Perkins 1104D-44 TA | Perkins 1104D-44 TA |
| Cyl/Turbo/Intercooler | 4T | 4T | 4TI | 4TI |
| Displacement | 4400 cm³ | 4400 cm³ | 4400 cm³ | 4400 cm³ |
| Bore x stroke | 100×127 mm | 100×127 mm | 100×127 mm | 100×127 mm |

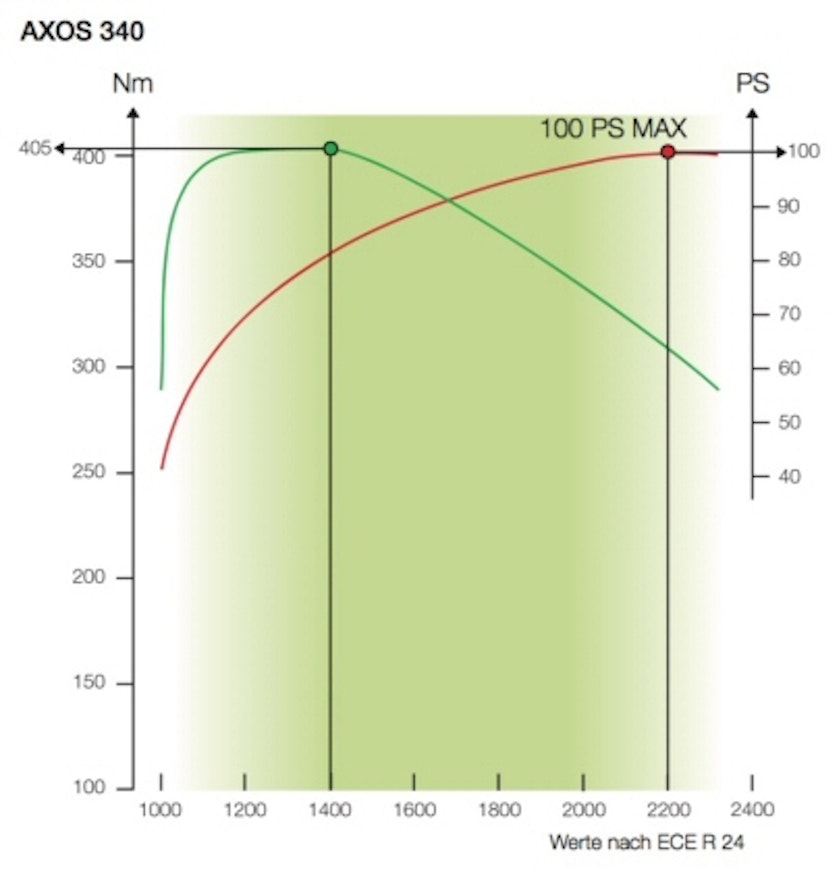

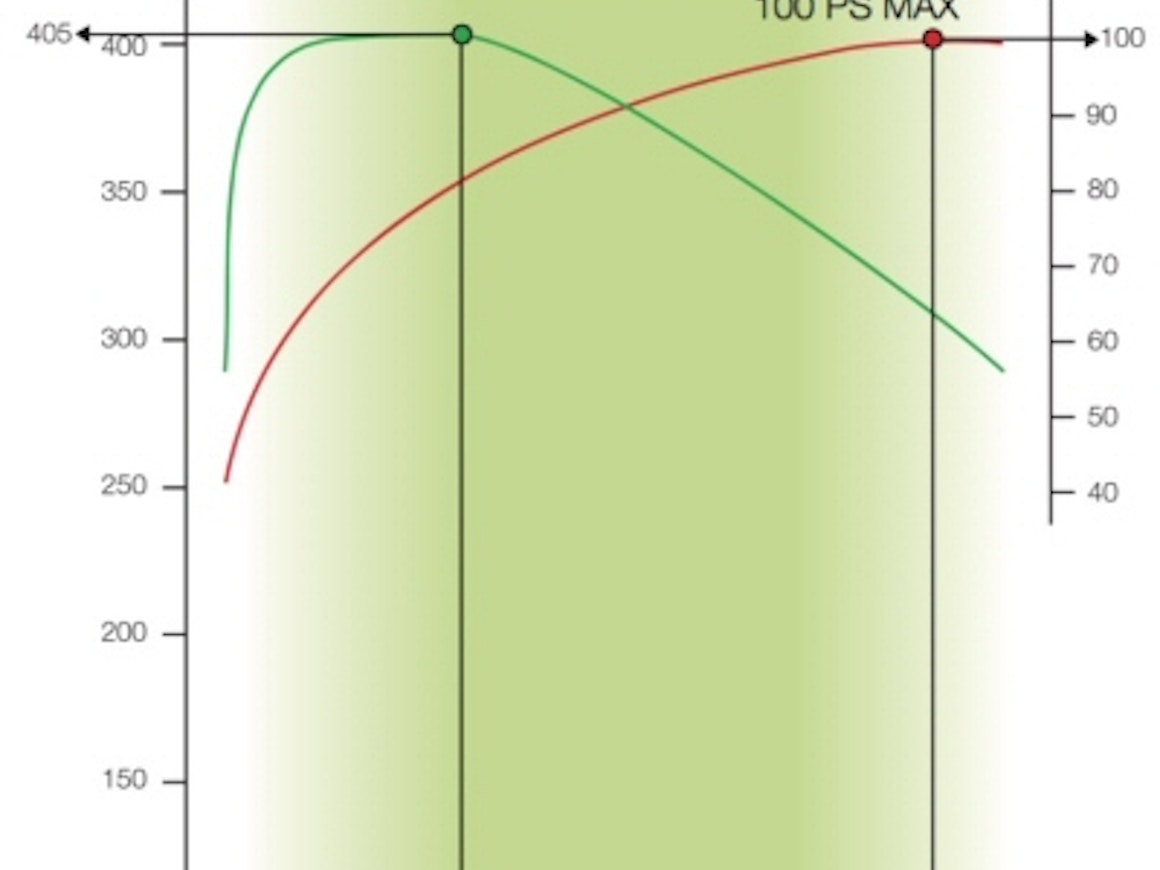

| Rated power | 74/2300 hp DIN/rpm | 86/2300 hp DIN/rpm | 90/2300 hp DIN/rpm | 100/2300 hp DIN/rpm |
| Torque | - | - | - | - |
| Gears | 10+10/20+20 | 10+10/20+20 | 10+10/20+20 | 10+10/20+20 |
| Synchronized gears | 10+10/20+20 | 10+10/20+20 | 10+10/20+20 | 10+10/20+20 |
| Powershift gears | -/mech./hydr. | -/mech./hydr. | -/mech./hydr. | -/mech./hydr. |
| Reverser | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. |
| Speeds in km/h | 1,9-40 | 1,9-40 | 1,9-40 | 1,9-40 |
| Max. speed | 40 km/h | 40 km/h | 40 km/h | 40 km/h |
| Hydr. flow l/min | 60 l/min | 60 l/min | 60 l/min | 60 l/min |
| Hydraulic pressure | 180 bar | 180 bar | 180 bar | 180 bar |
| Lift controls | mech. (elec.) | mech. (elec.) | mech. (elec.) | mech. (elec.) |
| Lift capacity | 3300/4200 kg | 4200 kg | 4200 kg | 5100 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 8.6 | 8.6 | 8.6 | 8.8 |
| Front tyres 4WD | 11.2R24 | 13.6R24 | 13.6R24 | 13.6R28 |
| Rear tyres 4WD | 16.9R30 | 16.9R34 | 16.9R34 | 16.9R38 |
| Weight 4WD | 3650 kg | 3730 kg | 3730 kg | 4200 kg |
| Height with cab | 243/258 cm | 248/263 cm | 248/263 cm | 253/267 cm |
| Length (2WD/4WD) | 418 cm | 418 cm | 418 cm | 418 cm |
| Wheelbase (2WD/4WD) | 249 cm | 249 cm | 249 cm | 249 cm |
| Fuel tank | 145 l | 145 l | 145 l | 145 l |
| Cab noise level | 74 dB | 74 dB | 74 dB | 74 dB |
| Solid cab | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock |
| Creeper gear | opt. | opt. | opt. | opt. |
