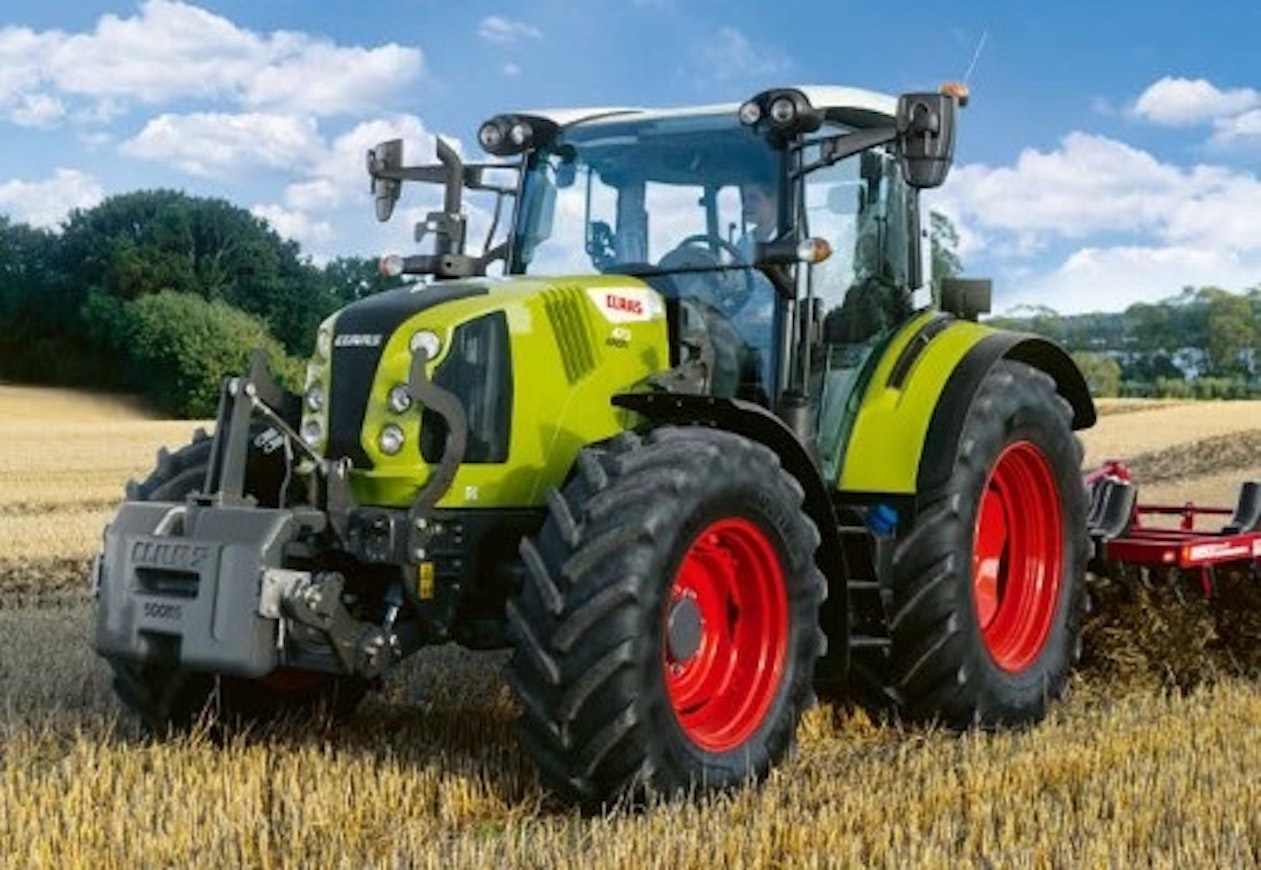

Siirry sivupalkkiinSiirry alaosaanClaas Arion 410-470

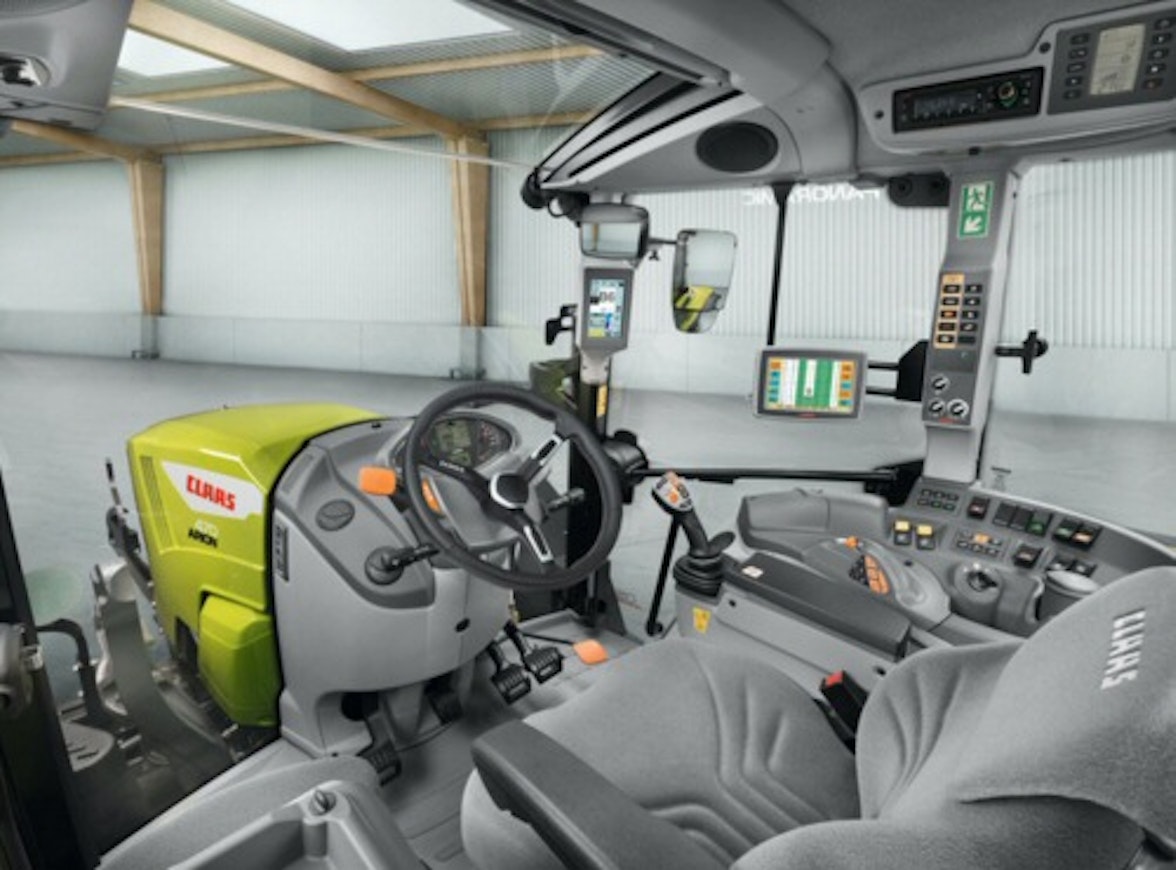

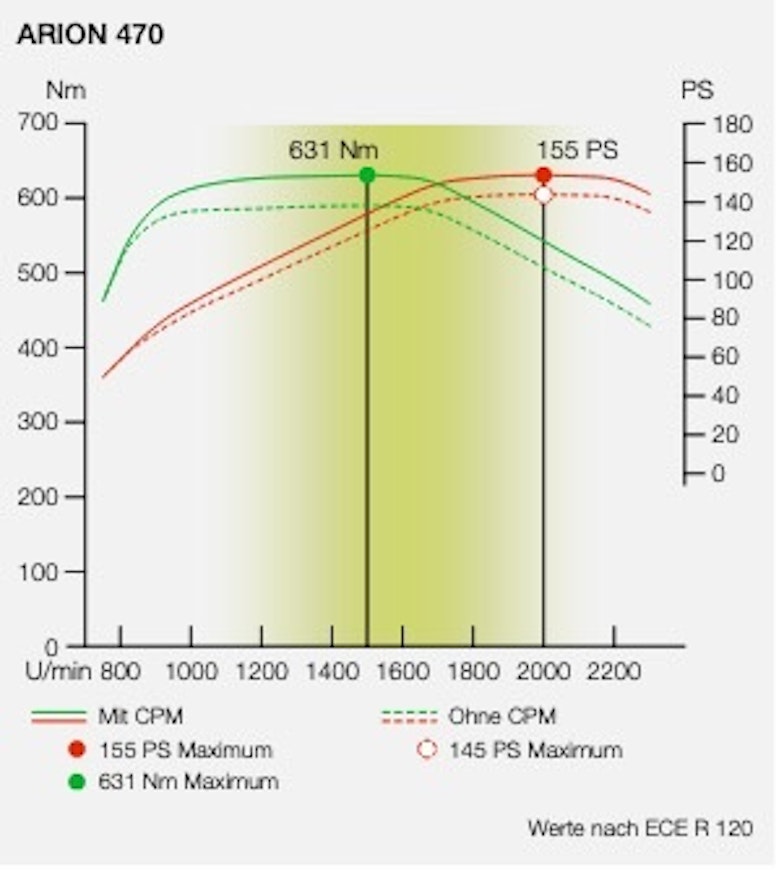

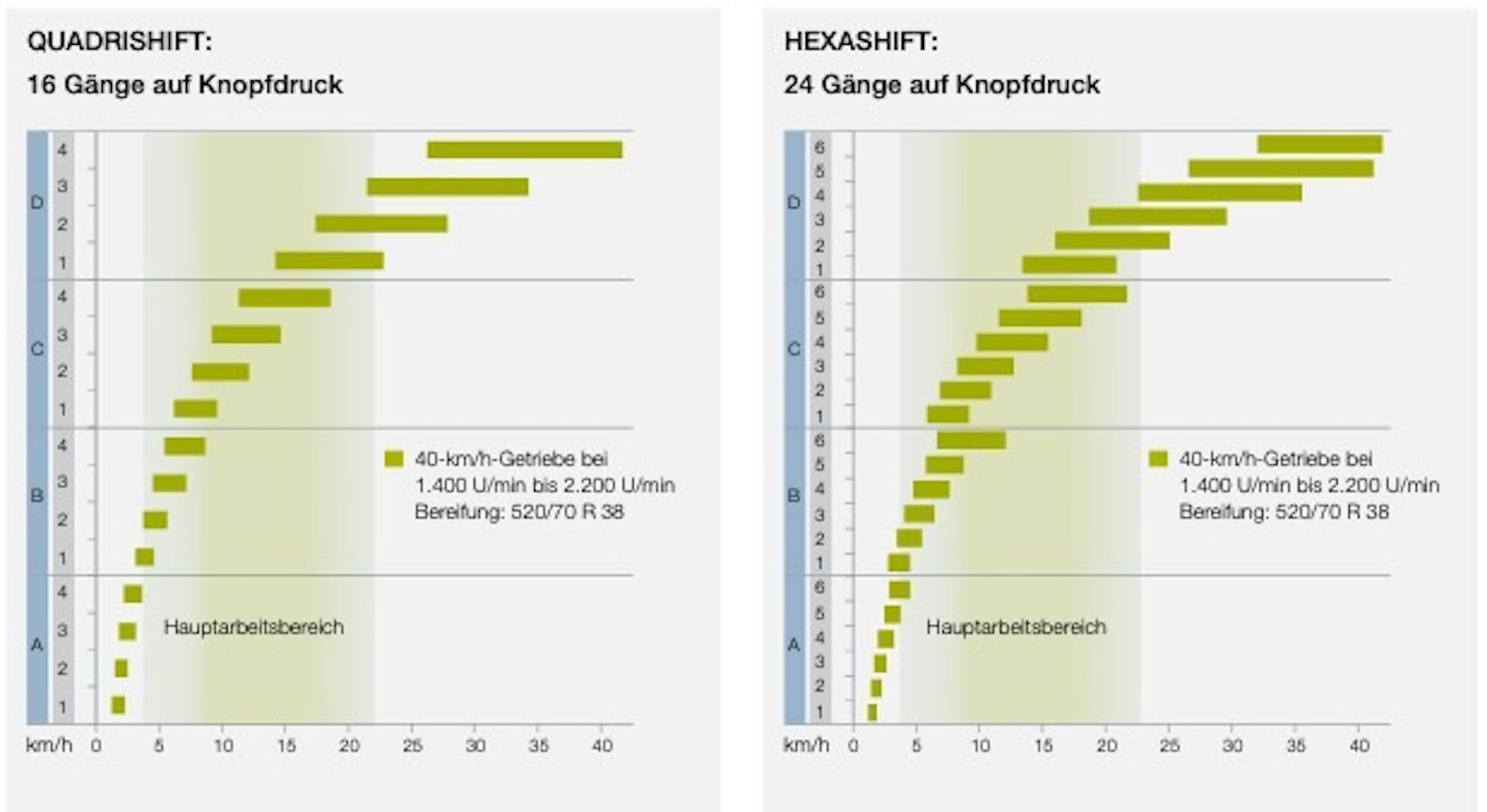

In March 2021, the Arion 400 series was updated. The 4.5-liter FPT engines equipped with four-valve technology were now Stage V compliant. At the top of the range, the Arion 470 was introduced, with a maximum power output of 155 horsepower. New for the Arion 440 and larger models was increased power. Starting from the Arion 430, the turbochargers were equipped with a wastegate. The standard hydraulics featured an open system pump with a capacity of 60 or 100 l/min. A new feature was a 150 l/min closed system. A 110 l/min closed system was also still available. Electric valves were available as an optional accessory with the closed system. Transmission options remained 16+16 and 24+24, corresponding to MF’s Dyna-4 and Dyna-6 transmissions. Four-wheel drive could now be automatically disconnected when turning the front wheels at the headlands. The top speed was 40 km/h. In the CIS version, in addition to the base model, there were engine speed memory functions, an armrest joystick and display, as well as a 100 l/min pump. The CIS+ featured closed hydraulics, a color display on the A-pillar, and a more multifunctional joystick. The appearance was updated, but the cab remained nearly unchanged. A new version, the Arion 400 M, designed for municipal technical work, was equipped with a 5-post cab and polycarbonate side windows.
This is an automated translation. Please report any issues in the translation.
| Model | Claas Arion 410 | Claas Arion 420 | Claas Arion 430 | Claas Arion 440 | Claas Arion 450 | Claas Arion 460 | Claas Arion 470 |
|---|---|---|---|---|---|---|---|
| Manufacturer name | Claas | Claas | Claas | Claas | Claas | Claas | Claas |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 2021- | 2021- | 2021- | 2021- | 2021- | 2021- | 2021- |
| Engine model | FPT NEF 4 | FPT NEF 4 | FPT NEF 4 | FPT NEF 4 | FPT NEF 4 | FPT NEF 4 | FPT NEF 4 |
| Cyl/Turbo/Intercooler | 4TI | 4TI | 4TI | 4TI | 4TI | 4TI | 4TI |
| Displacement | 4485 cm³ | 4485 cm³ | 4485 cm³ | 4485 cm³ | 4485 cm³ | 4485 cm³ | 4485 cm³ |
| Bore x stroke | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm |
| Rated power | - | - | - | - | - | - | - |
| Max power | - | - | - | - | - | - | - |
| Torque | - | - | - | - | - | - | - |
| Gears | 16+16 | 16+16 | 16+16/24+24 | 16+16/24+24 | 16+16/24+24 | 16+16/24+24 | 16+16/24+24 |
| Synchronized gears | 16+16 | 16+16 | 16+16/24+24 | 16+16/24+24 | 16+16/24+24 | 16+16/24+24 | 16+16/24+24 |
| Powershift gears | 4-step | 4-step | 4-step/6-step | 4-step/6-step | 4-step/6-step | 4-step/6-step | 4-step/6-step |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 2,0-40 | 2,0-40 | 2,0-40/1,8-40 | 2,0-40/1,8-40 | 2,0-40/1,8-40 | 2,0-40/1,8-40 | 2,0-40/1,8-40 |
| Max. speed | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h |
| Hydr. flow l/min | 100 (60-150) l/min | 100 (60-150) l/min | 100 (60-150) l/min | 100 (60-150) l/min | 100 (60-150) l/min | 100 (60-150) l/min | 100 (60-150) l/min |
| Hydraulic pressure | 195 bar | 195 bar | 195 bar | 195 bar | 195 bar | 195 bar | 195 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 4500 kg | 4500 kg | 5750 (6250) kg | 5750 (6250) kg | 5750 (6250) kg | 5750 (6250) kg | 5750 (6250) kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/750/1000 | 540/750/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 8.5 | 8.5 | 9 | 9 | 9.8 | 9.8 | 9.8 |
| Front tyres 4WD | 11.2R24 | 13.6R24 | 13.6R28 | 13.6R28 | 14.9R28 | 14.9R28 | 14.9R28 |
| Rear tyres 4WD | 16.9R30 | 16.9R34 | 16.9R38 | 16.9R38 | 16.9R38 | 16.9R38 | 16.9R38 |
| Weight 4WD | 4800 kg | 4800 kg | 5300 kg | 5300 kg | 5300 kg | 5300 kg | 5300 kg |
| Height with cab | 250/266 cm | 250/266 cm | 277 cm | 277 cm | 277 cm | 277 cm | 277 cm |
| Length (2WD/4WD) | 437 cm | 437 cm | 444 cm | 444 cm | 444 cm | 444 cm | 444 cm |
| Wheelbase (2WD/4WD) | 249 cm | 249 cm | 253 cm | 253 cm | 253 cm | 253 cm | 253 cm |
| Fuel tank | 140+AB17 l | 140+AB17 l | 190+AB22 l | 190+AB22 l | 190+AB22 l | 190+AB22 l | 190+AB22 l |
| Cab noise level | 73 dB | 73 dB | 73 dB | 73 dB | 73 dB | 73 dB | 73 dB |
| Solid cab | x | x | x | x | x | x | x |
| Diff. lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock |
| Autom. differential locks | x | x | x | x | x | x | x |
| Creeper gear | opt. | opt. | opt. | opt. | opt. | opt. | opt. |
