Siirry sivupalkkiinSiirry alaosaanLTZ-55 – LTZ-120

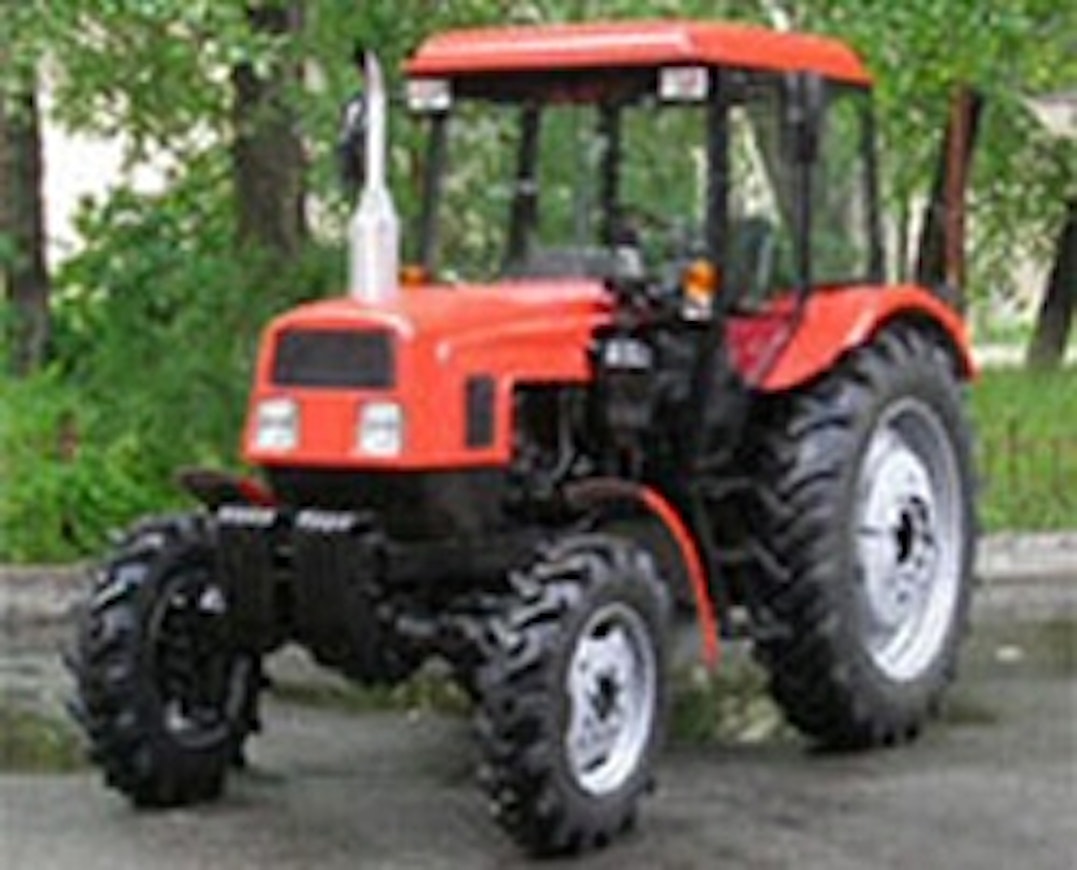

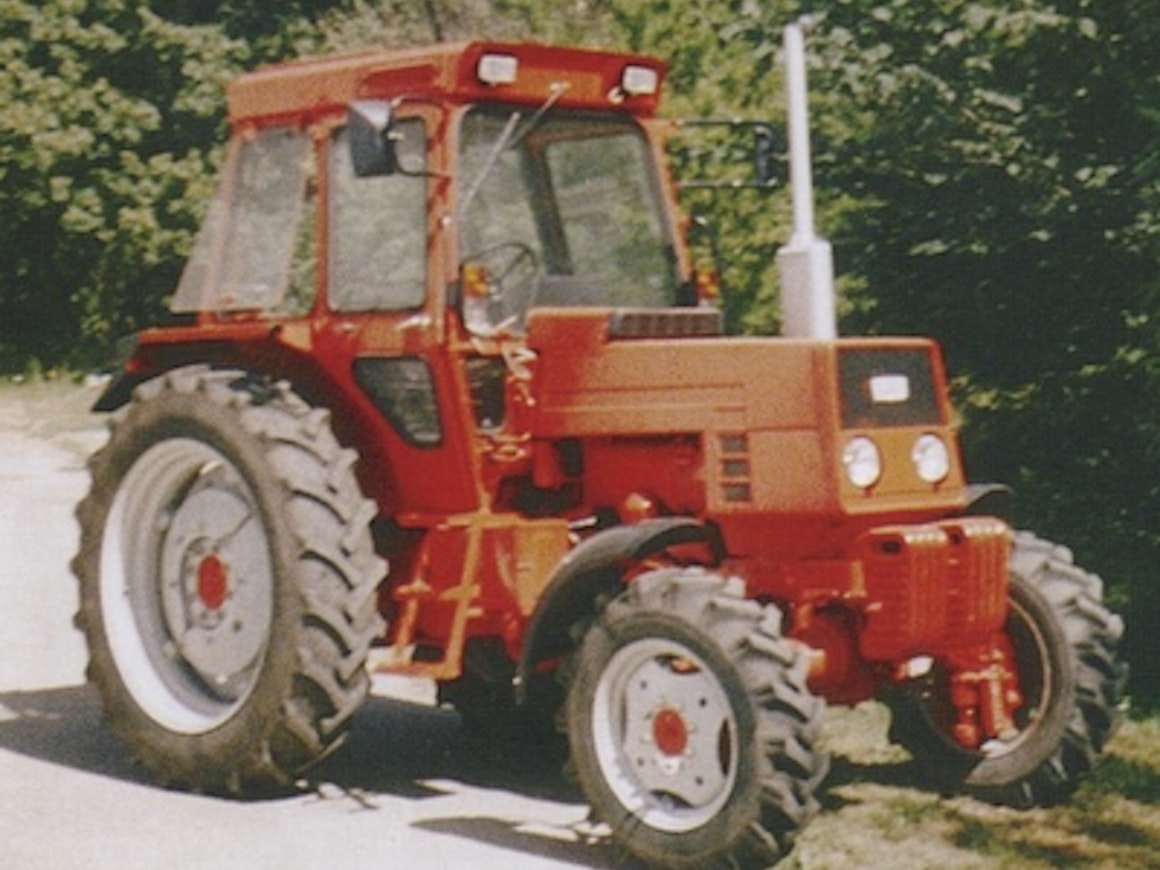

In Western Europe, as a successor to the Belarus T-40 series (known as the 400 series), the Lipetsk tractor factory introduced the LTZ-55 in 1991 and, a year later, the 60-horsepower LTZ-60. The engines were still air-cooled 4.15-liter models. However, the LTZ-60AB model featured a Minsk 4.75-liter water-cooled engine, and the LTZ-60AV had a Rybinsk 4.9-liter water-cooled engine, which was also used in JuMZ factory tractors. Alongside the traditional shuttle gearbox, a 6+1-speed transmission was added, which also included a 4+1 crawling gear. The most significant improvements compared to the T-40 were in the cabin.

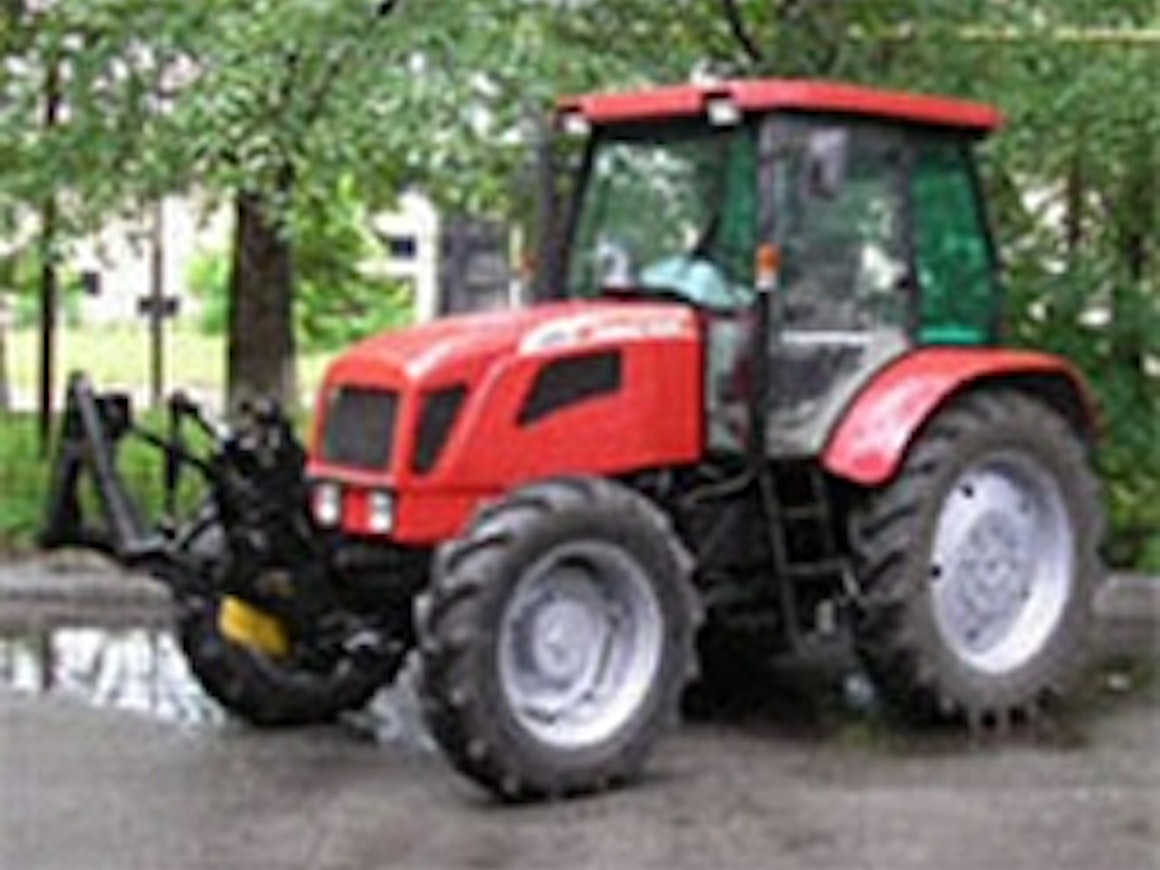

In the early 2000s, LTZ expanded its product range with two larger models, the LTZ-95 and LTZ-120. These featured engines from the Minsk factory and 16+8 transmissions. Production of these apparently remained limited. Like the smaller models, these were also manufactured or at least showcased at exhibitions in both angular and rounded versions. LTZ went bankrupt in 2004, and the final effort in Lipetsk tractor production ended in 2009.
This is an automated translation. Please report any issues in the translation.
| Model | LTZ-55 | LTZ-60A | LTZ-60AB | LTZ-60AV | LTZ-95B | LTZ-120B |
|---|---|---|---|---|---|---|
| Imported to Finland | No | No | No | No | No | No |
| Years | 1991-2003 | 1994-2009 | 1994-2009 | 1998-2005 | -2009 | -2009 |
| Engine model | D144 | D144 | D-248 | D65M1L | D-245.5 | D-245.16 |
| Cyl/Turbo/Intercooler | 4 | 4 | 4 | 4 | 4 | 4TI |
| Displacement | 4150 cm³ | 4150 cm³ | 4750 cm³ | 4940 cm³ | 4750 cm³ | 4750 cm³ |
| Bore x stroke | 105×120 mm | 105×120 mm | 110×125 mm | 110×130 mm | 110×125 mm | 110×125 mm |
| Rated power | 55/1800 hp DIN/rpm | 60/2000 hp DIN/rpm | 57,5/2000 hp DIN/rpm | 60/2000 hp DIN/rpm | 88/1800 hp DIN/rpm | 115/1800 hp DIN/rpm |
| Gears | 10+2/8+8 | 7+7 | 10+2/7+7 | 10+2/7+7 | 16+8 | 16+8 |
| Reverser | -/x | x | -/x | -/x | - | - |
| Speeds in km/h | 2,0-25,0/ 1,8-30,0 | 3,4-30,0 | 2,5-30,0/ 3,4-30,0 | 2,5-30,0/ 3,4-30,0 | 2,1-38,6 | 2,1-38,6 |
| Hydr. flow l/min | 51 l/min | 51 l/min | 51 l/min | 51 l/min | 60 l/min | 60 l/min |
| Hydraulic pressure | 175 bar | 175 bar | 175 bar | 175 bar | - | - |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 1500 kg | 1500 kg | 1500 kg | 1500 kg | - | - |
| PTO speeds | 540/ajov. | 540/ajov. | 540/ajov. | 540/ajov. | 540/1000/ajov. | 540/1000/ajov. |
| Brakes | dry disc | dry disc | dry disc | dry disc | dry disc | dry disc |
| Steering | power/hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Front tyres 2WD | 6.50-16 | - | - | - | - | - |
| Front tyres 4WD | 8.30-20 | 8.30-20 | 8.30-20 | 8.30-20 | 12.4R28 | 12.4R28 |
| Rear tyres 2WD | 13.6R38 | - | - | - | - | - |
| Rear tyres 4WD | 13.6R38 | 13.6R38 | 13.6R38 | 13.6R38 | 15.5R38 | 15.5R38 |
| Weight 2WD | 2900 kg | - | - | - | - | - |
| Weight 4WD | 3075 kg | 2910 kg | 3330 kg | 3380 kg | 4380 kg | 4430 kg |
| Height with cab | 256/260 cm | 256 cm | 256 cm | 256 (242) cm | 285 cm | 285 cm |
| Length (2WD/4WD) | 375/392 cm | 392 cm | 395 cm | 395 cm | 420 cm | 420 cm |
| Wheelbase (2WD/4WD) | 214/225 cm | 225 cm | 225 cm | 228 cm | 254 cm | 254 cm |
| Fuel tank | 70 l | 70 l | 70 l | 70 l | 170 l | 170 l |
| Solid cab | x | x | x | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | friction lock | friction lock |
| Creeper gear | x/- | - | - | - | - | - |
| Turning circle m 4WD | - | - | - | - | 9.4 | 9.4 |
