Belarus 3522-4522

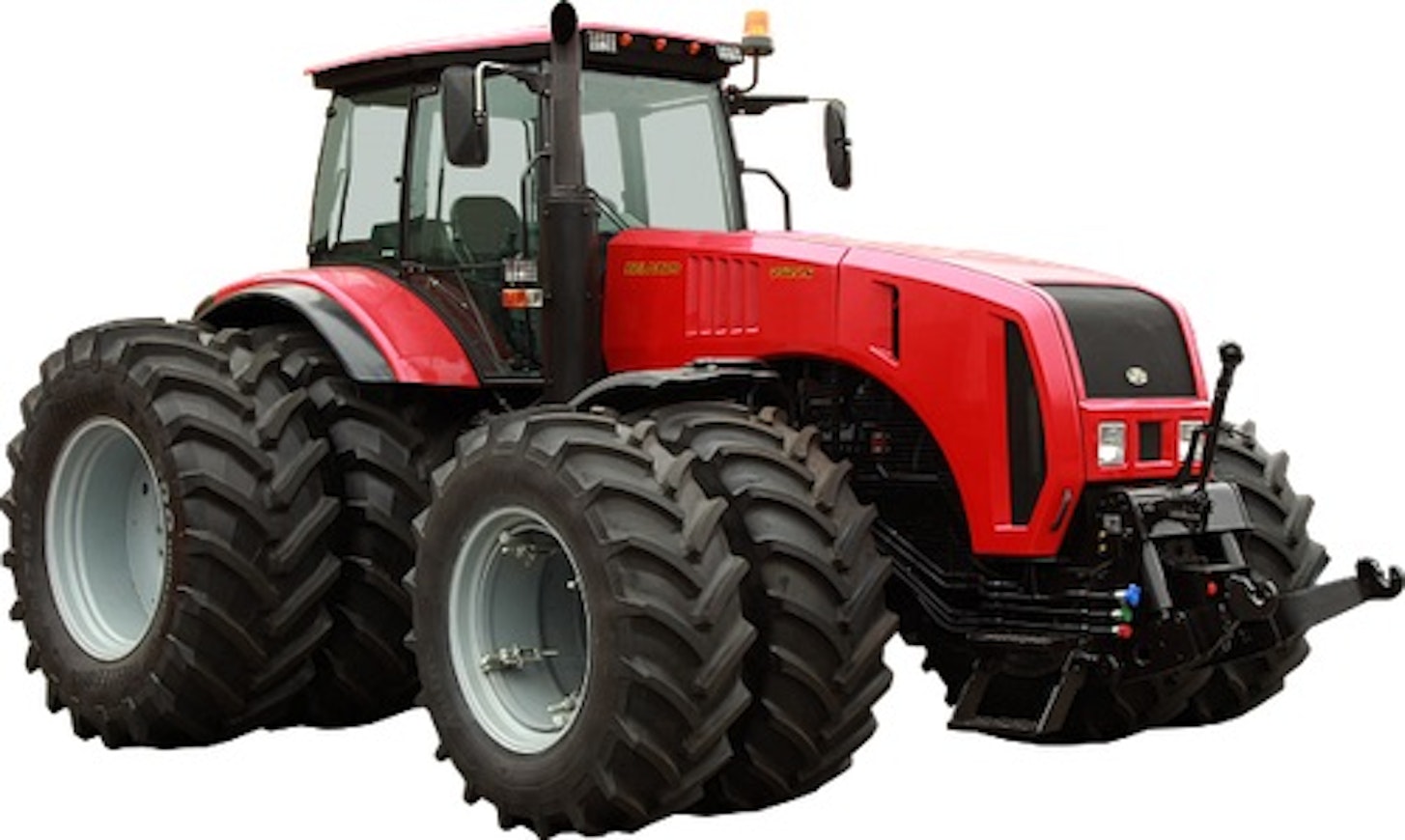

Based on the Belarus 3022, in 2009 a more powerful model 3522 was introduced, equipped with a 7.1-liter Deutz engine. The hydraulics with an adjustable displacement pump were purchased from Rexroth. The transmission was mechanical 24+12 (with creeping gears 36+24) and featured a 6-speed quick shift. The clutch was a dry 2-plate type.
In 2015, the only versions meeting Western requirements were the Stage IIIb-compliant 3522.5, which had a Deutz engine, and the 3522.6 equipped with a Cummins engine.

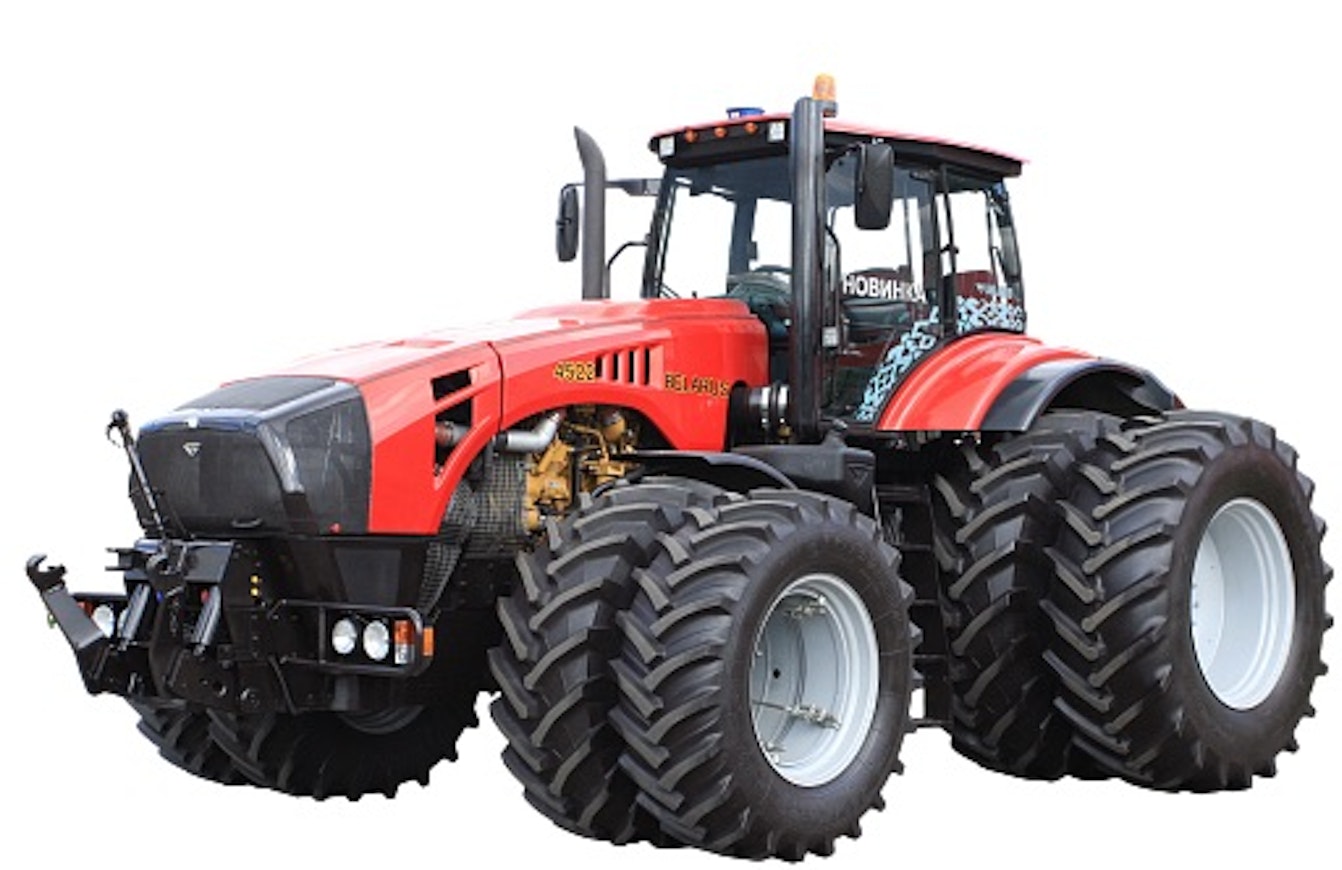

In 2016, a 466-horsepower prototype Belarus 4522 was introduced, which entered the sales program in 2019. At that time, its engine was a 12.5-liter Caterpillar with a power output of 431 hp.
This is an automated translation. Please report any issues in the translation.
| Model | Belarus 3522 | Belarus 3522 | Belarus 3522.5 | Belarus 3522.6 | Belarus 3522 | Belarus 3525.6 | Belarus 4522 |
|---|---|---|---|---|---|---|---|
| Options | |||||||
| Manufacturer name | Belarus | Belarus | Belarus | Belarus | Belarus | Belarus | Belarus |
| Imported to Finland | No | No | No | No | No | No | No |
| Years | 2009-18 | 2018- | 2013- | 2015-16 | 2019- | 2017- | 2019- |
| First year sold | 2009 | 2018 | 2013 | 2015 | 2019 | 2017 | 2019 |
| Last year sold | 2018 | - | - | 2016 | - | - | - |
| Engine model | TCD 2013 L 06-4L | TCD 2013 L 06-4L | TCD 7.8L6 | Cummins QSL9 | Cummins QSL8.9-C360 | Cummins QSL9 | Caterpillar C13 |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI |
| Displacement | 7146 cm³ | 7146 cm³ | 7750 cm³ | 8900 cm³ | 8900 cm³ | 8900 cm³ | 12500 cm³ |
| Bore x stroke | 108×130 mm | 108×130 mm | 110×136 mm | 114×145 mm | 114×145 mm | 114×145 mm | 130×157 mm |
| Rated power hp/rpm DIN | 355/2200 | 355/2200 | 335/2200 | 350/2100 | 359/2100 | 355/2100 | 431/? |
| Rated power | 355 | 355 | 335 | 350 | 359 | 355 | 431 |
| Rated speed | 2200 | 2200 | 2200 | 2100 | 2100 | 2100 | - |
| Torque Nm/rpm DIN | 1498/? | 1498/? | 1449/? | 1627/? | 1500/? | 1627/? | 2048/? |
| Gears | 24+12 | 36+24 | 36+24 | 36+24 | 36+24 | 30+12 | 16+8 |
| Synchronized gears | 24+12 | 36+24 | 36+24 | 36+24 | 36+24 | 30+12 | 16+8 |
| Powershift gears | 6-step | 6-step | 6-step | 6-step | 6-step | 6-step | powershift |
| Speeds in km/h | 2,4-40,0 | 0,4-40,0 | 0,4-40,0 | 0,3-40,0 | 0,3-40,0 | 0,4-39,9 | 3,4-38,0 |
| Hydr. flow l/min | 120/160 l/min | 160 l/min | 160 l/min | 120 l/min | 160 l/min | 160 l/min | 200 l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar | 215 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 10000 kg | 10000 kg | 10000 kg | 10000 kg | 10000 kg | 10000 kg | 11500 kg |
| PTO speeds | 1000/1450 | 1000/1450 | 1000/1450 | 1000/1450 | 1000/1450 | 1000/1450 | 1000/1450 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 13 | 13 | 13 | 13 | 13 | 13 | 13 |
| Front tyres 4WD | 600/65R34 | 600/65R34 | 600/65R34 | 600/65R34 | 600/65R34 | 600/65R34 | 600/70R34 |
| Rear tyres 4WD | 710/70R42 | 710/70R42 | 710/70R42 | 710/70R42 | 710/70R42 | 710/70R42 | 710/75R42 |
| Weight 4WD | 11500 kg | 11500 kg | 12300 kg | 11900 kg | 12300 kg | 11900 kg | 14785 kg |
| Height with cab | 335 cm | 335 cm | 335 cm | 335 cm | 335 cm | 335 cm | 363 cm |
| Length (2WD/4WD) | 650 cm | 650 cm | 650 cm | 625 cm | 650 cm | 654 cm | 710 cm |
| Wheelbase (2WD/4WD) | 301 cm | 301 cm | 300 cm | 300 cm | 300 cm | 300 cm | - |
| Fuel tank | 500/650 l | 650 l | 650 l | 650 l | 650 l | 650 l | 650 l |
| Solid cab | x | x | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock |
| Autom. differential locks | x | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x | x |
| Creeper gear | opt. | x | x | x | x | x | x |
